Siemens NCC-G16 Manual de usuario

Fire Safety

P/N 315-096334-2

Siemens Building Technologies, Inc.

8 Fernwood Road

Florham Park, New Jersey 07932

Siemens Building Technologies, Ltd.

2 Kenview Boulevard

Brampton, Ontario L6T 5E4 CN

Installation Instructions

FireFinder Upgrade Kits

NCC-G16, NCC-16T

NCC-1T-UK, NCC-2T-UK, NCC-3T-UK, NCC-4T-UK

NCC-GL1

OPERATION

The FireFinder (NCC) Upgrade Kits expand the

operating parameters of an existing NCC system as

follows:

• NCC-G16: provides an existing NCC graphics

system with the capability to control/monitor

additional 16 MXL panels

• NCC-16T: provides an existing NCC text system

with the capability to control/monitor additional 16

MXL panels

• NCC-1T-UK allows an existing NCC-1T (16

node/text) to upgrade to a NCC-1G (16 node/

graphics)

• NCC-2T-UK allows an existing NCC-2T (32

node/text) to upgrade to a NCC-2G (32 node/

graphics)

• NCC-3T-UK allows an existing NCC-3T (48

node/text) to upgrade to a NCC-3G (48 node/

graphics)

• NCC-4T-UK allows an existing NCC-4T (64

node/text) to upgrade to a NCC-4G (64 node/

graphics)

• NCC-GL1 allows an existing NCC-GL system to

upgrade to a NCC-1G (16 node/graphics)

All FireFinder (NCC) upgrade kits are compatible with

both the NCC OS/2 version and NCC NT™ version.

The minimum NCC software revision required to

recognize the NCC software upgrade keys is 2.23 for

the OS/2 version and 4.01 for the NT™ version.

FireFinder Upgrade Kits include an NCC Upgrade

Software Key and NCC Manual (not included with the

NCC-16 or NCC-GL1 series). The existing NCC

components such as NCC software program,

keyboard templates, and NCC-1F card remain the

same.

INSTALLATION

1.Your existing NCC computer should have the

original NCC software key plugged into the LPT

2 port as shown in Figure 1 on the next page.

2.Insert your NCC upgrade software key directly

into the existing NCC software key. Secure key

connection with screw terminals. See Figure 2

on the next page.

3.Once the NCC upgrade software key is securely

attached to the original NCC software key, reboot

the computer.

Figure 1

Original NCC Software Key Placement

See Notes 3 and 4

Flexible Conduit

(User Supplied)

Conduit

AC Main

120 VAC 60Hz

To Parallel Printer

See Notes 3 and 5

SCD19TM or SCD21TM

See Notes 1, 2, 3, 4, and 5

*The COM port on the Main

CPU must be disabled if

NCC-1F is being used.

See Note 13

Computer (rear view)

Junction

Box

(user

supplied)

120 VAC

60 Hz

Monitor

(rear view)

Touch

Interface

Port A

Mouse

Keyboard

Ethernet

COM 2

Elo Touch Screen

Controller Card

See Note 14

Sound

Card

VIDEO

LPT1

(NCC Key)

LPT PORT 2

(NCC Key)

LPT PORT 2

NOTES:

1. NCC-1F card is installed in a 16-bit ISA

slot and is set for COM2.

2. Connect the keyboard and mouse to the

computer's keyboard and mouse ports

following the computer's installation

instructions.

3. NFPA 72 Proprietary and Local System

installation requires that the computer,

monitor, and printer be UL rated for fire

(SIEMENS Models SCD550, SCD550T,

SCD19M, SCD19TM, SCD21M,

SDC21TM and PAL-1, respectively).

4. The computer is supervised for power

and connection to MXL.

5. The printer is supervised for AC, on/off

line, paper out, paper jam, and connec-

tion to the computer by NCCNT-G

software at the computer.

6. All circuits are power limited.

7. Cable must be in rigid conduit and cannot

leave the room.

8. Shielded cable is not recommended.

9. Power limited to NFPA 70 per NEC 760.

10.Maximum voltage: 24V peak to peak.

11. Maximum current: 20mA per circuit.

12.LPT2 has software key.

13.The COM Port on the Main CPU is

disabled. The Serial Port on the Serial

Parallel Adapter card takes on the

identification of COM1. The NCC-1F card

is identified as COM2.

14.If you are using model SCD-19M, the

touch screen controller card is not

installed.

15.Pin 1 & 2 of the LPT2 board can be wired

to a TRI module to monitor the status of

the computer's CPU.

Figure 2

Connecting The Upgrade NCC Software Key To The Existing NCC Software Key

4.To reboot the NCC computer, first press the Alt +

F4 keys simultaneously to close the NCC program.

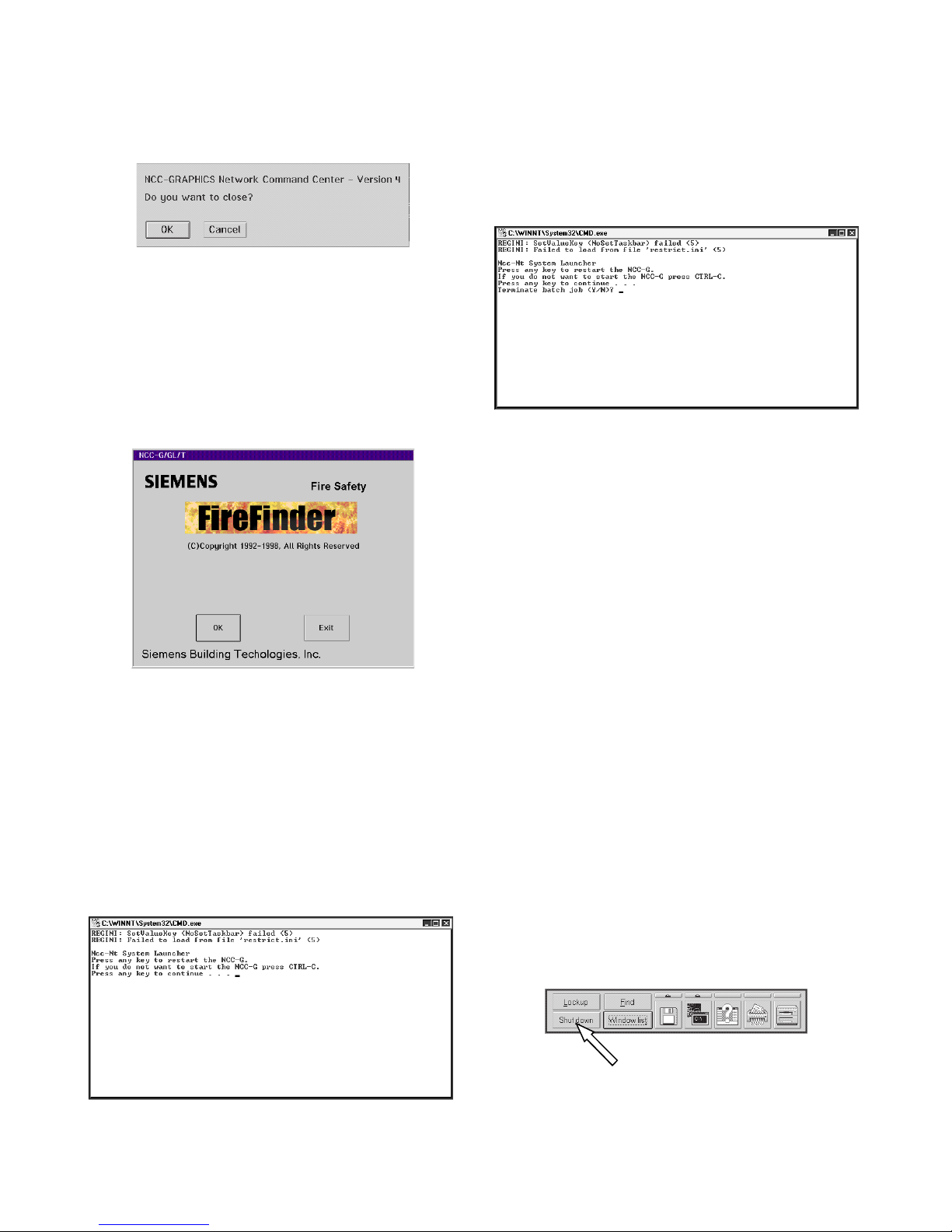

The following window pops up:

Figure 3

NCCNT Command Center Close Window

Click the OK button. The same window pops up a

second time. Click on the OK button again.

As the NCC program is rebooting, the following

screen will display briefly:

Figure 4

FireFinder Splash Screen

5.Immediately click the EXIT button to halt the NCC

start up process.

WINDOWS NT™

C:\WINNT\System32\CMD.exe appears in the toolbar

at the bottom of the computer screen. Click on this

filename to maximize to the following window:

Figure 5

C:\WINNT\System32\CMD.exe Screen

In this window, you will see the statement: If you

do not want to restart the NCC, hit CTRL-C.

Press the Ctrl key and the C key simultaneously.

The following statement appears: Terminate

batch job (Y/N)? as shown in the following

window:

Figure 6

Terminate Batch Job (Y/N)? Screen

Choose Yand press ENTER.

From the Windows NT Start Button, click on

Shut Down. From the Shut Down menu, choose

the option to restart and press OK.

The FireFinder Splash Screen appears (see

Figure 4). Click OK or ignore it to proceed.

OS/2

When the “STARTUP.CMD” window appears,

you may do any one of the following:

• Press CTRL+C to exit the startup loop

• Open a new command window from the launch

pad

• Shutdown the system

Select Shutdown on the LaunchPad.

P/N 315-096334-2

Siemens Building Technologies, Inc.

8 Fernwood Road

Florham Park, New Jersey 07932

Siemens Building Technologies, Ltd.

2 Kenview Boulevard

Brampton, Ontario L6T 5E4 CN

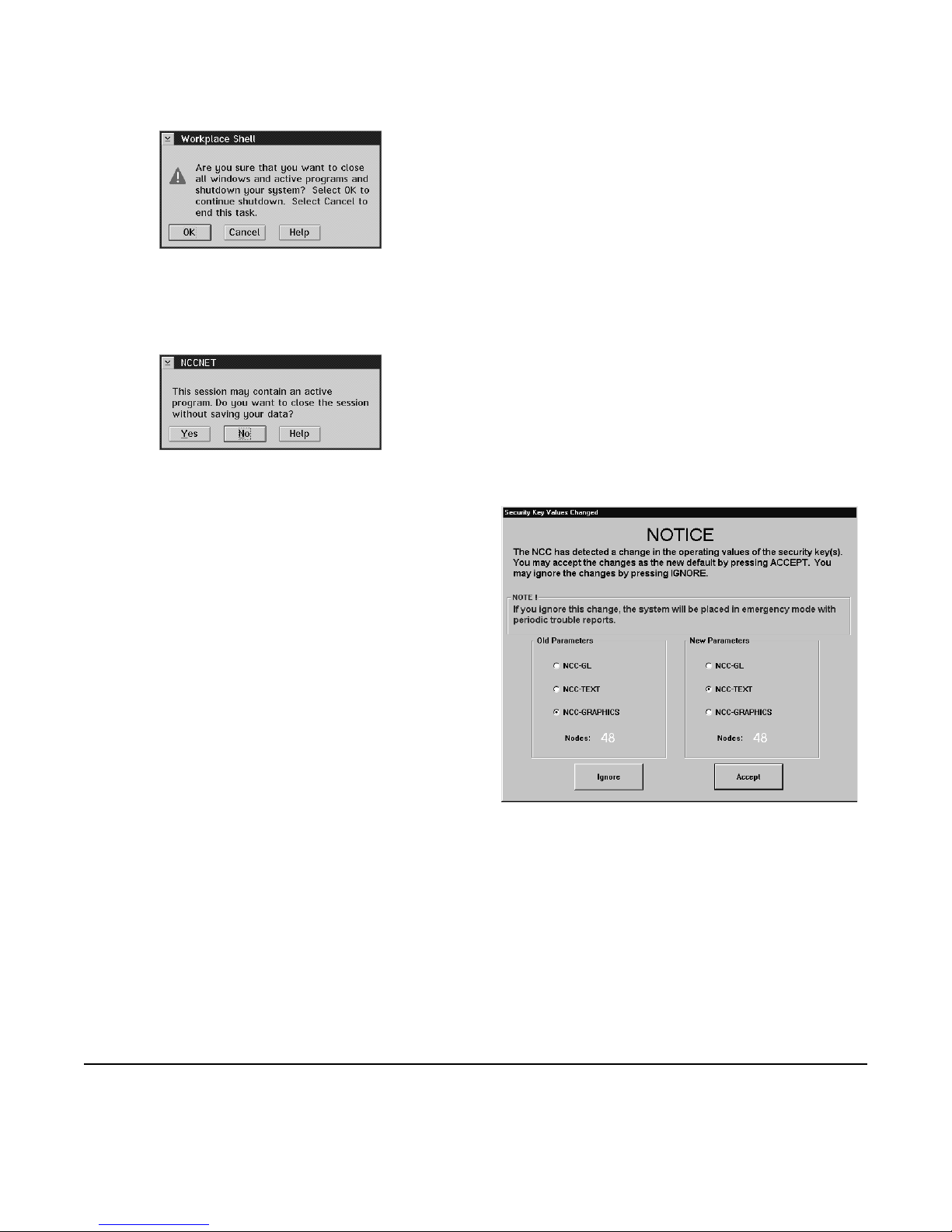

The following window appears:

Select OK. The following window appears:

Close any active programs that are still running by

clicking on the “Yes” button. (One window will pop

up for each active program.) When Shutdown

indicates it is now safe to restart your computer,

use the CTRL-ALT-DEL keys to reboot the sys-

tem.

The FireFinder Splash Screen appears (see

Figure 4). Click OK or ignore it to proceed.

6.Log On to the NCC. The extended operating

parameters will now be available. For example, if

you ordered the NCC-16T, your network menu will

now have an additional 16 node incremental tab.

You can access the network menu by pressing the

MORE-SETUP-NETWORK button sequence.

NCC-T-UK series

If you are installing any of the NCC-T-UK series, you

will need to enable the graphics display option. To

enable the graphics display option, hit the MORE

button on the main display, then hit the SETUP button.

From the system setup notebook, hit the DISPLAY

tab. You will see the enable graphics display option.

Click in the adjacent box so that a check mark ()

appears next to the option. This check mark assures

that the option has been activated. Once activated, hit

the SAVE button to save this option; then hit DONE to

get back to the main display.

Once the graphics feature is turned on, the other

graphic specific features are accessible. For instance,

by pressing the MORE-SETUP button sequence you

can now see graphic specific options highlighted (such

as the Images option).

Note: If the screen below appears after the NCC

program has been rebooted, you should double-check

the model number on the NCC Upgrade Key. The

appearance of this screen indicates that an NCC key

with less features than the original NCC system has

been attached.

Figure 7

Security Key Values Changed Screen

If the NCC Key Model number is accurate, please

contact Siemens, Fire Safety Technical Support

Department at 1-800-248-7976.
