Introduction 1
1.1 Included in shipment
• 12M bus terminal order no. 6GK1 500-0AA10

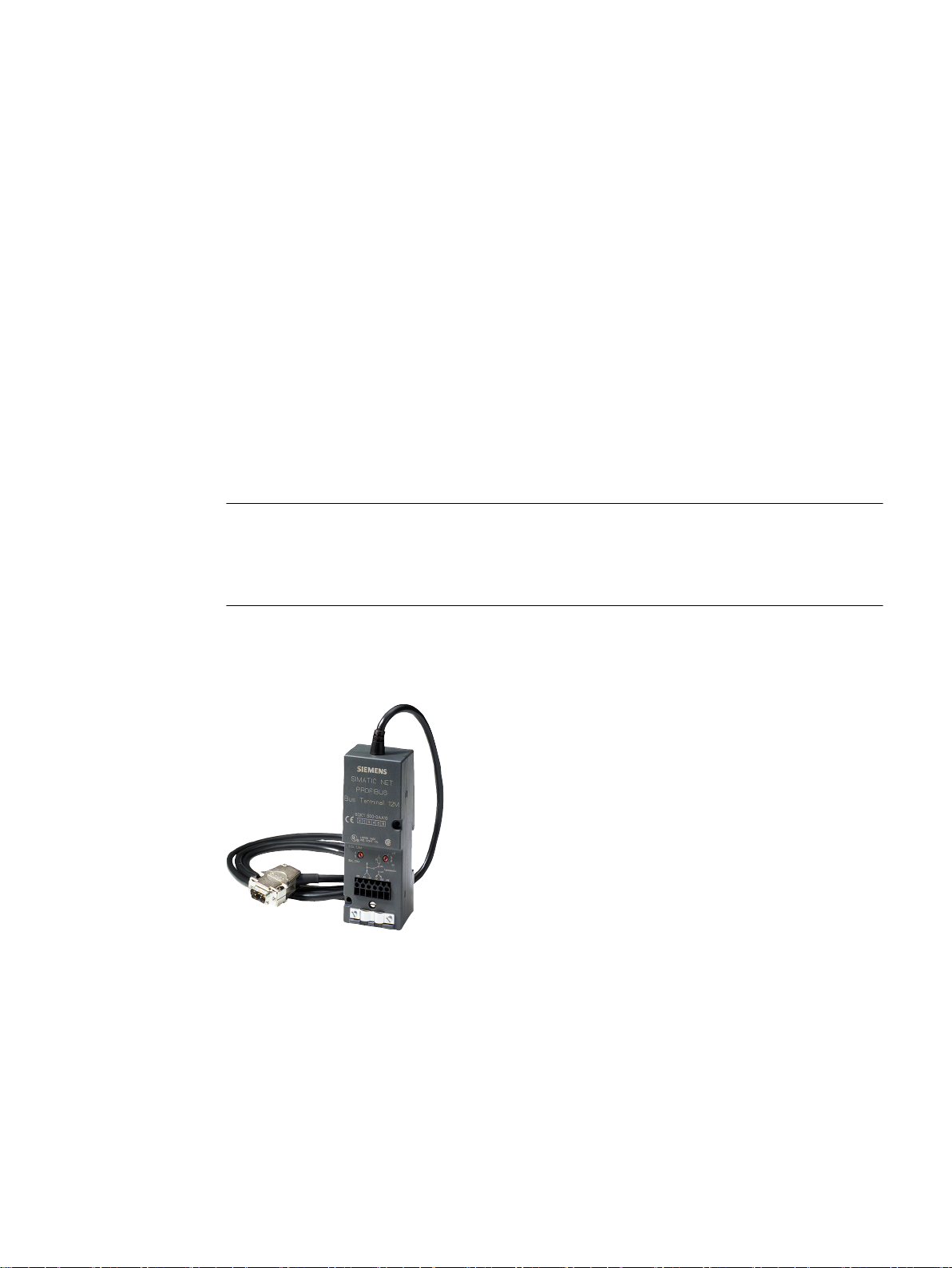

1.2 Description of the product
Function
The 12M bus terminal is used to attach data terminal equipment (DTE) with an RS-485 interface
to a bus cable.
Note
A maximum of 32 12M bus terminals can be connected to one bus segment.
If other components, such as repeaters are connected to a bus segment, this reduces the
maximum number of 12M bus terminals that can be connected.
Operator controls
The bus terminal consists of the following elements and controls:
• 1 terminal block with 6 terminals for wires with a cross-sectional area of ≤ 1.5 mm2
With this terminal block you can connect the incoming and outgoing bus cable and, if
necessary, Protective Earth (PE).
• Screw down clamps for shield contact
12M bus terminal
Operating Instructions, 06/2022, C79000-G8976-C333-02 7
• 2 switches:
– right-hand switch ("Termination")
With the right-hand switch, you can terminate the end of an incoming, electrical segment
(A1, B1) with the characteristic impedance (switch on). At the same time, the outgoing,
electrical segment (A2, B2) is interrupted.
– left-hand switch
With the left-hand switch you can set the range of the transmission speed 9.6 kbps... 1.5
Mbps and 3 Mbps...12 Mbps.
• A 1.5 m long spur line with a 9-pin D-sub male connector
You can connect a DTE directly to this spur line.
3($%$%3(RIIRQRIIRQN0007HUPLQDWLRQ5
Figure 1-1 Operator controls
Terminal block
Short name Meaning
PE Protective earth connected to the cable shield and DIN rail
A1 Signal line A of the incoming segment side
B1 Signal line B of the incoming segment side
A2 Signal line of the outgoing segment side
B2 Signal line of the outgoing segment side
PE Protective earth connected to the cable shield and DIN rail
Terminal block
The following is recommended for PROFIBUS:
• Terminal A - green wire
• Terminal B - red wire
Termination
Activate the termination on the rst and last node of the bus segment.
If termination is activated (termination on), the connection between the incoming (A1, B1) and
outgoing (A2, B2) segment is interrupted. If the wrong bus terminating resistors are activated,
it is no longer possible to access stations downstream from the bus terminal. When a segment
is put into operation, there must therefore be no bus terminating resistors activated that are not
located at the start or end of the network.
Introduction
1.2 Description of the product
12M bus terminal
8Operating Instructions, 06/2022, C79000-G8976-C333-02
D-sub male connector
The D-sub male connector is plugged into the D-sub female connector of the DTE and secured
by screws. The 12M bus terminal requires a current of 90 mA with a voltage of 5 V supplied by
the DTE between pins 5 (M5) and 6 (P5) of the D-sub male connector.
Pin no. Short name Meaning
1 PE Protective earth, connected to the cable shield
2 nc
3 B (RxD/TxD-P) Signal line B
4 nc
5 M5 (DGND) Chassis connection of the 5 volt supply
6 P5 (VP) + 5 volt connection, 90 mA required
7 nc
8 A (RxD/TxD-N) Signal line A
9 nc
Casing PE Protective earth, connected to the cable shield
D-sub male connector pinout
The impedance of the PROFIBUS interface when receiving must be ≥ 10 kilohms (according to
the EIA standard RS-485). The spur line must not be terminated.
Segment length and transmission speed
Transmission speed maximum segment length
9.6 - 187.6 kbps 800 m
500 kbps 400 m
1.5 Mbps 200 m
3 - 12 Mbps 100 m
Permitted segment lengths
Bus cable for PROFIBUS, standard type (see catalog IK PI).
Note
Restriction when using the 12M bus terminal at 500 kbps
This restriction only aects segments longer than 80 m.
If the 12M bus terminal is used at a transmission rate of 500 kbps along with several RS-485 bus
terminals with a spur line length of 3.0 m, a minimum distance of 5 m of PROFIBUS cable must
be maintained between two RS-485 bus terminals.
You can locate 12M bus terminals anywhere in the segment; there is no minimum distance
between them that needs to be kept to. You can also arrange a 12M bus terminal between two
RS-485 bus terminals with 3.0 m spur lines if you make sure that the PROFIBUS cable between
two RS-485 bus terminals has a total length of at least 5 m.
Introduction
1.2 Description of the product
12M bus terminal
Operating Instructions, 06/2022, C79000-G8976-C333-02 9
1.3 Compatible devices
Table 1-1 Connectable devices that can supply 90 mA at 5V.
Name Master slave Comments BT12M can be used
SIMATIC S5
IM 308-C M + S yes
CP 5431 FMS/DP M yes
S5-95U/DP M + S yes
SIMATIC S7-200
CPU 215-DP S yes
CP 242-8 S yes
SIMATIC S7-300
CP 342-5 M + S yes
CP 343-5 M yes
CPU 313/314/315/316 M yes
CPU 315-2 DP M + S yes
SIMATIC S7-400
CP 342-5 M + S yes
CP 413-2 DP M yes
CPU 414-2 DP M yes
PC modules
CP 5412A2 M yes
CP 5411 M yes
CP 5611 M yes
CP 5613 M yes
Distributed I/O
ET 200M S via IM 153 yes
ET 200U S via IM 318-C yes
ET 200B S all versions yes
Miscellaneous
RS-485 repeater - yes
OLM-V3 - yes
DP/RS485 S DP interface module for line
circuit breaker
3WN6 (only 0..60 °)
yes
DP/AS-i Link IP20 S AS-i connection to PROFIBUS
DP,
degree of protection IP20
yes
TI
SIMATIC 505-FIM M Slave SIMATIC 505-6870
PROFIBUS-DP RBC
Master complete SIMATIC 505
series
yes
Introduction
1.3 Compatible devices
12M bus terminal
10 Operating Instructions, 06/2022, C79000-G8976-C333-02
Otros manuales para SIMATIC NET
17
Tabla de contenidos
Otros manuales de Hardware de red de Siemens
Siemens
Siemens NK8000 MP.4.60 Manual de lista de piezas
Siemens
Siemens RUGGEDCOM WIN5114-V-GPS Manual de usuario
Siemens
Siemens SIMATIC TIWAY 1 Manual de usuario
Siemens
Siemens SIMATIC NET CP 243-2 Manual de usuario
Siemens
Siemens RUGGEDCOM MX5000RE Documento técnico
Siemens
Siemens S223 Manual de usuario
Siemens
Siemens SCALANCE W788C-2 Manual de usuario
Siemens
Siemens Sinumerik 810T Manual de usuario
Siemens
Siemens SIMATIC NET S7-1500 Manual de usuario
Siemens
Siemens SIMATIC NET SCALANCE X-100 Series Manual de usuario
Siemens
Siemens FastConnect RJ45 Plug 90 Manual de usuario
Siemens
Siemens RUGGEDCOM WIN5149 Manual de usuario
Siemens
Siemens RUGGEDCOM RX1400 Manual de usuario
Siemens
Siemens SIRIUS 3RA2913-2BB1 Manual de usuario
Siemens
Siemens Gigaset M 101 Data Manual de usuario
Siemens
Siemens Simatic S7-400 Manual de usuario
Siemens
Siemens SIMATIC NET Hoja de instrucciones
Siemens
Siemens SICAM SGU 7XV5676 Manual de usuario
Siemens
Siemens RUGGEDCOM RX1511 Manual de usuario
Siemens
Siemens SIMATIC NET RUGGEDCOM RX1536 Manual de usuario
Manuales populares de Hardware de red de otras marcas
Matrix Switch Corporation
Matrix Switch Corporation MSC-HD161DEL Manual de usuario
B&B Electronics
B&B Electronics ZXT9-IO-222R2 Manual de usuario
Yudor
Yudor YDS-16 Manual de usuario
D-Link
D-Link ShareCenter DNS-320L Manual de usuario
Samsung
Samsung ES1642dc Instrucciones de uso
Honeywell Home
Honeywell Home LTEM-PV Instrucciones de montaje
