CIELO®2

Siemens Hearing Instruments

CIELO 2 BTEs 1

Your CIELO®2 hearing instrument

Siemens CIELO®2 Behind-the-Ear (BTE)

hearing instruments are designed for comfort,

performance and durability. Your BTE will look

similar to one of the following illustrations

(Fig.1).

CIELO 2 Life

Fig. 1: Location of features

Battery

compartment

door

Microphone

ports

Programming

socket*

LifeTube

LifeTip Adapter

LifeTip

2 Siemens Hearing Instruments

CIELO 2 S

CIELO 2

Earhook

Battery

compartment

door

Audio

input flap

Volume control

wheel Programming

socket*

Microphones

Memory button

Battery

compartment door

Earhook

Programming socket*

Directional microphones

CIELO 2 BTEs 3

CIELO 2 P

CIELO 2 SP

*For Hearing Care Professionals use only.

Memory button

Volume

control wheel

Audio input

Programming socket*

Battery

compartment door

Earhoo

Microphones

Memory button

Volume

control wheel

Audio input

Programming socket*

Battery

compartment door

Microphones

Earhoo

4 Siemens Hearing Instruments

Digital technology

Inside your hearing instrument, the microphone,

analog-to-digital converter, digital signal

processor, receiver and other specialized

components process sound that is directed to the

eardrum and auditory system.

The microphone picks up sound waves from

the air and converts them to electrical signals.

The analog-to-digital converter encodes the

electrical signals into a format that is usable

by the digital signal processor.

The digital signal processor has been

programmed by your Audiologist or Hearing Care

Provider to execute the required digital signal

processing for your particular hearing loss.

CIELO 2 BTEs 5

Identifying the left and right

hearing instruments

CIELO 2 BTEs may be color-coded for your

convenience. The left ear hearing instrument may

have a blue typeplate, and the right ear hearing

instrument may have a red typeplate (Fig. 2).

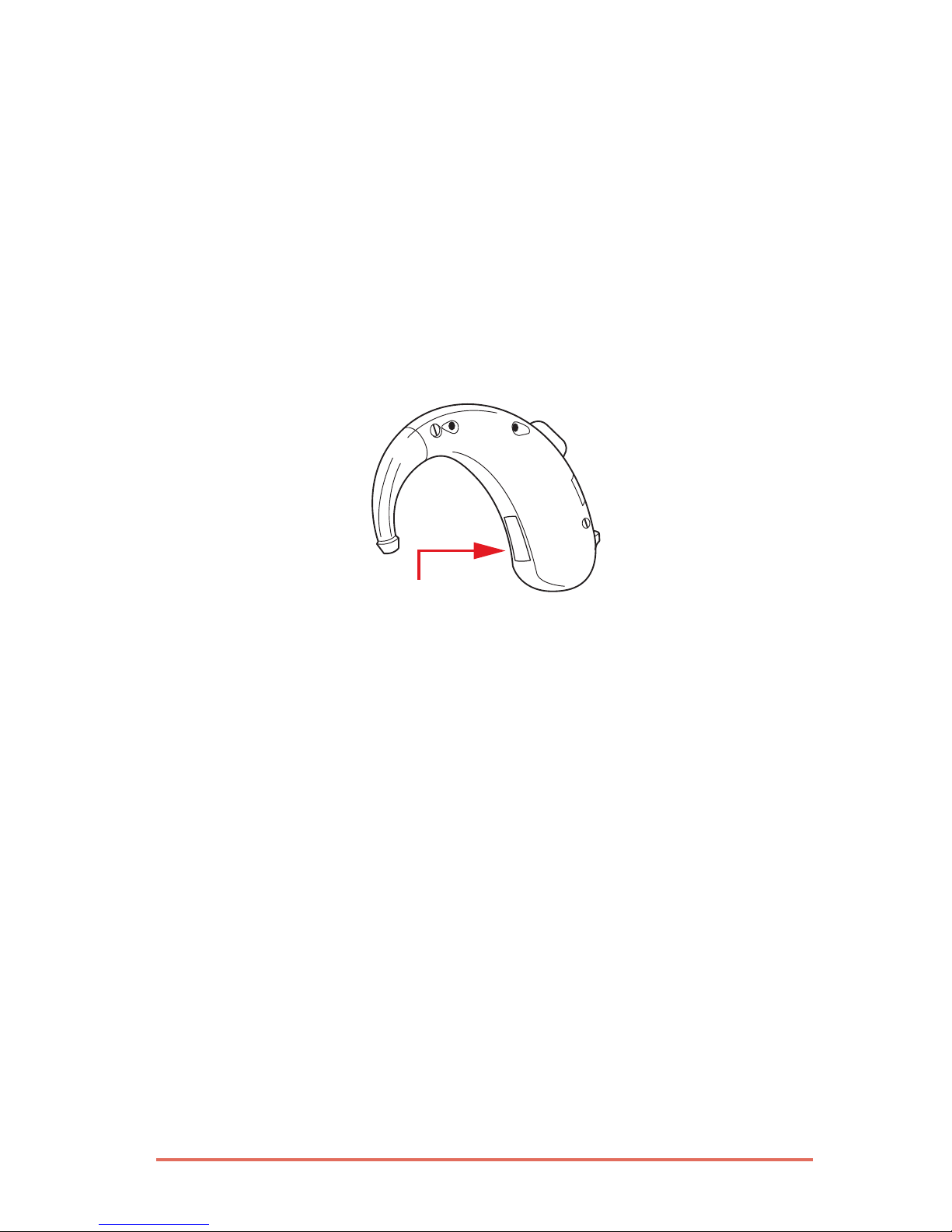

Fig. 2: Location of typeplate

Typeplate

6 Siemens Hearing Instruments

On CIELO 2 Life BTEs, the left ear hearing

instrument also has a blue number on the LifeTip

Adapter, and the right ear hearing instrument

also has a red number on the LifeTip Adapter (Fig.

3).

Fig. 3: Location of right and left designator

on LifeTip Adapter

Color-coded number

on Tip Adapter

CIELO 2 BTEs 7

Using your CIELO 2

hearing instrument

Battery size

The chart below provides the proper battery size

used in your hearing instrument. It’s

recommended that you also check with your

Audiologist or Hearing Care Provider regarding

the correct battery.

Model Battery size

CIELO 2 Life Behind-the-Ear 312

CIELO 2 S Behind-the-Ear 13

CIELO 2 Behind-the-Ear 13

CIELO 2 P Behind-the-Ear 13

CIELO 2 SP Behind-the-Ear 675

8 Siemens Hearing Instruments

Inserting the battery

To insert the battery into the hearing instrument,

swivel open the door of the battery compartment.

Place the proper size battery (see "Battery" section

or consult your Audiologist or Hearing Care

Provider) in the battery compartment so that the

"+" symbol on the battery coincides with the "+"

mark on the battery compartment door.

Gently close the battery compartment. Do not force

the door shut. If it does not close easily, check to

see if the battery was inserted properly. When the

battery door is completely closed, your hearing

instrument is ready for operation (Fig. 4/Fig. 5).

Fig. 4: Inserting the battery into

CIELO 2, CIELO 2 S, CIELO 2 P, and CIELO 2 SP

Open the

battery

compartment

Insert the

battery

Close the

battery

compartment

CIELO 2 BTEs 9

Fig. 5: Inserting the battery into CIELO 2 Life

Battery compartment door lock

(not available on CIELO 2 Life)

CIELO 2 hearing instruments are equipped with

a lock that prevents the unintentional opening of

the battery compartment. This feature is located

on the inner side of the hearing aid battery

compartment door (Fig. 5).

Pushing the slide toward the right locks the

battery compartment door. Pushing the slide

toward the left unlocks the battery compartment

for opening (Fig. 6). Your Audiologist or Hearing

Care Provider can instruct you on the use of this

feature, if required.
