Siemens NIM-1M Manual de usuario

P/N 315-099105-6

Siemens Industry, Inc.

Building Technologies Division

Florham Park, NJ

Siemens Canada Limited

Building Technologies Division

2 Kenview Boulevard

Brampton, Ontario L6T 5E4 Canada

Installation Instructions

Model NIM-1M

Network Interface Modem Module

OPERATION

The Model NIM-1M plug-in modem board from

Siemens Industry, Inc., mounts to and is connected to

the NIM-1W board to provide modem communication

capability for an MXL System XNET network.

The modem transmission line connected to the

NIM-1M can only be Style 4 and can be made using

standard 18 AWG shielded twisted pair or data

grade phone lines.

Note: A pair of NIM-1W / NIM-1M board sets is

referred to as a “bridge” in this document.

INSTALLATION

Remove all system power before installation,

first battery and then AC. To power up, connect AC

first, then the battery.

Setting the Switches

Before mounting the NIM-1M modem module on the

NIM-1W, set all the switches and configuration

jumpers on both modules. Refer to the NIM-1W

Installation Instructions, P/N 315-099165 for infor-

mation on setting the switches on the NIM-1W.

NIM-1M SETTINGS

The NIM-1M has three configuration headers (refer

to Figure 1). The NIM-1Ms are always connected in

board sets, or pairs, with NIM-1Ws to form the

bridge. Designate one board set as NIM-1M LOCAL

and the other as NIM-1M REMOTE. Program the

NIM-1Ms as shown in Table 1.

1ELBAT

sM1-MINEHTGNIMMARGORP

LACOLM1-MINETOMERM1-MIN

1PJ NO 1PJ NO

2PJ NO 2PJ FFO

3PJ FFO 3PJ NO

Mounting

The NIM-1M is mounted on the NIM-1W with 4 nylon

spacers.

1. Snap the 4 nylon spacers into place in the holes

on the underside of the NIM-1M board in the

positions indicated in Figure 2.

2. Position the 4 spacers on the NIM-1M over the 4

holes on the component side of the NIM-1W.

Refer to Figure 3 for representative location of

the NIM-1M on the NIM-1W. Press the spacers

firmly into place in the NIM-1W one at a time.

Cable Connections from NIM-1M to NIM-1W

The NIM-1M has a cable attached to the underside

of the board that connects to JP1 of the NIM-1W.

The cable plug is polarized and connects one way

only. Refer to Figure 3 for the location of JP1. Refer to

the NIM-1W installation instructions, P/N 315-

099106, for installing MXL WAN.

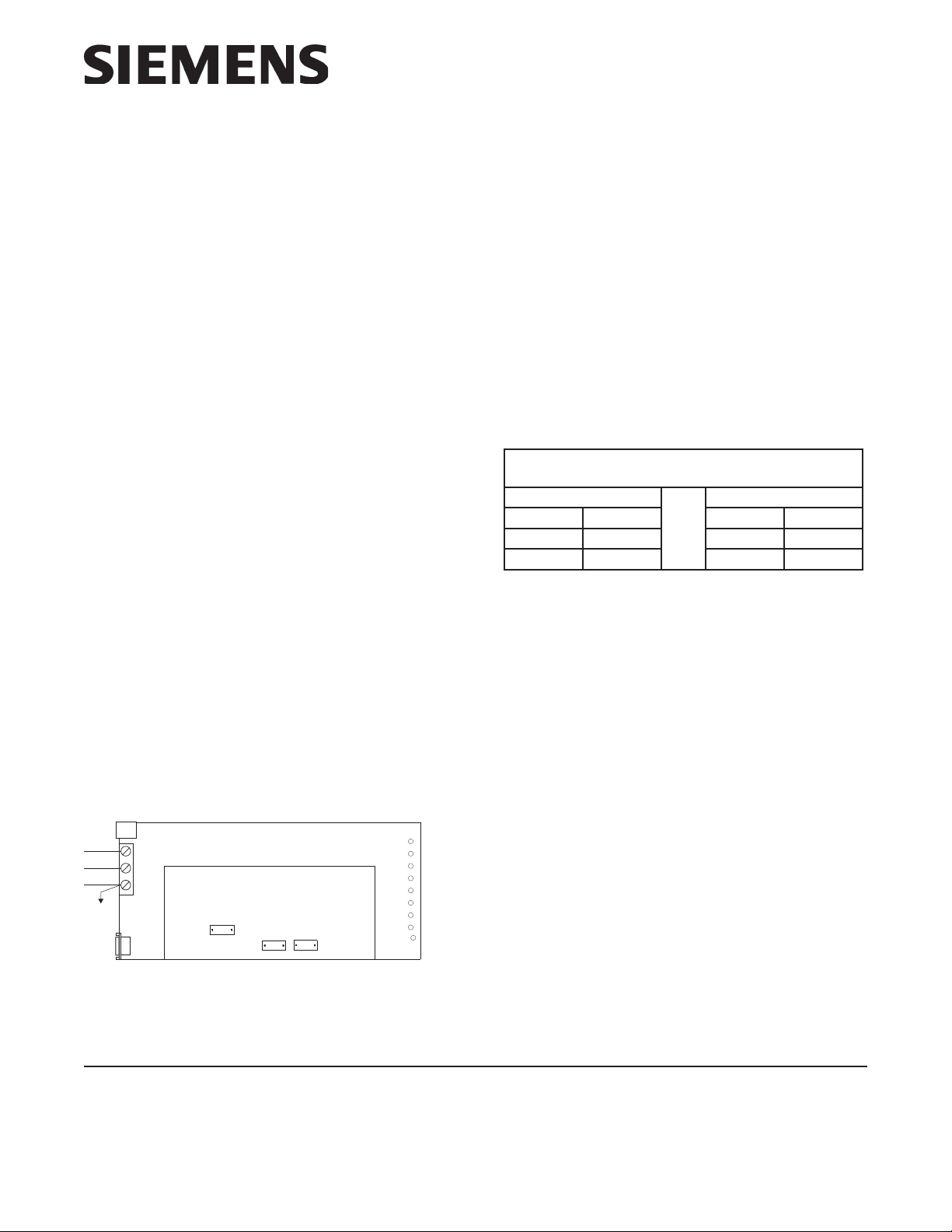

Figure 1

NIM-1M Module Board

NOTES:

1. "ON" IS WHEN THE JUMPER IS IN THE PROPER POSITION

OVER PLUGS JP1, JP2, OR JP3.

2. THE CABLE THAT CONNECTS THE NIM-1M TO THE NIM-1W

IS ATTACHED TO THE UNDERSIDE OF THE NIM-1M.

JP1

NIM-1M

TB1

SHIELD*

RING

TIP

LOCAL EARTH

GROUND

*TIE SHIELD TO EARTH GROUND AT ONE END ONLY

RTSRICDRXDTXDDTRDSRCTSPWR

JP2

JP3

Modem board

ELECTRICAL CONNECTIONS

Note: All connections to the NIM-1W / NIM-1M board

set are power limited to NFPA 70 per NEC

760. All connections are also supervised.

NIM-1M Modem Connections

Modem connection to the NIM-1M can be made

through the standard RJ11 jack (P2) or through TB1

(refer to Figure 2). If TB1 is used, connect TB1-1 TIP

Local to TB1-1 TIP Remote and TB1-2 RING Local

to TB1-2 RING Remote. P1 is for factory use only.

TB1 terminal assignments are as follows:

TB1-1 TIP

TB1-2 RING

TB1-3 LOCAL EARTH GROUND

TB1-3 must be connected to local earth ground. If

shielded cable is used, connect shield to local earth

ground at one side of modem connection only.

Note: When an MXL XNET network using the model

NIM-1W with model NIM-1M board set is

Figure 2

Installing the Spacers on the NIM-1M Module Board

JP2

JP3

JP1

NIM-1M

TB1

INSERT 4 NYLON SPACERS

IN HOLES

IN POSITIONS INDICATED BY ARROWS

ON UNDERSIDE OF

BOARD

NIM-1W

JP4

JP2

JP1

D4 D5

SW1

SW2

87654321

–

ANY

TRBL

ANY

ENABLE XMIT

JP2

JP3

JP1

NIM-1M

TB1

Figure 3

Mounting the NIM-1M Module Board on the NIM-1M Module Board

brought on line, there may be some delay in

network communications while the modems

on the model NIM-1M board establish com-

munications. This may cause a temporary

system trouble which can be cleared once

communications are established.

Refer to the NIM-1W Installation Instructions, P/N

315-099165, to continue with the installation of the

NIM-1W / NIM-1M board set.

ELECTRICAL RATINGS

P/N 315-099105-6

FSK @ 19.2kbps

Transmit level: 10 Dbm

Receive level: 43 Dbm

tnerruCeludoMCDV5evitcAAm0

tnerruCeludoMCDV42evitcAAm07

tnerruCeludoMCDV42ybdnatSAm07

NOTE: SHORT TO EARTH GROUND ON TB1, TERMINALS 1 OR 2 WILLCAUSE GROUND FAULT.
