DIS Digital Conference Systems

FC 6021 Front Plate Unit

• Chairman front plate

• Flush mounted installation

• Chairman operation

• Lockable XLR microphone connector

• Microphone button

• Delegates off button

Description

The FC 6021 front plate unit is a flush mounted unit designed to be used in com-

bination with the MU 4040 or MU 6040 C microphone units. The unit is especially

suited for installations where the flush mounted unit must take up minimal space

with minimum components. The remaining components are fitted into the MU that

can be mounted in a more spacious location.

The unit can be configured for use with the MU 4040 or MU 6040 C by moving a

jumper on the PCB on the back of the unit. The default position of the jumper is for

use with the MU 6040 C.

The flush mounted unit features a microphone and a delegates off button. The

microphone button enables the user to activate/deactivate the microphone. The

delegates off button enables the user to turn off all active delegate microphones.

The FC 6021 can be used in combination with the gooseneck microphones GM

652x or GM 6622 or the boundary microphone BM 6620.

The gooseneck microphones GM 652x or GM 6622 can be locked to the unit with

a 2 mm hex key. The lock is accessible from the small hole above the XLR socket.

Turn the hex key clockwise to enable the lock and insert the gooseneck micro-

phone into the XLR socket. Turn the hex key counter clockwise to disable the lock

and remove the gooseneck microphone.

The boundary microphone BM 6620 can be retrofitted by replacing the XLR insert

in the plastic adaptor with the boundary microphone. The molex mini-connector fits

with the microphone connector on the PCB.

The FC 6021 can be combined with any conference units from the DCS 6000

Digital Conference System.

Features

The FC 6021 has the following standard features:

• Standard conference unit for chairmen

• Fully digital audio transmission

• Daisy chain topology with loop-through connections or star

topology using junction boxes

• CAT 5e (or higher) F/UTP or U/FTP cabling

• Maximum 3800 conference units per system

• Support for four microphone operation modes; Automatic,

FIFO, Manual and VOX (voice activation)

• Support for three microphone interrupt modes enabling 'ping

pong' mode

• Auto off of microphones

• Lockable XLR gooseneck microphone connector

• Microphone and delegate off buttons with LED indicators

• Single cable connection to the MU 4040 or MU 6040 C

FC 6021 Front Plate Unit

Data sheet DS-FC6021-c

Specifications

Interconnections

MU 4040 or MU 6040 C 1 m integrated cable

Connector type HD 15P

Microphone connection 3-pin female XLR

Mechanical

Dimensions (H x W x D) 90 x 90 x 28 mm

Cut out dimensions (H x W) 75 x 75 mm (important: corner

radius maximum R3.0)

Weight 100 g

Color Black

Material Anodized aluminium

Temperature range 5° to 40° C

Certifications

The DCS 6000 system conforms to standard IEC 60914.

How To Order

Conference unit

FC 6021 15 11 57590

Accessories

MU 6040 C 15 31 58344

MU 4040 15 31 46002

Please note that gooseneck microphones GM 652x/6622, boundary micro-

phones BM 6620 and microphone units MU 6040D/4040 must be ordered

separately.

Drawing

Data subject to change without notice.

Otros manuales de Sistema de conferencias de Shure

Shure

Shure Microflex Complete Manual de usuario

Shure

Shure DM 6680 P Manual de usuario

Shure

Shure Microflex Complete MXC Series Manual de usuario

Shure

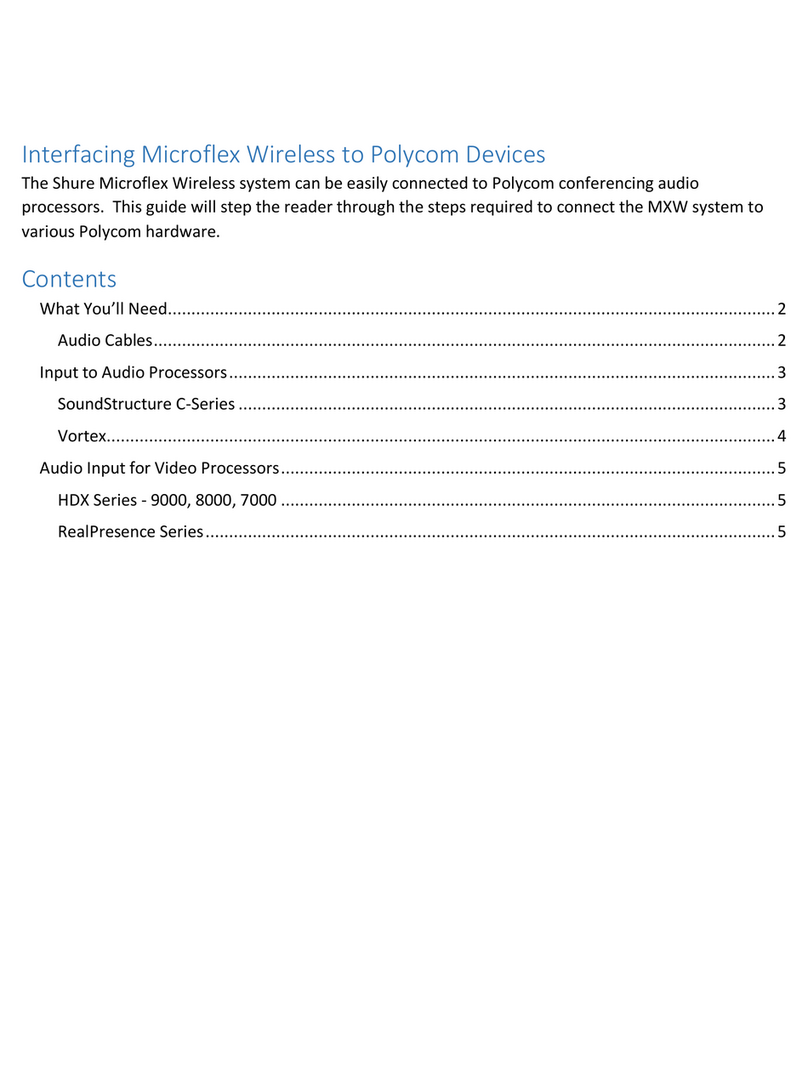

Shure Microflex Manual del propietario

Shure

Shure SZ 6104 Manual de usuario

Shure

Shure CS 6340 F Manual de usuario

Shure

Shure CU 6105 Manual de usuario

Shure

Shure MX890 Manual de usuario

Shure

Shure DM 6501F Manual de usuario

Shure

Shure DDS 5900 Manual de usuario

Shure

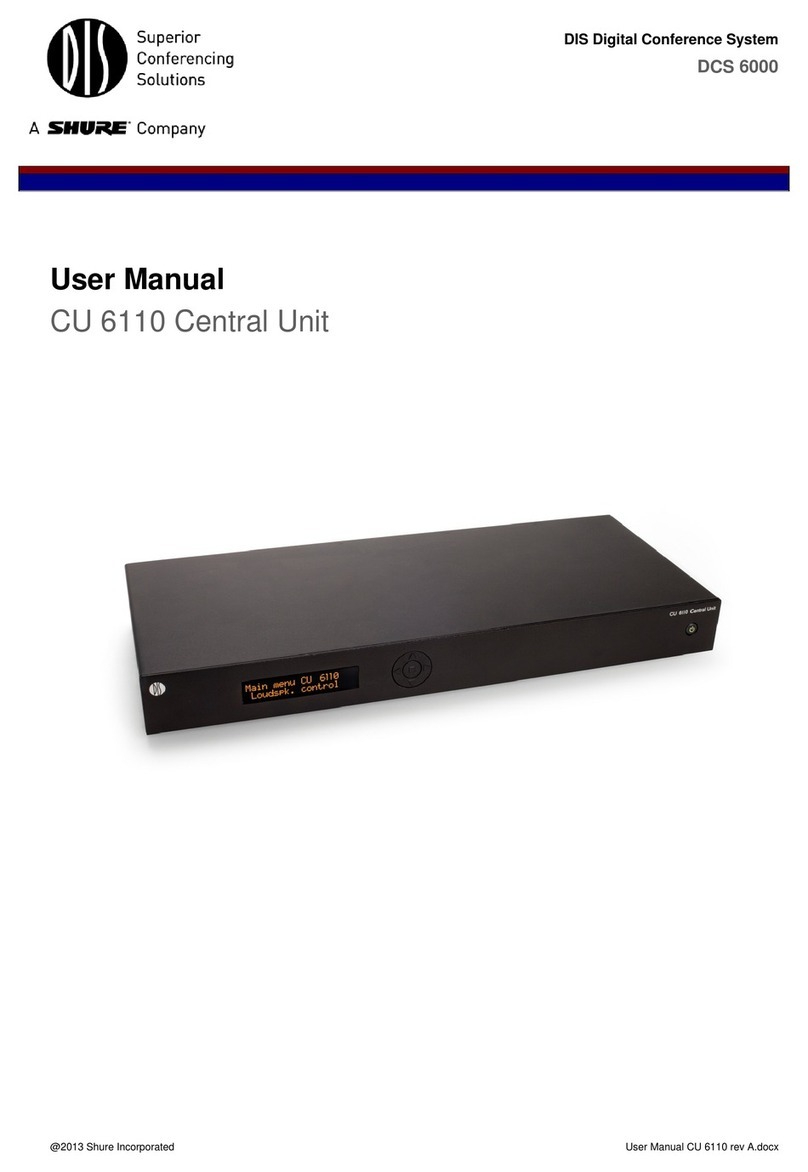

Shure DCS 6000 Manual de usuario

Shure

Shure DCS 6000 Manual de usuario

Shure

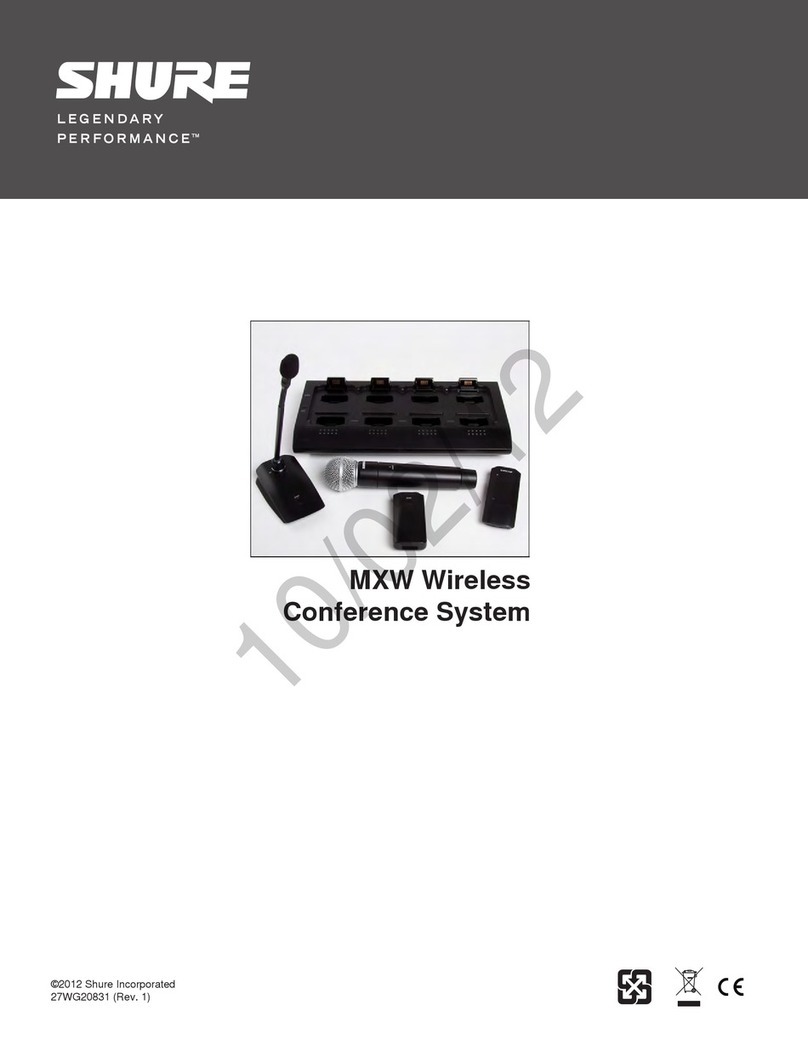

Shure MXW6W Manual de usuario
