Cycle Computer

SC-6501 / SC-M500

INDEX

1. Display Modes • • • • • • • • • • • • • • • • • • •

2. Display Contents •••••••••••••••••

3. Name and function of each part ••••

•

Current speed (VEL)

•••••••••••••••••

•

Gear indicator (bar)

•

Time display (CLK)

•

Trip distance group (TIM, DST, MAX, AVE)

••••

•

Pace Arrow

•

ODO meter (ODO)

•••••••••••••••••

•

Stopwatch (STW) group

•

Cadence (rpm)

••••••••••••••••••••

•

Main display cadence (VEL)

•

Lap counter (CNT)

•

Digital number of gear teeth (F-R)

••••••••

•

Low battery display (LO BAT)

•

Power saver function

4. Changing the setting data ••••••••

and the bicycle number

5. Viewing data after removing the •••

computer from the bracket mount

6. Setting tolerances •••••••••••••••

7. Installation to the bicycle •••••••••

8. Data input •••••••••••••••••••••

Replacing the battery •••••••••••••••

Using the sticker •••••••••••••••••••

Trouble Shooting ••••••••••••••••••

Be careful not to pay excessive

attention to the computer data while

riding, otherwise you might have an

accident.

NOTE;

* The all clear (AC) button is used to clear the main unit memory.

* Never disassemble the main unit, as it cannot be reassembled.

* The main unit is fully waterproofed to withstand wet weather

conditions; however, do not deliberately place it into water.

* Avoid leaving the main unit exposed to extremely hot weather

conditions.

* Handle the main unit carefully, and avoid subjecting it to any shocks.

* Do not use thinner or other solvents to clean parts such as the main

unit and sensor, as they may dissolve the part casings.

* To clean these parts, wipe them with a cloth soaked in a weak mixture

of neutral detergent and water.

* If using the SM-6501/M/MD together with an LED lamp from another

manufacturer, the speed measurement function may not work

correctly.

If using an LED lamp from another manufacturer, it is recommended

that you use the SM-6500-RS.

Specifications

Meter

Bracket/Sensor unit

SC-6501 / SC-M500

SM-6501 SM-6501-MD

STI lever

ST-7700-C

ST-6510

ST-5500-CA

ST-4400

ST-3300/3303

ST-M510

SL-M510

SM-6501-M

ST-M952 SL-M952

ST-M750 SL-M750

ST-M570 SL-M570

WARNING

1. Display Modes

“Current speed” and “Gear indicator (bar)” are always displayed

mode 1 mode 2

TIM Trip time

DST Trip distance

ODO ODO meter

STW Stop watch

CLK Clock rpmCadence

VEL

Main display cadence

MAX

Maximum speed

AVEAverage speed

CNTLap counter

Press mode button

once

Press mode button continuously

for 2 seconds or more

Mode Button

SM-6501-MD

Mode Button

SM-6501

SM-6501-M

ST/SP button

Mode button

2. Display Contents

mode 1

Current

speed

(VEL)

Clock

(CLK)

Trip time

(TIM)

Trip distance

(DST)

ODO meter

(ODO)

Stop watch–

trip distance

(DST STW)

Stop watch–

average speed

(AVE STW)

Stop watch–

maximum speed

(MAX STW)

Stop watch

mode 2

Cadence

(rpm)

Main display

cadence

Maximum

speed

Average

speed

No. of gear teeth

(digital)

Gear indicator

(bar)

Pace Arrow

Low battery display

Lap counter

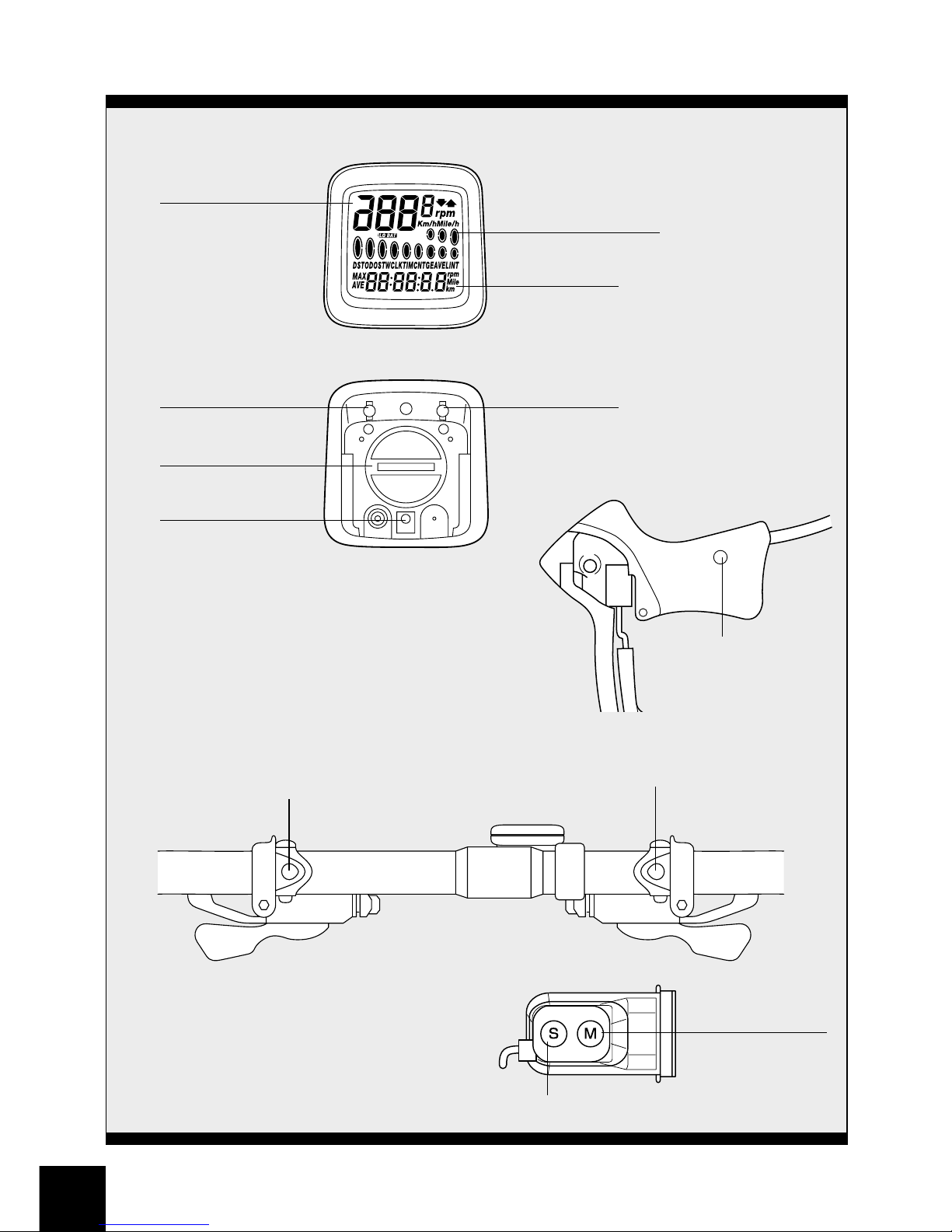

Name and function of each part

Front

Rear

STI Brake Bracket

<ST- 7700-C, ST- 6510, ST- 5500-CA,

ST- 4400, ST- 3300/3303 >

<ST- M510, SL- M510 >

ST/SP button Mode button

Main Display

1. Current speed

(VEL)

8. Cadence Sub Display

7, 9 -10

2. Gear indicator

(bar)

Switch B

AC All clear

Switch

Battery cap

Switch A

R.H. side lever :

Mode button

L.H. side lever :

ST/SP button

<ST-M952, ST-M750, ST-M570,

SL-M952, SL-M750, SL-M570 >

ST/SP button

Mode button

(1)Current speed (VEL)km/h, mph

When main

display cadence

appears on top

Current speed

will appear in

the sub - display

0.0 (2.0) - 130.0km/h

0.0 (1.2) - 80.0mph (Range)

The current speed will appear at

the top of the main display.

(2)Gear indicator (bar)

Front display

Rear display

For double : Low position • • • • • • •

For triple : Middle position ••••

For single : ••••••••••••••••••••••••

Displays;

Top for smallest sprocket

Low for largest sprocket

(3)Time display (CLK)24-hours clock

Gear indicator bar will not appear

if the sensor wire is not connected

or it has been turned off.

Clock will appear when changing

mode 2 to mode 1 and during

power saver function.

7th sprocket for 9-sprocket set •••

7th sprocket for 8-sprocket set •••

7th sprocket for 7-sprocket set •••

(4)

Trip distance group (TIM, DST, MAX, AVE)

The trip distance group includes the trip time (TIM), trip distance (DST), maximum

speed during the trip (MAX) and the average speed during the trip (AVE). To activate

the trip distance group, press the Mode button until “TIM”is displayed, and then

press the ST/SP button.

< Reset to zero > Press the ST/SP button and the Mode button

simultaneously while this group is active.

Average speed (AVE)

0.0 (2.0) - 130.0km/h

0.0 (1.2) - 80mph.

Trip time (TIM)

0 - 99:59:59 (h ; min ;sec)

Trip distance (DST)

0 - 999.99 (km, mile)

Maximum speed (MAX)

0.0 (2.0) - 130.0km/h

TIM group (automatic stop

and start) start is activated

TIM group is deactivated

km/mile flashes

Note;

•

To calculate the average speed, You must

travel for more than 10 seconds or more.

•

If the trip time exceeds 100hours or the trip

distance exceeds 1,000kilometers (620miles),

“ER”will be displayed and the pace arrow

comparison will disappear. However, TIM

and DST measurements will start again from

zero and the MAX speed will be retained.

Pace Arrow

Moves when distance time is

operating.

The upward arrow indicates that

the current speed is faster and

the downward arrow indicates

that the current speed is slower

than the

average speed

for the trip.

ST/SP buttonST/SP button

(5)ODO meter (ODO)

0-99999.9

km, mile

(6)Stopwatch (STW)group

This group includes stopwatch trip distance average speed and maximum speed.

The stopwatch is activated by pressing ST/SP button. While the stopwatch

group is operating the stopwatch (STW) display will flash.

Stopwatch trip distance (DST,STW) records total during STW function.

Stopwatch average speed (AVE,STW) records the average speed during STW

function.

Maximum speed (MAX,STW) records the Maximum speed during the stopwatch

function.

Displays the cumulative distance

travelled.

Note;

The functions of this group are

only available when

stopwatch is activated.

If the trip distance mode is

also activated simultaneously,

it is not possible to view at the

distance. However the trip

distance, average speed and

maximum speed will still be

recorded during this time.

Stop

Reset to zero

ST/SP button

ST/SP

button

Press ST/SP button

and Mode button

simultaneously

Mode button

(STW) Group mode

is displayed

Start

< Starting and stopping >

Stopwatch

(STW)

0.0 -90:00 (min,sec)

Stopwatch trip

distance (DST,STW)

km mile

Stopwatch average

speed (AVE,STW)

km/h mile/h

Stopwatch maximum

speed (MAX, STW)

km/h mile/h

switch “B”

(7)Cadence (rpm)

Cadence is calculated from the F-R

gear tooth numbers and current

speed.

Note;

Cadence always appears during

bicycle movement regardless if the

crankarms are rotating.

(9)Lap counter (CNT)

This function is used to count laps,

etc. (range 0 - 99)

Lap counter is activated by

pressing the ST/SP button.

To reset the counter to zero, press

mode and ST/SP button

simultaneously.

(8)Main display cadence (VEL)

Cadence (rpm) can also be shown

in main display. Current speed

will move to sub-display.

Cadence on main display

Current speed on sub-display
