Sharp UP-X500 Manual de usuario

CODE : 00Z

INSTALLATION MANUAL

CONTENTS

Parts marked with "!" are important for maintaining the safety of the set. Be sure to replace these parts with specified

ones for maintaining the safety and performance of the set.

SHARP CORPORATION This document has been published to be used

for after sales service only.

The contents are subject to change without notice.

UPX500VIME

POS TERMINAL

MODEL UP-X500

(V version)

1. Removing the rear cover unit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

2. Removing the side cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

3. Removing the LCD unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

4. Removing the MCR unit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

5. Fixing the HDD unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

6. Removing the AC cord. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

7. Removing the AC adapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

8. Removing the Main board (Extention RAM module) . . . . . . . . . . . . . . . . 3

9. COM port connector. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

9-1. FIXING THE REAR DISPLAY UP-I20DP. . . . . . . . . . . . . . . . . . . . . . . . . . . 4

9-2. FIXING THE POLE DISPLAY: UP-P20DP/DPB . . . . . . . . . . . . . . . . . . . . . 4

9-3. FIXING THE DRAWER UNIT: ER-03DW/04DW . . . . . . . . . . . . . . . . . . . . . 4

9-4. FIXING THE LAN CABLE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

10. Removing the contactless clerk key. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

11. Specification. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

UP-X500VI

BATTERY DISPOSAL

Contains Lithium Battery. Must be Disposed of Properly.

Contact Local Environmental Officials for Disposal Instructions.

CAUTION

RISK OF EXPLOSION IF BATTERY IS REPLACED

BY AN INCORRECT TYPE.

DISPOSE OF USED BATTERIES ACCORDING

TO THE INSTRUCTIONS.

AVOID: SHORT-CIRCUITING THE BATTERY TERMINALS.

KEEP THE BATTERY AWAY FROM FIRE.

*WHEN DISPOSING THE BATTERY, FOLLOW THE LOCAL

RULES AND REGULATIONS.

“BATTERY DISPOSAL”

THIS PRODUCT CONTAINS LITHIUM BATTERY.

THIS BATTERY MUST BE DISPOSED OF PROPERLY.

REMOVE THE BATTERY FROM THE PRODUCT AND CONTACT FEDERAL OR

STATE ENVIRONMENTAL AGENCIES FOR INFORMATION ON RECYCLING AND

DISPOSAL OPTIONS.

“TRAITEMENT DES ACCUMULATEUR USAGÉS”

CE PRODUIT CONTIENT UN ACCUMULATEUR À LITHIUM.

CET ACCUMULATEUR USAGÉ DOIT ÊTRE TRAITÉ CORRECTEMENT.

ENLEVEZ L’ ACCUMULATEUR DU PRODUIT ET PRENEZ CONTACT AVECVOTRE

AGENCE ENVIRONNEMENTALE LOCALE POUR DES INFORMATIONS SUR LES

MÉTHODES DE RECYCLAGE ET DE TRAITEMENT.

CONSUMPTION

• LCD (Back light) 15,000 h

• MCR unit 300,000 pass

UP-X500I Removing the rear cover unit

– 1 –

1. Removing the rear cover unit

Remove the screw 1, and remove the rear cover unit 2.

2. Removing the side cover

Slide the lever 1to release the lock. Slide the side cover 2toward

you and rotate and remove it.

3. Removing the LCD unit

3-1. Removing the top cover section

Remove each screw 1, and lift the rear side of the top cover

section 3and disconnect each connector 2and remove.

3-2. Removing the Top cover unit

Caution: Top cover unit 7is pushed down.

1. Remove the screw 1, and remove the wire holder 2.

[Screw 1is Black.]

2. Remove the screw 3, and remove the wire holder 4.

3. Remove the core 5of the T/P cable.

4. Remove four screws 6, and disassemble the top cover unit 7.

Precautions

• Before installation, be sure to turn off the power.

• Use gloves to protect your hands from being cut by the angle and

the chassis.

• Connect all the cables securely. When connecting or disconnecting

the cables, be careful not to apply stress to the cables. (It may

cause disconnection.)

• Ground the human body to prevent against troubles and dust adhe-

sion to the LCD by static electricity. When assembling the LCD, use

a discharge blower to prevent against dust intrusion.

• Be careful of the high voltage of the inverter PWB transformer.

• Place the top cabinet with LCD panel side down, Please use a clean

dust free clothe to protect the touch panel and LCD area.

UP-X500I Removing the MCR unit

– 2 –

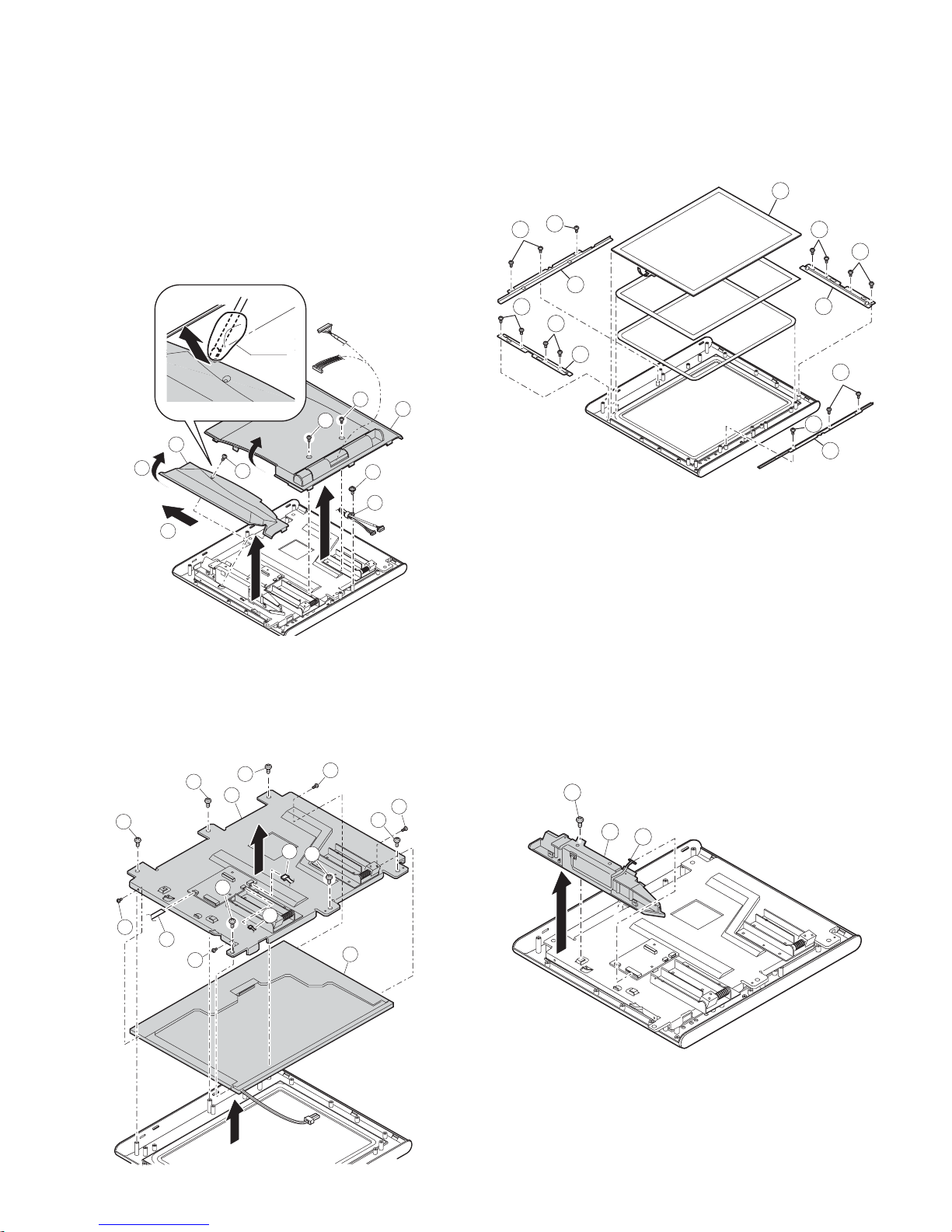

3-3. Removing the LCD cabinet

1. Remove the screw 1.

2. Use a screwdriver to catch the notched section and disassemble

the MCR rear cabinet 2.

Caution: • Wrap the screwdriver with waste cloth when using it without

scratching the cabinet.

• Rotate it in the direction of A and slide it in the direction of B,

and it will come off easily.

3. Remove two screws 3, and disassemble the LCD rear cabinet 4

from the MCR side.

4. Remove screw 5, and disassemble the Clamp 6.

3-4. Removing the LCD unit

1. Remove six screws 1, and remove the touch panel 2, the inserter

cable 3, and the LED cable 4, and disassemble the LCD assembly.

2. Remove four screws 5, and disassemble the LCD unit 7from the

LCD plate 6.

Caution: Tighten the screw 1at 3.5kg.

3-5. Removing the touch panel

Remove the T/P angle A 2, T/P angle B 3, with screws 1.

And disassemble the Touch panel 2.

4. Removing the MCR unit

1. Remove the MCR rear cabinet (Reference [3-3]).

2. Remove the screw

, and remove the MCR cable

and disassemble

the MCR

Cloth

UP-X500I Fixing the HDD unit

– 3 –

5. Fixing the HDD unit

5-1. Assembly HDD unit

Attach the holder 1to the angle 2, and fix the assembly

to the HDD 5with the screw 3. Connect the connector 4

to the HDD 5. (Be careful of the direction.)

Caution: All the parts are packed together with the set as accessories.

5-2. Fixing the HDD unit

Remove the screw 1and remove the HDD cover 2. Dis-

connect the connector 5and install the HDD unit 3with

the screw 4.

Caution: The screw 4is packed with the set as an accessory.

6. Removing the AC cord

Remove the screw 1, and remove the AC cord cover 2.

Remove the screws 3, and remove the AC cover 4.

Disconnect the connector and remove the earth cable 5and the AC cord.

Caution: Disconnect the power plug from the power outlet before work.

7. Removing the AC adapter

Disconnect each screw 1, and remove the adapter cover 2.

Remove each cabled 3, and remove the AC adapter 4.

Red Line

1 Pin

UP-X500I Removing the Main board

– 4 –

8. Removing the Main board

8-1. Removing the AC adapter unit

Remove the screw 1and each cable 2. Slide and remove

the AC adapter unit 3as shown in the figure below.

8-2. Removing the main board unit (Extention RAM module)

1. Remove each screw 1and each cable 2, and remove the

main board unit 3.

2. Remove Extention RAM module 4.

Caution: When installing or removing the memory, be careful not to bring the

memory module into contact with the CPU angle and the CPU fan.

9. COM port connector

9-1. Fixing the rear display (UP-I20DP)

9-1-1. Replace the UP-I20DP sheet metal with a new one.

9-1-2. Remove the display sheet 1and install the UP-I20DP 3with

the screw 2.

9-1-3. Wind the UP-I20DP harness one turn around the rib 1, insert

the connector 2and install the rear cover unit.

From 2004 February production, the sheet metal for the UP-X500 is

included in the package.

UP-X500I Removing the contactless clerk key

– 5 –

9-2. Fixing the pole display (UP-P20DP/DPB)

Fix the cable clamp 2with the screw 1, and attach the

UP-P20DP cable 3.

Caution: Parts 1,2,4, 5are packed together with the set.

9-3. Fixing the drawer unit (ER-03DW/04DW/05DW)

Fix the cable clamp 2and earth wire 3with the screw 1,

and attach the drawer cable 4.

Caution: Parts 1, 2are packed together with the drawer as accessories.

9-4. Fixing the LAN cable

Fix each cable 2with each screw 1, and connect the LAN

cable 3.

Caution: Parts 2,3 are packed together with the set.

10. Removing the contactless clerk key

1. Remove the screw 1, and remove the wire holder 2.

2. Remove the screw 3, and remove the wire holder 4.

3. Remove two screws 5, and disassemble the hinge angle6.

4. Fixing the contactless clerk key unit 8, with the screw 7.

11. Specification

Options <UP-X500V>

Item Model Name Specification Note

Customer

Display

UP-I20DP

2 line 20 digits dot display

Mounted in the cabinet

Customer Pole

display UP-P20DP

2 line 20 digits dot display

External pole display

UP-P20DPB

Remote Drawer ER-03DW

ER-04DW

ER-05DW

Receipt &

Journal Printer ER-01PU

2 station (Receipt/Journal)

printer

ER-01PUG

Hand Scanner ER-A6HS1 for reading barcode

Contactless

clerk key UP-R10CL 10 keys set

SHARP CORPORATION

Digital Document Systems Group

Products Quality Assurance Department

Yamatokoriyama, Nara 639-1186, Japan

2004 January Printed in Japan t

Printed in Japan.

No part of this publication may be reproduced,

stored in a retrieval system, or transmitted.

In any form or by any means,

electronic, mechanical, photocopying, recording, or otherwise,

without prior written permission of the publisher.
