Sharp UP-3300 Manual del propietario

PROGRAMMING MANUAL

CODE: 00ZUP3300UPME

POS TERMINAL

MODEL UP-3300

(For "U" and "A" version)

SHARP CORPORATION

CHAPTER 1. PROGRAM RESET and SRV mode . . . . . . . . . . . . . . . . . . . . . . .1

CHAPTER 2. MASTER RESET (All Memory Clear) . . . . . . . . . . . . . . . . . . . . . .2

CHAPTER 3. READING OF SRV MODE PROGRAM . . . . . . . . . . . . . . . . . . . .5

CHAPTER 4. SRV MODE PROGRAMMING ("2 SETTING") . . . . . . . . . . . . . .10

CHAPTER 5. SRV MODE PROGRAMMING ("3 IRC SETTING") . . . . . . . . . .37

*For setting in USER PROGRAMMING mode, refer to the Reference Manual

which is Provided with each UP3300.

CONTENTS

This document has been published to be used

for after sales service only.

The contents are subject to change without notice.

CHAPTER1. PROGRAM RESET and

SRV mode

In the UP-3300, the following reset switch (location No: S1) is used to

switch to the service (SRV) mode and to reset.

PROGRAM RESET

Used to return the machine back to its operation state after a lock up

has occured.

PROCEDURE

1) Turn off the AC switch.

2) Set the reset switch to "ON" position.

3) Turn on the AC switch.

4) Set the reset switch to "OFF" position.

5) The reset menu windowis displayed as shown below.

DISPLAY:

Touch the [PROGRAM RESET] key.

6) PROGRAM RESET is started.

7) After completion of the program reset, the SRV mode is displayed

as shown below.

DISPLAY:

[SRV mode screen]

MRS Switch

ON OFF

MRS Switch

Please select

PROGRAM RESET MASTER RESET

– 1 –

CHAPTER 2. MASTER RESET

(All Memory Clear)

There are three possible methods to perform a master reset.

1. MRS-1 (Master resetting 1): Clear the

entire memory and resumes initial

values.

PROCEDURE

1) Turn off the AC switch.

2) Set the reset switch to "ON" position.

3) Turn on the AC switch.

4) Set the reset switch to "OFF" position.

5) The reset menu windowis displayed as shown below.

DISPLAY:

Touch the [MASTER RESET] key.

6) The master reset menu window is displayed as shown below.

DISPLAY:

Touch the [MASTER RESET] key.

7) The secret number input window is displayed as shown below.

DISPLAY:

Enter the secret number for the MASTER RESET-1 and touch

the [ENTER] key.

Secret number for MRS-1: 11111111

8) MASTER RESET-1 is started.

DISPLAY:

9) After completion of the master reset, the buzzer sounds three

times and the following SRV mode display is shown.

DISPLAY:

[SRV mode screen]

2. MRS-2 (Master resetting 2): Clear the

entire memory and resumes initial

values.

The keyboard must be entered by hand. This reset is used if an

application needs different kyeboard layout other than that supplied

by a normal MRS-1.

PROCEDURE

1) Turn off the AC switch.

2) Set the reset switch to "ON" position.

3) Turn on the AC switch.

4) Set the reset switch to "OFF" position.

5) The reset menu windowis displayed as shown below.

DISPLAY:

Touch the [MASTER RESET] key.

Please select

PROGRAM RESET MASTER RESET

MASTER RESET

Please select

MASTER RESET 1

MASTER RESET 2

ENTER PASSWORD

ENTER

CLEAR

CANCEL

MASTER RESET

Please select

PROGRAM RESET MASTER RESET

– 2 –

6) The master reset menu window is displayed as shown below.

DISPLAY:

Touch the [MASTER RESET 2] key.

7) The secret number input window is displayed as shown below.

DISPLAY:

Enter the secret number for the MASTER RESET-2 and touch

the [ENTER] key.

Secret number for MRS-2: 22222222

8) Set the fixed keys in the table below (Start from the [HOME] key,

The key are displayed sequentially)

DISPLAY:

No. KEY NAME

1 HOME

2 CANCEL

3CL

4 MODE

5UP(↑)

6DOWN(↓)

9) MASTER RESET-2 is started.

DISPLAY:

10) After completion of the master reset, the buzzer sounds three

times and the following SRV mode display is shown.

DISPLAY:

[SRV mode screen]

3. MRS-3 (Master resetting 3): Master

resetting 3: Master resetting 3 requires

the entry of Serial No. in addition to

master resetting 1.

After complete the MRS3, following operations and programming will

be inhibited.

1. GT programming.

2. All Memory Download via RS-232C and IR.

3. GT resets with Z report. (Z report can be made, but GT will not be

reset.)

PROCEDURE

1) Turn off the AC switch.

2) Set the reset switch to "ON" position.

3) Turn on the AC switch.

4) Set the reset switch to "OFF" position.

5) The reset menu windowis displayed as shown below.

DISPLAY:

Touch the [MASTER RESET] key.

MASTER RESET

Please select

MASTER RESET 1

MASTER RESET 2

ENTER PASSWORD

ENTER

CLEAR

CANCEL

ENTER HOME

MASTER RESET

Please select

PROGRAM RESET MASTER RESET

– 3 –

6) The master reset menu window is displayed as shown below.

DISPLAY:

Touch the [MASTER RESET 3] key.

7) The secret number input window is displayed as shown below.

DISPLAY:

Enter the secret number for the MASTER RESET-3 and touch

the [ENTER] key.

Secret number for MRS-3: 33333333

8) The product serial No. input window is displayed as shown

below.

DISPLAY:

Enter the product serial No. of this POS and touch the [ENTER]

key.

9) Set the fixed keys in the table below (Start from the [HOME] key,

The key are displayed sequentially)

DISPLAY:

No. KEY NAME

1 HOME

2 CANCEL

3CL

4 MODE

5UP(↑)

6DOWN(↓)

10) MASTER RESET-3 is started.

DISPLAY:

11) After completion of the master reset, the buzzer sounds three

times and the following SRV mode display is shown.

DISPLAY:

[SRV mode screen]

MASTER RESET

Please select

MASTER RESET 1

MASTER RESET 2

ENTER PASSWORD

ENTER

CLEAR

CANCEL

ENTER HOME

MASTER RESET

– 4 –

CHAPTER 3. READING OF SRV

PROGRAM

The setting contents of the SRV mode can be checked with the

display or printer.

DISPLAY: SRV mode screen

Select "1 READING" and press the ENTER key.

DISPLAY: READING item selection screen

Select the desired item, press the ENTER key.

DISPLAY: OUTPUT read destination select screen

Select the output desired item, press the ENTER key.

The setting content is displayed and printed.

Sample of program reports

1. [1 SYSTEM PRESET]

DISPLAY:

PRINTER:

Report title

JOB# / Data

Transaction Z1 reset counter

Transaction Z2 reset counter

Consolidation Transaction Z1 reset counter

Consolidation Transaction Z2 reset counter

Server Z1/Z2 reset counter

Houlry Z1 reset counter

PLU Z1/Z2 reset counter

GLU / PBLU Z1 reset counter

DRIVE THRU Z1 reset counter

Daily net Z2 reset counter

Department Z1 reset counter

Department Z2 reset counter

GT2

GT3

TRAINING GT

SUPERVISOR MODE

OP X/Z mode secret code

X1 mode secret code

Z1 mode secret code

X2 mode secret code

Z2 mode secret code

PRICE mode secret code

PGM1 mode secret code

PGM2 mode secret code

AUTO KEY PGM mode secret code

REG (Registration) mode

START UP mode secret code

– 5 –

2. [2 DEVICE ASSIGN]

DISPLAY:

PRINTER:

3. [3 FREE KEY LAYOUT]

DISPLAY: FREE KEY LAYOUT item selection screen

Select the desired item, press the ENTER key.

DISPLAY: OUTPUT read destination select screen

The setting content is displayed and printed

DISPLAY:

Report title

Device name / Notassigned

Auto cutter function

Printer name

Paper sheet type

Device name / Terminal No. /

Channel No.

– 6 –

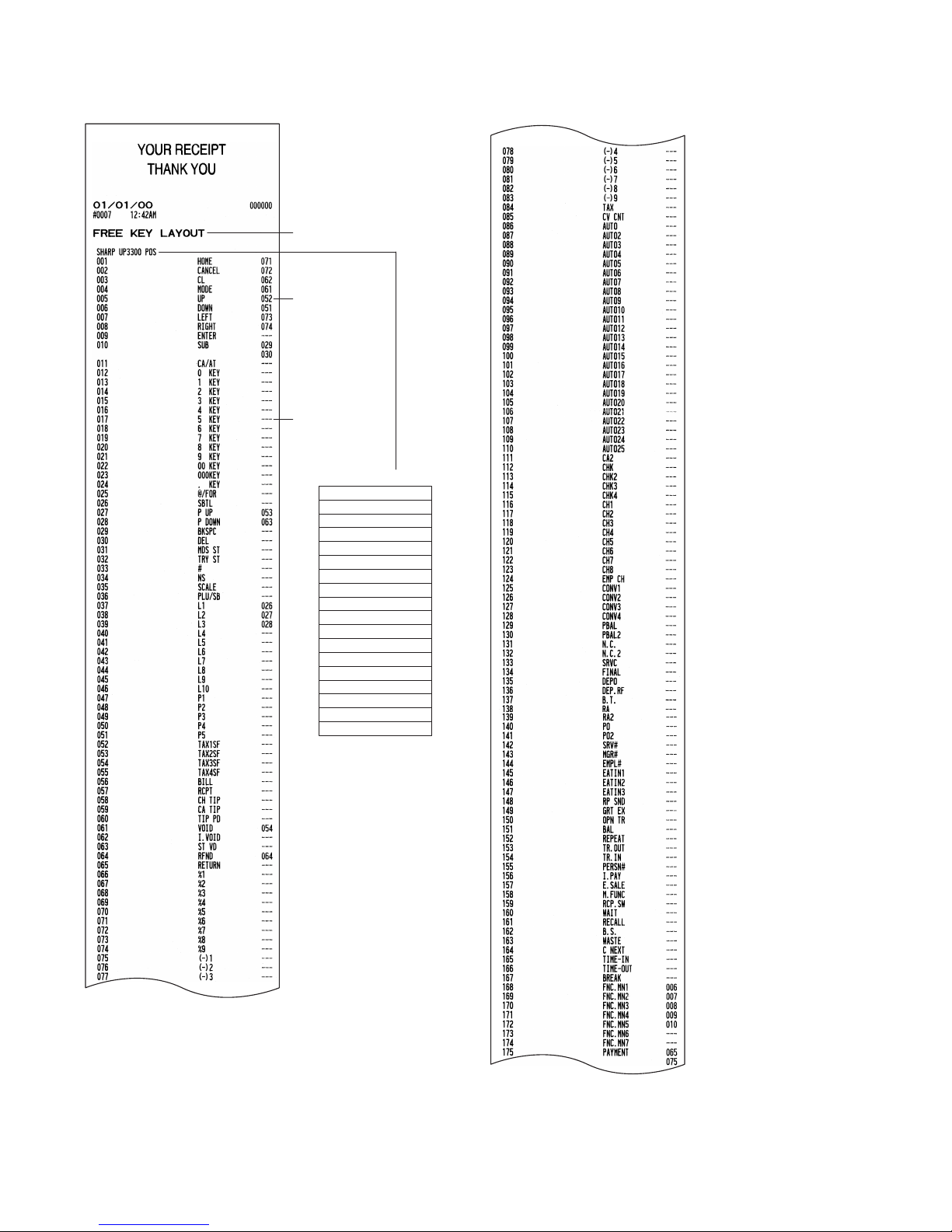

PRINTER:

Report title

Keyboard name:

SHARP UP3300 POS

MAIN2

MAIN3

SUB

SUB2

SUB3

CONDIMENT/MENU

CONDIMENT/MENU2

CONDIMENT/MENU3

QUANTITY

DISCOUNT

SUB ENTRY

FUNC.MENU4

FUNC.MENU5

FUNC.MENU6

FUNC.MENU7

PAYMENT

DRIVE THROUGH

Key No. / Key text /

Key position code

Not assigned

– 7 –

4. [4 FILE]

DISPLAY:

PRINTER:

Report title

File table No. / No. of records/

No. of used records

File table No. / No. of records /

No. of blocks / No. of used

records

File table No. / No. of index

records - No. of data records /

No. of used records

– 8 –

5. [5 SSP]

DISPLAY: SSP item selection screen

Select the desired item, press the ENTER key.

DISPLAY: OUTPUT read destination select screen

The setting content is displayed and printed

DISPLAY:

PRINTER:

File memory start address

Empty memory start address

Memory end address

Report title

SSP No.

SSP data

Error message

– 9 –
