MKE 600

PERFECT SOUND.

PERFECT PICTURES.

Wherever the magic moment occurs: The success of your

work depends on achieving the perfect interplay of image and

sound – and under the most difﬁcult conditions. No matter

if you’re shooting outdoors in the city or indoors with poor

acoustics: Sennheiser has the perfect solution for ﬁrst-class

video sound.

Your Reliable Companion

for Every Shoot:

The New MKE 600

The MKE 600, the new condenser microphone with out-

standing directivity was developed for video journalists who

require high-quality audio and easy to use equipment. When

you need to switch locations and change camera settings

quickly, this new shotgun microphone is your ideal companion

for demanding shoots.

PERFECT SOUND. PERFECT PICTURES. 02 03

The MKE 600’s main strength is its rich sound

with its excellent reproduction of low frequencies. This allows

you to record speech easily and ensures high intelligibility. Its

high directivity means that even audio that was recorded from

a distance sounds as if the speaker had been much closer to

the microphone. Furthermore, lateral interference noise is reli-

ably suppressed. The low-cut ﬁlter reduces handling noise and

wind noise. With the MKE 600, you can enjoy perfect sound

without the noise.

without background noise.

Perfect sound

No phantom power required. Since not all video

cameras are equipped to supply phantom power for a micro-

phone, the MKE 600 can also be operated using standard AA

batteries. Battery power can be switched on easily and then

switched off again when the camera is no longer in use – this

keeps the battery from discharging too rapidly. An LED on the

battery switch lets you know when the batteries are running

low while there is still a reserve of approximately eight hours –

enough time to ﬁnish your shoot successfully.

PERFECT SOUND. PERFECT PICTURES. 04 05

MKE 600

Your reliable companion for demanding shoots.

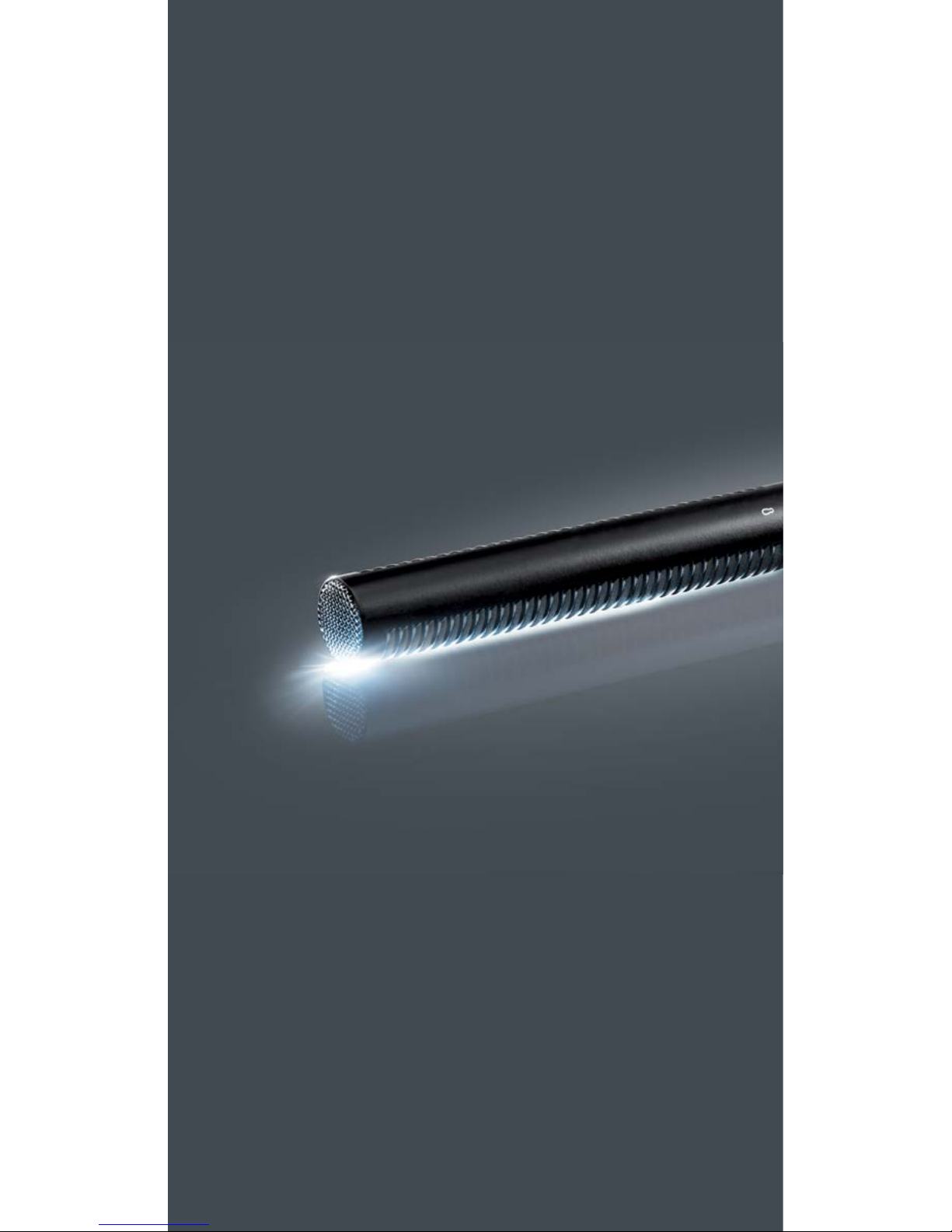

The MKE 600 is a professional shotgun

condenser microphone for video journalists

and is used at locations where high-quality

audio and simple operation are required.

Bothersome lateral interference noise is sup-

pressed and the microphone’s low-cut ﬁlter

ensures the additional attenuation of handling

and wind noises. The MKE 600, along with its

professional accessories, make up a sophisti-

cated system for ﬂawless recordings.

ENTER THE STAGE. 06 07

Features

Easy to use thanks to

plug and play technology

Maximum attenuation of background noise

for clear, rich sound

Low-cut ﬁlter for minimizing wind noise

P48 phantom power or battery power

Battery switch with a Low Batt indicator

Rugged, all-metal housing

Made in Germany

Delivery includes

MKE 600:

Shotgun microphone

MZS 600:

Shock mount

MZW 600:

Foam windshield

User manual

PERFECT SOUND. PERFECT PICTURES. 06 07

Accessories.

The MKE 600 is versatile. Its additional accessories

provide you with even greater ﬂexibility.

MZH 600

Fur windshield. Light and weather-proof

for optimal wind noise attenuation.

MZW 600

Foam windshield

(included).

KA 600

Microphone adapter cable for audio-in.

MZS 600

Shock mount

(included).

MZQ 600

Stand adapter.

ENTER THE STAGE. 08 09PERFECT SOUND. PERFECT PICTURES. 08 09

Technical data

MKE 600

Pick-up pattern

Super-cardioid/lobar

Frequency response

40 Hz to 20 kHz

Sensitivity with P48

21 mV/Pa

Sensitivity with battery power

19 mV/Pa

Maximum sound pressure level with P48

132 dB SPL

Maximum sound pressure level with battery power

126 dB SPL

Equivalent noise level with P48

15 dB (A)

Equivalent noise level with battery power

16 dB (A)

Power supply

48 V ± 4 V (P48, IEC 61938) via XLR-3

or disposable/rechargeable batteries (AA 1.5 V/1.2 V)

Power consumption with P48

4.4 mA

Operating time with battery

Approx. 150 hours

Low Batt display

< 1.05 V;

approx. 8 hours of operating time remaining after the ﬁrst display

Diameter

20 mm

Length

256 mm

Weight

128 g (without battery)

Operating temperature

–10 °C to +60 °C
