Shure WH30TQG Manual de usuario

2006, Shure Incorporated

27G3121 (Rev. 9) Printed in U.S.A.

Models WH30TQG and WH30XLR User Guide

WH30XLR

ONLY

MODEL WH30 CONDENSER HEADSET MICROPHONE

MICROFONO A

CONDENSATORE

CON SUPPORTO A

CUFFIA SHURE

MODELLO WH30

MICROFONO DE

CONDENSADOR DE

CABEZA MODELO

WH30 SHURE

KONDENSATOR

KOPFMIKROFON-

MODELL SHURE WH30

MICROPHONE DE CASQUE

ÉLECTROSTATIQUE

SHURE MODÈLE

WH30

INTRODUCTION

The Shure Model WH30 is a light yet rugged headset microphone. Designed for vocalists

and instrument-playing vocalists, the WH30 utilizes a high quality electret-condenser car-

tridge suitable for all applications where mobility, comfort, low microphone-visibility, and

high sound quality are required. Because of its cardioid (unidirectional) pickup pattern, the

WH30 provides isolation from extraneous sound sources and high gain-before-feedback.

The wireframe and gooseneck adjust to any head size and shape. An integrated elastic

headband comfortably pads and secures the headset. The WH30 is supplied with two

snap-on windscreens, clothing clip, storage bag and cable-management device.

FEATURES

•

Smooth, natural frequency response comparable to professional condenser hand-held

microphones

•Lightweight wireframe and headband adjust for a secure, comfortable fit

•Extra-strong, small-diameter microphone cable resists breakage

• Moisture-proof cartridge housing

•Sturdy gooseneck-boom holds mic securely in place

•lsolation shock mount for reduced handling noise

•Matte black finish for low visibility

•High input clipping level helps avoid overload distortion

•Low self-noise and high sound pressure level capability

•Reliable at temperature and humidity extremes

MODEL VARIATIONS

•

WH30TQG:

For wireless use, the WH30TQG has a 1.2m (4 ft.) high-flex cable and

a mini TA4F connector for direct connection to Shure body pack transmitters.

Note

: For information about use with Shure W10BT or other transmitters without a

mini TA4F connector, contact Shure Customer Service).

•

WH30XLR:

For wired applications, the WH30XLR is supplied with a 1.2m (4 ft.)

hi-flex cable and high quality mic preamplifier (RPM420) with a three pin XLR con-

nector. The RPM420 preamplifier requires phantom power from any 11 - 52 V

source.

MICROPHONE PARTS

The WH30 consists of the following parts (see Figure 1).

WH30 HEADSET MICROPHONE PARTS

FIGURE 1

COLLAPSIBLE MICROPHONE BOOM

The WH30 headset features a collapsible boom for shipment and storage. Before

wearing the headset, unfold the boom by rotating it away from the wireframe until it

snaps into place. Refold for storage or transportation.

WEARING THE HEADSET

Place the headset wireframe around your head so that the elastic headbandband lay hor-

izontally across the back of your head and the ends of the wireframe fit over your ears.

You may position the elastic headband either above or below the wireframe for the great-

est comfort and stability. The blue “SHURE” logo should face outward (see Figure 2).

POSITIONING THE MICROPHONE

For maximum gain-before-feedback, position the microphone and boom so that the mi-

crophone is within 13 mm (1/2 inch) of the right corner of your mouth (see Figure 3). This

will also help minimize breath noise or “popping”.

WEARING THE HEADSET

FIGURE 2

POSITIONING THE MICROPHONE

FIGURE 3

ADJUSTING THE HEADSET

• If the headset feels loose or uncomfortable, carefully bend the sides of the wire-

frame to make it tighter or looser (see Figure 4A). The angle of the wireframe ear-

pieces may also need adjustment (see Figure 4B).

ADJUSTING THE WIREFRAME

FIGURE 4

• Adjust the tension of the elastic headband across the back of the head by sliding

it up or down the ends of the wireframe (see Figure 5).

ADJUSTING THE ELASTIC HEADBAND

FIGURE 5

USING THE CABLE RETAINER AND CLOTHING CLIP

Use the cable retainer on the wire frame of the headset to position the microphone

cable as desired. The supplied spring-loaded clothing clip secures the microphone

cable to the user's clothing to help avoid entanglement.

CONNECTING THE WH30 TO A SOUND SYSTEM

Wireless Applications (WH30TQG)

1. Connect the mini TA4F connector from the WH30 to a wireless microphone trans-

mitter such as the Shure T1 bodypack transmitter.

2. See the user guide for your wireless transmitter and receiver system for adjusting

gain and other parameters.

Wired Applications (WH30XLR)

Connect the output of the RPM420 preamplifier to an input channel of a mixing or record-

ing console. Most consoles will provide phantom power to the RMP420 preamplifier. If

phantom power is unavailable, use a separate phantom power supply such as the Shure

PS1A.

WASHING THE ELASTIC HEADBAND

When necessary, remove and wash the elastic headband according to these steps.

1. Remove the microphone cable retainer from the wireframe.

2. Slide the elastic headband off the wireframe.

3. Wash the headband in mild, soapy water and rinse it in clean water.

4. Allow the headband to air-dry thoroughly.

5. Slide the headband around the wireframe to its original position. Reattach the cable

with the plastic retainer.

WASHING THE FOAM WINDSCREEN

The foam windscreen protects the WH30's microphone element from dirt and moisture.

When necessary, it can be removed and cleaned in a mild soapy water solution.

mportant:

Never clean the windscreen with any liquid solution without first

removing the windscreen from the microphone boom.

1. Hold the windscreen loosely by the plastic retaining ring at its base.

2. Gently pull the windscreen away from microphone. The plastic retaining ring will

expand to allow the windscreen to slip off the microphone. If necessary, you can

expand the ring manually with a small screwdriver as you pull the windscreen.

3. Immerse the windscreen in mild soapy water and gently squeeze it several times.

4. Rinse the windscreen in clean water and dry it with a clean cloth or paper towel.

Allow it to air-dry thoroughly.

5. When the windscreen is dry, slide it over the WH30 microphone until the retain-

ing ring snaps into place.

CERTIFICATION

WH30XLR :

Conforms to European EMC Directive 89/336/EEC, and is eligible to

bear the CE marking. Meets applicable tests and performance criteria in European

standard EN 55103 (1996) parts 1 and 2, for residential (E1) and light industrial (E2)

environments.

WH30TQG

: Conforms to European EMC Directive 89/33/EEC, and is eligible to bear

the CE marking. Meets EMC require-ments as an ancillary device per EN 300 445

(1996)

REPLACEMENT PARTS

Cable Connector (for WH30TQG only)..........................................................WA330

Connector Belt Clip (for WH30XLR only)...................................................RK200BC

Elastic Headband........................................................................................80A505B

Wireframe, Headband, Boom Hinge, Boom, Shock Mount,

Cartridge Housing and Cable ...............................................................RPM520

Preamplifier Assembly.................................................................................RPM420

Black Windscreens (2) and Clothing Clip ................................................90WP1371

SPECIFICATIONS WH30TQG WH30XLR

Type

Condenser, electret bias Condenser, electret bias with

integrated preamplifier

Frequency Response

40 to 20,000 Hz (See Figure 6)

Polar Pattern

Unidirectional (cardioid) (see Figure 7)

Output Impedance (at 1kHz)

2400

Rated 150

(actual) (Tolerates

loads as low as 150

with

reduced clipping level)

Output Level

(at 1 kHz; 0 dB = 1 V/Pascal)

–55.5 dB (1.7 mV) –54.5 dB (1.9 mV)

Signal to noise ratio (ref.

A-weighted noise)

63.0 dB at 94 dB SPL (IEC 651)

Output Clipping Level (at 1000

Hz)

–22 dBV (0.08 V) 2.5K

Load: –8 dBV (0.4V)

1 K

Load: –8 dBV (0.4V)

Maximum SPL

130 dB 2.5K

Load: 142 dB

1 K

Load: 142 dB

Dynamic Range (max. SPL to

A-weighted noise level)

99 dB 111 dB

Output Noise (equivalent SPL)

31 dB (typical, A-weighted)

Recommended Operating

Voltage

5 VDC

(pin 2 to pins 3 and 4) 11-52 VDC Phantom power

Polarity

Positive sound pressure on

diaphragm produces positive

voltage on pins 3 and 4 relative to

pin 1 (ground) on the mini TA4F

connector.

Positive sound pressure on the

diaphragm produces positive

voltageon pin2 relativetopin3 of

preamplifier output connector.

Environmental Conditions

Operating Temperature –7

to 49

C (20

to 120

Storage Temperature –29

to 74

C (–20

to 165

Humidity: 0 to 95% (operating or storage)

Cable

1.2 m (4 ft.) two-conductor, shielded

Cable Connector

mini TA4F XLR

Net Weight

Headset: 65 g (2.3 oz) Headset and cord: 60 g (2.1 oz)

Preamplifier: 99 g (3.5 oz)

TYPICAL WH30 FREQUENCY RESPONSE

FIGURE 6

TYPICAL WH30 POLAR PATTERNS

FIGURE 7

1 cm.

(0.4 in.)

61 cm.

(24 in.)

WIRING DIAGRAMS

WH30 WIRING DIAGRAMS

FIGURE 8

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Micrófono de Shure

Shure

Shure KSM42 Manual de usuario

Shure

Shure Beta 53 Manual de usuario

Shure

Shure Unisphere I PE566 Manual de usuario

Shure

Shure 520DX Manual de usuario

Shure

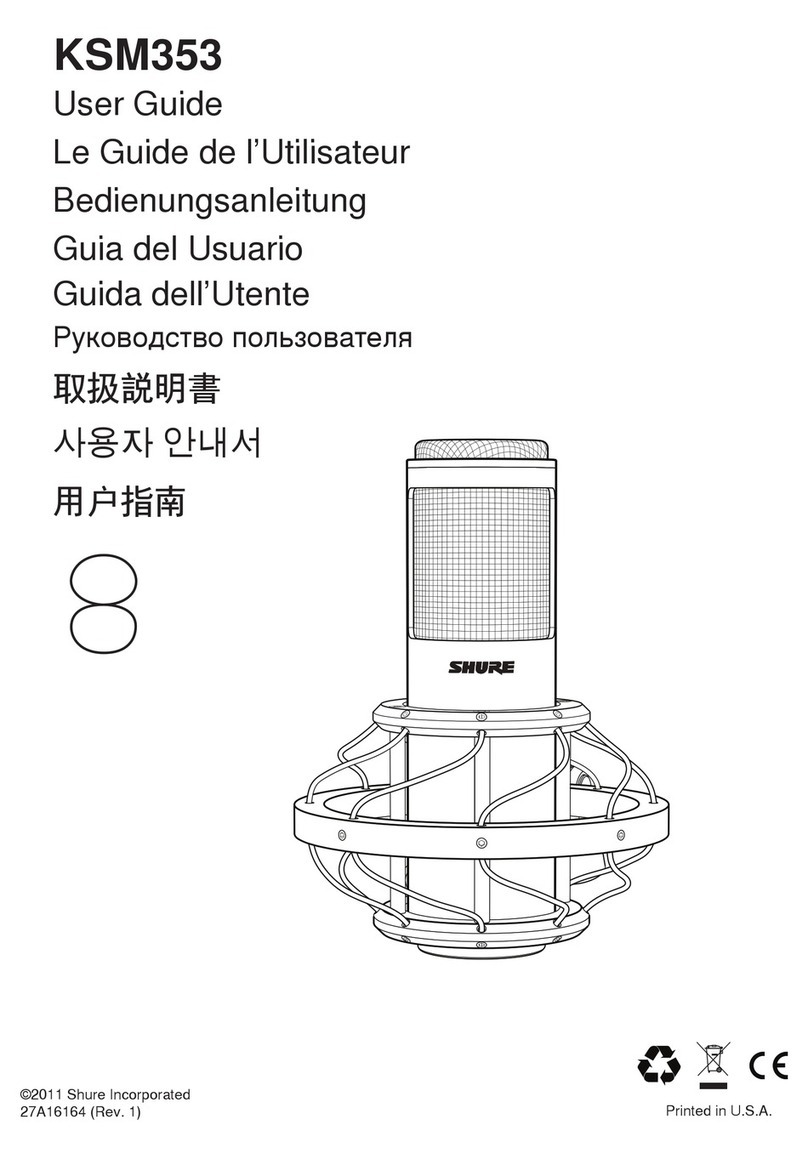

Shure ROSWELLITE KSM353 Manual de usuario
