Sennheiser MKE 600 Manual de usuario

MKE 600

Instruction manual

MKE 600

Important safety instructions

1. Read these safety instructions and the instruction manual of the product.

2. Keep these safety instructions and the instruction manual of the product.

Always include all instructions when passing the product on to third parties.

3. Only use attachments, accessories and spare parts speciﬁed by the manu-

facturer.

4. Caution: The protective basket and pop shield must be completely dry when

you mount them on the microphone. Moisture can cause malfunctions or

damage to the capsule.

5. Connect the microphone only to microphone inputs and supply units that

provide 48V phantom powering in accordance with IEC 61938.

6. Do not attempt to open the product housing on your own. The warranty is

voided for products opened by the customer.

7. Refer all servicing to qualiﬁed service personnel. Servicing is required

when the product has been damaged in any way, liquid has been spilled or

objects have fallen into the product, when the product has been exposed to

rain or moisture, does not operate normally, or has been dropped.

8. Use the product only under the conditions of use listed in the speciﬁcations.

9. Let the product come to ambient temperature before switching it on.

10. Do not operate the product if it was damaged during transportation.

11. Always run cables so that no one can trip over them.

12. Keep the product and its connections away from liquids and electrically

conductive objects that are not necessary for operating the product.

13. Do not use any solvents or aggressive cleaning agents to clean the product.

14. Caution: Very high signal levels can damage your hearing and your loud-

speakers. Reduce the volume on the connected audio devices before

switching on the product; this will also help prevent acoustic feedback.

Intended use

The product is designed for indoor use.

It is considered improper use when the product is used for any application not

named in the corresponding instruction manual.

Sennheiser does not accept liability for damage arising from improper use or

misuse of this product and its attachments/accessories.

Before putting the products into operation, please observe the respective

country-speciﬁc regulations!

MKE 600

Delivery includes

• MKE 600 shotgun microphone

• MZS 600 shock mount

• MZW 600 foam windshield

• KA 600 adapter cable

• Instruction manual

• Storage pouch

Delivery includes

• MZQ 600 microphone clamp

• MZH 600 “hairy” windshield

• KA 600i connection cable for mobile devices with 3.5 mm TRRS jack

connection

For information on suppliers, contact your local Sennheiser partner:

www.sennheiser.com > “Service & Support“.

The MKE 600 shotgun microphone

The MKE 600 is the ideal video camera/camcorder microphone able to hand-

le even demanding ﬁlmic challenges. Due to its high directivity, the MKE 600

picks up sounds coming from the direction in which the camera is pointing and

effectively attenuates noise coming from the sides and rear. The switchable

“Low Cut” ﬁlter additionally minimizes wind noise.

Because some video cameras/camcorders do not provide phantom power, the

MKE 600 can also be battery powered. A battery on/off switch prevents the

battery from discharging prematurely; “Low Batt” is displayed.

Features

• Pronounced directivity

• Maximal rejection of side noise

• Switchable “Low Cut” ﬁlter minimizes wind noise

• Phantom or battery powering

• Battery switch with “Low Batt” indicator

• Rugged all-metal housing

• Very good suppression of structure-borne noise

• Supplied with foam windshield, shockmount and adapter cable for cameras

with 3.5 mm jack connection

MKE 600

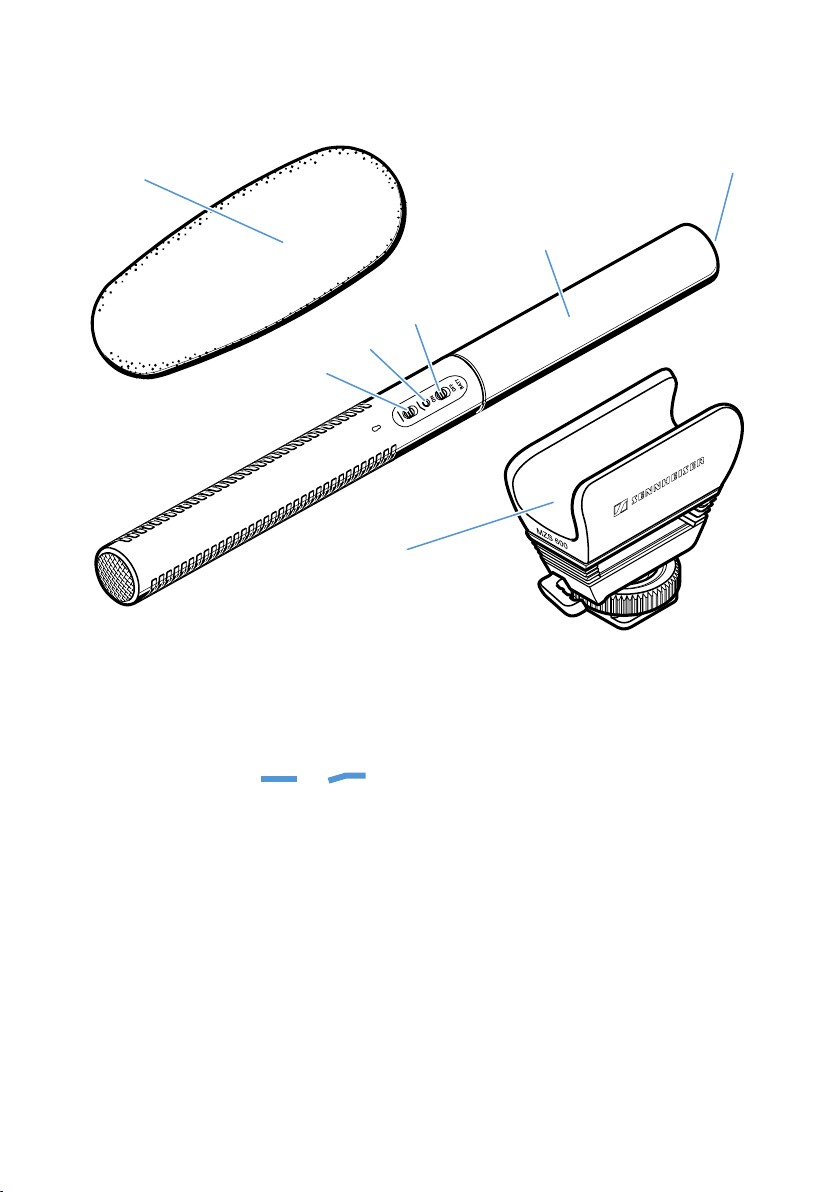

Product overview

1Foam windshield attenuates wind noise by approx. 25 dB

2“Low Cut” switch

3LED operation indicator

4BATT ON/OFF battery switch

5Lower part of the microphone body (covers the battery compartment)

6XLR-3 socket (male)

7Shock mount with ﬂash mount adapter

MKE 600

Putting the MKE 600 into operation

The MKE 600 offers a choice of phantom powering via the XLR connection or

internal battery powering.

P48 phantom powering via XLR connection

fConnect the XLR-3 socket (female) of the microphone cable to the XLR-3

socket (male) of the microphone 8.

fConnect the connector of the microphone cable to the video camera/cam-

corder or recording device. The LED 3provides the following information:

LED P48 phantom powering

grün switched on; the microphone is operational

If phantom powered via the XLR connection, the microphone is conti-

nuously in operation (the BATT ON/OFF battery switch has no function).

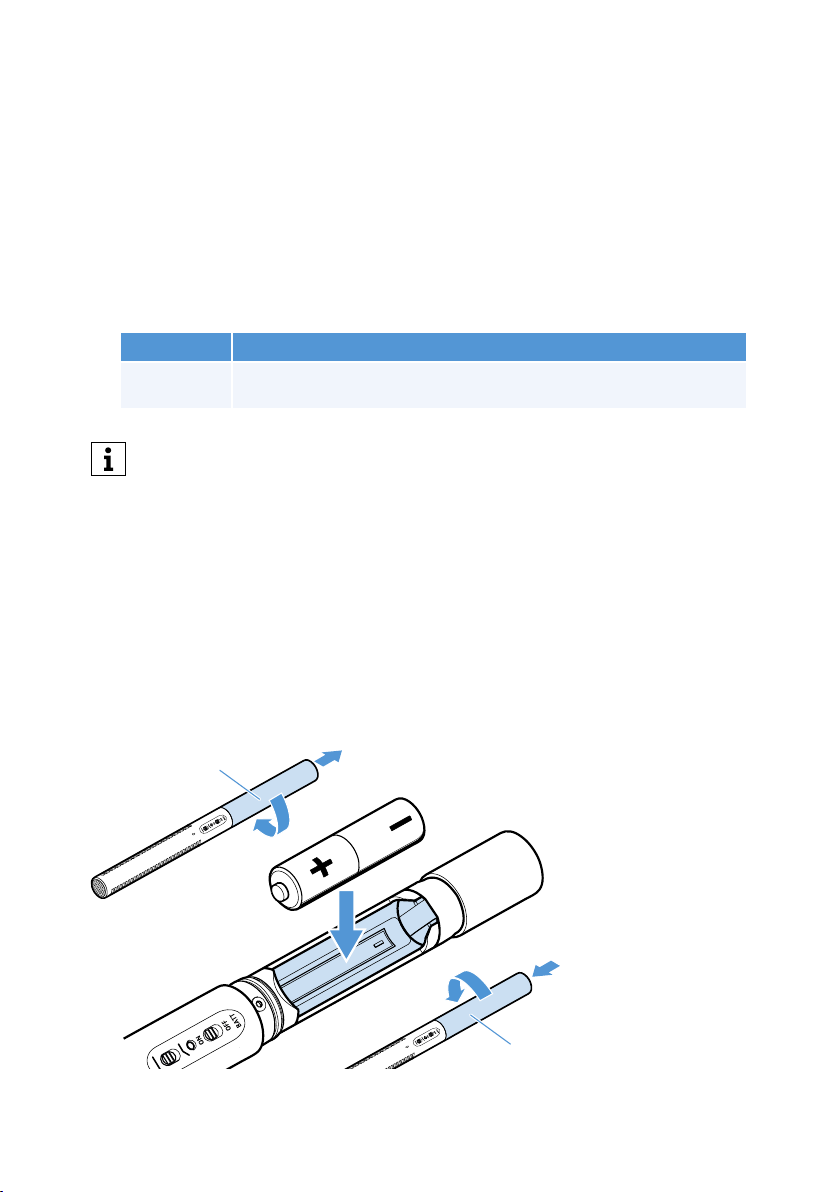

Internal battery powering

fUnscrew the lower part of the microphone body 5by turning it in the direc-

tion of the arrow.

fInsert a battery/rechargeable battery (AA size, 1.5 V/1.2 V). Observe correct

polarity when inserting the battery.

fScrew the lower part of the microphone body 5back to the microphone by

turning it in the direction of the arrow.

MKE 600

fSet the battery switch 4to ON to switch the internal battery on or set the

battery switch to OFF to switch the battery power off.

The LED 3provides the following information:

LED Internal battery power

lights up red for approx. 1 second

after switch-on and then goes off switched on; operating time: up to

approx. 150 h

lights up red permanently “Low Batt”, battery is almost empty;

approx. 8 h of remaining operating

time after initial display

ﬂashes brieﬂy red on switch-on battery is empty; the microphone is

not operational

When not using the microphone for extended periods of time, remove the

battery to prevent self-discharge.

„Low Cut“ verwenden

fSet the “Low Cut” switch 2to the desired position.

Switch position Frequency response of the microphone

linear frequency response

frequencies below 100 Hz are attenuated to reduce

wind and impact noise

MKE 600

Cleaning and maintaining the MKE 600

CAUTION

DAMAGE TO THE PRODUCT DUE TO LIQUIDS!

Liquids entering the product can short-circuit the electronics or damage the

mechanics. Solvents or cleansing agents can damage the surface of the pro-

duct.

fKeep all liquids away from the product.

fOnly use a soft, dry cloth to clean the product.

Technical data

Pick-up pattern super-cardioid/lobar

Frequency response 40 Hz to 20 kHz

Sensitivity with P48 powering: 21 mV/Pa

with battery powering: 19 mV/Pa

Max. SPL with P48 powering: 132 dB SPL

with battery powering: 126 dB SPL

Equivalent noise level

A-weighted with P48 powering: 15 dB (A)

with battery powering: 16 dB (A)

Power supply 48 V ± 4 V (P48, IEC 61938) via XLR-3 or

battery/rechargeable battery (AA size, 1.5

V/1.2 V)

Current consumption with P48 powering: 4.4 mA

Operating time with battery approx. 150 h

“Low Batt” indicator < 1.05 V; approx. 8 h of remaining operating

time after initial display

Diameter 20 mm

Length 256 mm

Weight 128 g (without battery)

Operating temperature -10 °C bis +60 °C

MKE 600

Polar diagram

30°30°

0°

60°60°

90°90°

120°120°

125 Hz

250 Hz

500 Hz

00 Hz

2000 Hz

4000 Hz

8000 Hz

16000 Hz

150°150°

180°

Frequency response curve

1.00

dB V

-2

-3

-4

-5

-6

-7

050 Hz

100

100 Hz 200 Hz 500 Hz 1 kHz 2 kHz5 kHz10 kHz20 kH

Linear

„Low Cut“

Sennheiser electronic GmbH & Co. KG

Am Labor 1, 30900 Wedemark, Germany, www.sennheiser.com

Printed in Germany, Publ. 09/22, 536956/A02
