Sennheiser Evolution e608 Manual de usuario

e 608

Instruction manual

e 608 | 2/8

Delivery includes

• e 608

• microphone clamp

• connection cable

• pouch

• quick guide

• safety guide

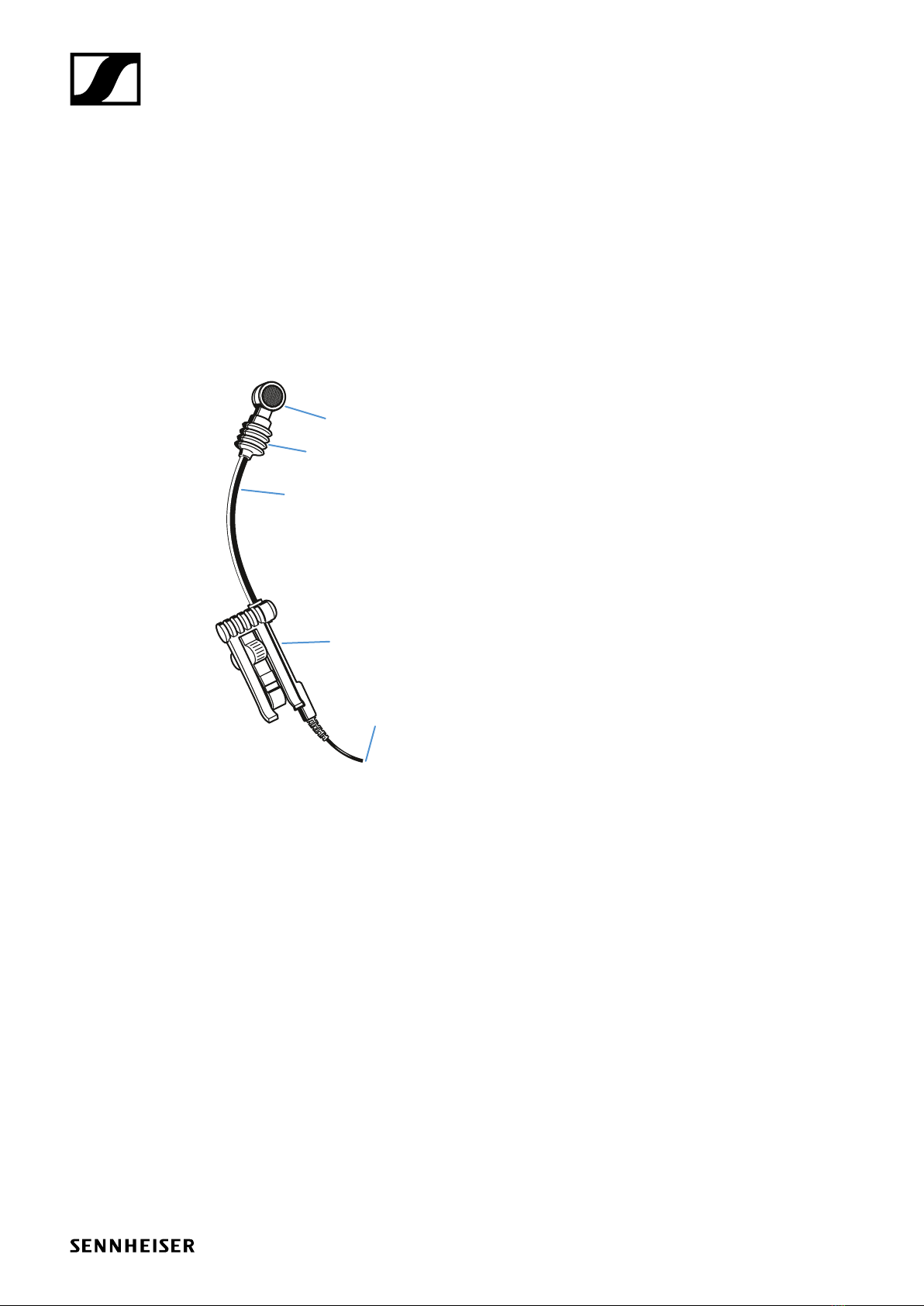

Product overview

1. Microphone head

2. Elastic suspension

3. Gooseneck

4. Microphone clamp

5. 3.5 mm jack plug

e 608 | 3/8

Installation

Attaching the microphone

Carefully bend the ﬂexible goose neck.

Connecting the microphone

Connect the XLR-3 socket of the microphone cable (optional accessories) to the XLR-3 socket of

the microphone.

e 608 | 4/8

Installation

Using accessories

The MZH 908 D (left image) and MZH 908 B (right image) clips are available as optional accessories

for the e 608.

Remove the attached clip from the goose neck.

Unscrew the screw on the clip.

Press the clip ﬁrmly onto the goose neck.

Tighten the screw on the clip.

e 608 | 5/8

Operation

Positioning the microphone on a wind instrument

Use the microphone clamp to attach the e 608 to the bell of the instrument.

It is vital to observe the following notes:

Position Resulting sound Commentary

A Reduced ambient noise Use the supplied clamp to attach the microphone to

the bell of the instrument.

B Clear, powerful sound

C Balanced, natural sound For a Saxophone, the microphone should normally be

directed partly towards the bell and partly towards

the body of the instument.

A B C

Positioning the microphone on a drum

Attach the drum clamp to the rim of the drum.

Position the microphone on the drum so that it is 3 to 5cm above the drumhead.

3 – 5 cm

(1.2 – 2")

e 608 | 6/8

Cleaning and maintaining the e 608

Positioning the monitor loudspeakers

To prevent feedback and crosstalk, postion your monitor loudspeakers in the angle area of the

highest cancellation of the microphone (approx. 120°).

120°

Cleaning and maintaining the e 608

CAUTION

LIQUIDS CAN DAMAGE THE ELECTRONICS OF THE PRODUCT!

Liquids entering the housing of the product can cause a short-circuit and damage the electronics.

Keep all liquids away from the product.

Do not use any solvents or cleansing agents.

Disconnect the products from the power supply system and remove rechargeable batteries and

batteries before you begin cleaning.

Clean all products only with a soft, dry cloth.

e 608 | 7/8

Speciﬁcations

Transducer principle dynamic

Frequency response 40 - 16,000 Hz

Pick-up pattern super-cardioid

Sensitivity (free ﬁeld, no load) 0.8 mV/Pa

Nominal impedance (at 1 kHz) 250 Ω

Min. terminating impedance 1 kΩ

Operating temperature 0°C to +40°C

Connection cable 3 m, with 3.5 mm jack plug, lockable

Dimensions Ø 17 mm, length 185 mm

Weight 20 g

Polar pattern

125 Hz

250 Hz

500 Hz

1,000 Hz

2,000 Hz

4,000 Hz

8,000 Hz

16,000 Hz

30°

0°

180°

150°

120°

60°

90°

30°

0°

180°

150°

120°

60°

90°

Frequency response

dBV

100

200

500

1,000

2,000

5,000

10,000

20,000

- 50

- 60

- 70

- 80

- 90

- 40

0°, 1 m

0°, 5 cm

e 608 | 8/8

Overview of applications

Connector assignment

+ +

XLR 6.3 mm

XLR

6.3 mm

XLR

UNBALANCED

BALANCED

Overview of applications

Primary application

Secondary application

•••••

••

••••

••

•••

••

••••• •

•• ••• •••

•• •

•••

•• •

••

••••

••

••••• •

••

••• •

••••• •••

••

••• ••

e 602 II

e 604

e 608

e 609 silver

e 614

e 835

e 845

e 865

e 901

e 902

e 904

e 906

e 908

e 914

e 935

e 945

e 965
