835 fx

Instruction manual

e 835 fx | 1

835 fx

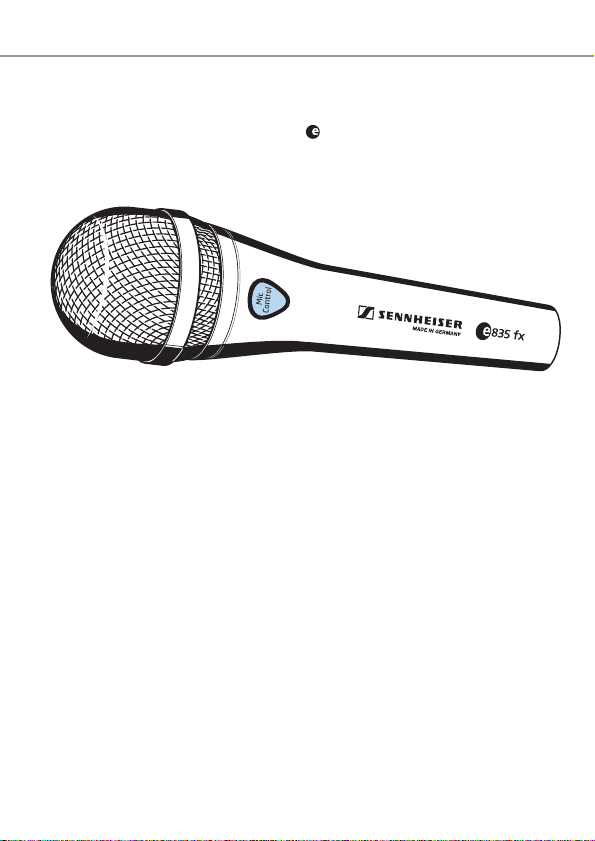

The 835 fx is a cardioid lead vocal stage microphone spe-

cially designed to perform under pressure.

Its balanced frequency response maintains signal quality

when moving on and off axis during performance. The gentle

presence boost ensures vocal clarity and projection. The

minimal proximity effect provides for consistently clear

bass-end performance when singing closer to, or further

from the microphone.

The cardioid pick-up pattern provides excellent feedback

rejection, enabling the microphone to handle higher sound

pressure levels. The rugged metal construction and internal

damping isolates handling noise.

2 | e 835 fx

Features

• Rugged metal body

• Excellent feedback rejection

• Shock-mounted capsule provides excellent suppression

of handling noise

• Uniform on- and off-axis response

• Cardioid pick-up pattern provides isolation from other

on-stage signals

• Humbucking coil

Delivery includes

1 835 fx microphone

1 MZQ 800 microphone clamp

1 pouch

1 instruction manual

e 835 fx | 3

Pin assignment of XLR-3 connector

Removing the sound inlet basket

XLR 6.3 mm

XLR

6.3 mm

balanced

XLR

4 | e 835 fx

Using the microphone

The Mic Control button of the 835 fx allows you to remote

control your TC-Helicon device. For more information, refer to

the instruction manual of your TC-Helicon product.

e 835 fx | 5

Positioning the microphone

If sibilance or “popping” occurs, position the microphone not

directly in front of the mouth but slightly to the side. In order

to prevent feedback, position monitor loud-speakers so that

they are located in the angle area of the highest cancellation

of the microphone.

In order to prevent interference due to crosstalk between ad-

jacent sound sources, try to position the microphone so that

Position Resulting sound Commentary

High proximity effect

(much bass/fundamental)

Powerful, direct sound

Very little

crosstalk from

other sound

sources

Less proximity effect

(less bass/fundamental)

Some room ambience,

natural, balanced sound

More crosstalk

from other sound

sources

Very little proximity effect

(little bass/fundamental)

More room ambience,

indirect sound

Much crosstalk

from other sound

sources

6 | e 835 fx

the interfering sound source is located in the angle area of

the highest cancellation of the microphone (approx. 180°;

see polar diagram).

Polar diagram

0°

30°

60°

90°

30°

60°

90°

120°

150°

180°

150°

120°

2000 Hz

4000 Hz

8000 Hz

16000 Hz

125 Hz

250 Hz

500 Hz

1000 Hz

e 835 fx | 7

Frequency response curve

Specifications

Transducer principle dynamic

Frequency response 40 ... 18,000 Hz

Pick-up pattern cardioid

Sensitivity (free field, no load)

(1 kHz) 2 mV/Pa ± 3 dB

Nominal impedance 350 Ω

Min. terminating impedance 1 kΩ

Connector XLR-3

Weight 372 g

Dimensions Ø 48 x L 180 mm

- 50

- 60

- 70

- 80

- 90

20 50 100 200 500 1.000 2.000 5.000 10.000 20.000Hz

0°, 1 m

- 40

dBv

8 | e 835 fx

Overview of microphone applications

Variant

Application

e602

e604

e606

e608

e614

e825

e835

e845

e865

Vocals x x x x

Choirs x

Studio, acoustic instruments x

Orchestra x

Brass / Saxophone x x x

Acoustic guitar x

Acoustic bass x

Guitar amplifiers x

Bass amplifiers x

Leslie xxx

Piano, grand piano x

Kick drums x

Snare drums x x x

Rack toms x x x

Floor toms xxx

Congas x x x

Cymbals x

Percussion x x x x

Overheads x

e 835 fx | 9

Manufacturer declarations

Warranty

Sennheiser electronic GmbH & Co. KG gives a warranty of

24 months on this product.

For the current warranty conditions, please visit our web site

at www.sennheiser.com or contact your Sennheiser partner.

Approval

• RoHS-Directive (2011/65/EC)

The declarations are available at www.sennheiser.com.

In compliance with the following requirements:

Europe

China
