Security Camera King TVIOD-PR2EXIR28 Manual de usuario

User Manual

Thank you for purchasing our product. If there are any

questions, or requests, do not hesitate to contact the

dealer.

This manual may contain several technical incorrect

places or printing errors, and the content is subject to

change without notice. The updates will be added to

the new version of this manual. We will readily improve

or update the products or procedures described in the

manual.

TVIOD-PR2EXIR28

Regulatory Information

FCC Information

Please take attention that changes or modification not

expressly approved by the party responsible for

compliance could void the user’s authority to operate

the equipment.

FCC compliance: This equipment has been tested and

found to comply with the limits for a Class A digital

device, pursuant to part 15 of the FCC Rules. These

limits are designed to provide reasonable protection

against harmful interference when the equipment is

operated in a commercial environment. This equipment

generates, uses, and can radiate radio frequency energy

and, if not installed and used in accordance with the

instruction manual, may cause harmful interference to

radio communications. Operation of this equipment in a

residential area is likely to cause harmful interference in

which case the user will be required to correct the

interference at his own expense.

FCC Conditions

This device complies with part 15 of the FCC Rules.

Operation is subject to the following two conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received,

including interference that may cause undesired

operation.

EU Conformity Statement

This product and - if applicable - the

supplied accessories too are marked with

"CE" and comply therefore with the

applicable harmonized European

standards listed under the Low Voltage Directive

2014/35/EU, the EMC Directive 2014/30/EU.

2012/19/EU (WEEE directive): Products

marked with this symbol cannot be

disposed of as unsorted municipal waste in

the European Union. For proper recycling,

return this product to your local supplier

upon the purchase of equivalent new

equipment, or dispose of it at designated collection

points. For more information see: www.recyclethis.info.

2006/66/EC (battery directive): This product contains

a battery that cannot be disposed of as

unsorted municipal waste in the European

Union. See the product documentation for

specific battery information. The battery is

marked with this symbol, which may

include lettering to indicate cadmium (Cd), lead (Pb),

or mercury (Hg). For proper recycling, return the

battery to your supplier or to a designated collection

point. For more information see:

www.recyclethis.info.

Industry Canada ICES-003 Compliance

This device meets the CAN ICES-3 (A)/NMB-3(A)

standards requirements.

Safety Instruction

These instructions are intended to ensure that user can

use the product correctly to avoid danger or property

loss.

The precaution measure is divided into “Warnings” and

“Cautions”.

Warnings: Serious injury or death may occur if any of

the warnings are neglected.

Cautions: Injury or equipment damage may occur if any

of the cautions are neglected.

Warnings

In the use of the device, you must be in strict

compliance with the electrical safety regulations of

the nation and region.

Input voltage should meet both the SELV (Safety Extra

Low Voltage) and the Limited Power Source with 12

VDC according to the IEC60950-1 standard. Refer to

technical specifications for detailed information.

Do not connect multiple devices to one power

adapter to avoid over-heating or a fire hazard caused

by overload.

Make sure that the plug is firmly connected to the

power socket.

Make sure that the device is firmly fixed if wall

mounting or ceiling mounting is adopted.

If smoke, odor or noise rise from the device, turn off

the power at once and unplug the power cord, and

then contact the service center.

Never attempt to disassemble the camera by

unprofessional personal.

Cautions

Do not drop the camera or subject it to physical

shock.

Do not touch senor modules with fingers.

If cleaning is necessary, use clean cloth with a bit of

ethanol and wipe it gently.

Do not aim the camera at the sun or extra bright

places.

The sensor may be burned out by a laser beam, so

when any laser equipment is in using, make sure that

the surface of sensor will not be exposed to the laser

beam.

Do not expose the device to high electromagnetic

radiation or extremely hot, cold, dusty or damp

environment.

To avoid heat accumulation, good ventilation is

required for the operating environment.

Keep the camera away from liquid while in use for

non-water-proof device.

While in delivery, the camera shall be packed in its

original packing, or packing of the same texture.

Warnings Follow

these safeguards to

prevent serious injury

or death.

Cautions Follow these

precautions to prevent

potential injury or

material damage.

1Introduction

1.1 Product Features

The camera is applicable for both indoor and outdoor

conditions, and the application scenarios include road,

warehouse, underground parking lot, bar, etc..

The main features are as follows:

High performance CMOS sensor

Low illumination, 0.005 Lux @ (F2.0, AGC ON), 0 Lux

with IR

IR cut filter with auto switch

OSD menu with configurable parameters

Auto white balance

Internal synchronization

SMART IR mode

PoC (with -E)

3-axis adjustment

1.2 Overview

This manual applies to two types of turret cameras.

The overviews of each type are shown in the figures

below.

1.2.1 Overview of Type I Camera

Main Body

Mounting Base

Enclosure

Video Cable

Power Cord

12 VDC

Figure 1-1 Overview of Type I Camera

1.2.2 Overview of Type II Camera

Enclosure

Mounting Base

Video Cable

Power Cord

12 VDC

Camera

Trim Ring

Clip Plate

Figure 1-2 Overview of Type II Camera

2Installation

Before you start:

Make sure that the device in the package is in good

condition and all the assembly parts are included.

Make sure that all the related equipment is power-off

during the installation.

Check the specification of the products for the

installation environment.

Check whether the power supply is matched with

your required output to avoid damage.

Make sure the wall is strong enough to withstand

three times the weight of the camera and the

mounting.

If the wall is cement, insert expansion screws before

installing the camera. If the wall is wooden, use

self-tapping screw to secure the camera.

If the product does not function properly, contact

your dealer or the nearest service center. Do NOT

disassemble the camera for repair or maintenance by

yourself.

2.1 Installation of Type I Camera

2.1.1 Ceiling/Wall Mounting without Junction Box

Steps:

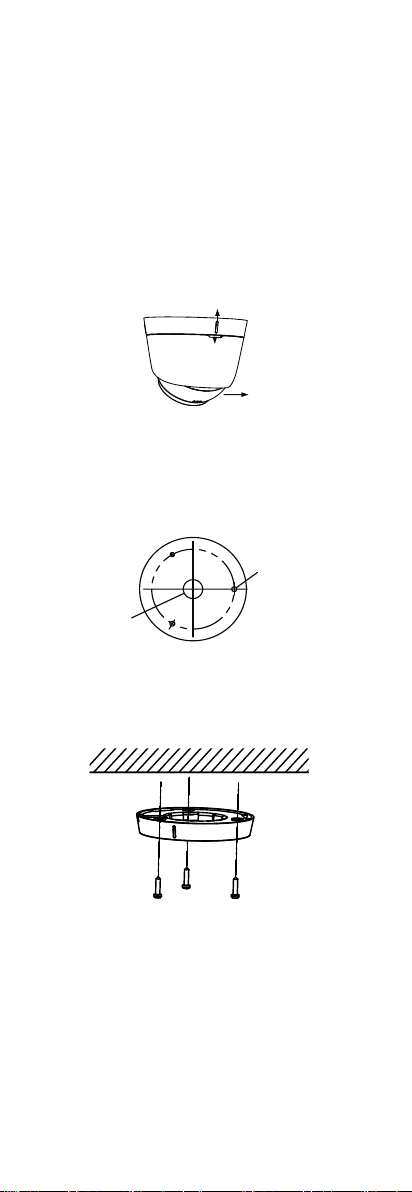

1. Disassemble the turret camera by rotating the

camera to align the notch to one of the marks, as

shown in the figure below.

Mark

Notch

Figure 2-1 Disassemble the Camera

2. Remove the mounting base from the camera body

with a flat object, e.g., a coin.

3. Paste the drill template (supplied) to the place

where you want to install the camera.

4. Drill the screw holes and the cable hole (optional)

on the ceiling/wall according to the drill template.

Screw Hole

Cable Hole

Figure 2-2 Drill Template

Note:

Drill the cable hole, when adopting the ceiling outlet

to route the cable

5. Attach the mounting base to the ceiling/wall, and

secure them with supplied screws

Figure 2-3 Attach the Mounting Base to the Ceiling

Note:

The supplied screw package contains self-tapping

screws, and expansion bolts.

For cement wall/ceiling, expansion bolts are

required to fix the camera. For wooden wall/ceiling,

self-tapping screws are required.

6. Route the cables through the cable hole, or the side

opening.

7. Align the camera with the mounting base, and

tighten the screws to secure the camera on the

mounting base.

Figure 2-4 Secure the Camera with Mounting Base

8. Connect the corresponding cables, such as power

cord, and video cable.

9. Power on the camera to check whether the image

on the monitor is gotten from the optimum angle. If

not, adjust the camera according to the figure below

to get an optimum angle.

Tilt Position

[0°to 75°]

Pan Position

[0°to 360°]

Rotation Position

[0°to 360°]

Figure 2-5 3-axis Adjustment

1). Hold the camera body and rotate the enclosure

to adjust the pan position [0°to 360°].

2). Move the camera body up and down to adjust

the tilt position [0°to 75°].

3). Rotate the camera body to adjust the rotation

position [0°to 360°].

2.1.2 Mounting with Inclined Base

Steps:

1. Paste the drill template (supplied) to the place

where you want to install the camera.

2. Drill screw holes, and the cable hole on the

ceiling/wall according to the supplied drill template.

Screw Hole

Cable

Hole

Figure 2-6 The Drill Template

3. Disassemble the inclined base by the screw driver.

4. Install the turret camera’s mounting base on the

inclined base cover with three PM4 screws.

Inclined

Base Cover

Figure 2-7 Install Turret Camera’s Mounting Base

5. Install the inclined base’s body on the ceiling/wall

with four PA4 ×25 screws, as shown in Figure 2-8.

Inclined

Base Body

Figure 2-8 Fix the Inclined Base Body

6. Combine inclined base’s cover with its body with

supplied screws.

7. Repeat steps 6 to 9 of the 2.1.1 Ceiling/Wall

Mounting without Junction Box to complete the

installation.

Figure 2-9 Fix the Camera to the Inclined Base

2.2 Installation of Type II Camera

Before you start:

Both wall mounting and ceiling mounting are suitable

for the turret camera. Ceiling mounting will be taken as

an example in this section. You can take steps of ceiling

mounting as the reference, when adopting the wall

mounting.

Steps:

1. Disassemble the turret camera by rotating the

camera to align the notch to the clip plate, as shown

in the Figure 2-10.

Notch

Clip Plate

Figure 2-10 Disassemble the Camera

2. Pry the mounting base to remove the mounting

base from the camera body.

3. Paste the drill template (supplied) to the place

where you want to install the camera.

4. Drill the screw holes according to the drill template,

and the cable hole (optional) on the ceiling.

Figure 2-11 Drill Template

Note:

Drill the cable hole in the center of the drill template,

when adopting the ceiling outlet to route the cable.

5. Secure the mounting base to the ceiling with the

supplied screws.

Fixing Screw

Expansion Bolts

Figure 2-12 Fix the Mounting Base to the Ceiling

Note:

The supplied screw package contains self-tapping

screws, and expansion bolts.

For cement wall/ceiling, expansion bolts are

required to fix the camera. For wooden

wall/ceiling, self-tapping screws are required.

6. Route the cables through the cable hole, or the side

opening.

7. Secure the camera on the mounting base.

Figure 2-13 Secure the Camera

8. Connect the corresponding cables, such as power

cord, and video cable.

9. Power on the camera to check whether the image

on the monitor is gotten from the optimum angle. If

not, adjust the camera according to the figure below

to get an optimum angle.

Tilt Position

[0°to75°]

Pan Position

[0°to 360°]

Rotation Position

[0°to 360°]

Figure 2-14 3-axis Adjustment

1). Hold the camera body and rotate the enclosure

to adjust the pan position [0°to 360°].

2). Move the camera body up and down to adjust

the tilt position [0°to 75°].

3). Rotate the camera body to adjust the rotation

position [0°to 360°].

2.3 Installation of Type I and Type II Camera

2.3.1 Ceiling/Wall Mounting with Junction Box

Steps:

1. Paste the drill template on the ceiling/wall.

2. Drill screw holes and the cable hole (optional) in the

ceiling/wall according to the holes of the drill

template.

Type I Camera

Type II Camera

Figure 2-15 Drill Template of the Junction Box

Note:

Drill the cable hole, when adopting the ceiling

outlet to route the cable.

3. Take apart the junction box, and align the screw

holes of the turret camera’s mounting base with

those on junction box’s cover.

4. Fix the mounting base on junction box’s cover by

supplied screws.

5. Secure the junction box’s body with supplied screws

on the ceiling/wall.

6. Combine the junction box’s cover with the junction

box’s body.

Junction Box Body

Junction Box Cover

Figure 2-16 Fix the Junction Box

7. Repeat steps 6 to 9 of 2.1.1 Ceiling/Wall Mounting

without Junction Box to install the camera to the

junction box.

2.3.2 Wall Mounting

Before you start:

You need to purchase a wall mounting bracket

separately.

Steps:

1. Drill four screw holes in the wall according to the

holes of the bracket.

2. Install the bracket to the wall by aligning the four

screw holes of the bracket with expansion screws on

the wall.

3. Secure the bracket with four hex nuts and washers.

Type I Camera

Type II Camera

Figure 2-17 Install the Bracket

4. Install the mounting base of the turret camera to

the wall mounting bracket, and secure them with

supplied screws.

Type I Camera

Type II Camera

Figure 2-18 Install the Mounting Base to the Bracket

5. Route the cables through the bracket.

6. Repeat steps 7 to 9 of 2.1.1 Ceiling/Wall Mounting

without Junction Box to complete the installation.

3Menu Description

Purpose:

Call the menu by clicking button on the PTZ Control

interface, or call preset No.95.

Steps:

1. Connect the camera with the TVI DVR, and the

monitor, shown as the figure 3-1.

Camera

TVI DVR

Monitor

Figure 3-1 Connection

2. Power on the analog camera, TVI DVR, and the

monitor to view the image on the monitor.

3. Click PTZ Control to enter the PTZ Control interface.

4. Call the camera menu by clicking button, or call

preset No. 95.

BRIGHTNESS

MAIN MENU

FORMAT

LANGUAGE

DAY NIGHT

VIDEO

SETTINGS

FUNC

RESET

SAVE & EXIT

PRIVACY

EXPOSURE MODE

AGC

SENSE UP

MODE

RETURN

MODE

RETURN

CONTRAST

SHARPNESS

COLOR GAIN

3D DNR

MIRROR

RETURN

MOTION

CAM ID

RETURN

Figure 3-2 Main Menu Overview

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Cámara de seguridad de Security Camera King

Security Camera King

Security Camera King QUADBRID HDVD-SB2IRZW Manual de usuario

Security Camera King

Security Camera King CVIOB-ELV22MPIR100LZ2712-D2 Manual de usuario

Security Camera King

Security Camera King HDCV-ELE2MB28 Manual de usuario

Security Camera King

Security Camera King IPPTZ-EL2MPIR250L30X-AT Manual de usuario

Security Camera King

Security Camera King DS-2CD63C5G0-IVS Manual de usuario

Security Camera King

Security Camera King CVIPTZ-EL1MPL20X Manual de usuario

Security Camera King

Security Camera King EL2MPIR250L30X Manual de usuario

Security Camera King

Security Camera King TVIOD-PR2EXIR Manual de instalación y operación

Security Camera King

Security Camera King IPPTZ-EL2MPL12X-Mini-F Manual de usuario

Security Camera King

Security Camera King PRIME Series Manual de usuario

Security Camera King

Security Camera King HDIR7907VF Manual de usuario

Security Camera King

Security Camera King IPOB-EL1MPIR50-E Manual de usuario

Security Camera King

Security Camera King CVIOD-EL2MPIR50 Manual de usuario

Security Camera King

Security Camera King TVIVD-PR5EXIR28 Manual de usuario

Security Camera King

Security Camera King IPOB-ELS2IR12XA-EP Manual de usuario

Security Camera King

Security Camera King IPPTZ-EL1MPIR250L20X Manual de usuario

Security Camera King

Security Camera King IPOB-EL3MPIR50 Manual de usuario

Security Camera King

Security Camera King OD-LX700IR50-W Manual de usuario

Security Camera King

Security Camera King IPVD-EL3MPIR Series Manual de usuario

Security Camera King

Security Camera King IPOB-ELS2IR12XA-EP Manual de usuario

Security Camera King

Security Camera King TVIPTZ-TP2IR18XME Manual de usuario

Security Camera King

Security Camera King PRIME Series Manual de usuario

Security Camera King

Security Camera King CVIOB-EL4IRZD Manual de usuario

Security Camera King

Security Camera King IPOD-EL1MPIR50-E Manual de usuario

Manuales populares de Cámara de seguridad de otras marcas

Okina USA

Okina USA SIR36-870VF650LP Manual de usuario

Divio

Divio NDR155PA Manual de usuario

Canon

Canon VB-C500D Manual de usuario

Easy Access

Easy Access EasyGuard Manual de usuario

Vivotek

Vivotek FD9389-EHV-v2 Manual de usuario

TUYA

TUYA COSMO W2 Manual de usuario

Eusso

Eusso UNC7500-IR Guía de configuración

urmet domus

urmet domus 1096/204 Manual de usuario

VC VC20 series Manual de usuario

Axis

Axis Q1614 Manual de usuario

ieGeek

ieGeek DD201 Manual de usuario

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manual de usuario

Vicon

Vicon V662-D-1 Instrucciones de funcionamiento

Grundig

Grundig GCH-K0274P Manual de usuario

Lorex

Lorex VANTAGE LBC7032 Manual de usuario

4xem

4xem WPT Manual de usuario

Samsung

Samsung SCV-3082 Manual de usuario

Vitek

Vitek VTC-C544 Manual de usuario
