Sears C970-5121 Manual de usuario

C970-5121.eps CC970-512121.eps BC970-512125.eps TC970-512121.eps DC970-

552221.eps 318046771-1.eps 318046771-2.eps

HI O

ELEMENTON ELEMENTON

Oven

Four

Preheat

Préchauffage

Timer

Minuterie

On/Off

CookTime

Tempsde

Cuisson Broil

Griller

Bake

Cuire

DelayStart

Départ

Différé

STOP

ARRÊT

Controls

SEARS CANADA

Product No. C970-512125

30705315C5115

Series 30" f/s elec

Color white

Market Canada

Wiring Diagram 318046771

Owner's Guide 318200444

Timer Guide 318200166

North & Latin America

5855 TERRY FOX WAY

MISSISSAUGA, ONTARIO, CANADA L5V

3E4 Publication No.

5995512414

08/04/25

(EN/SERVICE/ECL)

377

30-INCH FREE-

STANDING ELECTRIC

RANGE

Model No.

C970-5121

Publication No: 5995512414 C970-512125

04/08 2

BACKGUARD

C970-512125 Publication No: 5995512414

# Functional Parts 3 04/08

* Non-Illustrated Parts

BACKGUARD

POS. NO PART NO. DESCRIPTION

1 318314100 Panel, cover, upper

2 318288215 Shield, inner

3 5304448825 Lamp, fluorescent, backguard

4 318323401 Receptacle, lamp, RH/LH

5 318288000 Housing, light

6 # 5304448826 Starter, lamp

6A 318110400 Receptacle, starter

10 # 318122805 Ballast, lamp

14 316022500 Light/Lamp, indicator, 125 V

18 318287902 End Cap, backsplash, white, RH

18A 318287903 End Cap, backsplash, white, LH

19 318322004 Panel, control, white

20 # 318325900 Clock/Timer, electronic, white, w/overlay, ES125

20* 318324900 Overlay, control, white, ES125

23 318288100 Bracket, control, (2)

24 # 316005607 Switch, rocker, white

25 318324200 Breaker, white, (2)

30 318316900 Bracket, cooktop mtg, (2)

36 318326300 Knob, control, white

46 318228310 Lens, indicator light, (2)

54 # 318293810 Switch, surface element, small

54A# 318293811 Switch, surface element, large

69 5303323134 Screw, 8-32 x 3/16

84 318146830 Outlet, electrical, white, combined

* 318232103 Harness, wiring, light, flourecent

* 318200444 Owners Manual

* 318200166 Electronic timer guide

* 318046771 Wiring Diagram

* 08016432 Screw, truss head, 8-18 x 0.375

* 5303211311 Screw, 8 x 0.500

* 5303305528 Screw, 8-32 x 1/4

Publication No: 5995512414 C970-512125

04/08 4

BODY

C970-512125 Publication No: 5995512414

# Functional Parts 5 04/08

* Non-Illustrated Parts

BODY

POS. NO PART NO. DESCRIPTION

1 318259220 Back, main

3 318299801 Panel, body side, white, (2)

4 318313101 Cover, insualtion

5 318175503 Screw, leveling

6 318262504 Rack, oven

9 316081900 Pan, broilerOPTIONAL ACCESS0RY

10 316082000 Insert, broiler panOPTIONAL ACCESS0RY

14 318224000 Receptacle, oven light

15 5303013071 Bulb/Lamp, light

29 318147411 Bumper, (2)

37 # 316217002 Probe, oven temp

39 # 318113111 Cord, electric

41 5303310526 Cover, hinge cutout

54 318222400 Housing, oven light

58A 318285074 Insulation, oven wrapper

58B 318285075 Insulation, oven back

59 318072573 Duct, oven vent

62 5303935061 Terminal Block Kit

62* 5303323139 Screw, 10-24 x 0.906

62* 5303323144 Nut, 10-32

66 # 318255600 Element, broil, 2750W

67 # 318255002 Element, bake, 3000W

68 5304403015 Support, hanger, (2), broil element

71 318300900 Panel, cover

74 318141910 Bumper, bodyside

76 318056216 Front, oven

80 5303320846 Plate, oven mtg

81 318192400 Spring, oven

* 5303211311 Screw, 8 x 0.500

82 318258707 Shield, insulation, lower

83 318261403 Liner, oven assy

86 318342400 Receptacle, hinge

127 318317000 Adapter, vent tube

152 318338500 Bracket, lateral panel, (4)

166 318298410 Bracket, base support, (2)

166A 318298400 Bracket, base support, (2)

168 08011155 Roller

169 318317200 Bracket, wheel brake

170 318170401 Anti-tip bracket

172 5304448824 Rivet, 1.4" x 1-5/8", (4)

174 318531600 Bearing, roller, (4)

180 318147800 Screw, socket head cap, lock

200 318318400 Frame, drawer, black, front, w/rollers

201 318311610 Frame, drawer, rear

219# 318003602 Thermostat, safety

242 318303105 Trim, center, black

* 318232060 Harness, wiring, main

* 5303323129 Screw, 8 X 0.750

* 5303325978 Screw, shoulder head, 8-18 X 1/2

* 5304415832 Screw, 8-18 x 0.406

Publication No: 5995512414 C970-512125

04/08 6

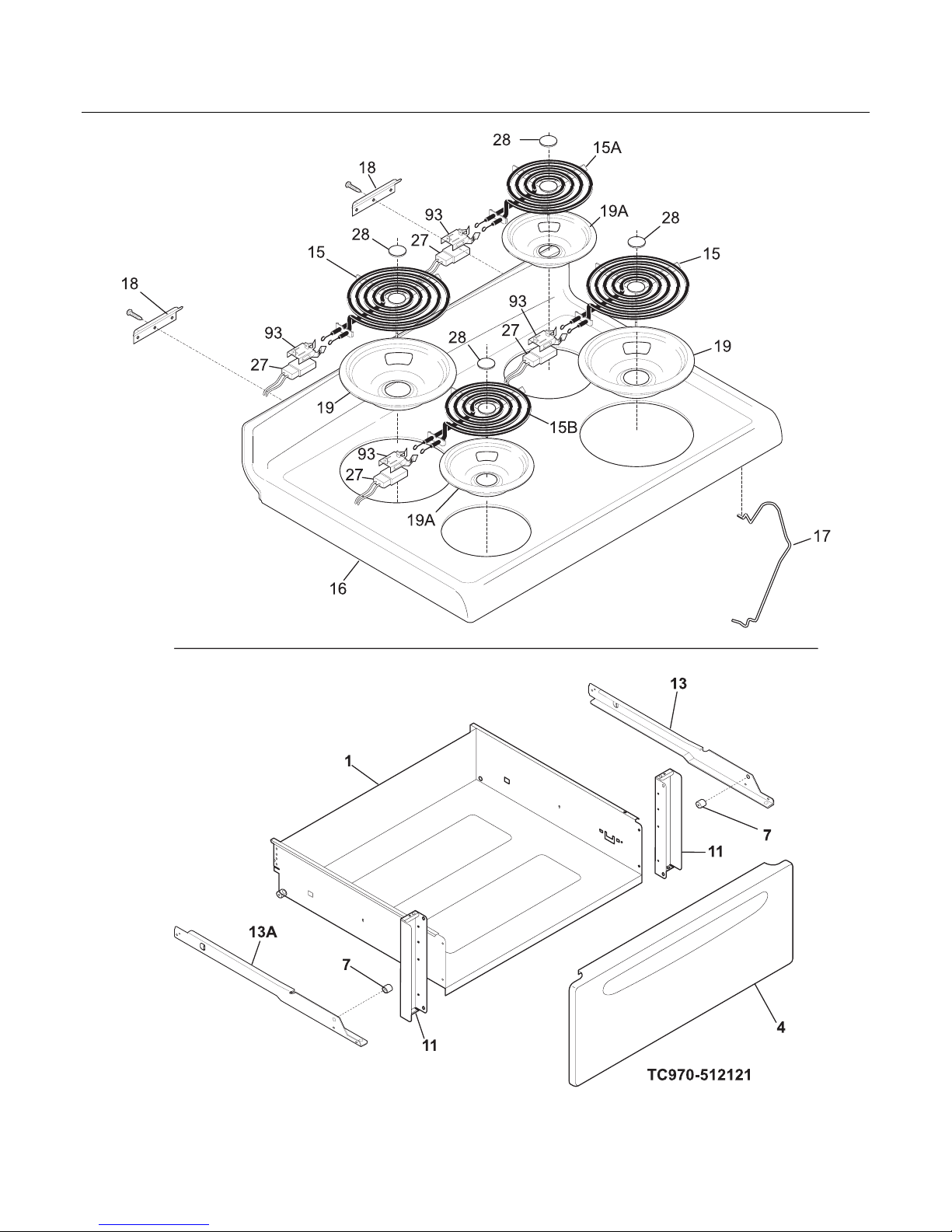

TOP/DRAWER

C970-512125 Publication No: 5995512414

# Functional Parts 7 04/08

* Non-Illustrated Parts

TOP/DRAWER

POS. NO PART NO. DESCRIPTION

1 318107105 Drawer

4 318303024 Panel, drawer, white, front

7 318332200 Roller, nylon

11 318311502 Bracket, Drawer Panel, (2)

11 318311503 Bracket, Drawer Panel, (2)

13 318018100 Channel, drawer, RH

13A 318018101 Channel, drawer, LH

15 # 318372206 Element, surface, 8", large

15A# 318372201 Element, surface, 6", small

15B# 318372202 Element, surface, 6", small

16 318065781 Panel, main top, white

17 318119100 Rod, maintop support, (2)

18 318074410 Hinge, main top panel, (2)

19 318067050 Pan, surface element, large, black

19A 318067040 Pan, surface element, small, black

27 # 318368600 Terminal Block, surface element, 25", white leads

27 # 318368601 Terminal Block, surface element, 28", black leads

28 5303017715 Medallion, 1 1/2"dia, black, surface element

93 318366410 Support, terminal block, (4)

* 08016432 Screw, truss head, 8-18 x 0.375

* 5303211311 Screw, 8 x 0.500

* 5303300265 Screw, 8-18 X 1/2, (4)

Publication No: 5995512414 C970-512125

04/08 8

DOOR

C970-512125 Publication No: 5995512414

# Functional Parts 9 04/08

* Non-Illustrated Parts

DOOR

POS. NO PART NO. DESCRIPTION

3 318301401 Trim, oven door, white

4 318304104 Door Assembly, glass, white, w/trim

8 316117500 Glass, oven door, heat barrier

9 318259603 Liner, door, lower

10 5304453593 Screw, handle mtg.

12 318053325 Seal, door, lower oven

17 318300513 Bracket, glass

17A 318300611 Bracket, glass, lower

23 5303320452 Hinge, oven door

39 316443601 Handle, oven door, white

52 318317500 Trim, door, white, upper

56 5304436875 Screw, 8-18 X 1/2, black

56 5304448821 Screw, 8-18 X 1/2, white, (6)

* 5304415832 Screw, 8-18 x 0.406

Publication No: 5995512414 C970-512125

04/08 10

WIRING DIAGRAM
