Sears 790.42732404 Manual
42732400.eps L21C0011-1.eps L21T0008.eps 318046807-1.eps 318046807-2.eps
REPAIR
PARTS
LIST
790.42732404
790.42734404
790.42739404
For Parts or Service:
Call
1-800-4-MY-HOME®
(1-800-469-4663)
Or Visit
www.sears.com
ELECTRIC COOK-TOP RANGE
In all orders or correspondence, avoid delays and misunderstandings
by always giving the complete model number shown
All repair parts listed are available for immediate purchase or special
order when you visit your nearest Sears Parts & Repair Center, or the
Service Department at most Sears stores. To order parts by phone, call
the toll-free number listed to the left or visit sears.com.
When requesting service or ordering parts, always provide the following
information:
• Product Type • Part Number
• Model Number • Part Description
Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A
Publication number 5995552337
790.4273
09/09 2
CONTROL PANEL
CAUTION: Use the Kenmore part number to order part, not the illustration number.
L21C0011-1
69
69
54
54
74A
54C
54B
54A
51
16
74
36A
36
36
36
74
35
790.4273
# Functional Parts 3 09/09
* Non-Illustrated Parts
CONTROL PANEL
CAUTION: Use the Kenmore part number to order part, not the illustration number.
Model Index: A790.4273 (790.42732404)
B790.4273 (790.42734404)
C790.4273 (790.42739404)
POS. NO PART NO. DESCRIPTION
16 318096330 A B C Box, instrument mtg
* 5303323130 A B C Screw, 8 x 1/4, (6)
35 5304400795 A B C Bushing, snap-in, nylon
36 318921100 A - - Knob, control, white, (4)
36 318921127 - B - Knob, control, bisque, (4)
36 318921101 - - C Knob, control, black, (4)
36A 318549000 A - - Knob-on-off, white
36A 318549001 - B - Knob-on-off, bisque
36A 318549002 - - C Knob-on-off, black
51 # 318044830 A B - Light, indicator, natural, (5)
51 # 318044827 - - C Light, indicator, clear
54 # 318293824 A B C Switch, surface element, small
54A# 318191003 A B C Switch, infinite, dual
54B# 318120505 A B C Switch, surface unit, small/large
54C# 318282400 A B C Switch, selector
69 5303323134 A B C Screw, 8-32 x 3/16, (8)
74 318148900 A B C Bushing, switch
74A 318146010 A B C Bushing, switch
* # 318052595 A B C Wire harness, pilot light
* 5995552337 A B C Repair Parts List
* 318203632 A B C Owners Manual
* 318205409 A B C Installation Instructions
* 318046807 A B C Wiring Diagram
790.4273
09/09 4
MAIN TOP/SURFACE UNITS
CAUTION: Use the Kenmore part number to order part, not the illustration number.
790.4273
# Functional Parts 5 09/09
* Non-Illustrated Parts
MAIN TOP/SURFACE UNITS
CAUTION: Use the Kenmore part number to order part, not the illustration number.
Model Index: A790.4273 (790.42732404)
B790.4273 (790.42734404)
C790.4273 (790.42739404)
POS. NO PART NO. DESCRIPTION
2 318235712 A B C Foil, aluminum
15 # 318198830 A B C Element, surface, 6", 1200W, (2), radiant
15A# 316465001 A B C Element, surface, 6"/9", 1400/3000W, radiant
15B# 316418401 A B C Element, dual, 9"/6", surface, 1300W/1200W, (2), radiant
16 318358800 A - - Main Top Assy, glass/steel, enamel, white, 16
16 318358801 - B - Main Top Assy, glass/steel, enamel, bisque, 16
16 318358802 - - C Main Top Assy, glass/steel, enamel, black, 16
20 318121902 A B C Bracket, retainer
* 5303300265 A B C Screw, 8-18 X 1/2, silver, (4)
23 318194705 A B C Panel, service, black
* 5303307980 A B C Screw, 8-32 x 0.437, (8)
46 318077235 A B C Burner Box
52 318122006 A B C Spring, element mtg, small
52A 318122010 A B C Spring, element mtg, 3000W
150 318106050 A B C Insulation, 2 x 8, (9)
159 318125126 A B C Deflector
162 318161402 A B C Deflector
163 318531702 A B C Spacer, (6)
170 318124911 A B C Screen, thermal
* # 318199449 A B C Harness, wiring, main
* 318231847 A B C Harness, wiring, limiter
* # 318078571 A B C Box & wires assy
* 316112100 A B C Cleaner, glass
* 316459400 A B C Pad, cleaning
* 08016432 A B C Screw, truss head, 8-18 x 0.375
* 5303323140 A B C Screw, ground, 10-32 x 0.375
790.4273
09/09 6

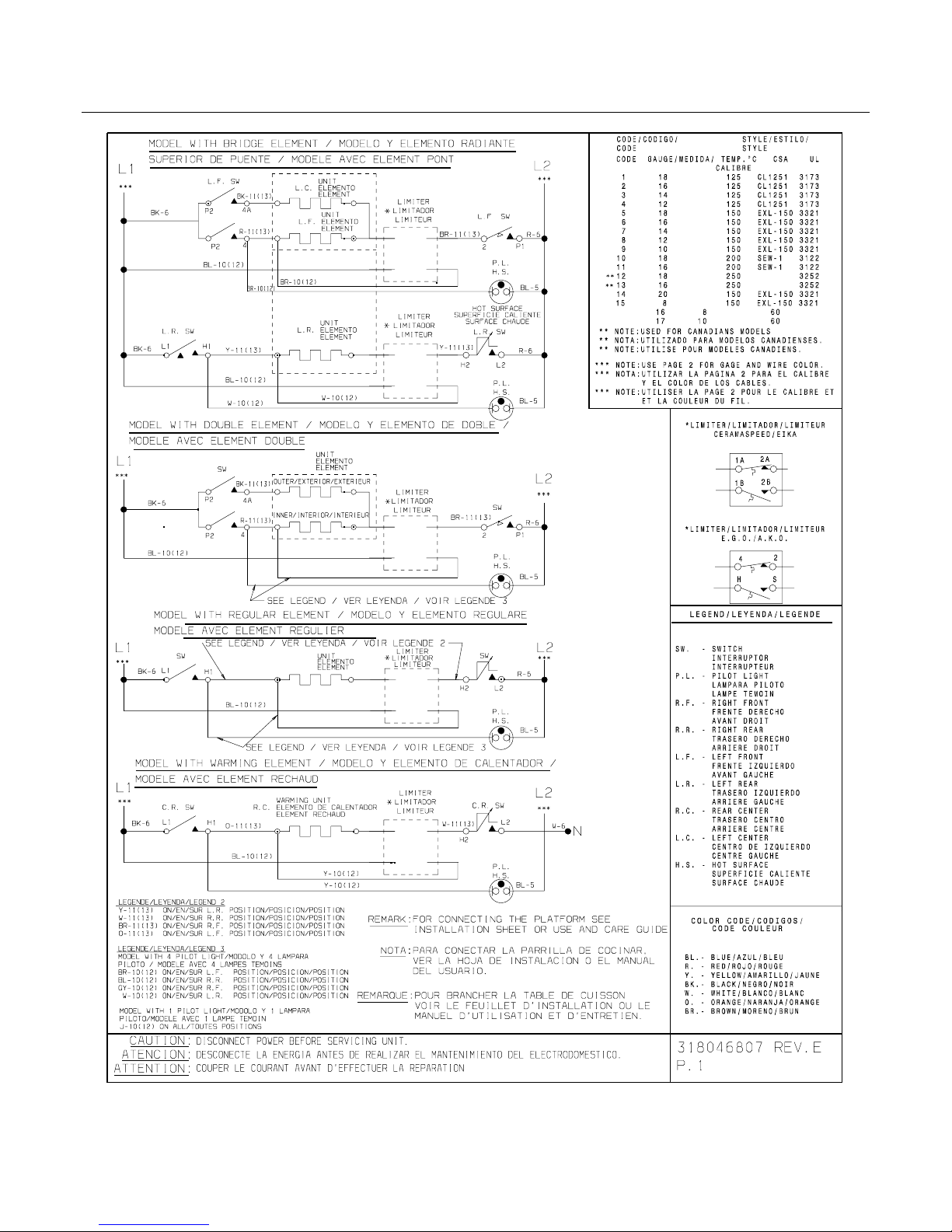

WIRING DIAGRAM
790.4273
# Functional Parts 7 09/09
* Non-Illustrated Parts
WIRING DIAGRAM
