Sears C970-4407 Manual de instrucciones

C970-44073800.eps C79041023800.eps BC970-44073800.eps TC970-44073800.eps

D79048033800.eps 318550101-1.eps 318550101-2.eps

SEARS CANADA

Product No. C970-44073800

37605376E83S1

Series 30" slide-in

Color stainless

Market Canada

Wiring Diagram 318550101

Owner's Guide 318203861

Installation Instructions 318201612

Service Data Sheet 318127045

Timer Guide 318204112

North & Latin America

5855 TERRY FOX WAY

MISSISSAUGA, ONTARIO, CANADA L5V

3E4 Publication No.

5995528543

08/11/13

(EN/SERVICE/ECL)

377

30-INCH SLIDE-IN

ELECTRIC RANGE

Model No.

C970-4407

Publication No: 5995528543 C970-44073800

11/08 2

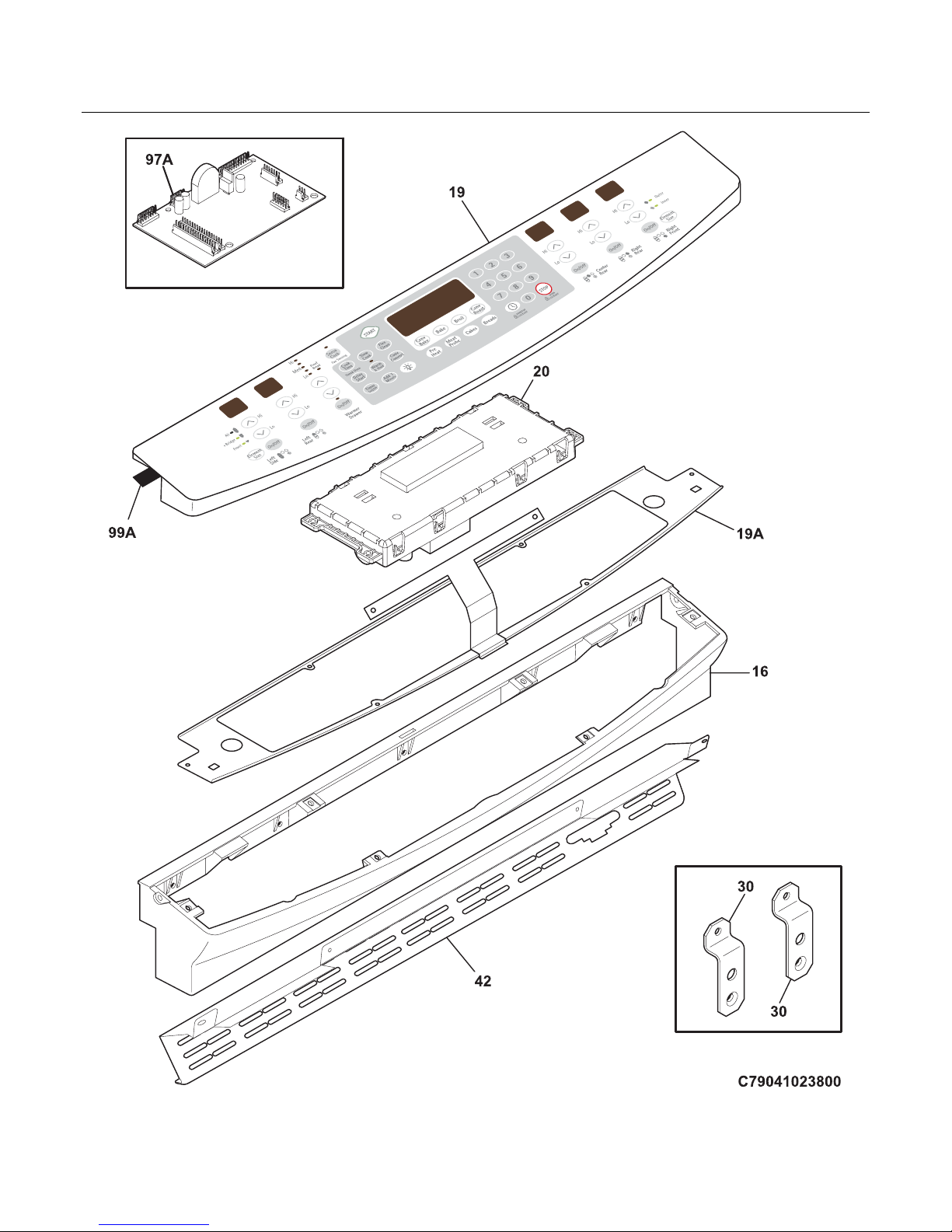

BACKGUARD

C970-44073800 Publication No: 5995528543

# Functional Parts 3 11/08

* Non-Illustrated Parts

BACKGUARD

POS. NO PART NO. DESCRIPTION

16 318296602 Console, assy., black

* 5303308456 Screw, 8-18 x 0.531, black

19 # 318918008 Control Panel, assembly, blk/stnls

19A 318369200 Panel, control mtg., w/support

20 # 316462833 Controller, electronic, ES575

20* 5304453707 Screw, 8-18 X 1/2

30 318369100 Support, control panel, (2)

42 318298021 Trim, vent, black, upper

97A# 316442064 Board, power, UIB

99A 318313231 Gasket, black

* # 318402335 Harness, wiring, control panel

* # 318224845 Harness, wiring, timer

* 318203861 Owners Manual

* 318127045 Service Data Sheet

* 318550101 Wiring Diagram

* 318201612 Instructions, installation

* 318204112 Electronic timer guide

* 5303211311 Screw, 8 x 0.500

* 5303300265 Screw, 8-18 X 1/2, (4)

Publication No: 5995528543 C970-44073800

11/08 4

BODY

C970-44073800 Publication No: 5995528543

# Functional Parts 5 11/08

* Non-Illustrated Parts

BODY

POS. NO PART NO. DESCRIPTION

1 318259220 Back, main

1A 318225110 Panel, main back, upper

2 318258922 Shield, insulation, upper

3 318225210 Panel, bodyside, upper RH

3A 318225211 Panel, bodyside, upper LH

5 318175508 Screw, leveling

6 318262500 Rack, oven

6A 318365800 Rack, broiler pan

6C 318318800 Rack, half, oven

6D 316419401 Rack, half insert, oven

7 318297303 Box, bake element

8 318359500 Panel, service

8A 318313601 Bracket, bake element

9 5303317977 Pan, broiler

10 5303317976 Insert, broiler pan

12 316445501 Switch, oven light, door frame

* 318531701 Spacer, (2)

15 318241001 Lamp, oven, 23.82" harness, halogen

20 318389400 Plate, retainer

21 318389000 Seal, ring

29 318147411 Bumper, (2)

37 # 316217002 Probe, oven temp

39 # 318113111 Cord, electric

41 5303310526 Cover, hinge cutout

* 5303325980 Screw, 10-32 x 0.437

58A 318285055 Insulation, oven wrapper

58B 318285079 Insulation, oven back

58C 318294912 Insullation, bake element

58D 318372001 Insulation, door, 20.5 x 2.375, (2)

59 318072577 Duct, oven vent

62 5303935061 Terminal Block Kit

62* 5303323139 Screw, 10-24 x 0.906

66 # 318255801 Element, broil, 3400W

67 # 318254911 Element, bake, 2500W, 8 pass

68 5304403015 Support, hanger, (4), broil element

70 318259100 Shield, insulation, sides, (2)

71 318260007 Panel, rear box

76 318056217 Front, oven

77 316247900 Spacer, power board

77A 316114100 Spacer, (3)

80 5303320846 Plate, oven mtg

81 318192400 Spring, oven

82 318258715 Shield, insulation, lower

83 318261406 Liner, oven assy

86 318328010 Receptacle, hinge

87 318260605 Bracket, cable mtg.

89 # 318261215 Motor, latch assy

90 318296904 Panel, filler, black, RH

90A 318296905 Panel, filler, black, LH

97 # 316519204 Board, relay, convection

97A# 316442116 Board, power, relay

Publication No: 5995528543 C970-44073800

11/08 6

BODY

C970-44073800 Publication No: 5995528543

# Functional Parts 7 11/08

* Non-Illustrated Parts

BODY

POS. NO PART NO. DESCRIPTION

98 5304401490 Screw, 6-18 x 1

107 318219405 Cover, fan

108# 318073028 Motor, blower

* 08016432 Screw, truss head, 8-18 x 0.375

108A 318251300 Bracket, fan support

109 318398300 Fan Blade

111 316136600 Nut, fan retainer

119# 318004902 Switch, thermal

125# 5304463302 Motor-convection

127 318357000 Adapter Assembly, w/vent tube, and catalyst

131 318272901 Box, vent

132 318003000 Plate, shield

133 318347800 Chimney

142 318123910 Deflector

161# 318255506 Element, convection, 2500 W

166 318298410 Bracket, base support, (2)

166A 318298403 Bracket, base support, lower, (2)

167 318147811 Screw, lock, adjusting

168 318302400 Wheel & bracket assy, adjustable, (2)

169 5304446440 Nut, acorn, 10-32 x 3/8, (2)

170 318335700 Anti-tip & accessories

171 318335200 Bracket, anti-tilt

192 318398000 Grill, searing

200 318298221 Frame, drawer, front

201 318298210 Frame, drawer

219# 318005227 Switch, thermal cutout

272 318249403 Tube, protector

* # 318384439 Wiring Harness, main

* 318165800 Spacer

* 3051050 Screw, shoulder

* 5303211311 Screw, 8 x 0.500

* 5303307980 Screw, 8-32 x 0.437, (4)

* 5303323129 Screw, 8 X 0.750

* 5303323277 Screw, 8-18 X 13/32

* 5303324184 Screw, 8-18 x 5/16, black, (4)

* 5304415832 Screw, 8-18 x 0.406

Publication No: 5995528543 C970-44073800

11/08 8

TOP/DRAWER

C970-44073800 Publication No: 5995528543

# Functional Parts 9 11/08

* Non-Illustrated Parts

TOP/DRAWER

POS. NO PART NO. DESCRIPTION

1 318304401 Drawer, body assembly

1A 318300003 Panel, warmer drawer, side, (2)

1C 318300301 Panel, warmer drawer, rear

2 318303901 Panel, drawer, black, inner

4 318298824 Panel, drawer, stainless, front

13 318259507 Glide, warmer, inner RH

13A 318259506 Glide, warmer, inner LH

15 # 318198830 Element, surface, 6", 1200 W, (2)

15A# 318198836 Element, surface, 7", 1500 W

15B# 318258203 Element, bridge, 1800/2600

15C# 318297809 Element, surface, triple, 800/1000/1200, 6"/8"/11"

16 318223674 Main Top, glass assy., black

29 318147430 Bumper, (2)

34 316432200 Griddle

39 316553302 Handle, stainless

46 318225429 Box, burner

52 318122006 Spring, element mtg, small

52A 318122004 Spring, element mtg, 700W & 2100W

52B 318122008 Spring, element mtg, 1800W/3000W

52C 318122011 Spring, element mtg, 1200W/1800W

60 5303308458 Screw, 10-24, (4)

* 3201909 Washer, flat, (2)

81 # 318255301 Element, warmer drawer

84 # 318005108 Thermostat

85 318345600 Rack, warmer drawer

86 316095800 Clip, hold down, warmer element

87 318300102 Panel, warmer drawer, lower

90 318368001 Channel, glass protector, (2)

91 318304303 Trim, filler, black, rear

95 318303800 Shield, wire

* 08002868 Screw, 10-24 x 0.500, probe, thrm brkt, shield, drwr, box

119# 318004902 Switch, thermal

124 316105501 Glide, outer/RH & LH, (2)

* 5303307980 Screw, 8-32 x 0.437, (4)

165 318227512 Plate, mounting

* # 318228952 Harness, wiring, cooktop

* 318163600 Cleaner, cooktop

* 316136900 Cleaner, stainless steel

* 316459400 Pad, cleaning

* 5303211311 Screw, 8 x 0.500

* 5303300265 Screw, 8-18 X 1/2, (4)

Publication No: 5995528543 C970-44073800

11/08 10

DOOR
