Sears 790.42743405 Manual

42742400.eps LA04CP80425-2.eps LA04CT80425-1A.eps 318046807-1.eps

318046807-2.eps

REPAIR

PARTS

LIST

790.42743405

For Parts or Service:

Call

1-800-4-MY-HOME®

(1-800-469-4663)

Or Visit

www.sears.com

ELECTRIC COOK-TOP RANGE

In all orders or correspondence, avoid delays and misunderstandings

by always giving the complete model number shown

All repair parts listed are available for immediate purchase or special

order when you visit your nearest Sears Parts & Repair Center, or the

Service Department at most Sears stores. To order parts by phone, call

the toll-free number listed to the left or visit sears.com.

When requesting service or ordering parts, always provide the following

information:

• Product Type • Part Number

• Model Number • Part Description

Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A

Publication number 5995553079

790.42743405

09/09 2

CONTROL PANEL

CAUTION: Use the Kenmore part number to order part, not the illustration number.

36A

36 74

170A

151

162A

170A

54B

54A

54C

74A

LA04CP80425-2

790.42743405

# Functional Parts 3 09/09

* Non-Illustrated Parts

CONTROL PANEL

CAUTION: Use the Kenmore part number to order part, not the illustration number.

POS. NO PART NO. DESCRIPTION

16 318096331 Box, instrument mtg

* 5303323130 Screw, 8 x 1/4, (8)

35 5304400795 Bushing, snap-in, nylon

36 318921102 Knob, control, stainless, (3)

36A 318549003 Knob-on-off, stainless

51 # 318044827 Light, indicator, clear

54 # 318293824 Switch, surface element, small

54A# 318191003 Switch, infinite, dual

54B# 318120505 Switch, surface unit, small/large

54C# 318282400 Switch, selector

69 5303323134 Screw, 8-32 x 3/16, (8)

74 318148900 Bushing, switch

74A 318146010 Bushing, switch

151 318106051 Insulation, 2 x 5.75, (2)

162A 318125213 Deflector

170A 318124911 Screen, thermal

* 5995553079 Repair Parts List

* # 318052564 Wire harness, pilot light

* 318203632 Owners Manual

* 318046807 Wiring Diagram

* 318205409 Installation Instructions

790.42743405

09/09 4

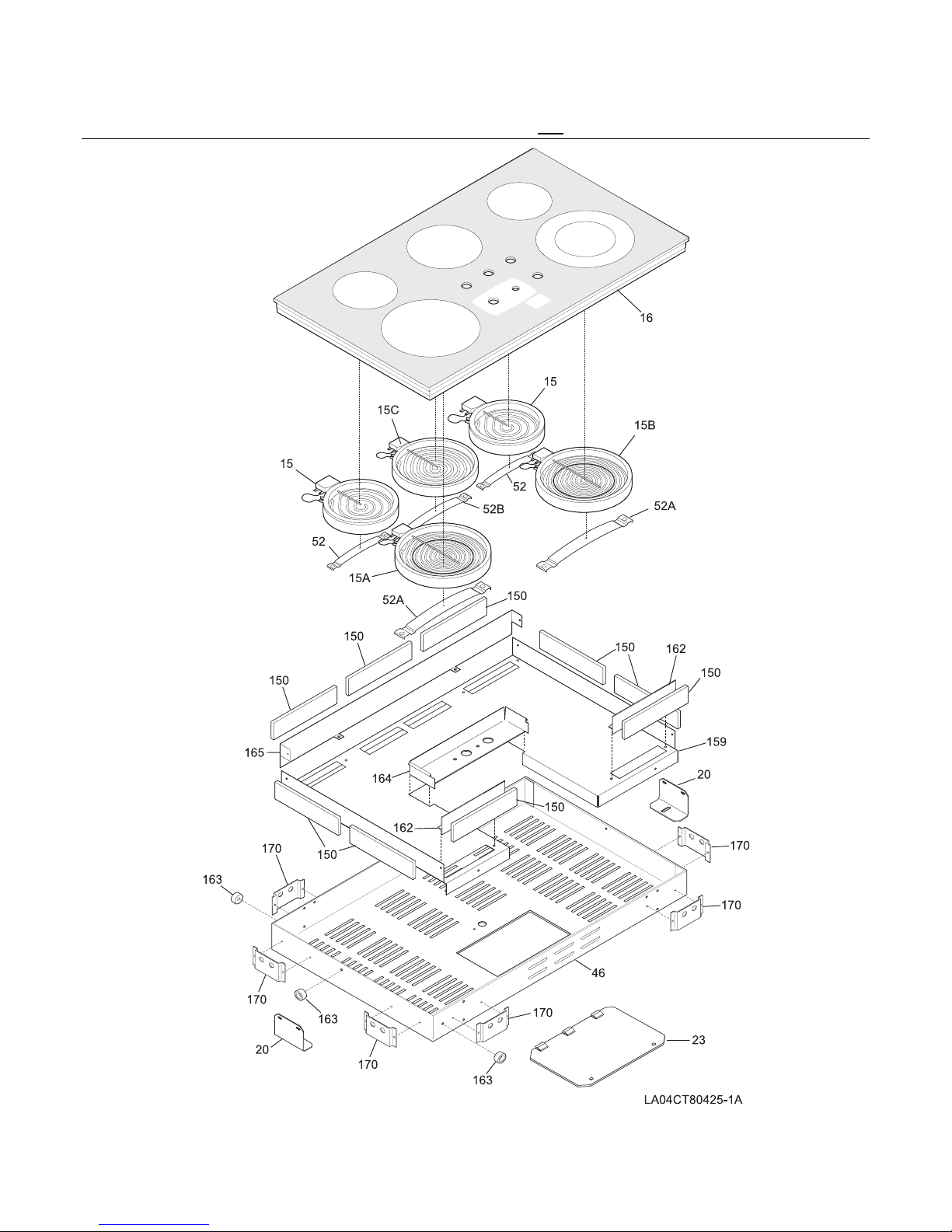

MAIN TOP/SURFACE UNITS

CAUTION: Use the Kenmore part number to order part, not the illustration number.

790.42743405

# Functional Parts 5 09/09

* Non-Illustrated Parts

MAIN TOP/SURFACE UNITS

CAUTION: Use the Kenmore part number to order part, not the illustration number.

POS. NO PART NO. DESCRIPTION

15 # 318198830 Element, surface, 6", 1200W, (2), radiant

15A# 316465001 Element, surface, 6"/9", 1400/3000W, radiant

15B# 316418401 Element, dual, 9"/6", surface, 1300W/1200W, (2), radiant

15C# 318198836 Element, surface, 7", 1500 W

16 318282593 Main Top Assy, glass/steel, black

20 318121902 Bracket, retainer

* 5303300265 Screw, 8-18 X 1/2, (4)

23 318279703 Panel, service

46 318077239 Burner Box

52 318122006 Spring, element mtg, small

52A 318122010 Spring, element mtg, 3000W

52B 318122004 Spring, element mtg, 700W & 2100W

150 318106050 Insulation, 2 x 8, (9)

159 318125125 Deflector

162 318125212 Deflector

163 318531702 Spacer, (6)

164 318125302 Plate, connection

165 318161403 Deflector

170 318124911 Screen, thermal

* # 318078572 Box & wires assy

* # 318402416 Harness, wiring, main

* 316459400 Pad, cleaning

* 316112100 Cleaner, glass

* 08016432 Screw, truss head, 8-18 x 0.375

* 5303307980 Screw, 8-32 x 0.437, (8)

* 5303323140 Screw, ground, 10-32 x 0.375

790.42743405

09/09 6

WIRING DIAGRAM

790.42743405

# Functional Parts 7 09/09

* Non-Illustrated Parts

WIRING DIAGRAM
