SC&T UE03H Manual de usuario

USB/Keyboard Mouse Extender Series

User Manual

Model : UE03H

USB 3.2 Gen1 CAT6a Extender 100m

User Manual

UE03H

Introduction

UE03H is a USB 3.2 Gen1 extender designed to carry USB signals using CAT6a/7 Ethernet cable. It is totally

backward compatible with USB 2.0 & USB 1.x devices. It is perfect for multiple applications including

devices such as USB cameras, touch panels, and any other USB devices.

Features

●USB 3.2 Gen1 up to 5Gbps

●Transmission distance up to 100m with CAT6a cable

●No power needed at device side (UE03HR)

●Max power supply 5V/1.5A at Device side (UE03HR), does not support QC(Quick Charge), PD(Power

Delivery)

●RS232 optional extension

●Compatible with USB 2.0 and USB 1.x devices

●USB Type-C port on both sides

●Plug & Play

●Small & compact, easy to install

●Low power consumption

●Multiple mounting options (Wall/Rack & Din Rail)

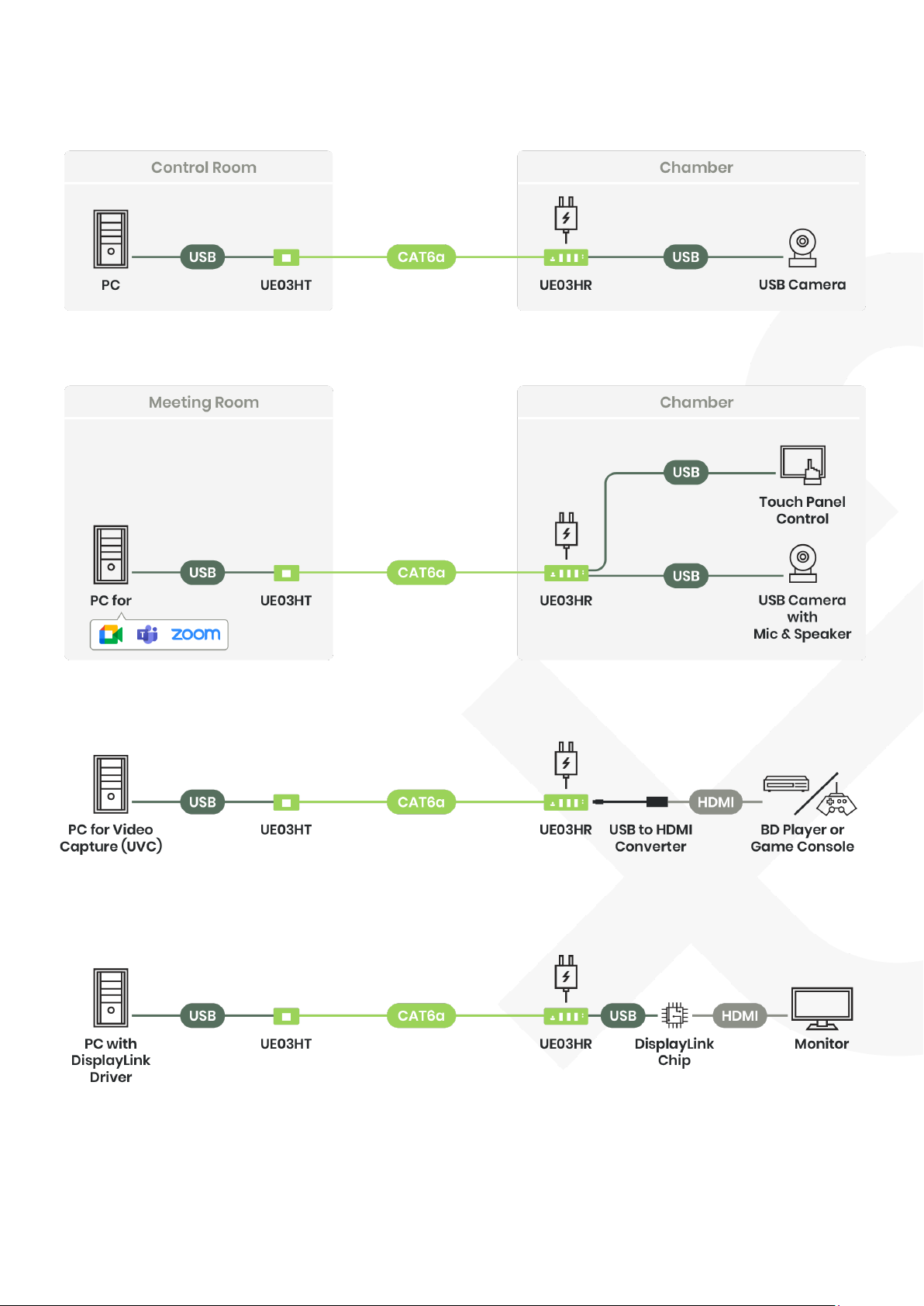

Application Diagram

USB Extension for General Purposes

User Manual

UE03H

USB Extension for Security/Monitoring

USB Extension for Video Conferencing

USB Extension for Video Capture

USB Extension using DisplayLink

User Manual

UE03H

Panel View

UE03HT

Interface

Description

HDBaseT

To connect to UE03HR

RS232

To connect to RS232-command-controllable device

(needs Terminal Block to RS232)

USB Type-C

To connect to USB 3.2 Gen1 source

Power/Link LED

Refer to LED Indicator

User Manual

UE03H

UE03HR

Interface

Description

DC Jack

To plug in DC 12V power adapter

Console

To update FW (needs 3.5mm jack cable to UART)

RS232

To connect to RS232-command-controllable device

(needs Terminal Block to RS232)

HDBaseT

To connect to UE03HT

USB Type-C/Type-A

To connect to USB device, compatible with USB 3.2 Gen1 / 2.0 / 1.1 / 1.0

Power/Link LED

Refer to LED Indicator

User Manual

UE03H

LED Indication

Interface

LED Color

Status

Power

(Green)

Power On

Off

Power Off

Link

(Blue)

RJ45 Linked

Off

RJ45 Unlinked

RS232 Pin Define

Transmission Distance

See Caution, point 6

Cable Type

Transmission Distance

CAT6a

83G02HD105

100m

USB Read & Write Speed

Testing Condition

Using CAT6a cables and CrystalDiskMark software, testing the read and

write speed of USB flash drives. PC：i5-12400 RTX3060Ti

ESD310C USB

3.2/Type C

256GB

SanDisk

SDDDC3 (Type

A) (USB 3.0)

SanDisk

SDDDC3 (Type

C) (USB 3.0)

SanDisk Ultra

Flair USB 3.0

64GB (Type A)

(USB 3.0)

KINGSTON

(Type A) (USB

3.0)

Read

Write

Read

Write

Read

Write

Read

Write

Read

Write

100m 83G02HD105

439.58

MB/s

437.74

MB/s

152.18

MB/s

65.84

MB/s

155.16

MB/s

65.49

MB/s

162.16

MB/s

52.43

MB/s

136.56

MB/s

11.31

MB/s

User Manual

UE03H

Caution

1. This product is designed for indoor applications. If it is desired for outdoor use, please install

additional equipment for waterproof protection and surge protectors to prevent damages

caused by lighting.

2. Do not put anything on the power and system cables, place them where they cannot be

stepped on. Please be sure there is nothing resting on any cables.

3. Avoid using this product close to water places, or near high temperature devices such as

radiators, stoves, etc.

4. Shut down the power supply and unplugged all equipment immediately if:

A. water or any kind of liquid has been spilled into the product;

B. the product has been damaged by external force;

C. the product does not operate normally as this manual indicates;

D. Please contact us for further repair if above conditions happen.

5. We strongly recommend using high quality CAT6a, CAT7 UTP/STP/FTP cable. Improper installation

may cause unstable connection.

6. The transmission distance may differ by cable or construction quality. Using CAT6a, CAT7 cable

between transmitter and receiver, the transmission distance can reach up to 100 meters.

7. This extender does not support video & audio transmission (DP alternate mode).

8. RS232 does not support hardware handshake.

9. The USB-Type C port on the device side does not support power delivery mode.

User Manual

UE03H

Technical Specification

UE03H

UE03HT

UE03HR

Compliance

Standard

USB 3.2 Gen1

USB 2.0

USB 1.1

USB 1.0

Max. Transmission

Distance

100m over CAT6a/7

Data Rate

USB 3.2 Gen1 up to 5Gbps bidirectional

Ports & Interfaces

USB Data

1 x USB Type-C

3 x USB Type-A

1 x USB Type-C

Transmission Medium

1 x RJ45

RS232

1 x 3-Pin Terminal Block

Console

1 x 3.5mm Phone Jack

Power

Power Supply

USB 5V

12V 1.5A

Power Consumption

2.76W (No include USB device)

Power Saving

1.6W

1.8W

Ambient Temperature

Operation

0 to 55°C

Storage

-40 to 80°C

Operating Altitude

2000m

Humidity

Up to 95%

Physical Characteristics

Dimension

50 x 93 x 32mm

87 x 123 x 32mm

Weight

128g

259g

User Manual

UE03H

Installation

Installed on Wall

Step 1 Same way as “Installed on a Platform”, but need to put screw plugs into the pilot hole before

inserting the screws (leave 2mm space from the platform)

User Manual

UE03H

Installed on a DIN-rail

Step 1 Use machine screws to fix a DIN-rail mounting plat on the side of your product

Step 2 Install your product on a DIN-rail as following instruction

Installed on a Rack

Step 1 Lock machine screws in the rack

Step 2 Put your products on the rack
