SC&T HE02EIR Manual de usuario

HDMI (HDBaseT) CAT5 Extender Series

ITEM NO.: HE02EI HDMI & IR CAT5 Extender over Single CAT5 Cable

HE02EI HDMI (HDBaseT) CAT5 Extender is using only one cost effective CAT5e/6 cable to

extend your HDTV display up to 60 meters at 1080p, 70 meters by CAT6a cable. With IR

function to delivers significant value to the entire home and commercial entertainment

system.

Features:

Extends HDMI and IR signal over one CAT5/5e/6 cable.

Uncompressed high definition video up to 1080p@60Hz@48bits and 3D and 4K*2K capable.

Built in IR control, IR signal could be selectable at either TX/RX side.

Max. Data Rate- 10.2Gbps.

HDMI 1.4 and HDCP compliance.

Transmission range up to 60M by CAT5e/6, 70M by CAT6a cable at 1080p@60Hz@24bit.

Audio support up to LPCM7.1, Dolby TrueHD, DTS-HD MA.

Installation view:

IR Switch Setting:

1. When use BD/DVD remote controller (DVD at remote side)，HE02EIR IR switch move

to RX and connect with Receiver cable; HE02EIT IR switch move to TX and connect

with Emitter cable.

2. When use TV remote controller (TV at remote side), HE02EIT IR switch move to RX

and connect with Receiver cable; HE02EIR IR switch move to TX and connect with

Emitter cable.

Low-power Mode:

When there is no HDMI video signal input or TV is not connected or power off, this product will enter a

low-power mode to save power consumption; under a low power mode still provides Ethernet, RS-232,

IR, and CEC of signal transmission.

LED Indication:

Power GREEN on (power)

Link BLUE on (linking)

Flash (low-power mode)

Cable:

Link cable recommend use high quality Cat.5e、Cat.6、Cat.6a、Cat.7 UTP / STP or FTP cable.

Poor quality cable or network connection or improper construction will cause unstable

connection, video or sound disruptions, picture noise appears.

HDBaseT Distance chart by different cable:

Cable Type

Range

Pixel Clock Rate

Video Data Rate

Supported Video

CAT.5e / CAT.6

60 M

≦225MHz

≦5.3Gbps (Full HD

Video)

1080p 60Hz 36 bit

CAT.6a / CAT.7

70 M

CAT.5e / CAT.6

35 M

> 225MHz

> 5.3Gbps (Ultra HD

Video)

1080p 60Hz 48 bit

1080p 60Hz 3D，4K x 2K 30Hz

CAT.6a / CAT.7

40 M

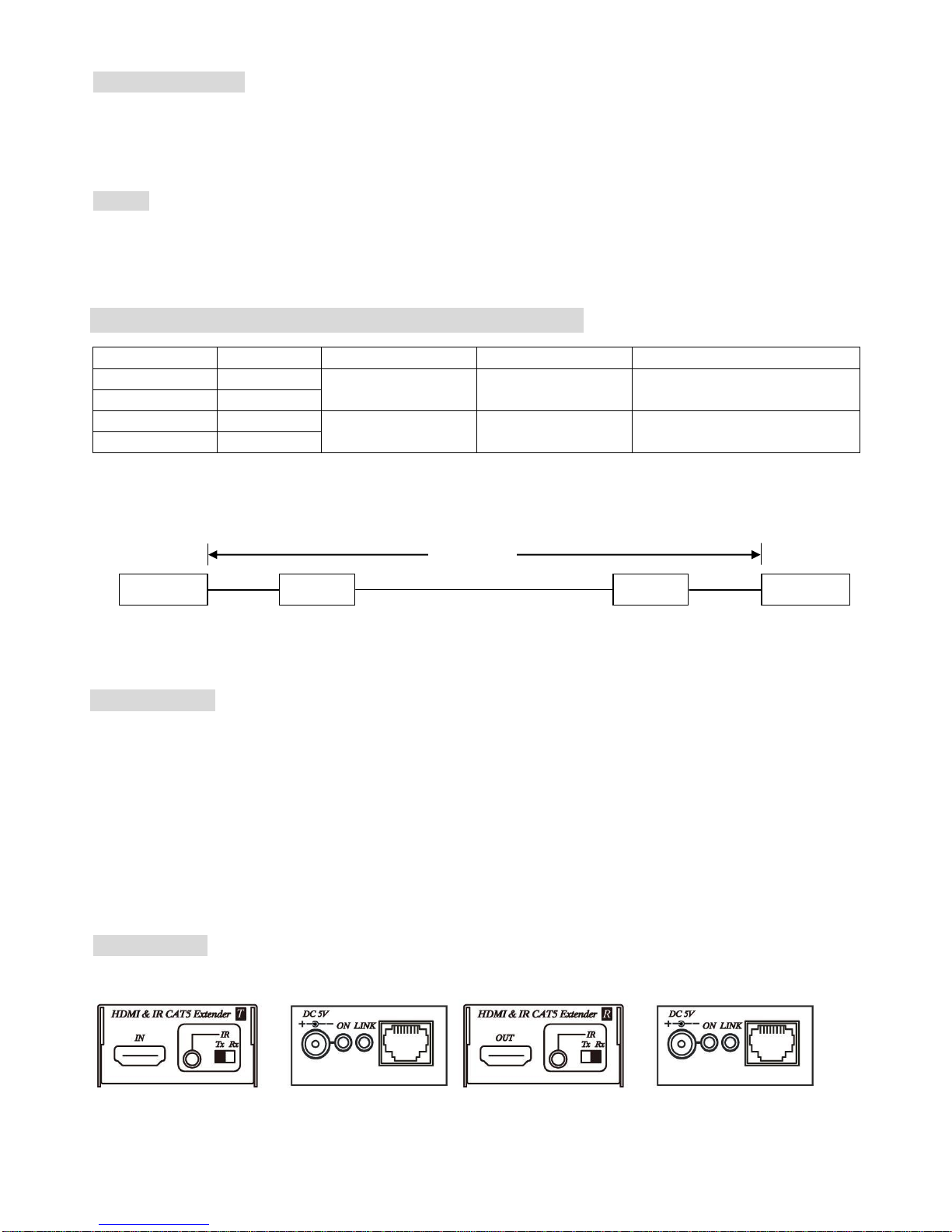

If connection through the wall socket, the cable length must less 5 meters between HDMI

extender and wall jack, as below drawing:

10/100Mbps network connection using general CAT5e cable and working distance up to 60M.

RJ45 Define:

Video Link (TIA/EIA-568-B)

1. Orange-white DATA0 +

2. Orange DATA0 -

3. Green-white DATA1 +

4. Blue DATA2 +

5. Blue-white DATA2 -

6. Green DATA1 -

7. Brown-white DATA3 +

8. Brown DATA3 -

Panel view:

HE02EIT HE02EIR

Transmitter

Wall Jack

Receiver

CAT6a 70M

< 5M

Caution:

1. The wiring must away from any equipment with electromagnetic wave, i.e.: mobile

phone, microwave, radio equipment, fluorescent lamp, high voltage power lines.

2. The cable must pull in straight to avoid any crosstalk interference and the

transmission stability.

3. This device HDBaseT port is not general Ethernet signal; do not connect with Network

devices to avoid damage.

4. IR transmitter do not put near from receiver to avoid mutual interference.

5. The receiver unit working temperature is higher which is in normal condition.

HE02EI Package Include:

HE02EIT HDM Transmitter x 1 pcs

HE02EIR HDMI Receiver x 1 pcs

IR Emitter Cable x 1 pcs

IR Receiver Cable x 1 pcs

Mounting Screw pack x 2 bags

Power Adapter x 2 pcs

Specification:

ITEM NO.

HE02EIT

HE02EIR

HDMI Video Support

Up to 1080p@60Hz@48bits,3D,4K x 2K

HDMI Audio Support

LPCM 7.1 192KHz, Dolby Trued, DTS-HD MA

Distance

60M by CAT5e/6, 70M by CAT6a

Input / Output Interface

HDMI Type A x 1

HDBaseT Connector

RJ45 x 1

IR Carrier Frequency

30-60Khz

IR Angle

± 15°

± 55°

IR Distance

5m / Bi-directional

Power Supply

DC 5V 2A

Power Consumption

Max 3W, Low Power 0.8W

Max 6W,Low Power 1W

Temperature

Operation: 0 to 55℃, Storage: -20 TO 85℃, Humidity: up to 95%

Dimensions mm

49 x 92.3 x 25

Weight g

125

135

Rev. C
