IP/ PoE Extender

User Manual

Model : IP09CP

PoE over Coaxial Extender

User Manual

IP09CP

Introduction

IP09CP is a point-to-point PoE (Power over Ethernet) extender that can use single coaxial cable to extend

TCP/IP signal and huge amount of power for a remote PoE device, such as speed dome camera, Dante

PoE speaker, smart LED…etc., with no external power required. It’s a perfect solution for CCTV system,

large-scale audio environment, smart building and factory..

Features

Signal extension up to 800M over coaxial cable.

Provides up to 90W power for remote PoE device.

Power source from either a PoE switch or an external power adapter.

Bandwidth up to 100Mbps.

Supports Full duplex and half duplex mode and Auto MDI/MDI-X switching.

Built-in 30kV ESD, 40A EFT, and 30A surge at RJ45 side.

Optional Model

TPN006-IP09P 19”1U Rack

Organize up to 6 pieces of IP09CPT/CPR and cables.

Compliant with 1U standard (1.75”or 44mm).

19”length and 1.75”height (482.6mm x 44mm).

Installation view

Power from a PoE Switch

Power from a Power Adapter

User Manual

IP09CP

Panel Review

No.

Interface

Function

Power Jack

To connect with a DC48 ~ 56V adapter

Power LED Indication

To indicate the power status (Refer to Description 1)

Status Indication

□

1Status : Port 1 mode indication (Refer to Description 3)

Status Indication

□

2Status : Port 2 mode indication (Refer to Description 3)

Jumper

Reserved

DIP Switch

To select the desired mode (Refer to Description 5)

RJ45 Connector

Port 1；To connect with networking devices or IP09

(Refer to Description 4)

PoE LED Indication

To indicate the PoE connection status (Refer to Description 2)

BNC Connector

Port 2；To connect with IP09CPT/ IP09CPR

LED Indication

LED

LED Color

Description

Power

Green ON/ OFF

Power On/ Off

Breathing

Power Saving

PoE

BLUE ON/ OFF

PoE On/ Off

User Manual

IP09CP

Status Indication

Port □

1/□

2Mode Status:

LED Color

Description

Blue On

Long Distance

Blue Off

Unlinked/ Ethernet

Blinking

100Base-T1

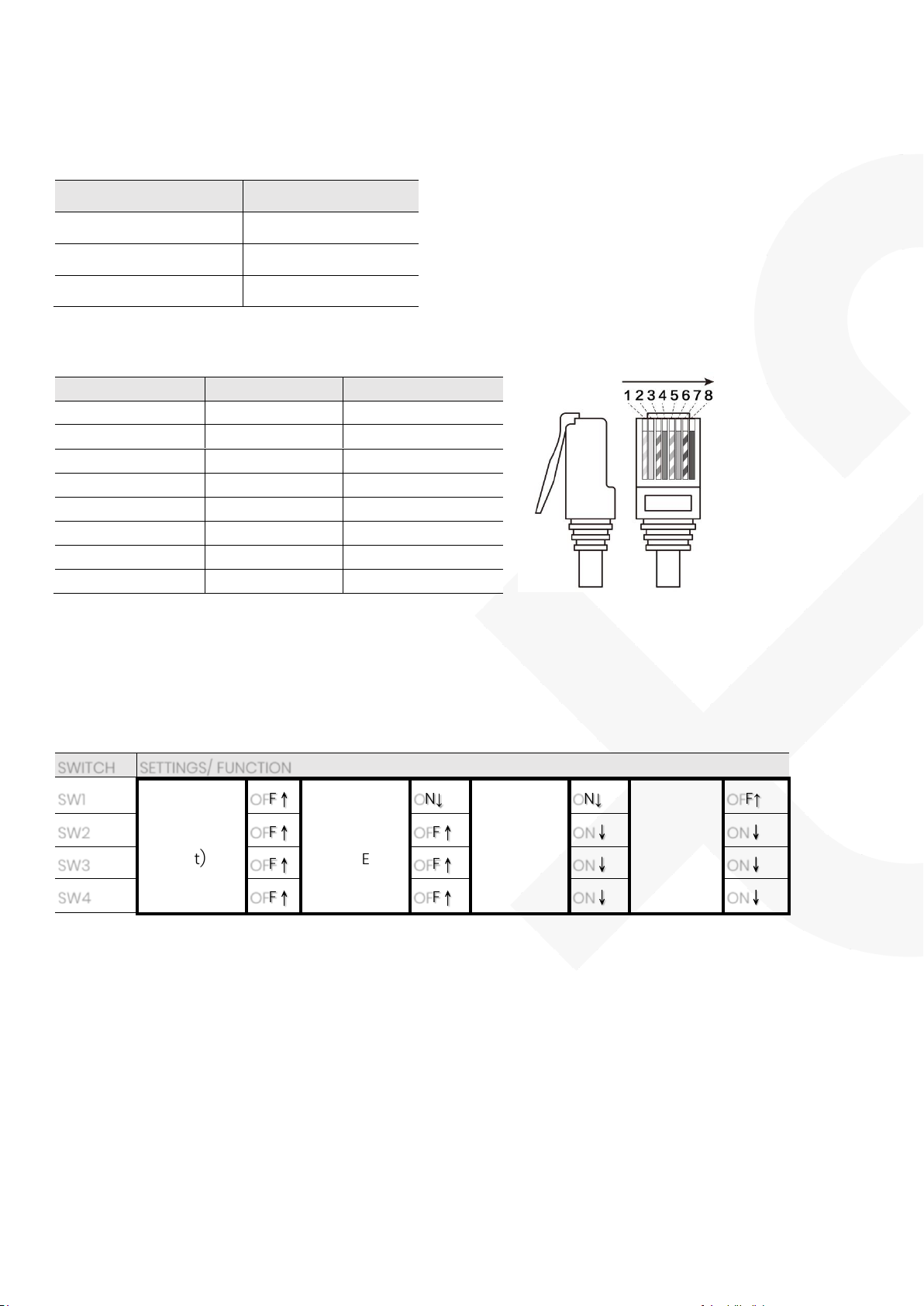

RJ45 Pinout

※10BASE-T, 100BASE-TX and long distance 100Mbps mode use two pairs of wires to transfer data.

※100BASE-T1, long distance 10Mbps mode use one pair of wires to transfer data.

※Power is transferred through four pairs of wire.

DIP Switch Setting

Auto Mode/ Default: Enable Auto-Negotiation which automatically sets up the link speed and

transmssion protocol.

Auto+EEE Mode: Energy-Efficient Ethernet based on Auto Mode.

Data

PoE

1. Orange-white

TX+ (DATA1+)

PoE+ (Data Pair)

2. Orange

TX- (DATA1-)

PoE+ (Data Pair)

3. Green-white

RX+ (DATA2+)

PoE- (Data Pair)

4. Blue

PoE+ (Spare Pair)

5. Blue-white

PoE+ (Spare Pair)

6. Green

RX- (DATA2-)

PoE- (Data Pair)

7. Brown-white

PoE- (Spare Pair)

8. Brown

PoE- (Spare Pair)

SWITCH

SETTINGS/ FUNCTION

SW1

Auto Mode

(Default)

OFF↑

Auto Mode

with EEE

ON↓

100Mbps

ON↓

10Mbps

OFF↑

SW2

OFF↑

ON↓

SW3

OFF↑

ON↓

SW4

OFF↑

ON↓

User Manual

IP09CP

Advanced Mode

Please refer to the chart below to manually set up the Link Speed, and Modes

Auto-Negotiation Priority

Priority

Mode

(Highest)

Long Distance 100Mbps

100BASE-T1

Long Distance 10Mbps

100BASE-TX Full Duplex

100BASE-TX Half Duplex

10BASE-T Full Duplex

(Lowest)

10BASE-T Half Duplex

Power and Transmission Distance

The reports below show the extension distance and the amount of power transferred by distance.

All statistics are from the result of using 24AWG CAT5e, 75ΩRG59/RG6U coaxial cables to test.

Transmission distance & data rate by different modes

Transmission distance by different BNC connectors & data rate

Cable

Data Rate

Distance

RG59 (75-3)

100Mbps

500M

RG6U (75-5)

100Mbps

500M

RG59 (75-3)

10Mbps

800M

RG6U (75-5)

10Mbps

800M

Function

↑OFF

↓ON

Link Speed

10Mbps

100Mbps

Ethernet

Disable

Enable

100BASE-T1

Disable

Enable

Long Distance

Disable

Enable

Mode

Data Rate

Distance

100BASE-TX with EEE

100Mbps

100M

100BASE-TX

100Mbps

130M

100BASE-T1

100Mbps

300M

Long Distance

100Mbps

500M

10BASE-T with EEE

10Mbps

100M

10BASE-T

10Mbps

250M

Long Distance

10Mbps

800M

User Manual

IP09CP

Applying RG6U coaxial cable and power from 56V Power Adapter

Input Power

Distance

Output Power

110W (56V/1.96A)

100M

60W

100W (56V/1.79A)

200M

57W

86W (56V/1.54A)

300M

41W

88W (56V/1.59A)

400M

40W

61W (56V/1.09A)

500M

28W

47W (56V/0.84A)

600M

22W

39W (56V/0.69A)

700M

17W

37W (56V/0.67A)

800M

15W

27W (56V/0.48A)

900M

11W

25W (56V/0.45A)

1000M

10W

Applying RG6U coaxial cable and power from 48V Power Adapter

Input Power

Distance

Output Power

96W (48V/2.00A)

100M

50W

95W (48V/1.98A)

200M

47W

77W (48V/1.60A)

300M

30W

72W (48V/1.50A)

400M

28W

43W (48V/0.91A)

500M

19W

37W (48V/0.78A)

600M

15W

31W (48V/0.66A)

700M

11W

25W (48V/0.53A)

800M

22W (48V/0.46A)

800M

24W (48V/0.49A)

1000M

Applying RG59 coaxial cable and power from 56V Power Adapter

Input Power

Distance

Output Power

96W (56V/2.00A)

100M

57W

74W (56V/1.33A)

200M

34W

50W (56V/0.9A)

300M

24W

39W (56V/0.7A)

400M

17W

31.8W (56V/0.57A)

500M

14W

25W (56V/0.45A)

600M

10W

24.6W (56V/0.44A)

700M

18W (56V/0.34A)

800M

User Manual

IP09CP

Applying RG59 coaxial cable and power from 48V Power Adapter

Input Power

Distance

Output Power

96W (48V/2.00A)

100M

49W

65W (48V/x1.37A)

200M

23W

39W (48V/0.81A)

300M

16W

28W (48V/0.58A)

400M

10W

21W (48V/0.44A)

500M

16W (48V/0.33A)

600M

14W (48V/0.29A)

700M

12W (48V/0.26A)

800M

Applying RG6U coaxial cable and power from 802.3at PoE Switch (Zyxel GS1900-8HP)

Input Power

Distance

Output Power

802.3at

PoE Switch

100M

20W

200M

20W

300M

19W

400M

17W

500M

16W

600M

15W

700M

14W

800M

12W

900M

1000M

Applying RG59 coaxial cable and power from 802.3at PoE Switch (Zyxel GS1900-8HP)

Input Power

Distance

Output Power

802.3at

PoE Switch

100M

19W

200M

17W

300M

15W

400M

13W

500M

10W

600M

700M

800M

User Manual

IP09CP

Jumper Settings

1. We strongly recommend those who have advanced engineering skills to adjust the jumpers.

2. Improper adjustment may make the devices damaged.

3. Any changes should start after turning off the power.

4. IP09PT Jumper Settings:

Position

Function

Setting

Description

Operation Mode

Jumper cap on pin 1 & 2

PoE handshake ON (Default)

Jumper cap on pin 2 & 3

PoE handshake OFF

Data Pair A

Power Settings

Jumper cap ON

Mode A

(End-spin)

Power over PIN 1,2 (Default)

Jumper cap OFF

Power OFF

Data Pair B

Power Settings

Jumper cap ON

Power over PIN 3,6 (Default)

Jumper cap OFF

Power OFF

Spare Pair C

Power Settings

Jumper cap ON

Mode B

(Mid-spin)

Power over PIN 4,5 (Default)

Jumper cap OFF

Power OFF

Spare Pair D

Power Settings

Jumper cap ON

Power over PIN 7,8 (Default)

Jumper cap OFF

Power OFF

PoE Mode

Jumper cap on pin 1 & 2

On Standard PoE Mode (Default)

Jumper cap on pin 2 & 3

On Legacy PoE Mode

Dual PD Mode

Jumper cap on pin 1 & 2

Power over 8 PINs (Default)

Jumper cap on pin 2 & 3

Dual PD mode OFF

P10

Boost Voltage

Jumper cap on pin 1 & 2

Enable boost voltage (Default)

Jumper cap on pin 2 & 3

Disable boost voltage

P11

Voltage Select

Jumper cap on pin 1 & 2

Boosted voltage for PSE (Default)

Jumper cap on pin 2 & 3

No boost voltage for PSE

User Manual

IP09CP

IP09PR Jumper Settings

Position

Function

Setting

Description

RP3

Operation Mode

Jumper cap on pin 1 & 2

PoE power ON (Default)

Jumper cap on pin 2 & 3

PoE power OFF

RP4

PoE Class Setting

Jumper cap on pin 1 & 2

Support 802.3bt 90W (Default)

RP5

Jumper cap on pin 2 & 3

Support 802.3bt 60W

Caution

Using high-quality CAT.5e UTP / STP / FTP、CAT.6 UTP cables and high-quality 75Ωis coaxial cables

are recommended. The thicker gauge of wire, the smaller the data loss. Using pure copper

Ethernet and Coaxial cable is recommended.

Ensure to connect all cables before power on to prevent voltage spikes.

DO NOT connect PoE and auxiliary power at the same time, check the Jumper Settings section.

User Manual

IP09CP

Package Includes

No.

Item

Quantity

IP09CPT

x 1

IP09CPR

x 1

Screw

x 4

Screw Plug

x 4
