SATO SERVICE MANUAL

CX Series Printers

General Information

1-1 Overview

The SATO CX Series Printers are compact desktop printers designed especially for bar

code labeling and tagging. The CX uses SATO Command Language making it simple

to integrate with any other SATO printer models. Designed for convenience the CX

has many advanced features like larger media capacity user replaceable print head

and platen and a high lift print head carriage that makes it easy to clean and load

supplies.

This manual covers in detail:

CX200DT and CX200TT

Direct Thermal and Thermal Transfer Units

Features include:

••

•4.1 inch Wide Print Area

••

•Label Width From 2 inches to 4.65 inches

••

•Up To 3 inches Per Second Print Speed

••

•203 DPI Resolution

••

•512K Flash and 512K RAM Memory

••

•2Mb or 4Mb Expanded Memory

••

•12 Proportional and Mono-spaced Fonts

••

•14 Bar Code Symbologies, Including 2D

••

•Parallel and Serial Interfaces

Step-by-step maintenance instructions are described in this manual. It is

recommended that you become familiar with each section before installing

and maintaining your printer.

Section

All manuals and user guides at all-guides.com

Rev B

SATOSERVICE MANUAL

CX Series Printers

1-2 Dimensions

CX200DT CX200TT

Weight 3.1lb./1.41 kg 3.6 lb./1.63 kg

Depth 10 in. (254 mm)

Heigth 6.6 in (168 mm)

Width 6.9 in. (175 mm)

SECTION 1 - GENERAL INFORMATION

All manuals and user guides at all-guides.com

Rev B

SATO SERVICE MANUAL

CX Series Printers

1-3 Specifications

Model CX200DT/CX200TT

Print Method Direct Thermal/Thermal Transfer

Resolution 203 dpi 8 dpmm

Max. Media Width 4.65 inches 118 mm

Min Media Width 2.0 inches 51 mm

Max. Print Width 4.1 inches 104 mm

Max. Print Length 14 inches 356 mm

Max. Print Speed 3 ips 76 mm/s

Installed RAM 512 KB, non-volatile

Installed ROM 512 KB, Flash

Communications RS232C Serial and Centronics Parallel

Max. Media Roll OD 5.0 inches 127 mm

Ribbon 460 feet (140m) Wax, Wax/Resin

418 feet (127m) Resin

0.5 inch core, Coated Side Out

Label Sensing method Eye-Mark, Gap or Notch, Fixed Position

Minimum Form Length 0.375 inches 9.5 mm

Text Fonts 12 proportional and monospaced fonts up to 12X expansion

Graphics PCX and SATO Hex/Binary

Bar Codes UPC-A/E, EAN-8/13, UCC/EAN-128, Bookland, Code 39,

I 2 of 5, Code 128, Codabar, Plessey, MSI, Code 93,

Postnet, PDF417, Maxicode

Rotation Text and bar codes can be rotated in four 90oincrements

Power 20-26 VAC 50/60 Hz or 18-26 VDC

120 VAC 50/60 Hz

230 VAC 50/60 Hz

40 W power supply provided with printer

Environmental Operating: 41o to 104oF (5oto 40oC)

Storage: - 4o to 122oF (-20oto 50oC)

RH: 25 to 85% non-condensing

SECTION 1 - GENERAL INFORMATION

All manuals and user guides at all-guides.com

Rev B

SATOSERVICE MANUAL

CX Series Printers

1-4 Attributes

READY INDICATOR

ON-LINE/OFF LINE

BUTTON

FEED BUTTON

TOP CASE

PAPER GUIDE

PLATEN ROLLER

REMOVAL ACCESS

SLOTS

WALL

MOUNTING

SLOTS

POWER INPUT POWER CABLE

ROUTING

CHANNEL

SERIAL

PORT

PARALLEL

PORT

EXTERNAL MEDIA

FEED KNOCKOUT

SECTION 1 - GENERAL INFORMATION

BOTTOM CASE

FRONT CASE

All manuals and user guides at all-guides.com

Rev B

SATO SERVICE MANUAL

CX Series Printers

1-4 Attributes

RELEASE LEVERS FOR

PRINT HEAD/RIBBON

MECHANISM

PAPER GUIDE (SHOWN

WITH LABELS)

PAPER GUIDE (SHOWN

WITHOUT LABELS)

SECTION 1 - GENERAL INFORMATION

All manuals and user guides at all-guides.com

all-guides.com

Rev B

SATOSERVICE MANUAL

CX Series Printers

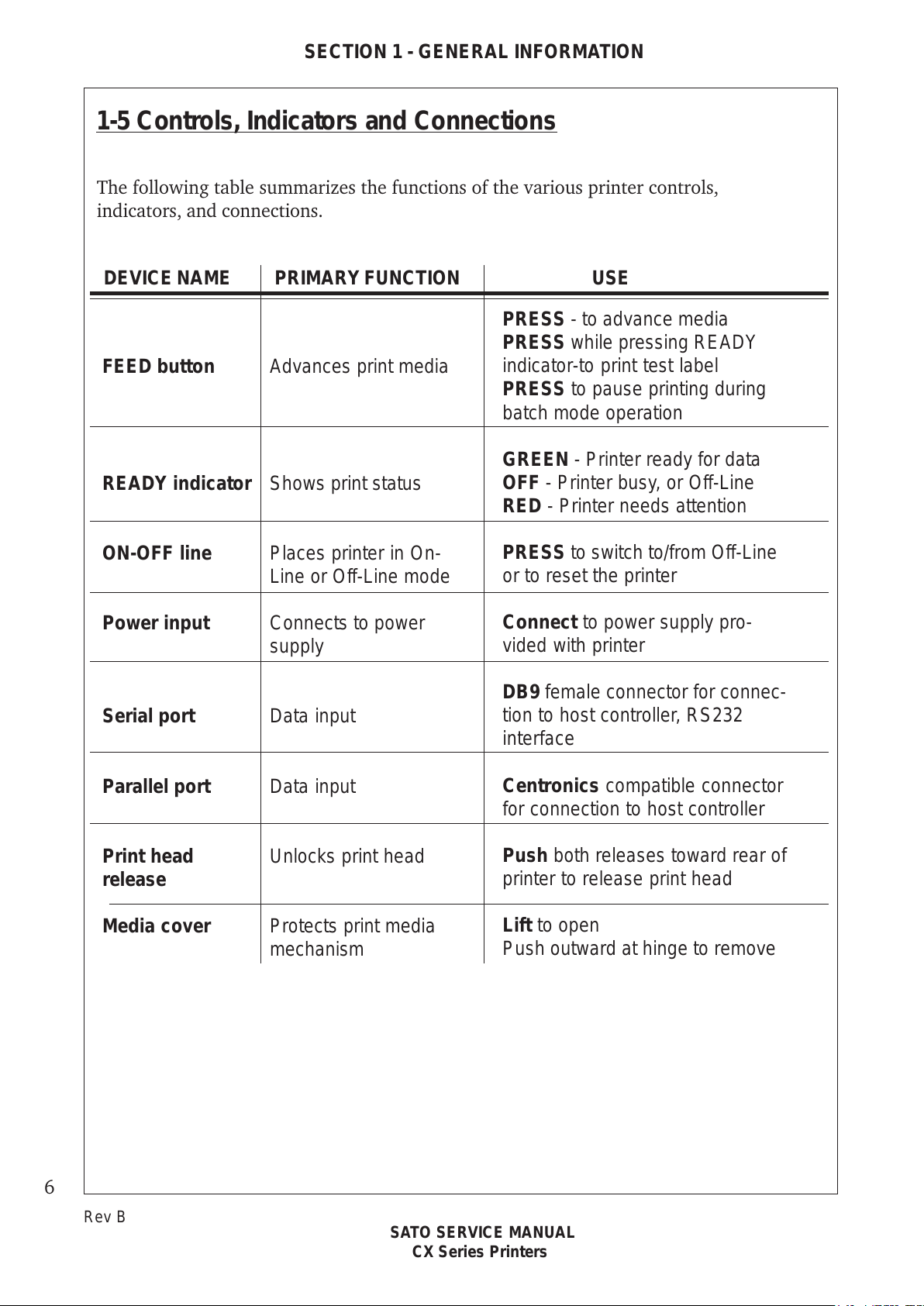

1-5 Controls, Indicators and Connections

The following table summarizes the functions of the various printer controls

indicators and connections.

PRESS - to advance media

PRESS while pressing READY

indicator-to print test label

PRESS to pause printing during

batch mode operation

GREEN - Printer ready for data

OFF - Printer busy, or Off-Line

RED - Printer needs attention

PRESS to switch to/from Off-Line

or to reset the printer

Connect to power supply pro-

vided with printer

DB9 female connector for connec-

tion to host controller, RS232

interface

Centronics compatible connector

for connection to host controller

Push both releases toward rear of

printer to release print head

Lift to open

Push outward at hinge to remove

FEED button Advances print media

READY indicator Shows print status

ON-OFF line Places printer in On-

Line or Off-Line mode

Power input Connects to power

supply

Serial port Data input

Parallel port Data input

Print head Unlocks print head

release

Media cover Protects print media

mechanism

DEVICE NAME PRIMARY FUNCTION USE

SECTION 1 - GENERAL INFORMATION

All manuals and user guides at all-guides.com

Rev B

SATO SERVICE MANUAL

CX Series Printers

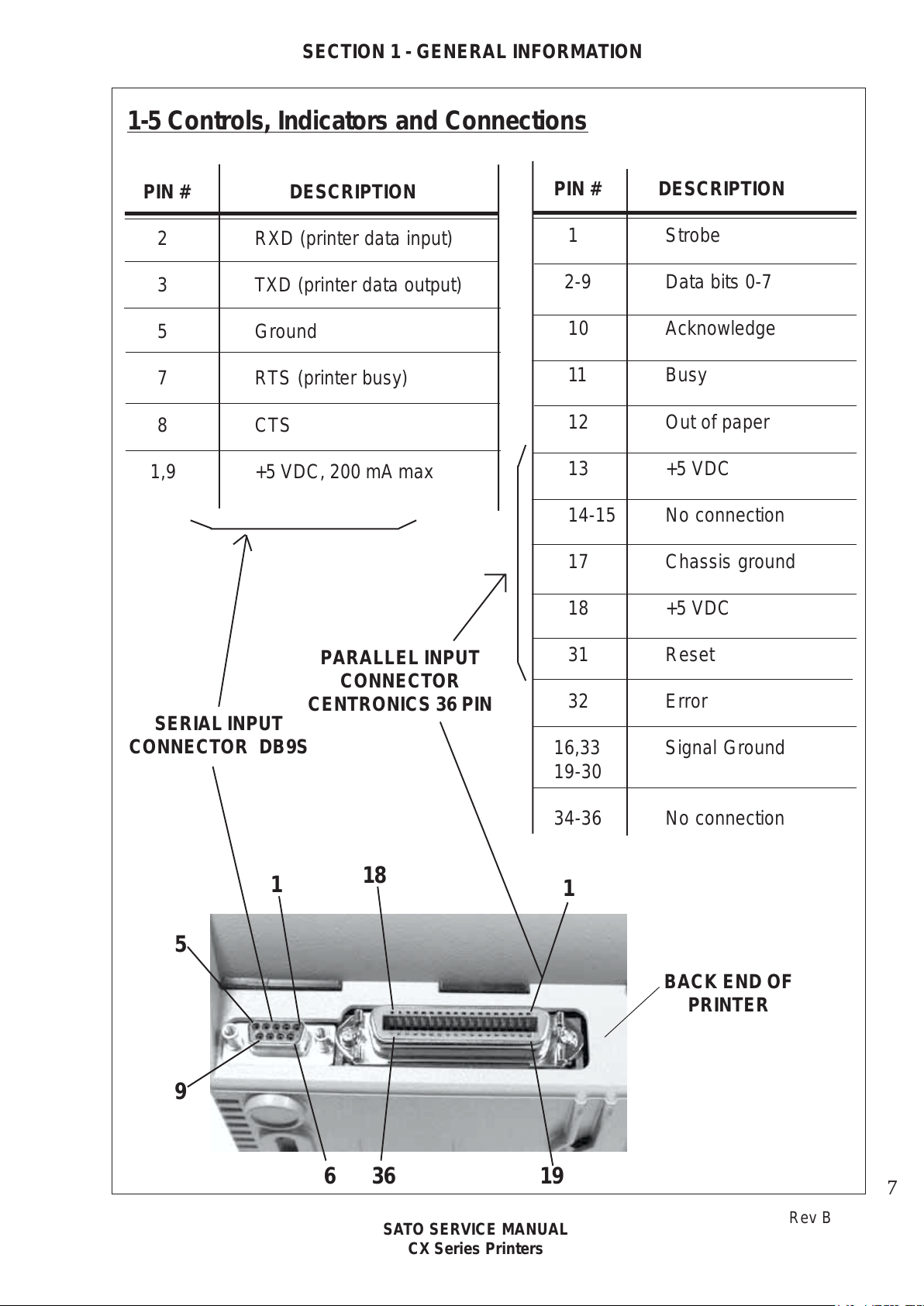

1-5 Controls, Indicators and Connections

PIN # DESCRIPTION

2 RXD (printer data input)

3 TXD (printer data output)

5 Ground

7 RTS (printer busy)

8 CTS

1,9 +5 VDC, 200 mA max

PIN # DESCRIPTION

1 Strobe

2-9 Data bits 0-7

10 Acknowledge

11 Busy

12 Out of paper

13 +5 VDC

14-15 No connection

17 Chassis ground

18 +5 VDC

31 Reset

32 Error

16,33 Signal Ground

19-30

34-36 No connection

PARALLEL INPUT

CONNECTOR

CENTRONICS 36 PIN

SERIAL INPUT

CONNECTOR DB9S

1936

BACK END OF

PRINTER

SECTION 1 - GENERAL INFORMATION

All manuals and user guides at all-guides.com

Rev B

SATOSERVICE MANUAL

CX Series Printers

POWER INPUT

READY INDICATOR

ON-LINE/OFF LINE

BUTTON

FEED BUTTON

UNDERSIDE OF PRINTER POWER

SUPPLY

AC OUTLET

1. Plug the output of the AC power supply provided with the printer

into the connector on the underside of the printer.

2. Plug the supply into an AC outlet having the correct voltage.

Important!

The required AC voltage is marked on the power supply.

Confirm that your AC voltage matches the power supply

requirements. Do not use any power supply other

then the one provided with the printer.

Note:

CX200 printers consume very little power when idle so are not equipped

with a power switch. Press the READY indicator ON-OFF (a combined

control) to reset the printer and switch from OFF-Line to On-Line mode.

SECTION 1 - GENERAL INFORMATION

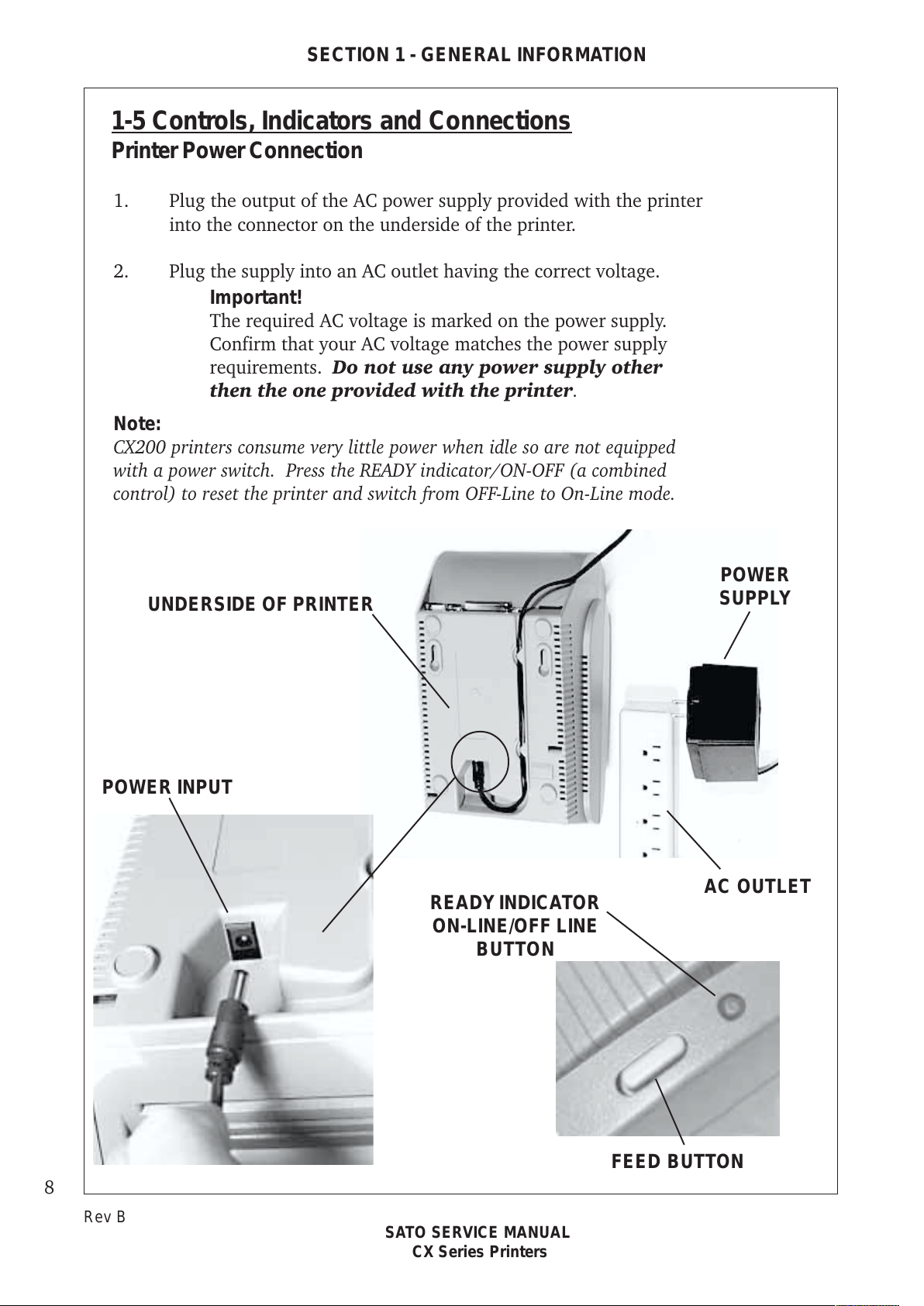

1-5 Controls, Indicators and Connections

Printer Power Connection

All manuals and user guides at all-guides.com

Rev B

SATO SERVICE MANUAL

CX Series Printers

1-5 Controls, Indicators and Connections

Connecting the Interface Cable

AVAILABLE DB9S

SERIAL PORT PARALLEL PORT

CONNECT THIS END OF THE

CENTRONICS 36 PIN CABLE

TO THE PARALLEL PORT ON

THE PRINTER

CONNECT THIS END OF THE

PARALLEL CABLE TO THE

PORT ON THE COMPUTER

SECTION 1 - GENERAL INFORMATION
