Warnings and Safety Precautions ... 3

Getting Started............. 4

Operation ................ 8

Basic Weighing Function ........ 8

Description of the Keys ......... 8

Application Programs

Toggling between Weight Units .... 10

Counting ................ 11

Weighing in Percent .......... 12

“Hold” Display.............. 13

Totalizing ................ 14

Specific Gravity ............. 15

Calibration/Span Adjustment ..... 16

Configuration (Setup Menu) ..... 17

Error Codes ............... 19

Recycling ................ 20

Accessories (Options).......... 21

Specifications.............. 22

EC Declaration of Conformity .... 103

Safety Information

§To prevent damage to the equipment,

please read these operating instruc-

tions carefully before using your

balance.

!Do not use this equipment in

hazardous areas.

!Make sure the voltage rating printed

on the power supply is identical to

your local line voltage.

!Use only commercially available 9 V

batteries. If desired, you can use a

rechargeable battery (not included).

– The balance is energized at all times

unless you disconnect the AC adapter

and, if connected, the battery.

– Protect the AC adapter from contact

with liquid

!Exposure to excessive electromagnetic

interference can cause the readout

value to change. Once the disturbance

has ceased, the instrument can be

used again in accordance with its

intended purpose.

Installation

– It is recommended to connect

Sartorius accessories and options,

as these are optimally designed for

use with your balance.

– Do not open the balance housing as

this may void the manufacturer’s

warranty.

Contents Warnings and

Safety Precautions

PK Elektronik Vertriebs GmbH, E-Mail: [email protected], Internet: www.pkelektronik.com

Equipment Supplied

– Balance with protective flip-down cover

– Weighing pan

– Plug-in AC adapter

Additional equipment with models AY612, AY412,

AY212, AY711, AY511:

– Calibration weight

Additional equipment with models AY303, AY123:

– Calibration weight

– Round glass draft shield

– Level indicator and adjustable feet

Storage

$Do not stack more than 3 balances on top of one

another at a time.

Installation

Choose a location that is not subject to the

following negative influences:

– Heat (heater or direct sunlight)

– Drafts from open windows and doors

– Extreme vibrations during weighing

– Excessive moisture

Setting Up the Balance

§Place the components on the balance in the

following order:

– Reversible round weighing pan

– Round glass draft shield on models AY303, AY123

!Do not use as an “in-use“ cover!

Getting Started

PK Elektronik Vertriebs GmbH, E-Mail: [email protected], Internet: www.pkelektronik.com

Connecting the Balance to AC Power

§It is recommended to use only the included AC

adapter for optimal performance and safety.

§Insert plug into the jack (located on back of balance)

§Plug the AC adapter into an electrical outlet

!LISTED power supply 11 V–21 V compliant with

NEC Class 2 output.

Below-Balance Weighing

A port for a below-balance weighing hanger is

located on the bottom of the balance.

§Open the cover plate on the bottom of the balance.

§Attach the sample (e.g., using a suspension wire)

to the hanger.

$Install a shield for protection against drafts if

necessary.

PK Elektronik Vertriebs GmbH, E-Mail: [email protected], Internet: www.pkelektronik.com

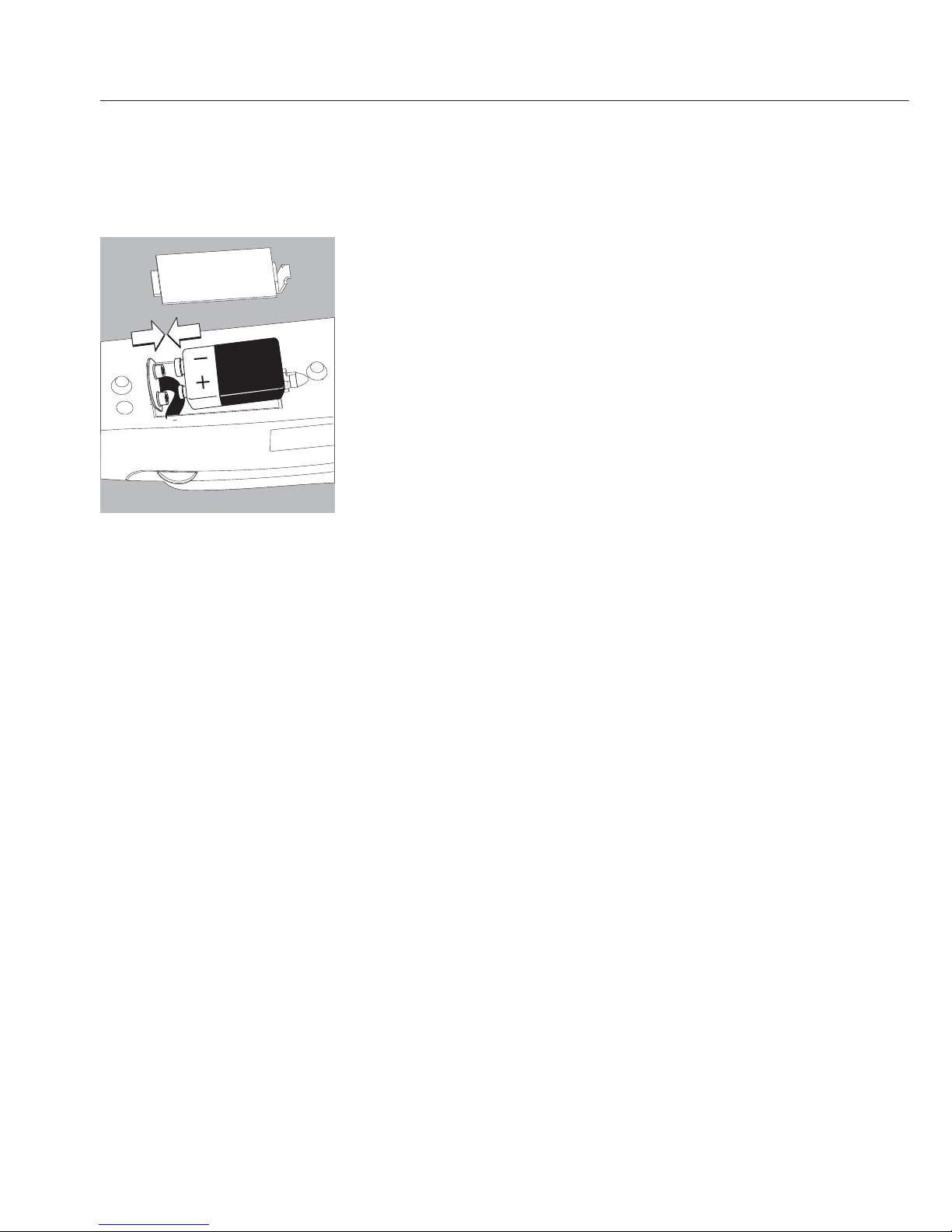

Installing the Battery

(not for models AY303, AY123)

$Batteries are not included with the equipment

supplied

!Use only commercially available 9 V batteries.

!If you use a rechargeable battery, recharge it with

an external battery charger.

§Lay the balance on its side

§Open the battery compartment:

remove the compartment cover

§Install the battery in the compartment

$Make sure the polarity is correct.

!Close the battery compartment:

slide the cover into position until it snaps into place

!Do not throw away used batteries with normal

household waste.

Rechargeable batteries contain toxic materials and

must be disposed of in accordance with local waste

disposal regulations.

PK Elektronik Vertriebs GmbH, E-Mail: [email protected], Internet: www.pkelektronik.com

Leveling the Balance

(only for models AY303, AY123)

§Always level the balance again any time after it has

been moved to a different location.

Example: moving bubble from R to L

§Turn the feet as shown in the diagram until the

air bubble is centered within the circle of the level

indicator.

> In most cases this will require several adjustment

steps.

Removing Weights

for Calibration/Span Adjustment

(only for models AY612, AY412, AY212, AY711,

AY511, AY303, AY123)

§Grasp the tab to turn and remove the weight

compartment.

$Follow instructions on page 16 for calibration/span

adjustment.

PK Elektronik Vertriebs GmbH, E-Mail: [email protected], Internet: www.pkelektronik.com

Operation

Basic Weighing Function

Features

– Zeroing the balance

You can zero the balance within the

entire weighing range, up to the maxi-

mum capacity.

Preparation

§Switch on the balance: press the e

key

§If necessary, zero the balance: press the

(Zero) key

$If necessary, change the configuration

settings:

see the chapter entitled “Configuration”

$If desired, load the factory settings:

see the chapter entitled “Configura-

tion,” menu item 9.– 1

Additional functions:

$Switching off the balance: press the

ekey

$Battery operation: automatic shut-off

after 2,5 or 10 minutes; see chapter on

configuration. Example: 2 minutes.

If the weight readout remains

unchanged and no keys are pressed for

at least two minutes, the battery symbol

“ “ starts flashing. After another

2 seconds, the balance shuts off auto-

matically, unless a key is pressed.

Description of the Keys

eswitches the balance on and off or

switches it to the standby mode.

Battery operation: on; turns

backlight on; off

(Zero) Zeros the balance; press and hold

2 seconds: opens the application

(Cal) Starts calibration/adjustment

(F) Starts an application program;

Scrolling in application menu,

configration menu and calibra-

tion menu

(Enter) Confirms the selected setting;

Exits application, configuration &

calibration menu if key is pressed

and held for more than 2 seconds.

(Print) Generates a printout or data

output

PK Elektronik Vertriebs GmbH, E-Mail: [email protected], Internet: www.pkelektronik.com

Example: Determine weight of sample

Step Key (or instruction) Display

1. Switch on the balance e

Self-test runs

Display: Software version r 31.01

2. Open the flip-down cover and leave

open while weighing

3. Place container on the balance 52.0 g

(in this example, 52 g)

4. Zero the balance (Zero) 0.0 g

5. Place sample in container on balance 150.2 g

(in this example, 150,2 g).

PK Elektronik Vertriebs GmbH, E-Mail: [email protected], Internet: www.pkelektronik.com

Toggling between Weight Units

With this application program you can toggle the display of a weight value back and forth

between two weight units (see table below).

Example: Toggle weight unit from pounds [lb] (application) to grams [g] (basic unit)

Step Key (or instruction) Display

1. Select application program (Zero) > 2 sec

2. Select Toggling between Weight Units (F)

3. Confirm unit (Enter)

4. Select weight unit; in this example: (F) repeatedly

“5. Pound” (see table below)

5. Confirm weight unit (pounds) (Enter)

6. Place sample on balance

7. Toggle weight unit (F)

Menu code Unit Conversion factor Display

1. user* Grams 1.00000000000 o

2.grams (factory setting) Grams 1.00000000000 g

4.carat Carats 5.00000000000 o

5.Pound Pounds 0.00220462260 lb

6.ounce Ounces 0.03527396200 oz

7.tryo Troy ounces 0.03215074700 ozt

8.tl.hon Hong Kong taels 0.02671725000 tlk

9.tl.sin Singapore taels 0.02645544638 tl

10.tl.ta Taiwanese taels 0.02666666000 tl

11.grai Grains 15.4323583500 GN

12.peny Pennyweights 0.64301493100 dwt

15.tl.ch Chinese taels 0.02645547175 tl

22.pdoz lb/oz 0.03527396200 lb:oz

23.newt Newtons 0.00980665000 N

* User-defined conversion is customer selectable with RS-232 or USB program option.

1010

Application Programs
