Saris SUPERBones 802 Manual de usuario
SUPERBones
Assembly Instructions
Instrucciones de montaje
Instructions d’assemblage
3 bikes
3 bicicletas
3 vélos
Fit
Guide
For relevant patents, see www.saris.com/patents
F
ü
r relevent Patente siehe www.saris.com/patents
View our installation video at
http://www.saris.com/en/instructional-videos-1.html
#802
1.800.783.7257
http://www.saris.com/en/vehicle-racks.html
Max=
35 lbs/16kg
Max=
105lbs/48kg
Video
En
Es
Fr
3040
Bike Beam
#3033
Wheel Straps
Optional Accessories
#
Bike Beam is required if bicycle wheels are not parallel to the ground when carrying a bicycle with a sloped
top tube, or a full suspension bicycle. Bike Beam is also required if bicycle wheels are 12” or less from the
ground when installed on the rack.
Se requiere Bike Beam si las ruedas de la bicicleta no están paralelas al suelo cuando se transporta una
bicicleta con un tubo superior inclinado o una bicicleta de suspensión total. También se requiere Bike Beam si
las ruedas de la bicicleta están a 12 ”o menos del suelo cuando se instalan en el soporte.
Bike Beam est nécessaire si les roues du vélo ne sont pas parallèles au sol lors du transport d’un vélo avec
un tube supérieur incliné ou d’un vélo à suspension intégrale. Bike Beam est également requis si les roues de
vélo sont à 12 po ou moins du sol lorsqu’elles sont installées sur le porte-vélos.
24311C_Superbones.indd 124311C_Superbones.indd 1 12/18/2020 3:35:48 PM12/18/2020 3:35:48 PM
Preparing for installation
Step 1: Reference fit guide, www.saris.com, to determine strap
placement and lower foot position. *Rack can not be
mounted without first confirming compatibility. If strap/
hook placement needs adjustment, see instruction in
Appendix A.
1
Step 2: Clean surface of vehicle which will be in contact with rack.
Step 3: Adjust the upper legs.
3a Lift “lock” lever to release upper leg
3b Rotate leg into general position to place on car
3c close lever
3d repeat with 2nd leg
2
3
Fit
Guide
24311C_Superbones.indd 224311C_Superbones.indd 2 12/18/2020 3:35:49 PM12/18/2020 3:35:49 PM
Install Rack on Vehicle
Step 4: Adjust the Arms.
4a Lift “lock” lever to release arms
4b Rotate arm into general position
4c close lever
4d repeat with 2nd arm
Note: Arms must be slightly above Horizontal.
4
Step 5: Place rack onto vehicle. Use fit guide information to
properly position lower feet on bumper, trunk face or
license plate.
5
Figure 1 - General Placement on Car
24311C_Superbones.indd 324311C_Superbones.indd 3 12/18/2020 3:35:51 PM12/18/2020 3:35:51 PM
Step 7: Attach top hooks.
7a push and hold “free” lever to extend straps.
7b Secure hooks in hinge line of vehicle.
7c Push and hold “free” lever to take out strap slack.
**See fit guide for hatch hugger compatibility.
Note: Do not open truck with rack installed on car.
7
Step 8: Attach lower hooks.
8a push and hold “free” lever to extend straps.
8b Secure lower hook into trunk lip and ensure that
strap runs through the lower foot groove.
8c Push and hold “free” lever to take out strap slack.
8
Step 6: Re-adjust upper legs so rack spline is directly above
vehicle bumper.
6
24311C_Superbones.indd 424311C_Superbones.indd 4 12/18/2020 3:35:52 PM12/18/2020 3:35:52 PM
Step 9: Tighten all straps by opening and closing “free” lever to
activate ratchet mechanism. Tighten upper straps first
and finish with lower straps.
9
Load Bikes
Step 1: Fold up anti-sways.
1
Step 2: Place bikes on rack with heaviest/biggest bike closest to
vehicle. Orient bike to align seat tube with anti-sway.
2
24311C_Superbones.indd 524311C_Superbones.indd 5 12/18/2020 3:35:53 PM12/18/2020 3:35:53 PM
Step 4: If bike spacing adjustment is needed rotate anti-sway
strap.
4a tighten anti-sway strap onto seat post tube.
4
Step 5: Once bikes are loaded recheck strap tension and tighten
upper, and lower straps as necessary.
5
Step 3: Tighten hold down straps over bike’s top tube.
3
24311C_Superbones.indd 624311C_Superbones.indd 6 12/18/2020 3:35:54 PM12/18/2020 3:35:54 PM
Step 6: Lock rack to vehicle.
6a To lock upper and lower legs, Insert key and turn
to locked position.
6
Step 7: Lock bike to rack.
7a To lock bike to rack, wrap locking cable over bike’s
top tube and insert into lock slot.
7b Insert key and turn to locked position.
7
Remove Rack
Step 1: Unlock upper and lower legs.
1
24311C_Superbones.indd 724311C_Superbones.indd 7 12/18/2020 3:35:54 PM12/18/2020 3:35:54 PM

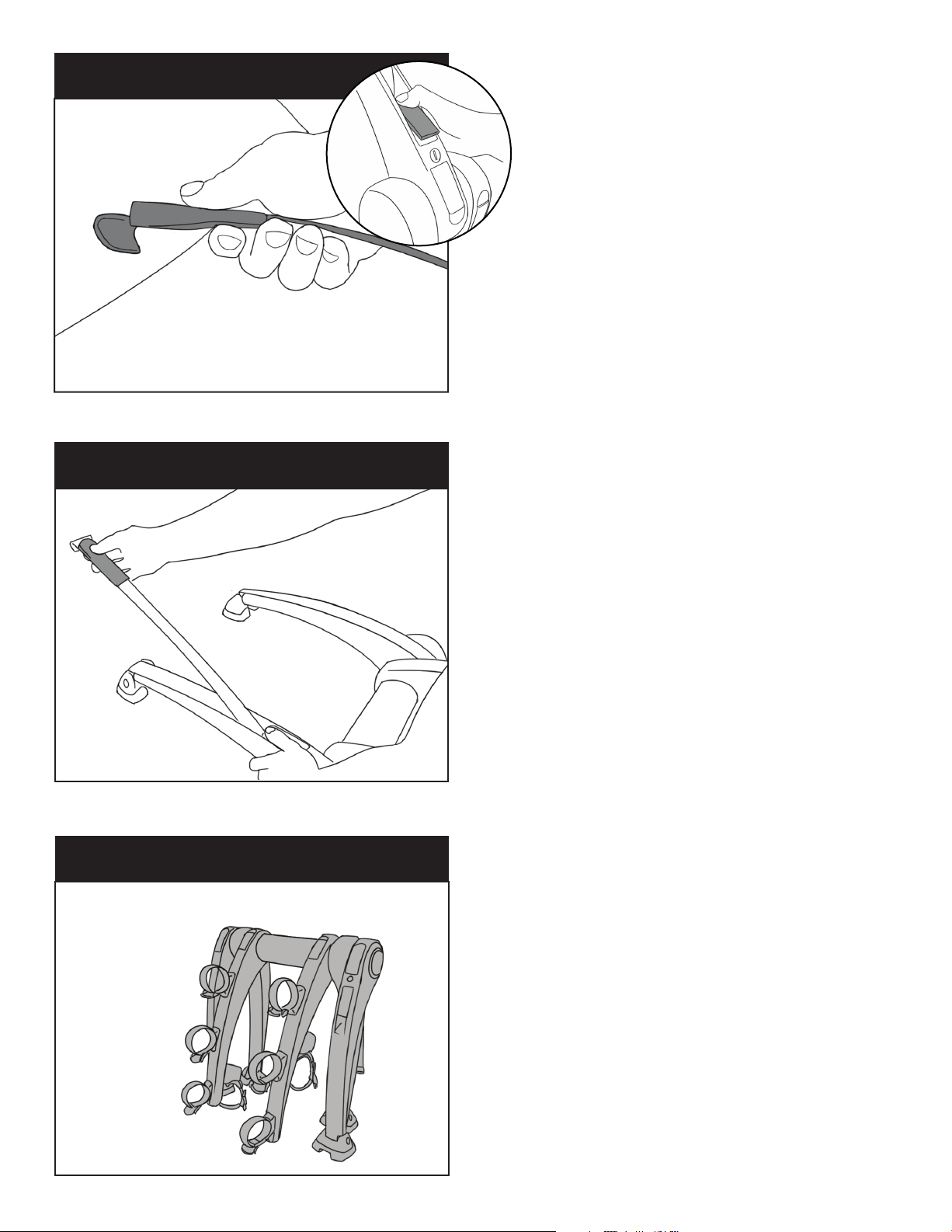

Step 2: Remove upper and lower hooks.
2a Push and hold “free” lever on upper leg to release
strap tension.
2b Repeat on lower leg.
2
Step 3: Retract strap. Guide strap into leg.
3
Step 4: Fold flat for storage.
4
24311C_Superbones.indd 824311C_Superbones.indd 8 12/18/2020 3:35:55 PM12/18/2020 3:35:55 PM

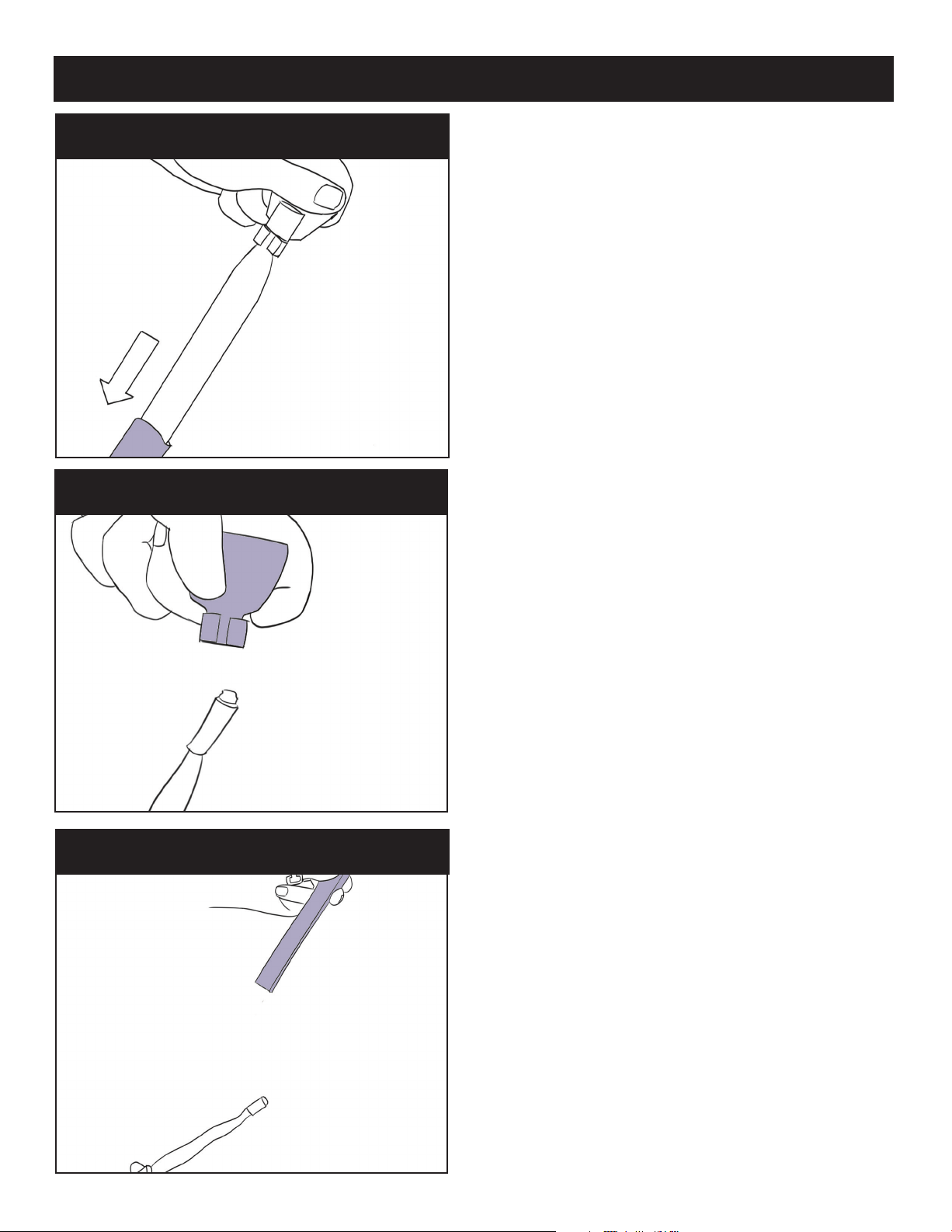

Step 2: Pinch strap and slide through opening on hook to remove
hook.
Step 1: Pull back sleeve covering hook attachment.
Step 3: Remove sleeve.
Appendix A: Strap/Hook Placement
1
2
3
24311C_Superbones.indd 924311C_Superbones.indd 9 12/18/2020 3:35:57 PM12/18/2020 3:35:57 PM
Step 5: Pull sleeve over hook attachment strap and re-attach
hook.
Step 4: Feed strap through leg to desired position.
4
5
6
