Introduction1

The camera supports network operation. By simply connecting a LAN cable to it, you can construct the most

advanced network monitoring system. From the Web browser (Internet Explorer) installed on your PC, you

can operate the camera via the network in an easy-to-use manner.

The camera supports bidirectional audio communications, enabling you to communicate with people at the

camera from your PC while monitoring the surveillance video, instead of just hearing sounds from the

camera.

In addition, it is a PoE product that can be powered through a LAN cable, so you can install it in locations

where there is no power outlet nearby.

The camera has 4-megapixel CMOS sensor that produces clear images at ultra-high resolution.

The camera can deliver full HD H.264 video throughout the network. Connecting a high-definition monitor to

your PC enables full high-definition video monitoring.

Using multi-stream video transmission, it can simultaneously deliver up to four video/ima

e streams. Because

it allows video/image compression format, resolution, and other image conditions to be set as desired for

each stream, you can choose the optimal video/image for your application.

The camera offers the focus assist function that supports focus adjustment at megapixel image resolution,

allowing you to fine-tune the focus in optimal conditions in an easy manner.

The digital PTZ function lets you clip specific areas of the subject in VGA size and perform pan, tilt, and zoom

operations just as when using a PTZ camera.

The camera's motion sensor function can work in conjunction with any external alarm device, facilitating the

construction of a high-level security system.

Installing an SD memory card (optional) lets you record alarm video with the camera.

Installing associated software applications on your PC further extends the capabilities of your surveillance system.

Introduction 2

Image pickup device 1/3" CMOS sensor

Effective pixels 16:9 1920 (H) × 1080 (V), 4:3 2288 (H) × 1712 (V)

Lowest image

illumination

50IRE: 1.0 lx (at F1.2, color mode, high gain)

50IRE: 0.06 lx (at F1.2, black-and-white mode, high gain)

Video S/N ratio 50dB (when AGC is “OFF”)

Lens Built-in varifocal lens f=3 to 9mm, F1.2 to 2.1

Adjusting focus Focus assist function

Day/Night function Auto, color, black-and-white, alarm input switching

White balance Auto (ATW), one push (AWC), manual (R/B gain adjustable), indoor, outdoor,

fluorescent

Backlight compensation Multi-spot evaluative metering, center-weighted evaluative metering, masking, face

detection

Electronic sensitivity

boosting

Auto (32× max) or Off

Electronic shutter VDC-HD3500P: 1/25, 1/50, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000

VDC-HD3500: 1/30, 1/60, 1/100, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000

Long exposure shutter (1×, 2×, 4×, 8×, 16×, 32×)

Iris control DC iris lens supported

Electronic zoom Max. 16×

Digital PTZ Enables electronic pan, tilt, and zoom operations on clipped subject areas in VGA

size.

Camera settings Selectable between 2 camera setting patterns

AGC gain Normal/Middle/High (Manual gain setting possible at Off)

Gamma correction 0.45, 1, Mode 1, Mode 2

Aperture compensation On/Off (Correction level adjustable)

VIVID COLOR EFFECT ON/OFF

DNR ON/OFF

Mirror H/V/HV/OFF

Privacy mask On/Off, max. 8 mask patterns

Motion sensor On (Motion masking/motion detection area setting, or video analytics)/Off, face

detection function supported

Language selection English, French, German, Spanish, Japanese

Video output Composite output

LAN 10BASE-T/100BASE-TX (RJ-45 connector)

Card slot 1 (SDHC compliant, max. 32 GB supported)

There are recommended SD memory cards.

Alarm input 2 (NO/NC), also serving as Day/Night switching terminal

Alarm output 2 (NO/NC, 16V, 150 mA, open collector)

Audio input/output Microphone input (3.5-mm mini jack)

Line output (3.5-mm mini jack)

Introduction 3

Recording mode Alarm recording, backup recording in event of a network failure

Image/video

compression

H.264/JPEG

Video size (H.264) (16:9) 1920×1080, 1280×720, 640×360, 320×180

(4:3) 1600×1200, 1280×960, 1024×768, 640×480, 320×240

Video size (JPEG) (16:9)1920×1080, 1280×720, 1024×576, 640×360

(4:3) 2288×1712, 1600×1200, 1280×960, 1024×768, 800×600, 640×480, 320×240

Picture quality QUALITY mode: BASIC, NORMAL, ENHANCED, FINE, SUPER FINE

BITRATE mode: User-specified bit rate

Interface 10BASE-T/100BASE-TX

Protocol TCP/IP, UDP, HTTP, HTTPS, SMTP, NTP, DHCP, FTP, DDNS, RTP, RTSP, RTCP

Audio G.711 (Bidirectional)

Simultaneous access 20

Security BASIC authentication (ID/password), SSL, IP filtering

International Waterproof

and Dustproof Standard

IP66

Operating ambient

temperature/humidity

–10 to +50°C, 90% RH or less (no condensation)

Power source 12 to 15 VDC/24 VAC±10%, 50/60 Hz, PoE

Power consumption 6,8W, 20W (with heater turned on)

Weight 800 g

Dimensions

Approvals: IP66/CE

This unit has been certified to IP66 standards when properly installed.

Use only an IP66 certified enclosure or an electrical box.

Ensure all openings in enclosure are sealed as per manufacturer's instructions.

Accessories

1Video cable

2Cushioning sheet

3Hexagonal wrench

4Connector

5Pattern sheet

6CD-ROM

Introduction 4

To remove the cover, remove the three screws using the supplied hex wrench.

Connecting the camera and monitor using the supplied cable enables you to perform focus and iris adjustments

while monitoring the live video.

For details, see the “Connections” section.

You can use crocodile clip connectors instead of the supplied cable.

This cover protects the lens assembly.

Use this slot to install an SD memory card (a type of SD card containing an SLC chip) for backup purposes.

This enables alarm video, backup video in the event of network failures, log information, and other data to be

stored with the camera.

You can format the SD memory card via network operation on the SD MEMORY CARD screen.

The LED indicator will blink if an error occurs on the SD memory card.

1How to insert the SD card

Loosen the two screws, lift the circuit board in the direction of the arrow, insert the SD memory card with the

labeled side upward, and push until it clicks.

2How to remove the SD card

Make sure the camera is powered off before removing the SD card.

Push the SD card a bit further into the slot to eject it.

Introduction 5

This indicator blinks to indicate one of the following conditions in the camera.

Recording to SD memory card stopped

Firmware update in progress

An SD memory card error occurred (Fast blink)

These buttons allow you to perform the following operations.

Introduction 6

These operations may be performed with the Web browser installed on your PC. For details, refer to the linked

information.

Operation Associated button and use Equivalent network operation screen

Restoring factory default

settings

Press the NEAR button ( 1) and the SET

button ( 3) simultaneously OPTION SETTINGS (FACTORY

DEFAULT)

Resetting login password (for

default users only)

Press the FAR button ( 2) and the SET

button ( 3) simultaneously Not supported via network operation

Adjusting focus For details, refer to the “Lens Adjustment”

section. CAMERA SETTINGS (FOCUS

ASSIST/IRIS SETTINGS)

Adjusting iris

Inverting video of wall-mounted

camera

Press the REVERSE button ( 4) Not supported via network operation

For details, see the “Installation

Manual”.

Restarting camera Press the RESET button ( 5) OPTION SETTINGS (CAMERA

REBOOT)

Viewing Firmware Version For details, refer to the “Viewing Firmware

Version” section. OPTION SETTINGS (FIRMWARE

UPDATE)

Be sure to stop recording once before attempting to restart the camera or restoring the factory default

settings. Performing these operations during recording prevents correct video recording.

For the detailed procedures for connecting terminals and cables, refer to the “Connections” section.

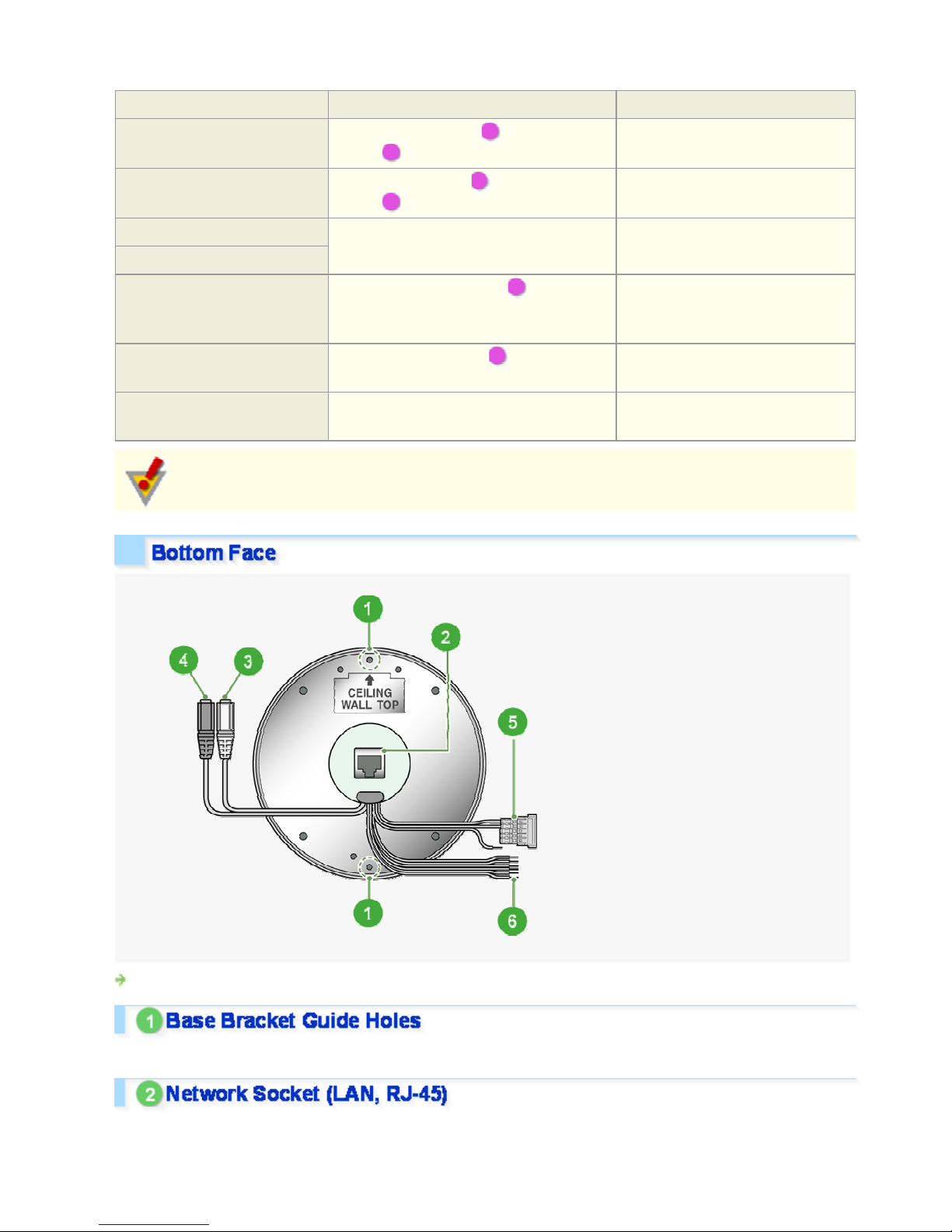

Use these coupling holes to mount the camera to the separately-sold base bracket.

Use this socket to connect the camera to your PC to enable network operation.

Introduction 7

Use this jack to connect an optional external microphone to listen to the sound while monitoring the surveillance

video, or simultaneously record the video and sound.

This jack supports 3.5-mm diameter monaural microphone plugs, or monaural line-level input plugs

(the left channel only for stereo plugs).

Connect this jack via an audio cable to the audio input jack of an amplified speaker system or the monitor.

Use this cable to connect a 24 VAC or 12 VDC power supply.

There is no power indicator on the camera.

Alarm input cable: Connect an external switch, infrared sensor, or other device to detect alarm conditions

such as the entry of an intruder.

Alarm output cable: Connect a buzzer, lamp, or other alarm device.

Introduction 8

Perform the following connections according to the installation environment and application of your camera.

AAudio Jack Connection

BAlarm Cable Connection

CPower Connection

DNetwork Connection

ECamera Monitor Connection

Before attempting the following connections, be sure to turn off all components of your system.

Improper connection may cause smoke or failures. Before attempting to connect each system

component, carefully read the instruction manual that comes with it to familiarize yourself with the

correct connection procedure.

AUDIO IN Jack (White)

Use this jack to connect an optional external microphone to listen to the sound while monitoring the surveillance

video, or simultaneously record the video and sound.

AUDIO OUT Jack (Black)

Connect this jack via an audio cable to the audio input jack of an amplified speaker system or the monitor.

Alarm Input Terminal Connection

Connect an alarm switch, infrared sensor, or other device to detect alarm conditions to the alarm input cable.

ALARM IN1: Red

Introduction 9

ALARM IN2: gray

After connecting an alarm device, configure the input conditions for the corresponding alarm input

cable via network operation on the ALARM SETTINGS screen.

To use the alarm input cable as Day/Night switching signal path, follow the steps below.

Under [DAY/NIGHT], set [DAY/NIGHT] to “COLOR” and select the cable you want to use in [EXT

ALARM].

On the ALARM SETTINGS screen, in [POLARITY], select the signal polarity of the alarm input

terminal.

Connecting an external switch to ALARM IN1 allows you to set the system clock by operating the

switch. To set the system clock, configure the [CLOCK IN] setting on the CLOCK SETTINGS screen.

Alarm Output Terminal Connection

Connect a buzzer, lamp, or other alarm device to the alarm output cable.

ALARM OUT1: Orange

ALARM OUT2: Brown

After connecting an alarm device, configure the output conditions for the corresponding alarm output

cable via network operation on the ALARM SETTINGS screen.

Configuration of alarm output terminal is also possible via remote operation. For that, set [ALARM

OUT] to “REMOTE” on the ALARM SETTINGS (ALARM OUT) screen.

Connect the power terminals (24 VAC/12 VDC) of the camera to a power supply.

AConnection to 24 VAC power supply

Although the power terminals have no polarity, the earth grounding wire must be connected to the GND (earth

grounding) terminal.

BConnection to 12 VDC power supply

Note the polarity (+/–) of the power terminals when connecting the camera to a 12 VDC power supply.

Incorrect polarity may cause damage to the camera.

Be sure to use an 18AWG or thicker wire power cable.

A voltage drop may occur depending on the thickness of the power cable. If you must use a long

power cable, determine the cable type by ensuring that the voltage at the 24-VAC/12-VDC terminals

is within the operating range of the camera.

When using PoE to power the camera, do not use the camera's power terminals.

This camera is designed so that you can use all of its functions via network operation.

By connecting the network (LAN) socket of the camera to your PC using a LAN cable, you can configure and

operate it from the Web browser installed on your PC.

Introduction 10

Otros manuales para VDC-HD3500P

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Cámara de seguridad de Sanyo

Sanyo

Sanyo VCC-5884EA - 1/3" Color CCD DSP High-Resolution... Manual de usuario

Sanyo

Sanyo VDC-DP7585P Manual de usuario

Sanyo

Sanyo VCC-4344 - 1/4" CCD High Performance Day/Night... Manual de usuario

Sanyo

Sanyo VCC-4374 Manual de usuario

Sanyo

Sanyo VCC-4312P Manual de usuario

Sanyo

Sanyo VCC-N6695P Manual de usuario

Sanyo

Sanyo Pan-Focus VCC-P9574N Manual de usuario

Sanyo

Sanyo VCC-9400P Manual de usuario

Sanyo

Sanyo THINK GAIA VCC-HD4600 Manual de usuario

Sanyo

Sanyo VCC-7912P Manual de usuario

Sanyo

Sanyo VCC-HD2100P Manual de usuario

Sanyo

Sanyo VCC-6584E - 1/3" Color CCD DSP High-Resolution... Manual de usuario

Sanyo

Sanyo VCC-ZM600 Manual de usuario

Sanyo

Sanyo VCb-3100P Manual de usuario

Sanyo

Sanyo VCC-XZN600P Manual de usuario

Sanyo

Sanyo VCC-P7575PA Pan-Focus Manual de usuario

Sanyo

Sanyo VCB-3412P Manual de usuario

Sanyo

Sanyo VCC-HD2100 - Full HD 1080p Network Camera Manual de usuario

Sanyo

Sanyo VCB-3424 Manual de usuario

Sanyo

Sanyo VDC-D1785IRVP Manual de usuario

Sanyo

Sanyo VCC-3912 Manual de usuario

Sanyo

Sanyo VDC-DP7584S - 1/4" Color CCD Vandal-Resistant Dome... Manual de usuario

Sanyo

Sanyo VCC-W9875VP Manual de usuario

Sanyo

Sanyo VCB-3312P Manual de usuario

Manuales populares de Cámara de seguridad de otras marcas

Okina USA

Okina USA SIR36-870VF650LP Manual de usuario

Divio

Divio NDR155PA Manual de usuario

Canon

Canon VB-C500D Manual de usuario

Easy Access

Easy Access EasyGuard Manual de usuario

Vivotek

Vivotek FD9389-EHV-v2 Manual de usuario

TUYA

TUYA COSMO W2 Manual de usuario

Eusso

Eusso UNC7500-IR Guía de configuración

urmet domus

urmet domus 1096/204 Manual de usuario

VC VC20 series Manual de usuario

Axis

Axis Q1614 Manual de usuario

ieGeek

ieGeek DD201 Manual de usuario

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manual de usuario

Vicon

Vicon V662-D-1 Instrucciones de funcionamiento

Grundig

Grundig GCH-K0274P Manual de usuario

Lorex

Lorex VANTAGE LBC7032 Manual de usuario

4xem

4xem WPT Manual de usuario

Samsung

Samsung SCV-3082 Manual de usuario

Vitek

Vitek VTC-C544 Manual de usuario
