Sanus NEW VisionMount VLT14 Manual de usuario
Position TVs less than an inch from the wall and offer up to 10° of tilt
Ideal for accentuating the look of ultra-thin LCD, plasma and LED TVs,
SANUS’ new Super Slim VLT14 and VMT14 tilting mounts sit less than
an inch from the wall and offer up to 10° of smooth tilting capability with
fingertip tilt. In addition, these mounts offer the innovative ClickStand™
mechanism, so it’s easy to access cables behind the TV. Simply pull
down on the quick-release tabs to unlock the TV from the wall plate
and the ClickStand™feature holds the TV away from the wall for
hands-free cable management.

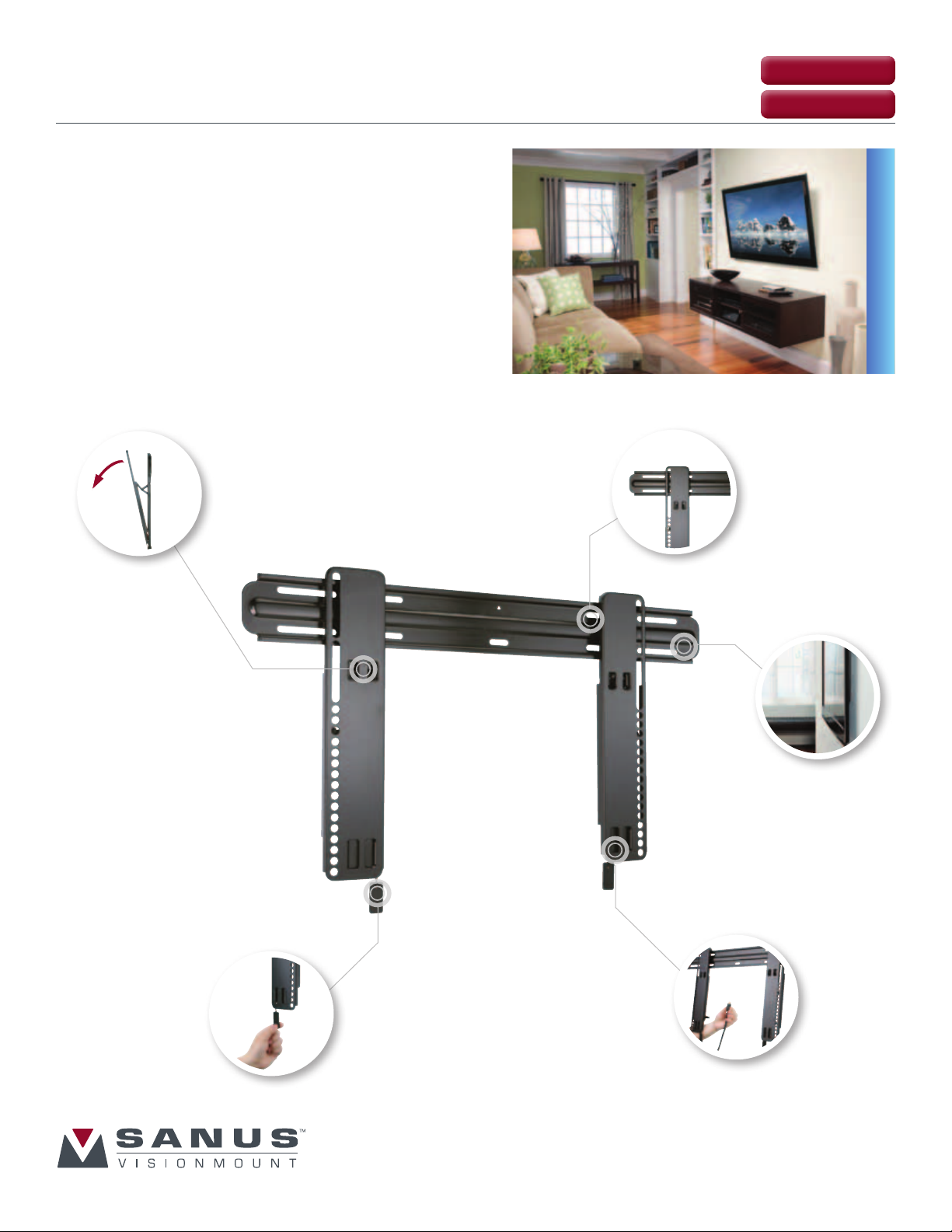

Convenient quick-release tabs
on mounting brackets stay
hidden, but easily pull down
to unlock TV from wall plate
for cable access
Super Slim tilting mount sits
less than an inch from wall to
complement the sleek look of
ultra-thin TVs
Innovative ClickStand™mechanism
holds TV away from wall for easy
cable access
VLT14-B1 shown
MODEL VLT14-B1
MODEL VMT14-B1
MODEL VLT14-B1
www.sanus.com • 800.359.5520
Fingertip tilt allows easy
TV angle adjustments with
the touch of a finger
Wall plate mounting holes
designed to accommodate
16" or 24" on-center studs
(model VLT14 only)
Tilting
NEW visioNmouNt®
Super Slim Tilting Mounts
MODEL VLT14 Tilting Mount for 37" – 65" TVs
MODEL VMT14 Tilting Mount for 26" – 42" TVs

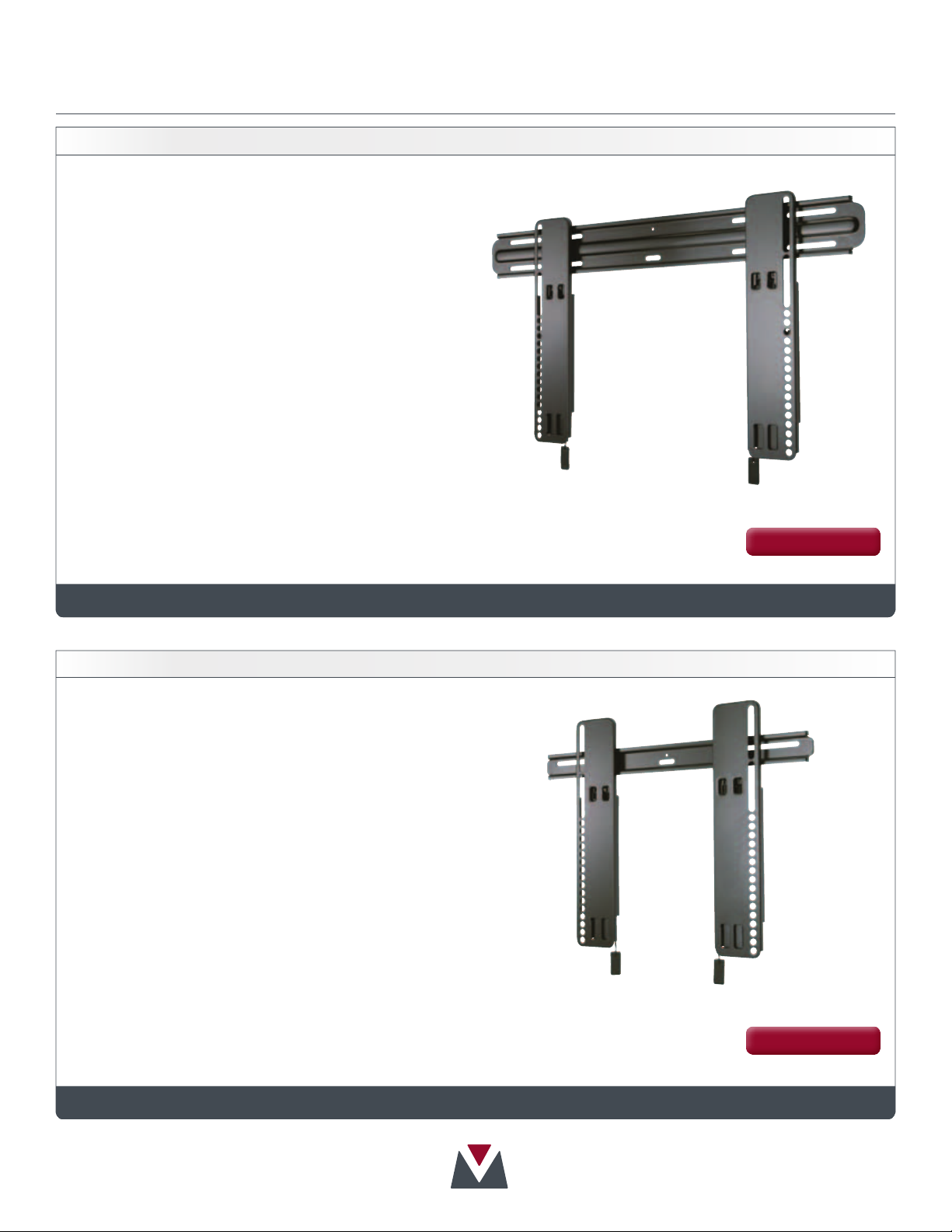

PRODUCT DIMENSIONS (w x d x h)
31.4" x .9" x 17.3"
79.8 x 2.2 x 43.8 cm
PACKAGE DIMENSIONS (w x d x h)
32" x 2.6" x 8.7"
81.3 x 6.5 x 22.1 cm
PACKAGE WEIGHT
11.4 lbs / 5.2 kg
TV SIZE/WEIGHT CAPACITY
37" – 65" / 130 lbs
94 – 165 cm / 49 kg
PROFILE
.87" / 2.2 cm
FINISH
Black – VLT14
•Super Slim tilting mount sits less than an inch from the wall to complement the
sleek look of ultra-thin TVs
• Fingertip tilt allows easy TV angle adjustments with the touch of a finger
•Innovative ClickStand™mechanism holds TV away from wall for easy cable access
•Convenient quick-release tabs on mounting brackets stay hidden, but easily pull
down to unlock TV from wall plate for cable access
•Wall plate mounting holes designed to accommodate 16" or 24" on-center studs
PRODUCT DIMENSIONS (w x d x h)
23.6" x .8" x 17.3"
60.1 x 2 x 43.8 cm
PACKAGE DIMENSIONS (w x d x h)
23.6" x 2.6" x 8.7"
60 x 6.5 x 22.1 cm
PACKAGE WEIGHT
7.5 lbs / 3.4 kg
TV SIZE/WEIGHT CAPACITY
26" – 42" / 80 lbs
66 – 107 cm / 36.3 kg
PROFILE
.8" / 2 cm
FINISH
Black – VMT14
•Super Slim tilting mount sits less than an inch from wall to complement the sleek look
of ultra-thin TVs
•Fingertip tilt allows easy TV angle adjustments with the touch of a finger
•Innovative ClickStand™mechanism holds TV away from wall for easy cable access
•Convenient quick-release tabs on mounting brackets stay hidden, but easily pull down
to unlock TV from wall plate for cable access
MASTER PACK QUANTITY
3
MASTER PACK DIMENSIONS
(w x d x h)
35.4" x 16.7" x 9.1"
90 x 42.5 x 23 cm
MASTER PACK WEIGHT
36.5 lbs / 16.6 kg
LIST PRICE
$169.99
AVAILABLE
August 27, 2010
UPC
793795521934
MASTER PACK QUANTITY
4
MASTER PACK DIMENSIONS
(w x d x h)
25" x 16.73" x 9.1"
63.5 x 42.5 x 23 cm
MASTER PACK WEIGHT
31.7 lbs / 14.4 kg
LIST PRICE
$119.99
AVAILABLE
August 27, 2010
UPC
793795521941
www.sanus.com • 800.359.5520
VLT14-B1 SHOWN
VMT14-B1 SHOWN
NEW visioNmouNt®
Super Slim Tilting Mounts
MOUNTING PATTERN 100x100
|
200x100
|
200x200
|
300x200
|
400x200
|
500x200
|
300x300
|
400x300
|
400x400
|
500x400
|
600x400
|
800x400
|
Universal » Width: 100 – 804 mm
a a a a a a a a a a a a a
Height: 25 – 410 mm
MOUNTING PATTERN 100x100
|
200x100
|
200x200
|
300x200
|
400x200
|
500x200
|
400x300
|
400x400
|
600x400
|
800x400
|
800x500
|
Universal » Width: 147 – 571.5 mm
a a a a a a a a a
Height: 15 – 410 mm
