Sanus VXT7-B2 Manual de usuario
VXT
7-
B
2
INSTRUCTION MANUAL
GET IT
RIGHT
THE FIRST TIME
Follow this step-by-step
instruction manual to
speed up your installation.
2
WE’RE HERE TO HELP
Our install experts are
standing by to help.
Call us at:
US: 800-359-5520
EMEA: +31 (0) 495 580 852
UK: 0800 056 2853
AUS: +61 (0) 7 3299 7000
Get it right the first time.
HeightFinder™ shows you
where to drill.
Check it out at:
SANUS.com/2567
Want to watch a video that
shows how easy this DIY
project will be?
Watch it now at:
SANUS.com/2817
Recommended placement
Milestone AV Technologies and its aliated corporations and subsidiaries (collectively, “Milestone”), intend to make this manual accurate and complete. However, Milestone makes no claim that the
information contained herein covers all details, conditions, or variations. Nor does it provide for every possible contingency in connection with the installation or use of this product. The information
contained in this document is subject to change without notice or obligation of any kind. Milestone makes no representation of warranty, expressed or implied, regarding the information contained herein.
Milestone assumes no responsibility for accuracy, completeness or suciency of the information contained in this document.
3

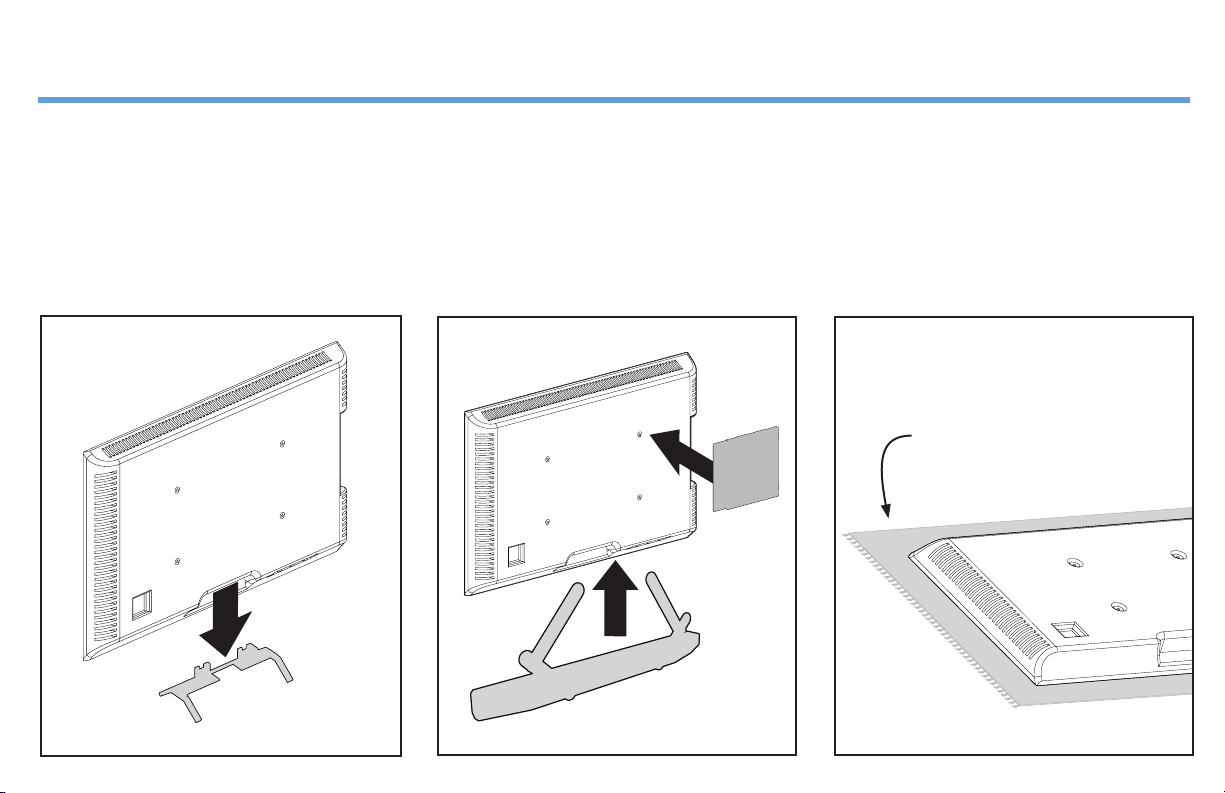

Before you begin
Soft clean surface
Remove the stand from your TV
—if attached. Install any accessories
you may have purchased —if they
require the TV to be removed from the
wall for assembly. The TV is removable
for future accessory purchases.
Protect the face of your TV
when laying it down for installation.
4
300 lbs.
(136 kg)
IMPORTANT SAFETY INSTRUCTIONS – PLEASE READ MANUAL PRIOR TO USE – SAVE THESE INSTRUCTIONS
Please read through these instructions completely to be sure you’re comfortable with this easy install process.
Check your TV owner’s manual to see if there are any special requirements for mounting your TV.
If you do not understand these instructions or have doubts about the safety of the installation, assembly or use of this product,
contact Customer Service: [US]: 800-359-5520 [EMEA]: +31 (0) 495 580 852 [UK]: 0800 056 2853 [AUS]: +61 (0) 7 3299 7000.
CAUTION: Avoid potential personal injuries and property damage!
●This product is designed ONLY to be installed into wood studs, solid concrete or concrete block.
—DO NOT INSTALL INTO DRYWALL ALONE — DRYWALL ALONE WILL NOT HOLD THE WEIGHT OF YOUR TV.
●This product is designed for INDOOR USE ONLY.
●The wall must be capable of supporting five times the weight of the TV and mount combined.
●Do not use this product for any purpose not explicitly specified by manufacturer.
●Manufacturer is not responsible for damage or injury caused by incorrect assembly or use.
TV Weight Limit
(including accessories)
DO NOT EXCEED
If your TV (including accessories) exceeds
this weight, this mount is NOT compatible.
Visit SANUS.com or call customer service to
find a compatible mount.
5
Tools Needed
Wall
Construction
ONLY install on
these acceptable
wall types. Drywall
alone will
NOT hold
the weight
of your TV.
wood studs Solid concrete or
concrete block
ACCEPTABLE ACCEPTABLE
Wood Stud Install
Concrete Install
Awl
Pencil Level Tape
Stud
Finder
ScrewdriverTape
Measure
7/32 in.
(5.5 mm)
Wood
Drill Bit
Electric
Drill
Hammer
1/2 in.
(13 mm)
Socket
Wrench
Drill Bit
3/8 in.
(10 mm)
Concrete
CAUTION:
DO NOT install
in drywall alone
Call
Customer
Service
Unsure
6
Attach TV Bracket to TVSTEP 1
WARNING: This product contains small items that could be a choking hazard if swallowed. Before starting assembly, verify all parts are included
and undamaged. If any parts are missing or damaged, do not return the damaged item to your dealer; contact Customer Service. Never use damaged parts!
NOTE: Not all hardware included will be used.
M8 x 35mm
M8 x 16mm
22mm
M6 x 12mm M6 x 35mm
M8 x 50mm
2.5mm
5mm
M8 x 25mm
5⁄16 in. x 2 ¾ in.
UX10 x 60R
For concrete installations ONLY

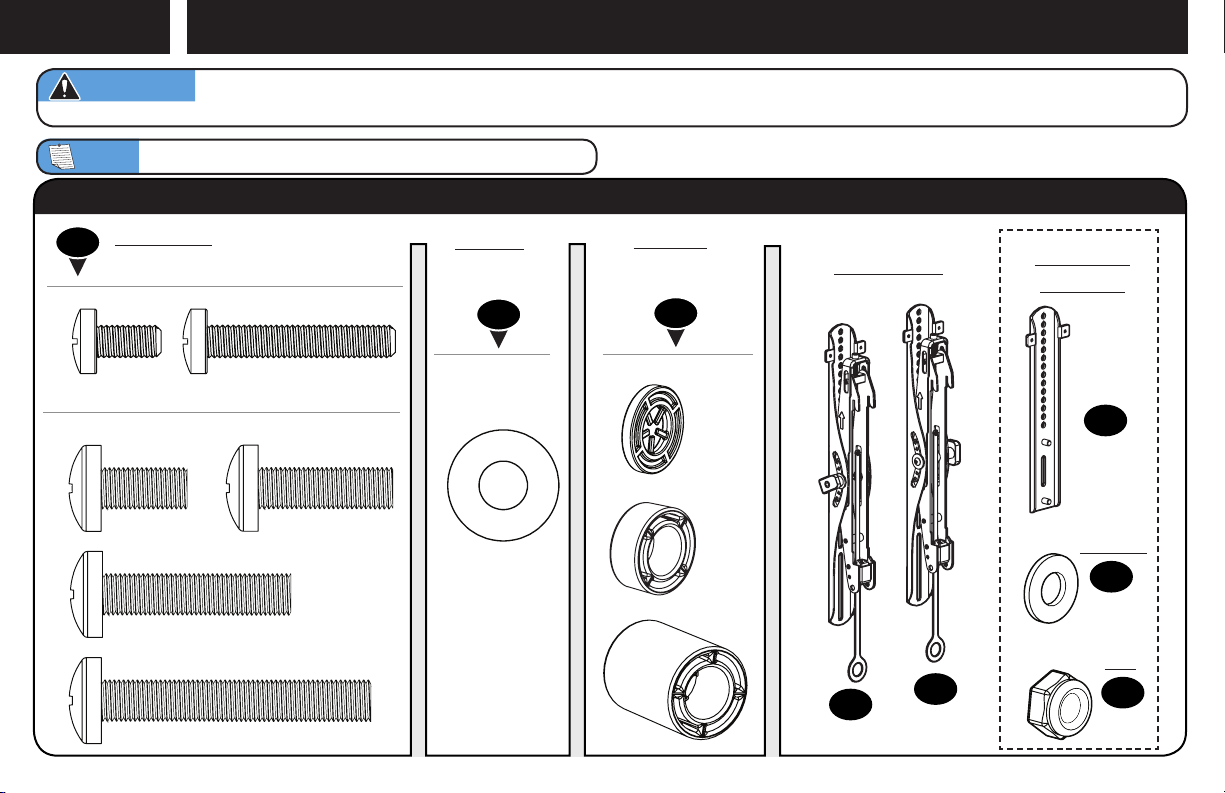

STEP 1 Parts and Hardware
TV Screws (qty. 4 each)
[Only one size fits your TV] Washer
(qty. 4 each)
Spacers
[If necessary]
(qty. 4 each)
03
02
01
M6/M8
M6/M8
M6
M8
TV Brackets TV Bracket
Extension
Washer
Nut
06
(qty. 4)
04
(qty. 1)
05
(qty. 1)
07
(qty. 8)
08
(qty. 8)
7
03
06
06
05
05
04
04
02
02 01
01
Too Short Too Long Correct
Inset Holes Cables Rounded Back
Only one screw size fits your TV.
M6 M8 • Flat Back TV
[TV brackets
lay flat on your TV]
NO SPACER SPACER NEEDED
• Flat Back TV with
Extra Space Needed
[for deep inset holes
or cable interference]
• Rounded or
Irregular Back TV
[TV brackets NOT
resting flat on your TV]
A B
Use short TV screws 01 .
Spacers 03 not needed. Use long TV screws 01 and spacers 03 to
create extra space between the TV and TV bracket.
01
1.2 Select TV Screw Length and Spacers1.1 Select TV Screw Diameter
If your TV included
inset spacers or wall
mount adapters, see
Troubleshooting on PAGE 22.
CAUTION: Verify adequate thread engagement
with your screw 01 , washer 02 , spacer 03
combination AND TV bracket 04 /05 /06 .
—Too short will not hold your TV.
—Too long will damage your TV.
8
1.3 Determine Your TV Bracket Configuration
For Height
400mm or less
Skip to STEP 1.4
on PAGE 9
≤ 400mm (15 ¾ in.) > 400mm (15 ¾ in.)
For height
greater than 400mm
07
04 05
06
06
06
08
TV VESA Height
08
07
Assemble TV bracket
extensions 06 to fit over
your TV VESA height.
Measure the HEIGHT of your TV mounting hole pattern.
04 05
9
1.4 Attach TV Brackets to Your TV
04
05
Adjust
the straps
to the
bottom of
the TV.
TV VESA ≤ 400mm shown
Center the TV brackets 04 and 05 on your TV hole pattern, and install using your screw/washer/spacer.
03
02
02
01
01
NO SPACER
SPACER NEEDED
A
B
10
Attach Wall Plate to Wall
STEP 2
WARNING: This product contains small items that could be a choking hazard if swallowed. Before starting assembly, verify all parts are
included and undamaged. If any parts are missing or damaged, do not return the damaged item to your dealer; contact Customer Service.
Never use damaged parts!
NOTE: Not all hardware included will be used.
M8 x 35mm
M8 x 16mm
22mm
M6 x 12mm M6 x 35mm
M8 x 50mm
2.5mm
5mm
M8 x 25mm
5⁄16 in. x 2 ¾ in.
UX10 x 60R
For concrete installations ONLY
M8 x 35mm
M8 x 16mm
22mm
M6 x 12mm M6 x 35mm
M8 x 50mm
2.5mm
5mm
M8 x 25mm
5⁄16 in. x 2 ¾ in.
UX10 x 60R
For concrete installations ONLY

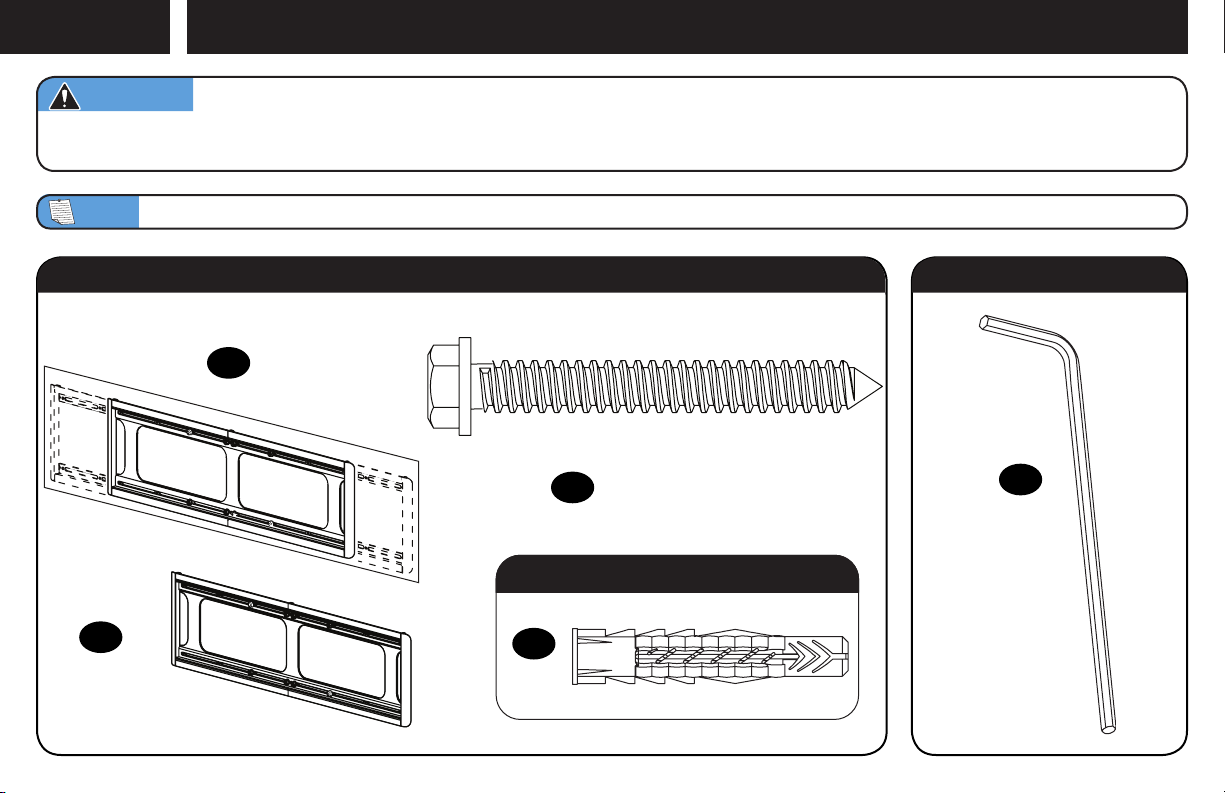

Parts and Hardware for STEP 2 Tool for Adjustments
Lag Bolt
Wall Plate Template
Wall Plate Concrete Anchor
Hex Key
3/16 in.
09
(qty. 1)
10
(qty. 1)
11
(qty. 8)
12
(qty. 8)
13
(qty. 1)
