INSTRUCTION MANUAL

GET IT

RIGHT

THE FIRST TIME

Follow this step-by-step

instruction manual to

speed up your installation.

WE’RE HERE TO HELP

Our install experts are

standing by to help.

Call us at:

US: 800-359-5520

EMEA: +31 (0) 495 580 852

UK: 0800 056 2853

AUS: +61 (0) 7 3299 7000

Get it right the ﬁrst time.

HeightFinder™ shows you

where to drill.

Check it out at:

SANUS.com/2567

Want to watch a video that

shows how easy this DIY

project will be?

Watch it now at:

SANUS.com/2816

Texto en español, página 12 Deutscher Text Seiten 16 Svensk text sida 20

中文文字说明请参见第 24 页

Texte français page 14 Nederlandse tekst op pagina 18

Русский текст: стр. 22 日本語は 26 ページ

TV Weight Limit

(including accessories)

DO NOT EXCEED

If your TV, plus accessories, weighs MORE

than indicated, this mount is NOT compatible.

Visit SANUS.com or call customer service to

ﬁnd a compatible mount.

Call Customer Service

Tools

Needed

Wall

Construction

ONLY install on

these acceptable

wall types.

Unsure

IMPORTANT SAFETY INSTRUCTIONS

PLEASE READ ENTIRE MANUAL PRIOR TO USE – SAVE THESE INSTRUCTIONS

Please read through these instructions completely to be sure you’re comfortable with this easy install process.

Check your TV owner’s manual to see if there are any special requirements for mounting your TV.

If you do not understand these instructions or have doubts about the safety of the installation, assembly or use of this product,

contact Customer Service.

CAUTION: Avoid potential personal injuries and property damage!

●This product is designed ONLY to be installed into wood studs, solid concrete or concrete block.

—DO NOT INSTALL INTO DRYWALL ALONE — DRYWALL ALONE WILL NOT HOLD THE WEIGHT OF YOUR TV.

●This product is designed for INDOOR USE ONLY.

●The wall must be capable of supporting ﬁve times the weight of the TV and mount combined.

●Do not use this product for any purpose not explicitly speciﬁed by manufacturer.

●Manufacturer is not responsible for damage or injury caused by incorrect assembly or use.

175 lbs.

(79.3 kg)

Drywall alone

will NOT hold

the weight of

your TV.

wood studs Solid concrete or

concrete block

ACCEPTABLE ACCEPTABLE

CAUTION:

DO NOT install

in drywall alone

Wood Stud

Install

Concrete

Install

Awl

Pencil Level Tape

Stud

Finder

ScrewdriverTape

Measure

7/32 in.

(5.5 mm)

Wood

Drill Bit

Electric

Drill

Hammer

1/2 in.

(13 mm)

Socket

Wrench

Drill Bit

3/8 in.

(10 mm)

Concrete

BEFOREYOU BEGIN

Remove the stand from

your TV —if attached. Install any accessories you may

have purchased, if they requireTV removal

prior to assembly. Note that the TV is

removable for future accessory purchases.

Soft clean surface

Protect the face of your TV

when laying it down for installation.

DIMENSIONS IN. [MM]

15.75in

400mm

MAX

23.62in

600mm

MAX

7.87in

200mm

MIN

7.87in

200mm

MIN

36.53in

927.7mm

21.83in

554.6mm

23.26in

590.8mm

18.75in

476.2mm

15.76in

400.4mm

2.36in

60mm

16.00in

406.4mm

24.00in

609.6mm

0.36in

9.1mm

12.95in

329mm

22.03in

559.6mm

36.77in

934.1mm

55deg

30.31in

769.9mm

5deg UP

15deg DOWN

2.45in

62.3mm

SIMULATED 75"

FLAT SCREEN TV

TV INTERFACE

WALL PLATE

TOP VIEW - EXTENDED

3-D

SIDE VIEW - EXTENDED

SIDE VIEW RETRACTED

TOP VIEW - RETRACTED

FULLY ASSEMBLED MOUNT

Legrand AV Inc. and its aliated corporations and subsidiaries (collectively, “Legrand ”), intend to make this manual accurate and complete. However, Legrand makes no claim that the information

contained herein covers all details, conditions, or variations. Nor does it provide for every possible contingency in connection with the installation or use of this product. The information contained in this

document is subject to change without notice or obligation of any kind. Legrand makes no representation of warranty, expressed or implied, regarding the information contained herein. Legrand assumes

no responsibility for accuracy, completeness or suciency of the information contained in this document.

ATTACH TV BRACKET TO TVSTEP 1

WARNING: This product contains small items that could be a choking hazard if swallowed. Before starting assembly, verify all parts are included

and undamaged. If any parts are missing or damaged, do not return the damaged item to your dealer; contact Customer Service. Never use damaged parts!

NOTE: Not all hardware included will be used.

1.1 Select TV

Screw Diameter 1.2 Select TV Screw Length / Spacers

M8 x 35mm

22mm

M6 x 12mm M6 x 35mm

M8 x 50mm

2.5mm

5mm

M8 x 25mm

M8 x 16mm

Parts and Hardware for STEP 1

TV Screws

(qty. 4 each) [Only one size ﬁts your TV] Washers

(qty. 4 each)

Spacers

[If necessary]

(qty. 4 each)

0302

M6/M8 M6/M8

(qty. 1)

TV Bracket

MOUNTING TABS

(ATTACHED)

RELEASE CORD

(ATTACHED)

Screws

(ATTACHED)

02 01

Too Short Too Long Correct

Inset Holes Cables Rounded Back

Only one screw size ﬁts your TV.

M6 M8

• Flat Back TV

[TV brackets

lay ﬂat on your TV]

NO SPACER SPACER NEEDED

• Flat Back TV with

Extra Space Needed

[for deep inset holes

or cable interference]

• Rounded or

Irregular Back TV

[TV brackets NOT

resting ﬂat on your TV]

A B

Use short TV screws 01 .

Spacers 03 not needed. Use long TV screws 01 and spacers 03 to

create extra space between the TV and TV bracket.

CAUTION: Verify adequate thread

engagement with your screw 01 , washer 02 ,

spacer 03 combination AND TV bracket 04 .

—Too short will not hold your TV.

—Too long will damage your TV.

NOTE: If your TV

included inset spacers or

adapters, use them UNDER

the mount hardware. 01

1.3 Attach TV Bracket Assembly to TV

1PREP TV BRACKET 2ALIGN WITH TV HOLES

4CENTER ON TV

6TIGHTEN ALL SCREWS

5SECURE TV BRACKET

3LOOSELY ASSEMBLE

NO SPACER

SPACER NEEDED

02 01

NOTE: 400 x 400 hole patterns can skip to 3 below.

NOTE:

The horizontal arms (and tabs M)

can be reversed top/bottom, if neeeded

to fit non-standard hole patterns.

REMOVE

LOOSEN

ATTACH WALL PLATE TO WALL

STEP 2

Fischer UX10 x 60R

5/16 in. x 3½ in.

06 08

Parts and Hardware for STEP 2

Lag Bolt

Wall Plate

Template

Concrete Anchor

For concrete installations ONLY

CAUTION: Do not use in drywall or wood

Cover Plate

(Attached)

Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the damaged item to your dealer;

contact Customer Service. Never use damaged parts!

For WOOD STUD

INSTALLATIONS

For CONCRETE

INSTALLATIONS

Follow 2A on PAGE 7.

Follow 2B on PAGE 8.

(qty. 1)

(qty. 5)

Max. 5/8 in. (1.5 cm)

Min. 16 in. (40.6 cm) Min. 3 ½ in. (8.9 cm)

Min. 1 ½ in. (3.8 cm)

CAUTION: Avoid potential

personal injury or property damage!

●Drywall covering the wall

must not exceed 5/8 in. (1.5 cm)

●Minimum wood stud size:

nominal 2 x 4 in. (5.1 x 10.2 cm)

actual 1 ½ x 3 ½ in. (3.8 x 8.9 cm)

●Minimum horizontal space

between fasteners:16 in. (40.6 cm)

●Stud centers must be veriﬁed

2A Wood Stud Installation

1LOCATE 2VERIFY 3MARK

2 ¾ in. (6.9 cm)

7/32 in.

(5.5 mm)

4POSITION TEMPLATE

TIP: To calculate your precise wall plate location, check out

our HeightFinder at sanus.com [www.sanus.com/2567].

sanus.com

/2567

HeightFinder™

Visit 5DRILL

CAUTION:

Be sure you drill into the CENTER of the stud.

Skip to STEP 3 on PAGE 9.

6OPEN COVERS 7SECURELY TIGHTEN

All four lag bolts 07 MUST BE firmly tightened to prevent

unwanted movement of the wall plate 06 .Ensure the wall plate is

securely fastened to the wall before continuing on to the next step.

CAUTION: Avoid potential personal injury or property damage!

05 05

12 in.

(30 cm)

24 in.

(61cm)

12 in.

(30 cm)

TIP:

TIP: To calculate your precise wall plate location, check out

our HeightFinder at sanus.com [www.sanus.com/2567].

1POSITION TEMPLATE

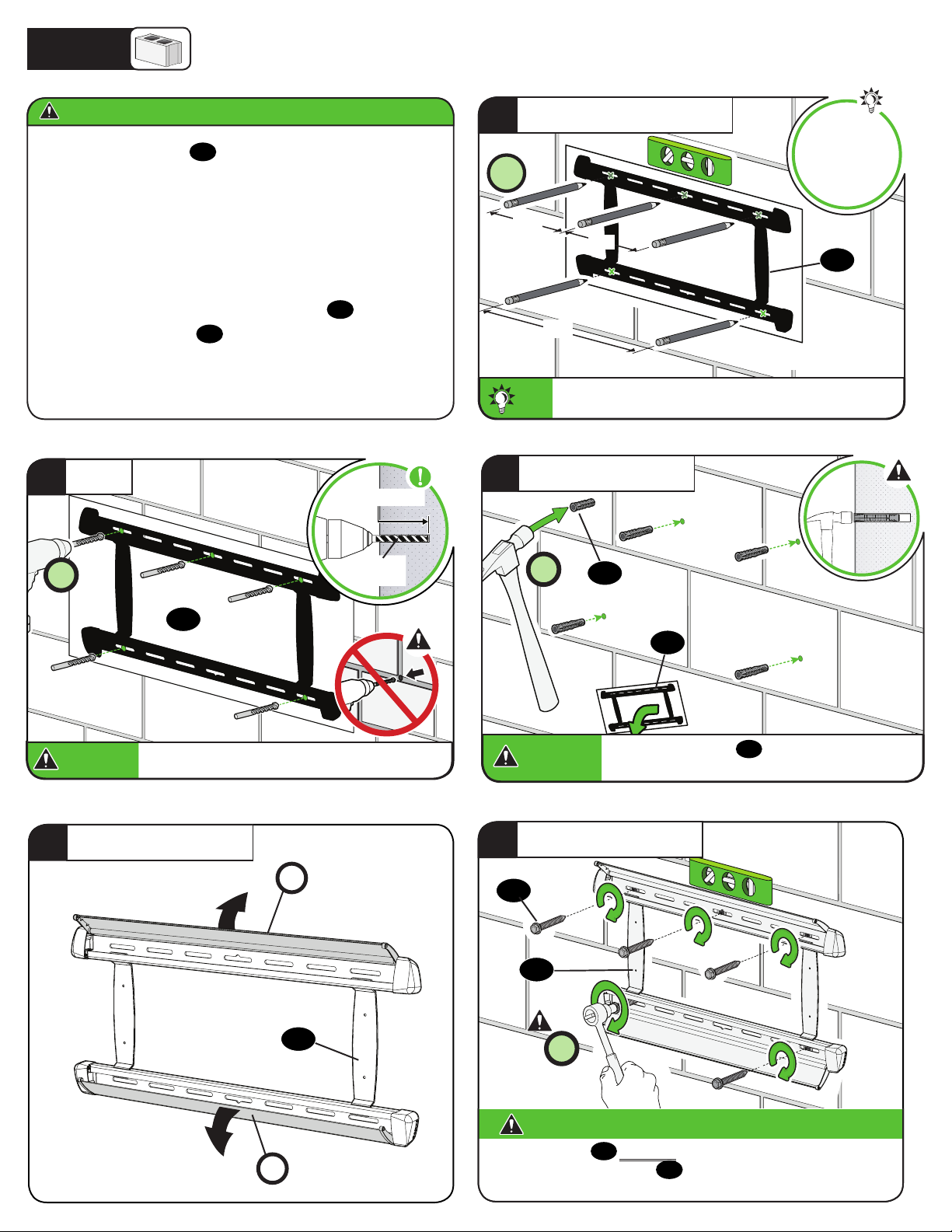

Solid Concrete or Concrete Block Installation

●Mount the wall plate 06 directly onto the concrete surface

●Minimum solid concrete thickness: 8 in. (20.3 cm)

●Minimum concrete block size: 8 x 8 x 16 in. (20.3 x 20.3 x 40.6 cm)

●Minimum horizontal space between fasteners:

TOP RAIL: 12 in. (30.5 cm)

BOTTOM RAIL: 24 in. (61.0 cm)

●FOR CONCRETE APPLICATIONS, TV bracket 09 must remain

centered in wall plate 06 . Keep this in mind when selecting

the wall plate location

CAUTION: Avoid potential personal injury or property damage!

sanus.com

/2567

HeightFinder™

Visit

Never drill into the mortar between blocks.

CAUTION:

Never drill into the mortar between blocks.

2DRILL

CAUTION:

All five lag bolts 07 MUST BE firmly tightened to prevent unwanted

movement of the wall plate 06 .Ensure the wall plate is securely

fastened to the wall before continuing on to the next step.

CAUTION: Avoid potential personal injury or property damage!

CAUTION:

Be sure the anchors 08 are seated ﬂush with

the concrete surface.

CAUTION:

5SECURELY TIGHTEN

3/8 in.

(10 mm)

3 in. (7.6 cm) 33 INSERT ANCHORS

4OPEN COVERS

ATTACH TV TO WALL PLATE

STEP 3

3/32 in.

5/32 in.

10-32 x 3/8 in.

Parts and Hardware for STEP 3

Arm Assembly

LOCKING SCREWS

(ATTACHED)

CABLE COVERS

(ATTACHED)

Securement

Screw

Hex Key

1HANG

For CONCRETE APPLICATIONS:

The arm assembly 09 MUST remain centered in wall plate 06 .

CAUTION: Avoid potential personal injury or property damage!

HEAVY! You may need

assistance with this step.

2SECURE

3CLOSE COVERS

Always make sure both locking screws Sare tightened, so the arm

assembly 09 is securely fastened to wall plate 06 .

CAUTION: Avoid potential personal injury or property damage!

WARNING: This product contains small items that could be a choking hazard if swallowed. Before starting assembly, verify all parts are included

and undamaged. If any parts are missing or damaged, do not return the damaged item to your dealer; contact Customer Service. Never use damaged parts!

3.1 Attach the Arm Assembly to the Wall Plate

(qty. 1) (qty. 1)

(qty. 1)

MANAGE CABLES

1ROUTE CABLES 2ATTACH COVERS

Pull arm 09 to its full extension, to leave enough slack

and prevent stretching the cables when the arms are moved.

IMPORTANT:

1HANG YOUR TV

HEAVY! You may

need assistance

with this step.

2ATTACH

Always make sure your securement screw 10 is tightened, so the TV is securely fastened to the arm assembly 09 .

CAUTION: Avoid potential personal injury or property damage!

3SECURELY TIGHTEN

09 10

3.2 Hang TV onto Arm Assembly

Tabla de contenidos

Otros manuales de Soporte de TV de Sanus

Sanus

Sanus MMT16b Manual de usuario

Sanus

Sanus Classic MLL12 Manual de usuario

Sanus

Sanus VisionMount VMF308 Manual de usuario

Sanus

Sanus SLF7 Manual de usuario

Sanus

Sanus SASP1 Manual de usuario

Sanus

Sanus VLF525 Manual de usuario

Sanus

Sanus Visionmount FFSF1A Manual de usuario

Sanus

Sanus Visionmount MF209 Manual de usuario

Sanus

Sanus Classic MMF10 Manual de usuario

Sanus

Sanus HLT1 Manual de usuario

Sanus

Sanus SLT3-B8 Manual de usuario

Sanus

Sanus Vuepoint F35c Manual de usuario

Sanus

Sanus VLF320 Manual de usuario

Sanus

Sanus VXT7-B2 Manual de usuario

Sanus

Sanus VLF515 Manual de usuario

Sanus

Sanus VisionMount ML11-B1 Manual de usuario

Sanus

Sanus Premium VLT5B1 Manual de usuario

Sanus

Sanus Simplicity SLF226 Manual de usuario

Sanus

Sanus HMT1 Manual de usuario

Sanus

Sanus 65PFL5604/F7 Manual de usuario

Sanus

Sanus 6901-170131 Manual de usuario

Sanus

Sanus New VisionMount VXF220-B1 Manual de usuario

Sanus

Sanus F107 Manual de usuario

Sanus

Sanus VMT5 Manual de usuario

Manuales populares de Soporte de TV de otras marcas

Ergotron

Ergotron Neo Flex Cantilever UHD Manual de usuario

StarTech.com

StarTech.com FPCEILBTB Manual de usuario

VonHaus

VonHaus 05/038 Manual de usuario

Techlink

Techlink ECHO TV Manual de usuario

Sandstrom

Sandstrom SSTVMC12X Manual de usuario

Sony

Sony SU-WL700 Guía

ICW

ICW SCACC18 Manual de usuario

LG WM-L640V Manual de usuario

Gembird

Gembird WM-65ST-01 Manual de usuario

ERARD

ERARD FiTUP XXL 035320 Manual de usuario

PEERLESS

PEERLESS PLCK-1 Guía

Kanto

Kanto RCF180 Manual de usuario

GEM

GEM GEM GP001 Manual de usuario

Gladiator Joe

Gladiator Joe GJ0A0053 Manual de usuario

Vivotek

Vivotek AM-105 Manual de usuario

Vivo

Vivo VESA STAND-VAD1B Manual de usuario

AmazonBasics

AmazonBasics B07QG3LMG4 Manual de usuario

Secura

Secura QLF210 Manual de usuario
