Sanus BLL2 Manual de usuario

BLL

INSTRUCTION MANUAL

Texto en español, página 12

GET IT

RIGHT

THE FIRST TIME

Follow this step-by-step

instruction manual to

speed up your installation.

WE’RE HERE TO HELP

Our US-based install experts

are standing by to help.

Call us at:

800-359-5520

Or, chat at:

SANUS.com/chatSP

Get it right the ﬁrst time.

HeightFinder™ shows you

where to drill.

Check it out at:

SANUS.com/1172

Want to watch a video that

shows how easy this DIY

project will be?

Watch it now at:

SANUS.com/2528

TV Weight Limit

(including accessories)

DO NOT EXCEED

Call Customer Service

Tools Needed

Wall

Construction

ONLY install on

these acceptable

wall types.

Unsure

wood studs Solid concrete or

concrete block Steel studs

ACCEPTABLE ACCEPTABLE

Steel stud kit SSMK1

is required for install,

but NOT INCLUDED.

Call Customer Service

Wood Stud

Install

Steel Stud

Install

Concrete

Install

Awl Awl

Pencil Level Tape

Stud Finder Stud Finder

ScrewdriverTape

Measure

1/8 in.

(3 mm)

Wood

1/2 in.

(13 mm)

Steel

Drill Bit Drill Bit

Electric

Drill

Hammer

7/16 in.

(12 mm)

Socket

Wrench

Drill Bit

3/8 in.

(10 mm)

Concrete

CAUTION:

DO NOT install

in drywall alone

150 lbs.

(68.0 kg) 125 lbs.

(56.6 kg)

For wood stud and

Solid Concrete or

Concrete Block Walls

For Steel

Stud Walls

Drywall alone

will NOT hold

the weight

of your TV.

IMPORTANT SAFETY INSTRUCTIONS

PLEASE READ ENTIRE MANUAL PRIOR TO USE – SAVE THESE INSTRUCTIONS

Please read through these instructions completely to be sure you’re comfortable with this easy install process.

Check your TV owner’s manual to see if there are any special requirements for mounting your TV.

If you do not understand these instructions or have doubts about the safety of the installation, assembly or use of

this product, contact Customer Service.

CAUTION: Avoid potential personal injuries and property damage!

●This product is designed ONLY to be installed into wood stud, solid concrete or concrete block or steel stud walls.

— DO NOT INSTALL INTO DRYWALL ALONE — DRYWALL ALONE WILL NOT HOLD THE WEIGHT OF YOUR TV.

●This product is designed for INDOOR USE ONLY.

●The wall must be capable of supporting ﬁve times the weight of the TV and mount combined.

●Do not use this product for any purpose not explicitly speciﬁed by manufacturer.

●Manufacturer is not responsible for damage or injury caused by incorrect assembly or use.

If your TV, plus accessories, weighs MORE

than indicated, this mount is NOT compatible.

Visit SANUS.com or call customer service to

ﬁnd a compatible mount.

BEFORE YOU BEGIN

Remove the stand from

your TV — if attached. Install any accessories you may

have purchased, if they requireTV removal

prior to assembly. The TV is removable for

future accessory purchases.

Soft clean surface

Protect the face of your TV

when laying it down for installation.

Dimensions in. [mm]

24.06

611.0

15.75

400.0

1.79

45.5

1.83

46.5

8.99

228.3

25.13

638.3

4.84

123.0

16.00

406.4

17.72

450.0

24.00

609.6

23.62

600.0

26.00

660.5

16.83

427.5

ADJUSTABLE

8.84°

2.70

68.5

0.69

17.6

TV INTERFACE

WALL PLATE

FULLY ASSEMBLED MOUNT

SIDE VIEW - TILT

SIDE VIEW - DEPTH

3-D

Parts and Hardware for STEP 1

22mm

M6 x 12mm M6 x 35mm

2.5mm

5mm

M8 x 25mm M8 x 50mm

M8 x 45mm

M8 x 35mm

M8 x 16mm

M8 x 20mm

ATTACH TV BRACKET TO TVSTEP 1

TV Screws

(qty. 4 each) [Only one size ﬁts your TV] Washers

(qty. 4 each)

Spacers

[If necessary]

(qty. 4 each)

0302

(qty. 1)

TV Bracket

WARNING: This product contains small items that could be a choking hazard if swallowed. Before starting assembly, verify all parts are included

and undamaged. If any parts are missing or damaged, do not return the damaged item to your dealer; contact Customer Service. Never use damaged parts!

NOTE: Not all hardware included will be used.

1.1 Select TV

Screw Diameter

1.2 Select TV Screw Length / Spacers

04 04

02 01

Too Short Too Long Correct

Inset Holes Cables Rounded Back

Only one screw size ﬁts your TV.

M6 M8

• Flat Back TV

[TV brackets

lay ﬂat on your TV]

NO SPACER SPACER NEEDED

• Flat Back TV with

Extra Space Needed

[for deep inset holes

or cable interference]

• Rounded or

Irregular Back TV

[TV brackets NOT

resting ﬂat on your TV]

A B

Use short TV screws 01 .

Spacers 03 not needed. Use long TV screws 01 and spacers 03 to

create extra space between the TV and TV bracket.

CAUTION: Verify adequate thread engagement

with your screw 01 , washer 02 , spacer 03

combination AND TV bracket 04 .

— Too short will not hold your TV.

— Too long will damage your TV.

NOTE: If your TV

included inset spacers or

adapters, use them UNDER

the mount hardware.

1.3 Attach TV Bracket Assembly to TV

2SECURELY TIGHTEN

b Rounded-back TVs / Extra Space

a Flat-back TVs

01 01

1POSITION

TIP: The cords C on TV brackets 04 should be oriented on the

bottom on the TV.

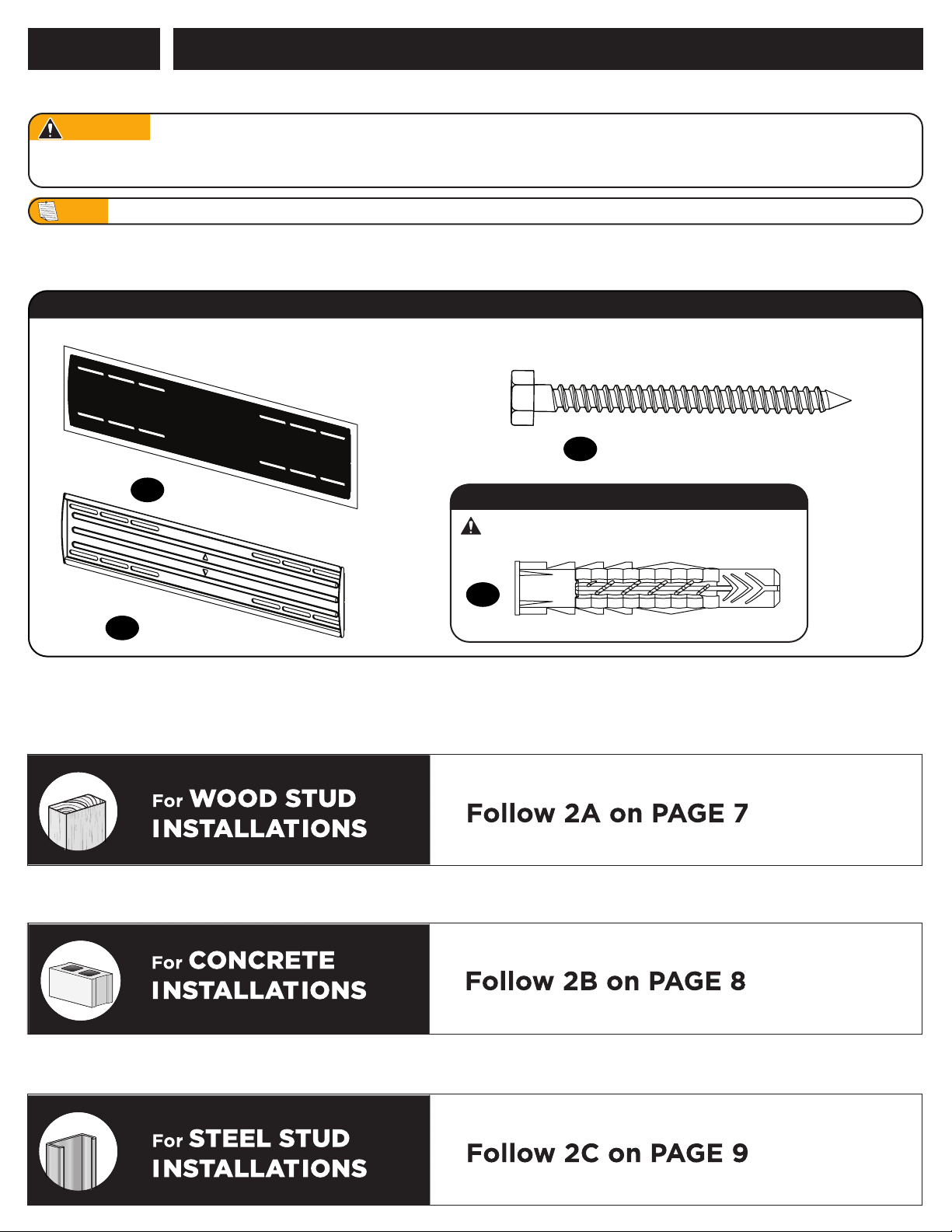

ATTACH WALL PLATE TO WALL

STEP 2

Fischer UX10 x 60R

1/4 x 2¾in.

Parts and Hardware for STEP 2

Lag Bolt

Wall Plate

Wall Plate Template

Concrete Anchor

For concrete installations ONLY

CAUTION: Do not use in drywall or wood

WARNING: This product contains small items that could be a choking hazard if swallowed. Before starting assembly, verify all parts are

included and undamaged. If any parts are missing or damaged, do not return the damaged item to your dealer; contact Customer Service. Never use

damaged parts!

NOTE: Not all hardware included will be used.

For WOOD STUD

INSTALLATIONS

For STEEL STUD

INSTALLATIONS

For CONCRETE

INSTALLATIONS

Follow 2A on PAGE 7

Follow 2C on PAGE 9

Follow 2B on PAGE 8

For

WOOD STUD

INSTALLATIONS

Follow 2A on PAGE 7

For

STEEL STUD

INSTALLATIONS

Follow 2C on PAGE 9

For

CONCRETE

INSTALLATIONS

Follow 2B on PAGE 8

(qty. 1)

(qty. 4)

2 ¾ in. (7.0 cm)

1/8 in.

(3 mm)

Max. 5/8 in. (1.5 cm)

Min. 16 in. (40.6 cm) Min. 3 ½ in. (8.9 cm)

Min. 1 ½ in. (3.8 cm)

CAUTION: Avoid potential

personal injury or property damage!

●Drywall covering the wall

must not exceed 5/8 in. (1.5 cm)

●Minimum wood stud size:

nominal 2 x 4 in. (5.1 x 10.2 cm)

actual 1 ½ x 3 ½ in. (3.8 x 8.9 cm)

●Minimum horizontal space

between fasteners:16 in. (40.6 cm)

●Stud centers must be veriﬁed

STEP 2A Wood Stud Installation

1LOCATE 2VERIFY 3MARK

4POSITION TEMPLATE

TIP: To calculate your precise wall plate location, check out

our HeightFinder at sanus.com [www.sanus.com/1172].

sanus.com

/1172

HeightFinder™

Visit 5DRILL

CAUTION:

Be sure you drill into the CENTER of the stud.

Skip to STEP 3 on PAGE 10.

6REMOVE TEMPLATE 7SECURELY TIGHTEN

All four lag bolts 07 MUST BE firmly tightened to prevent

unwanted movement of the wall plate 06 . Ensure the wall plate is

securely fastened to the wall before continuing on to the next step.

CAUTION: Avoid potential personal injury or property damage!

4X 05 05

8Skip to STEP 3 on PAGE 10.

TIP:

TIP: To calculate your precise wall plate location, check out

our HeightFinder at sanus.com [www.sanus.com/1172].

Min. 16 in. (40.6 cm)

1POSITION TEMPLATE

Solid Concrete or Concrete Block Installation

●Mount the wall plate 06 directly onto the concrete surface

●Minimum solid concrete thickness: 8 in. (20.3 cm)

●Minimum concrete block size: 8 x 8 x 16 in. (20.3 x 20.3 x 40.6 cm)

●Minimum horizontal space between fasteners: 16 in. (40.6 cm)

STEP 2B

CAUTION: Avoid potential personal injury or property damage!

sanus.com

/1172

HeightFinder™

Visit

Never drill into the mortar between blocks.

CAUTION:

Never drill into the mortar between blocks.

2DRILL

CAUTION:

All four lag bolts 07 MUST BE firmly tightened to prevent

unwanted movement of the wall plate 06 . Ensure the wall plate is

securely fastened to the wall before continuing on to the next step.

CAUTION: Avoid potential personal injury or property damage!

CAUTION:

Be sure the anchors 08 are seated ﬂush

with the concrete surface.

CAUTION:

5SECURELY TIGHTEN

3REMOVE TEMPLATE

3/8 in.

(10 mm)

3 in. (7.6 cm)

34 INSERT ANCHORS

Steel Stud Installation Kit SSMK1 (NOT INCLUDED)

Min. 16 in. (40.6 cm)

CAUTION: Avoid potential personal injury

or property damage!

STEP 2C

1LOCATE 2VERIFY 3MARK

●Studs must be at least 2x4 / 25 ga.

●If back side of wall is unﬁnished, drywall must be

installed to a minimum of one stud left and right

of the stud(s) being used to install the mount

●Drywall must be a minimum of 1/2 in. (13

mm) thick on each side of the studs, and a

minimum clearance of 1 ⅞ in. (48 mm)

behind the wall is required

●This product must be centered on the studs

●Stud type and structural strength must conform to

the North American Specification for the Design of

Cold-Formed Steel Structural Members

[362 S 125 18, C-Shape, S - Stud Section]

●Drywall must be secured to studs with screws

12 in. (304.8 mm) on center

1/4-20 x 1 ¾ in.

1/4 in.

S2 x4

1/4-20 SNAP Toggle BB

*Contact Customer Service to inquire about the additional hardware.

1 in. (25 mm)

1/2 in.

(13 mm)

4POSITION TEMPLATE

TIP: To calculate your precise wall plate location, check out

our Height Finder at sanus.com [www.san.us/1172].

www.

san.us/1172

HeightFinder™

Visit 5DRILL

CAUTION:

Be sure you drill into the CENTER of the stud.

Steel Stud Installation

S1 S1

P4X

6INSTALL ANCHORS 7SECURELY TIGHTEN

All four screws S2 MUST BE firmly tightened to prevent

unwanted movement of the wall plate 06 . Ensure the wall plate is

securely fastened to the wall before continuing on to the next step.

CAUTION: Avoid potential personal injury or property damage!

CAUTION: Be sure cap P is

seated against the drywall surface.

S 3 S2

05 05

ATTACH TV TO WALL PLATE

STEP 3

1HANG

HEAVY! You may need

assistance with this step.

2ATTACH

Always make sure TV

brackets 04 are in the

locked position so the TV

is securely fastened to the

wall plate 06 .

CAUTION:

Avoid potential personal

injury or property damage!

Otros manuales para BLL2

Tabla de contenidos

Idiomas:

Otros manuales de Soporte de TV de Sanus

Sanus

Sanus SC1A Manual de usuario

Sanus

Sanus VLT6 Manual de usuario

Sanus

Sanus F107 Manual de usuario

Sanus

Sanus New VisionMount VLL10-B1 Manual de usuario

Sanus

Sanus Sanus Foundations FS45 Manual de usuario

Sanus

Sanus Sanus VisionMount MD115-G1 Manual de usuario

Sanus

Sanus ALF113 Manual de usuario

Sanus

Sanus HLT1 Manual de usuario

Sanus

Sanus VisionMount VMPl50A Manual de usuario

Sanus

Sanus SLF7 Manual de usuario

Sanus

Sanus VisionMount LT25 Manual de usuario

Sanus

Sanus New VisionMount VMT15 Manual de usuario

Sanus

Sanus VisionMount ML11 Manual de usuario

Sanus

Sanus Sanus VisionMount LL11-B1 Manual de usuario

Sanus

Sanus VisionMount VMF220 Manual de usuario

Sanus

Sanus VSL4 Manual de usuario

Sanus

Sanus VisionMount VMDD26 Manual de usuario

Sanus

Sanus Vuepoint F58c2 Manual de usuario

Sanus

Sanus VML44A Manual de usuario

Sanus

Sanus VLF525 Manual de usuario

Sanus

Sanus VDLT17 Manual de usuario

Sanus

Sanus New VisionMount LF228-B1 Manual de usuario

Sanus

Sanus VisionMount ML11 Manual de usuario

Sanus

Sanus VXT7-B2 Manual de usuario

Manuales populares de Soporte de TV de otras marcas

Ergotron

Ergotron Neo Flex Cantilever UHD Manual de usuario

StarTech.com

StarTech.com FPCEILBTB Manual de usuario

VonHaus

VonHaus 05/038 Manual de usuario

Techlink

Techlink ECHO TV Manual de usuario

Sandstrom

Sandstrom SSTVMC12X Manual de usuario

Sony

Sony SU-WL700 Guía

ICW

ICW SCACC18 Manual de usuario

LG WM-L640V Manual de usuario

Gembird

Gembird WM-65ST-01 Manual de usuario

ERARD

ERARD FiTUP XXL 035320 Manual de usuario

PEERLESS

PEERLESS PLCK-1 Guía

Kanto

Kanto RCF180 Manual de usuario

GEM

GEM GEM GP001 Manual de usuario

Gladiator Joe

Gladiator Joe GJ0A0053 Manual de usuario

Vivotek

Vivotek AM-105 Manual de usuario

Vivo

Vivo VESA STAND-VAD1B Manual de usuario

AmazonBasics

AmazonBasics B07QG3LMG4 Manual de usuario

Secura

Secura QLF210 Manual de usuario
