Sanus F11C Manual de usuario

F11c INSTRUCTION MANUAL

Scan for easy install video

san.us/251

We’ll Make It Stress-Free

If you have any questions along the way, just give us a call.

1-888-333-9952. We’re ready to help!

Does your TV weigh more than 35 lb (15.9 kg) including accessories?

—

Perfect!

Yes

—

This mount is NOT compatible. Visit vuepoint.sanus.com or call 1-888-333-9952 to ﬁnd a compatible mount.

35 lb

(15.9 kg)

IMPORTANT SAFETY INSTRUCTIONS – SAVE THESE INSTRUCTIONS – PLEASE READ ENTIRE MANUAL PRIOR TO USE

Ready to begin?

Please read through these instructions completely to be sure you’re comfortable with this easy install process. Also check your TV

owner’s manual to see if there are any special requirements for mounting your TV.

If you do not understand these instructions or have doubts about the safety of the installation, assembly or use of this product, contact

Customer Service at 1-888-333-9952.

Before getting started, let’s make sure this mount is perfect for you!

What is your wall made of?

Unsure?

Perfect! Call 1-888-333-9952

Drywall with

wood studs

CAUTION: Avoid potential personal injuries and property damage!

●This product is designed for use in wood stud, solid concrete, and concrete block walls - DO NOT install into drywall alone

●The wall must be capable of supporting ﬁve times the weight of the TV and mount combined

●Do not use this product for any purpose not explicitly speciﬁed by manufacturer

●Manufacturer is not responsible for damage or injury caused by incorrect assembly or use

Solid concrete or concrete

block - call 1-888-333-9952

Do you have all of the tools needed? Optional

1/8 in.

(3 mm)

Wood

3/8 in.

(10 mm)

Concrete

7/16 in.

(12 mm) 3/8 in.

(10 mm)

Dimensions

7.9

[20.0]

3.9

[10.0]

3.0

[7.5]

8.9

[22.6]

7.0

[17.8]

5.2

[13.2]

9.1

[23.1]

2.2

[5.6]

3.9

[10.0]

3.0

[7.5]

7.9

[20.0]

1.7

[4.3]

12° 12°

in.

[cm]

NOTE: Not all hardware included will be used.

WARNING: This product contains small items that could be a choking hazard if swallowed.

Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the damaged item to

your dealer; contact Customer Service. Never use damaged parts!

Supplied Parts and Hardware

M4 x 12mm

M5 x 12mm

M6 x 12mm M6 x 35mm

M5 x 35mm

M4 x 35mm

M6 x 12mm M6

M4/M5 M6

STEP 1 Parts and Hardware

TV Bracket

TV Bracket Extenders*

†Nylon locking bracket nuts

are poly-locks and will need to

be forcibly tightened.

03 x4 04 x4

05 x4

07 x4

09 x4

06 x4

08 x4

10 x4

11 x4 12 x4 13 x4

02 x2

01 x1

TV Screws, Washers, and Spacers

M6 Extension

Bracket Screws* M6 Nuts*†

*Only needed for TVs

with 20.0 x 20.0 cm

(7 7⁄8 x 7 7⁄8 in.) hole

patterns

1/4 x 2½ in.

STEP 2 Parts and Hardware

14 x1 15 x1

Wall Plate

Wall Plate Template

Lag Bolts

16 x2

Concrete Installation Kit CMK2 (not included)

Contact Customer Service at 1-888-333-9952 to have these

additional pieces shipped directly to you.

1/4 in.

1/4 x 2½in.

Fischer UX 10 x 60 Anchor

STEP 1 Attach TV Bracket to TV

1-1 Measure Your TV Hole Pattern

inches

inch dimensions are approximate

Measure the width and height of your TV hole pattern in cm.

Record your measurements:

Width__________cm x Height ________ cm

75 mm = 7.5 cm ≈ 3 in.

100 mm = 10 cm ≈ 4 in.

200 mm = 20 cm ≈ 7 7/8 in.

1-2 Assemble Your TV Bracket

Determine which TV bracket configuration to use, A or B based

on your TV hole pattern measurements.

A20.0

10.0

7.5

These smaller hole patterns only use TV bracket 01 .

Do not use the two TV bracket extenders 02 and four screws 03

and four nuts 04 .

7.5 x 7.5

10.0 x 10.0

20.0 X 10.0

Assemble TV bracket extenders 02 onto TV bracket 01 as illustrated.

Secure using four screws 03 and four nuts*04 in the corner holes

shown.

20.0 x 20.0

20.0

NOTE: Nuts

04 are poly-locks

and will need to be

forcibly tightened.

3/8 in.

(10 mm)

wrench

M5 M6M4

1-3 Select TV Screw Diameter 1-4 Select TV Screw Length

Hand thread screws into the threaded inserts

on the back of your TV to determine which

screw diameter (M4, M5, or M6) to use.

FLAT BACK ROUND BACK CABLESINSET HOLES

If your TV has a flat back AND you want your TV closer to the

wall, use the shorter screws.

Spacers and longer screws are supplied to accommodate:

●Round/irregular back TVs

●TVs with inset mounting holes

●Extra space needed for cables

Standard configurations

are shown. For special

applications, or if you

are uncertain about your

hardware selection,

contact Customer Service

at 1-888-333-9952.

Too Short

Too Long

CAUTION:

Verify adequate thread

engagment with the screw or

screw/spacer combination.

-Too short will not hold the TV.

-Too long will damage the TV.

Correct

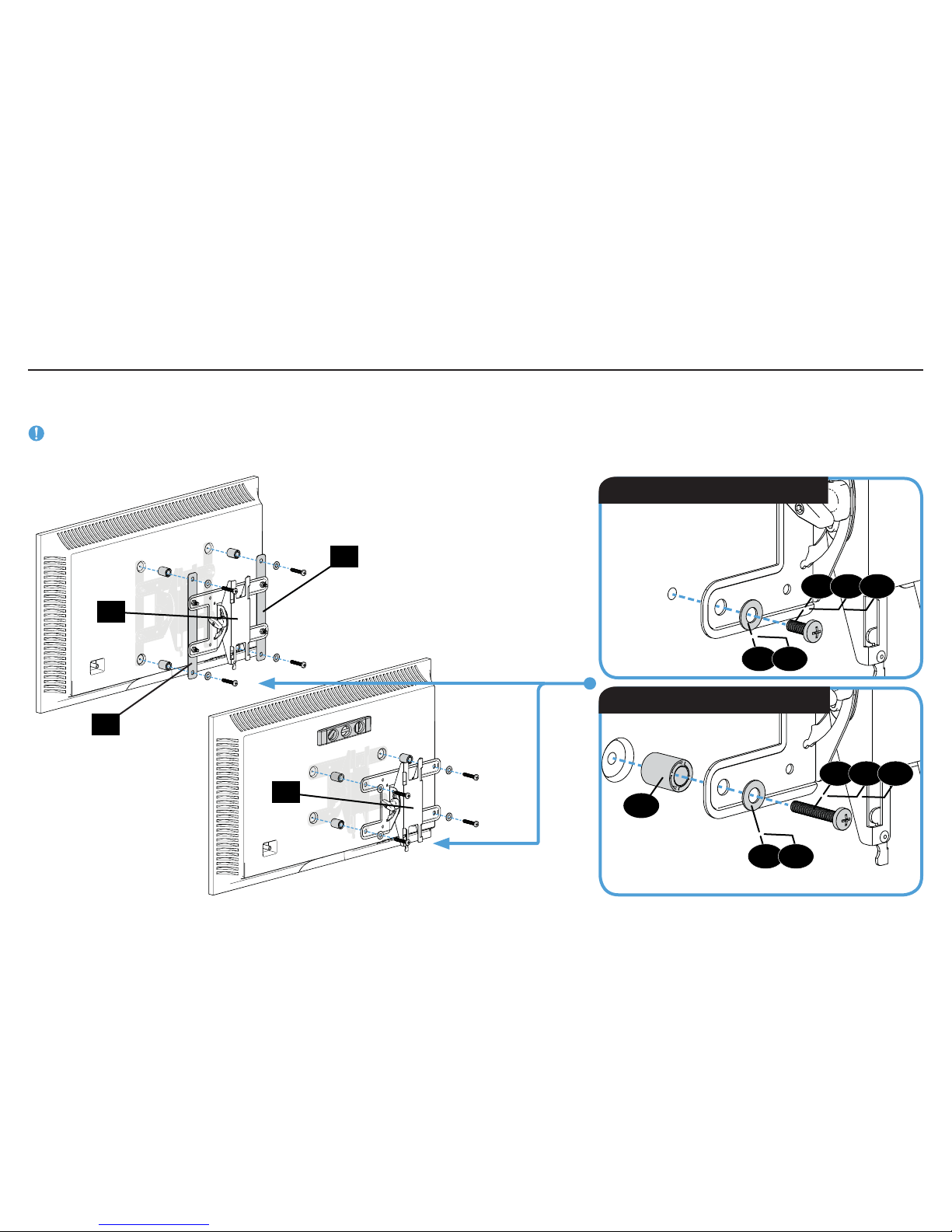

1-5 Attach TV Bracket

TV Bracket

Conﬁguration A

Illustrated

(with spacers)

TV Bracket

Conﬁguration B

Illustrated

(with spacers)

Short screw and washer

Spacer, long screw and washer

Position your TV bracket configuration over your TV hole pattern - making sure the brackets are vertically centered and level.

Install using either the short screw and washer or spacer, long screw and washer combination you selected for your TV.

IMPORTANT: Ensure TV bracket is securely fastened before moving on to the next step.

CAUTION: Avoid potential personal injuries and property damage!

●Drywall covering the wall must not exceed 5/8 in. (16 mm)

●Minimum wood stud size: common 2 x 4 in. (51 x 102 mm) nominal 1½ x 3½ in. (38 x 89 mm)

1. Locate your stud. Verify and mark the center of the stud by finding the stud edges using an awl, a thin nail, or an edge to edge stud finder.

2. Position the wall plate template 14 at your desired height and line up the holes with your stud center line. Level the template and tape in place.

3. Drill pilot holes using a 1/8 in. (3 mm) diameter drill bit. Remove wall plate template 14 .

IMPORTANT: Be sure to drill into the center of the stud.

IMPORTANT: Pilot holes must be drilled to a depth of 2½ in. (63.5 mm).

STEP 2A Attach Wall Plate - Wood Stud

2 3

2½ in.

(63.5 mm)

1/8 in.

(3 mm)

14 14

≤ 5/8 in.

(16 mm)
