Samsung Xpress CLP-41 series Manual de usuario

Samsung Printer Xpress

CLP-41x series

CLP-68x series

C181x series

BASIC

User’s Guide

BASIC

User’s Guide

This guide provides information concerning installation, basic operation and

troubleshooting on Windows.

ADVANCED

This guide provides information about installation, advanced configuration, operation and

troubleshooting on various OS environments.

Some features may not be available depending on models or countries.

BASIC

1. Introduction

Key benefits 5

Features by models 7

Useful to know 9

About this user’s guide 10

Safety information 11

Machine overview 16

Control panel overview 20

Turning on the machine 22

Installing the driver locally 23

Reinstalling the driver 25

2. Menu Overview and Basic Setup

Menu overview 27

Machine’s basic settings 30

Media and tray 32

Basic printing 44

Using USB memory device 50

3. Maintenance

Ordering supplies and accessories 54

Available consumables 55

Available accessories 57

Available maintenance parts 58

Storing the toner cartridge 59

Redistributing toner 61

Replacing the toner cartridge 63

Replacing the waste toner container 67

Installing accessories 69

Monitoring the supplies life 73

Setting the toner low alert 74

Cleaning the machine 75

Tips for moving & storing your machine 79

4. Troubleshooting

Tips for avoiding paper jams 81

Clearing paper jams 82

Understanding the status LED 94

Understanding display messages 97

BASIC

5. Appendix

Specifications 104

Regulatory information 117

1. Introduction

This chapter provides information you need to know before using the machine.

•Keybenefits 5

• Features by models 7

• Useful to know 9

• About this user’s guide 10

• Safety information 11

• Machine overview 16

• Control panel overview 20

• Turning on the machine 22

• Installing the driver locally 23

• Reinstalling the driver 25

Key benefits

Environmentally friendly

• To save toner and paper, this machine supports Eco feature (see "Eco

printing" on page 47).

• To save paper, you can print multiple pages on one single sheet of paper

(see "Using advanced print features" on page 227).

• To save paper, you can print on both sides of the paper (double-sided

printing) (or Manual) (see "Using advanced print features" on page 227).

• To save electricity, this machine automatically conserves electricity by

substantially reducing power consumption when not in use.

• We recommend using recycled paper for saving energy.

Fast high resolution printing

• You can print in a full range of colors using cyan, magenta, yellow, and black.

• You can print with a resolution of up to 9,600 x 600 dpi effective output (600

x 600 x 4 bit).

• Fast, on-demand printing.

- CLP-41x series/C181x series

▪For single-side printing, up to 18 ppm (A4) or up to 19 ppm (Letter).

- CLP-68x series

▪For single-side printing, up to 24 ppm (A4) or up to 25 ppm (Letter).

▪For duplex printing, up to 12 ppm (A4) or up to 12 ppm (Letter).

Convenience

• Simply touch your cell phone on the NFC tag on your printer and get the

print job done (see "Using the NFC feature" on page 197).

• You can print on the go from your smartphone or computer using Google

Cloud Print™ enabled apps (see "Google Cloud Print™" on page 201).

• Easy Capture Manager allows you to easily edit and print whatever you

captured using the Print Screen key on the keyboard (see "Easy Capture

Manager" on page 248).

• Samsung Easy Printer Manager and Printing Status is a program that

monitors and informs you of the machine’s status and allows you to

customize the machine’s settings (see "Using Samsung Easy Printer

Manager" on page 256 or "Using Samsung Printer Status" on page 259).

• Samusng AnyWeb Print helps you screen-capture, preview, scrap, and print

the screen of Windows Internet Explorer more easily than when you use the

ordinary program (see "Samsung AnyWeb Print" on page 249).

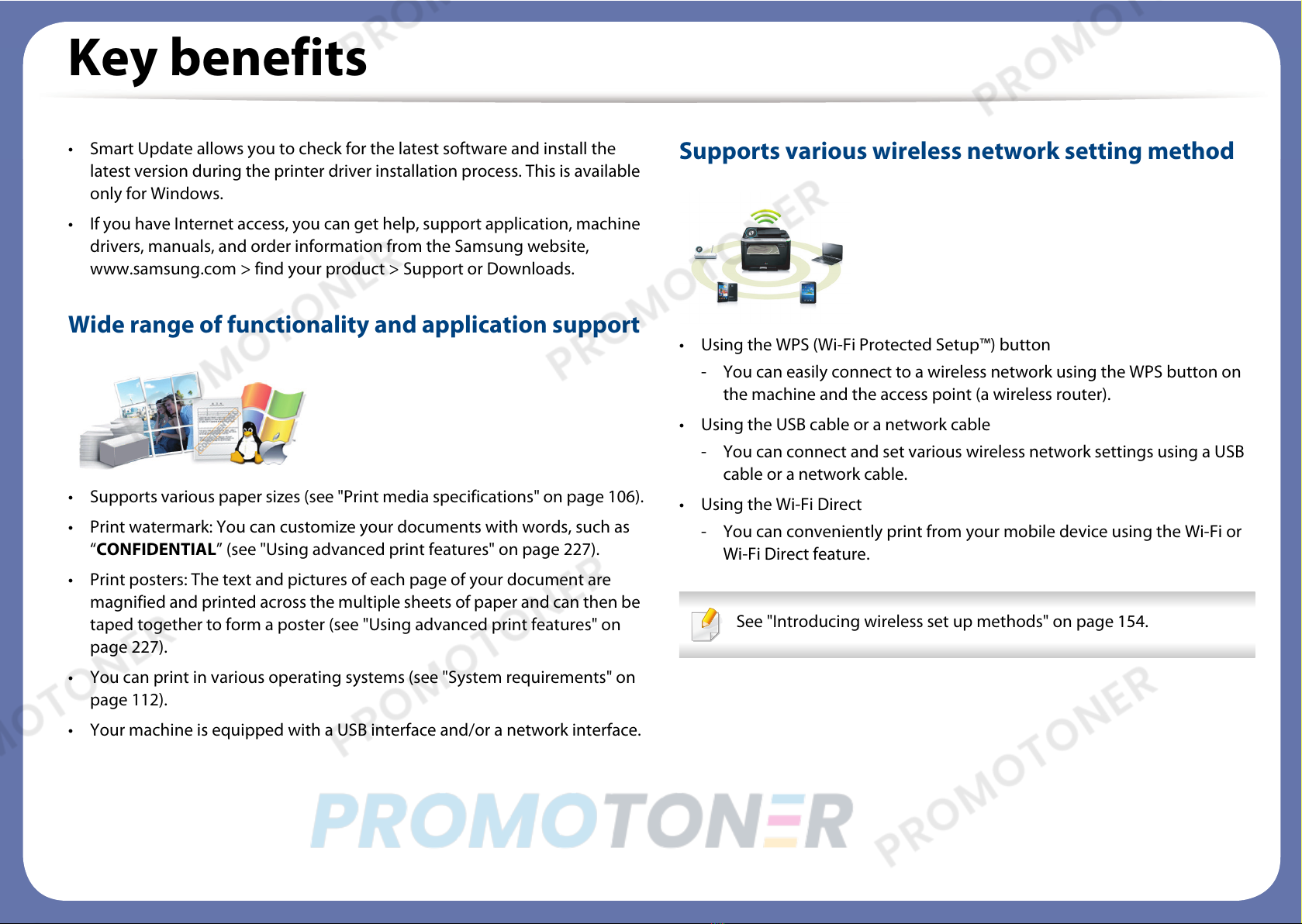

Key benefits

• Smart Update allows you to check for the latest software and install the

latest version during the printer driver installation process. This is available

only for Windows.

• If you have Internet access, you can get help, support application, machine

drivers, manuals, and order information from the Samsung website,

www.samsung.com > find your product > Support or Downloads.

Wide range of functionality and application support

• Supports various paper sizes (see "Print media specifications" on page 106).

• Print watermark: You can customize your documents with words, such as

“CONFIDENTIAL” (see "Using advanced print features" on page 227).

• Print posters: The text and pictures of each page of your document are

magnified and printed across the multiple sheets of paper and can then be

taped together to form a poster (see "Using advanced print features" on

page 227).

• You can print in various operating systems (see "System requirements" on

page 112).

• Your machine is equipped with a USB interface and/or a network interface.

Supports various wireless network setting method

• Using the WPS (Wi-Fi Protected Setup™) button

- You can easily connect to a wireless network using the WPS button on

the machine and the access point (a wireless router).

• Using the USB cable or a network cable

- You can connect and set various wireless network settings using a USB

cable or a network cable.

• Using the Wi-Fi Direct

- You can conveniently print from your mobile device using the Wi-Fi or

Wi-Fi Direct feature.

See "Introducing wireless set up methods" on page 154.

Features by models

Some features and optional goods may not be available depending on

model or country.

Operating System

(●: Included, Blank: Not available)

Software

You can install the printer driver and software when you insert the

software CD into your CD-ROM drive.

For Windows, select the printer driver and software in the Select

Software to Install window.

(●: Included, Blank: Not available)

Operating System CLP-41x series

C181x series CLP-68x series

Windows ● ●

Mac ● ●

Linux ● ●

Unix ● ●

Software CLP-41x series

C181x series CLP-68x series

SPL printer driver ● ●

PCL printer driver ● ●

PS printer driver ●

(C181x series a)

a. Download the software from the Samsung website and install it: (http://

www.samsung.com > find your product > Support or Downloads). Before installing,

check whether your computer’s OS support the software.

●

XPS printer drivera● ●

Samsung

Easy Printer

Manager

Device

Settings

● ●

Samsung Printer Status ● ●

Direct Printing Utilitya● ●

Samsung AnyWeb Printa● ●

SyncThru™ Web Service ● ●

SyncThru Admin Web

Service

●●

Easy Eco Driver ● ●

Easy Capture Manager ● ●

Samsung Easy Color

Managera

● ●

Features by models

Variety feature

(●: Included, ○: optional, Blank: Not available)

Features CLP-41x series

C181x series CLP-68x series

Hi-Speed USB 2.0 ● ●

IEEE 1284B parallel connectora○

Network Interface Ethernet 10/

100/1000 Base TX wired LAN

●●

NetworkInterface802.11b/g/n

wireless LANb

●

(CLP-41xNW/

C181xW only)

●

(CLP-68xDW only)

NFC (Near Field

Communication) printing

●

(C181xW only)

Eco printing ● ●

Duplex (2-sided) printing ●

Duplex (2-sided) printing

(manual)cd

●

USB memory interface ●

Memory module ○ ○

Optional tray (Tray2) ○

Mass Storage Device (HDD)

AirPrint

●

(CLP-41xNW/

C181xW only)

Google Cloud Print™ ● ●

a. If you use the parallel port, you cannot use the USB cable.

b. Depending on your country, wireless LAN card may not be available. For some

countries, only 802.11 b/g can be applied. Contact your local Samsung dealer or the

retailer where you bought your machine.

c. Available for Windows OS users only.

d. Only tray1 is supported.

Features CLP-41x series

C181x series CLP-68x series

Useful to know

The machine does not print.

• Open the print queue list and remove the document from the

list (see "Canceling a print job" on page 45).

• Remove the driver and install it again (see "Installing the driver

locally" on page 23).

• Select your machine as your default machine in your Windows

(see "Setting your machine as a default machine" on page 226).

Where can I purchase accessories or supplies?

• Inquire at a Samsung distributor or your retailer.

• Visit www.samsung.com/supplies. Select your country/region

to view product service information.

The status LED flashes or remains constantly on.

• Turn the product off and on again.

• Check the meanings of LED indications in this manual and

troubleshoot accordingly (see "Understanding the status LED"

on page 94).

A paper jam has occurred.

• Open and close the door (see "Front view" on page 17).

• Check the instructions on removing jammed paper in this

manual and troubleshoot accordingly (see "Clearing paper

jams" on page 82).

Printouts are blurry.

• The toner level might be low or uneven. Shake the toner

cartridge (see "Redistributing toner" on page 61).

• Try a different print resolution setting (see "Opening printing

preferences" on page 45).

• Replace the toner cartridge (see "Replacing the toner

cartridge" on page 63).

Where can I download the machine’s driver?

• You can get help, support application, machine drivers,

manuals, and order information from the Samsung website,

www.samsung.com > find your product > Support or

Downloads.

1. Introduction

About this user’s guide

This user's guide provides information for your basic understanding of the

machine as well as detailed steps to explain machine usage.

• Read the safety information before using the machine.

• If you have a problem using the machine, refer to the troubleshooting

chapter.

• Terms used in this user’s guide are explained in the glossary chapter.

• All illustrations in this user’s guide may differ from your machine depending

on its options or model you purchased.

• The screenshots in this user’s guide may differ from your machine

depending on the machine’s firmware/driver version.

• The procedures in this user’s guide are mainly based on Windows 7.

Conventions

Some terms in this guide are used interchangeably, as below:

• Document is synonymous with original.

• Paper is synonymous with media, or print media.

• Machine refers to printer or MFP.

General icons

Icon Text Description

Caution Gives users information to protect the machine from

possible mechanical damage or malfunction.

Warning Used to alert users to the possibility of personal injury.

Note Provides additional information or detailed

specification of the machine function and feature.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Impresora de Samsung

Samsung

Samsung ML-3470 Manual de usuario

Samsung

Samsung ML-5000A Manual de usuario

Samsung

Samsung SCX-4725F Manual de usuario

Samsung

Samsung ML-2525W series Manual de usuario

Samsung

Samsung CLP-775ND Manual de usuario

Samsung

Samsung CLX-9201NA Manual de usuario

Samsung

Samsung SPP-R200 Manual de instrucciones

Samsung

Samsung SRP-350 Bixolon Manual de usuario

Samsung

Samsung ML ML-2240 Manual de usuario

Samsung

Samsung ML ML-4551N Guía del usuario

Samsung

Samsung ML ML-1630 Manual de usuario

Samsung

Samsung ML-1615 Manual de usuario

Samsung

Samsung CLP-610 Series Manual de usuario

Samsung

Samsung Lazett Combo SCX-4216F Manual de usuario

Samsung

Samsung CLP-31 Series Manual de usuario

Samsung

Samsung ML-6050 Manual de usuario

Samsung

Samsung ML-6060 Manual de usuario

Samsung

Samsung ML 2851ND - B/W Laser Printer Guía del usuario

Samsung

Samsung SL-M3820DW/XAA Manual de usuario

Samsung

Samsung ProXpress 402 Series Manual de usuario

Samsung

Samsung ML-6040 Manual de usuario

Samsung

Samsung ML 2150 - B/W Laser Printer Manual de usuario

Samsung

Samsung ML-3312ND Manual de usuario

Samsung

Samsung 550N - CLP Color Laser Printer Manual de usuario

Manuales populares de Impresora de otras marcas

Lexmark

Lexmark 1400 Series Manual

Canon

Canon i70 Series Manual de usuario

Evolis

Evolis Elypso Manual de usuario

Kyocera

Kyocera FS-9530DN Manual de usuario

Canon

Canon LASER SHOT LBP-1210 Manual de usuario

Canon

Canon PIXMA PRO-1 Series Manual de usuario

Canon

Canon PIXMA G3560 Guía de configuración

Dell

Dell Color Laser Printer 2130cn Manual de usuario

Tektronix

Tektronix Phaser 840 Manual de usuario

Epson

Epson ET-7750 Instrucciones de funcionamiento

Canon

Canon CLBR 460ps Manual de usuario

Eltron

Eltron P210 Guide Manual de usuario

Ricoh

Ricoh MD-P1 Manual de usuario

Epson

Epson SC-F7100 series Manual de usuario

Epson

Epson Stylus C40UX Manual de usuario

Canon

Canon imagePASS-A2 Manual de usuario

Canon

Canon S820D Manual de usuario

IRA3D

IRA3D POETRY4 Manual de usuario
