Samsung SPP-R200 Manual de instrucciones

Bluetooth Connection Manual

SPP-R200

Mobile Printer

Rev. 1.00

http://www.samsungminiprinters.com

Rev. 1.00 - 2 -

SPP-R200



Table of Contents

1. Manual Information...................................................................................................... 3

2. Precautions ..................................................................................................................3

3. General Sequence for Bluetooth Connections ......................................................... 3

4. Bluetooth Connection Instructions............................................................................ 4

4-1 Connecting with an Intermec PDA (Device: CN2B, OS: Pocket PC 4.20.0) ............. 5

4-2 Connecting with a SYMBOL PDA

(Device: SYMBOL MC70, OS: Windows Mobile 5.0)

........... 9

4-3 Connecting with an HP PDA

(Device: iPAQ hx2700, OS: Windows Mobile 5.1.1702)

.... 14

4-4 Connecting with a Mobile Compia PDA (Device: M3, OS: WinCE 5.0)................... 18

4-5 Connecting with an InnoTeletek PDA (Device: MC3000, OS: WinCE 4.2) ............. 22

4-6 Connecting with Bluetooth Dongle (BlueSoleil IVT Stack) ...................................... 26

Rev. 1.00 - 3 -

SPP-R200

1. Manual Information

This Bluetooth Connection Manual provides information on the connection of Bluetooth-

enabled devices (PDAs, PCs, etc.) with the printer (SPP-R200).

2. Precautions

2-1 To connect the printer with another device via Bluetooth, the devices must be within

10m of one another. The connection is broken if the distance between devices

exceeds 10m.

2-2 The maximum separating distance may be shortened if transmission obstacles, such

as cement walls, are present.

2-3 If a device (such as a microwave oven, wireless LAN, etc.) that uses the same

frequency is present, transmission may be interrupted. Separate the printer and

Bluetooth-enabled device from such interrupting devices by a distance of at least 5m.

3. General Sequence for Bluetooth Connections

Bluetooth connection methods vary by device. The following is the general sequence for

Bluetooth connections, provided for reference purposes.

3-1 Turn on power of each device

- PDAs, PCs (Bluetooth Dongle), printers, etc.

3-2 Run a Bluetooth connection program on the PDA or PC.

3-3 Search for the peripheral with which to establish the connection.

- Search for the printer.

3-4 Register this Printer (SPP-R200) from the search results.

- If a security setting is enabled, register after entering the PIN Code.

(PIN Code=Pass Key: password of the Bluetooth device)

3-5 Test the connection.

- When connected, confirm the designated COM port of fixed COM port and print.

Rev. 1.00 - 4 -

SPP-R200

4. Bluetooth Connection Instructions

This manual focuses on the use of the following devices.

Please use this manual as a guide when using devices other than those listed here.

- Intermec PDA (Device: CN2B, OS: Pocket PC 4.20.0)

- SYMBOL PDA (Device: SYMBOL MC70, OS: Windows Mobile 5.0)

- HP PDA (Device: iPAQ hx2700, OS: Windows Mobile 5.1.1702)

- Mobile Compia PDA (Device: M3, OS: WinCE 5.0)

- InnoTeletek PDA (Device: MC3000, OS: WinCE 4.2)

- Bluetooth Dongle (BlueSoleil IVT Stack)

After turning on the power of all Bluetooth devices, perform the connection process.

- PDAs, PCs (Bluetooth Dongle), printers (SPP-R200), etc.

Rev. 1.00 - 5 -

SPP-R200

4-1 Connecting with an Intermec PDA (Device: CN2B, OS: Pocket PC 4.20.0)

1)Clickthe icon. 2)Click“Settings”.

3) Click “Connections”. 4) Click the “Bluetooth” icon.

Rev. 1.00 - 6 -

SPP-R200

5) Click to check the “On” option. 6) Click the “Wireless Printing” menu bar

7) Click the ”Device Discovery” button. 8) Select Devices of the SPP-R200,

and click the “Connect” button.

Rev. 1.00 - 7 -

SPP-R200

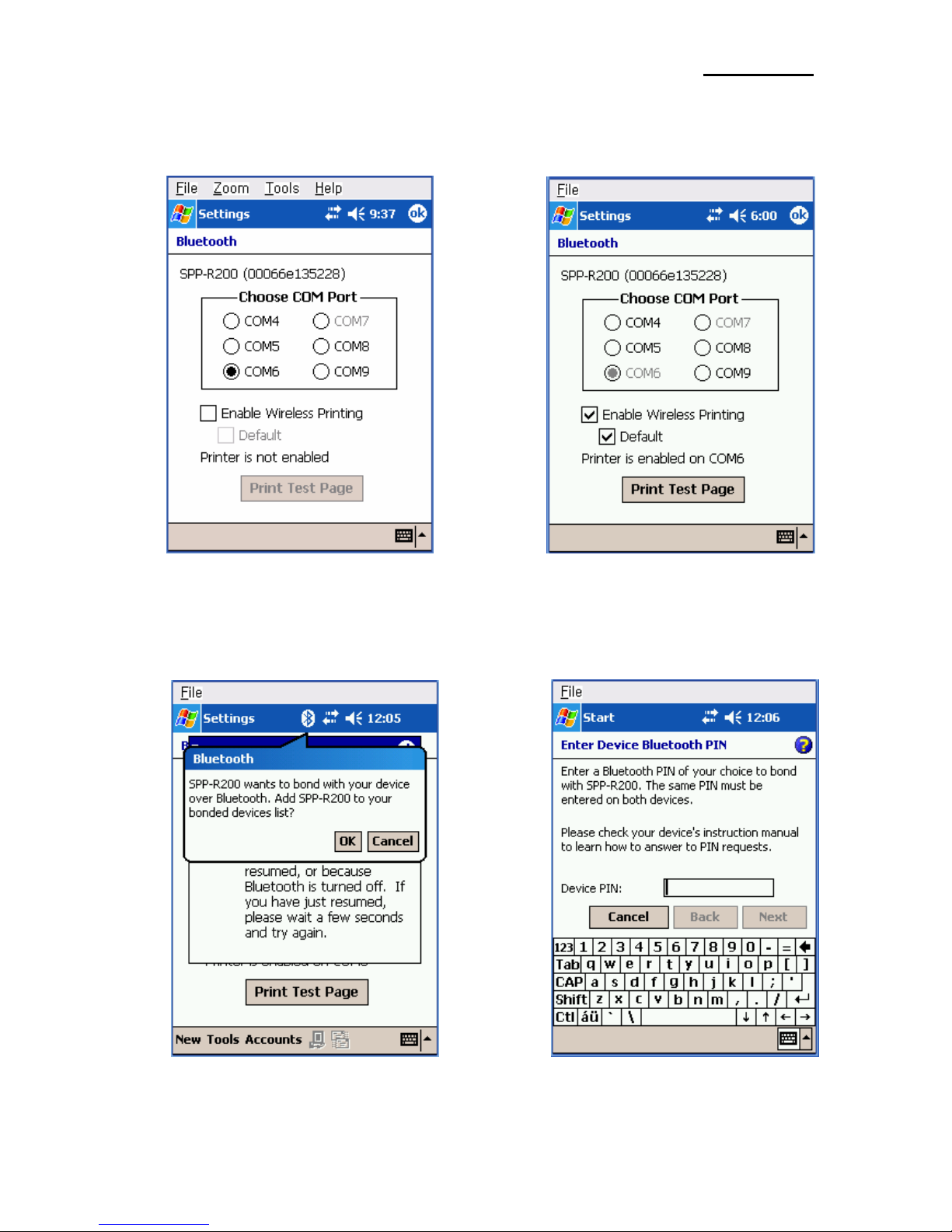

9) Select the COM port to be used. 10) Check the “Enable Wireless Printing”

and ”Default” checkboxes, and click the

“Printer Test Page” button.

11) Click the “OK” button. 12) The PIN Code(Device PIN)

window appears (if the SPP-R200

security function is enabled).

Rev. 1.00 - 8 -

SPP-R200

13) Input the PIN Code(Device PIN) 14) If after pressing the “Print Test Page” button,

and click “Enter”. (Default code: 0000) the BT LED of the SPP-R200 turns on and

test printing is performed, the connection is

complete.

Rev. 1.00 - 9 -

SPP-R200

4-2 Connecting with a SYMBOL PDA

(Device: SYMBOL MC70, OS: Windows Mobile 5.0)

1) Click the icon. 2) Click ”Enable Bluetooth”.

3)Clickthe icon. 4)Click“ShowBTExplorer”’.

Rev. 1.00 - 10 -

SPP-R200

5)Click”File”. 6)Click“NewConnection”.

7) Click ”Associate Serial Port”. 8) Click the “Next” button.
