Samsung SyncMaster S19B220B Manual de usuario

User manual

SyncMaster

S19B220B

S19B220NW

S22B220BW

The color and the appearance may differ depending on

the product, and the specifications are subject to

change without prior notice to improve the performance.

BN46-00230A-00

Table Of Contents 2

Table Of Contents

BEFORE USING

THE PRODUCT

7 Copyright

7 Icons used in this manual

7 Symbols for safety precautions

8 Cleaning

9 Securing the Installation Space

9 Precautions for storage

10 Safety Precautions

10 Electricity and Safety

11 Installation and Safety

13 Operation and Safety

16 Correct posture to use the product

PREPARATIONS 17 Checking the Contents

17 Removing the Packaging

18 Checking the Components

19 Parts

19 Frontal Buttons

21 Reverse Side

22 Installation

22 Attaching the Stand

23 Adjusting the Product Tilt

24 Installing a Wall-mount Kit or Desktop Stand

25 Anti-theft Lock

CONNECTING AND

USING A SOURCE

DEVICE

26 Before Connecting

26 Pre-connection Checkpoints

26 Connecting the Power

Table Of Contents

Table Of Contents 3

27 Connecting and Using a PC

27 Connecting to a PC

28 Driver Installation

29 Setting Optimum Resolution

30 Changing the Resolution Using a PC

SCREEN SETUP 33 Brightness

33 Configuring Brightness

34 Contrast

34 Configuring Contrast

35 Sharpness

35 Configuring Sharpness

36 SAMSUNG MAGIC Bright

36 Configuring SAMSUNG MAGIC Bright

37 SAMSUNG MAGIC Angle

37 Configuring SAMSUNG MAGIC Angle

38 Coarse

38 Adjusting Coarse

39 Fine

39 Adjusting Fine

CONFIGURING

TINT

40 SAMSUNG MAGIC Color

40 Configuring SAMSUNG MAGIC Color

41 Red

41 Configuring Red

42 Green

42 Configuring Green

43 Blue

43 Configuring Blue

Table Of Contents

Table Of Contents 4

44 Color Tone

44 Configuring the Color Tone Settings

45 Gamma

45 Configuring Gamma

RESIZING OR

RELOCATING THE

SCREEN

46 H-Position & V-Position

46 Configuring H-Position & V-Position

47 Image Size

47 Changing the Image Size

48 Menu H-Position & Menu V-Position

48 Configuring Menu H-Position & Menu V-

Position

SETUP AND

RESET

49 Reset

49 Initializing Settings (Reset)

50 Language

50 Changing the Language

51 Eco Saving

51 Configuring Eco Saving

52 Off Timer On/Off

52 Configuring Off Timer On/Off

53 Off Timer Setting

53 Configuring Off Timer Setting

54 PC/AV Mode

54 Configuring PC/AV Mode

55 Key Repeat Time

55 Configuring Key Repeat Time

56 Customized Key

56 Configuring Customized Key

Table Of Contents

Table Of Contents 5

57 Auto Source

57 Configuring Auto Source

58 Display Time

58 Configuring Display Time

59 Menu Transparency

59 Changing Menu Transparency

INFORMATION

60 INFORMATION

60 Displaying INFORMATION

INSTALLING THE

SOFTWARE

61 Magic Tune

61 What is MagicTune?

61 Installing the Software

62 Removing the Software

63 MultiScreen

63 Installing the Software

64 Removing the Software

TROUBLESHOOTI

NG GUIDE

65 Requirements Before Contacting

Samsung Customer Service Center

65 Testing the Product

65 Checking the Resolution and Frequency

65 Check the following.

67 Q & A

SPECIFICATIONS 69 General

71 PowerSaver

72 Standard Signal Mode Table

Table Of Contents

Table Of Contents 6

APPENDIX 75 Contact SAMSUNG WORLDWIDE

80 Responsibility for the Pay Service (Cost

to Customers)

80 Not a product defect

80 A Product damage caused by customer's fault

80 Others

81 Correct Disposal

81 Correct Disposal of This Product (Waste

Electrical & Electronic Equipment)

82 Terminology

Before Using the Product

The contents of this manual are subject to change without notice to improve quality.

Samsung Electronics owns the copyright for this manual.

Use or reproduction of this manual in parts or entirety without the authorization of Samsung Electronics is

prohibited.

The SAMSUNG and SyncMaster logos are registered trademarks of Samsung Electronics.

Microsoft, Windows and Windows NT are registered trademarks of Microsoft Corporation.

VESA, DPM and DDC are registered trademarks of the Video Electronics Standards Association.

Icons used in this manual

Symbols for safety precautions

zAn administration fee may be charged if either

(a) an engineer is called out at your request and there is no defect in the product

(i.e. where you have failed to read this user manual).

(b) you bring the unit to a repair center and there is no defect in the product

(i.e. where you have failed to read this user manual).

zThe amount of such administration charge will be advised to you before any work or home visit is

carried out.

The following images are for reference only. Real-life situations may

differ from what is shown in the images.

Warning A serious or fatal injury may result if instructions are not followed.

Caution

Personal injury or damage to properties may result if instructions are

not followed.

Activities marked by this symbol are prohibited.

Instructions marked by this symbol must be followed.

Before Using the Product

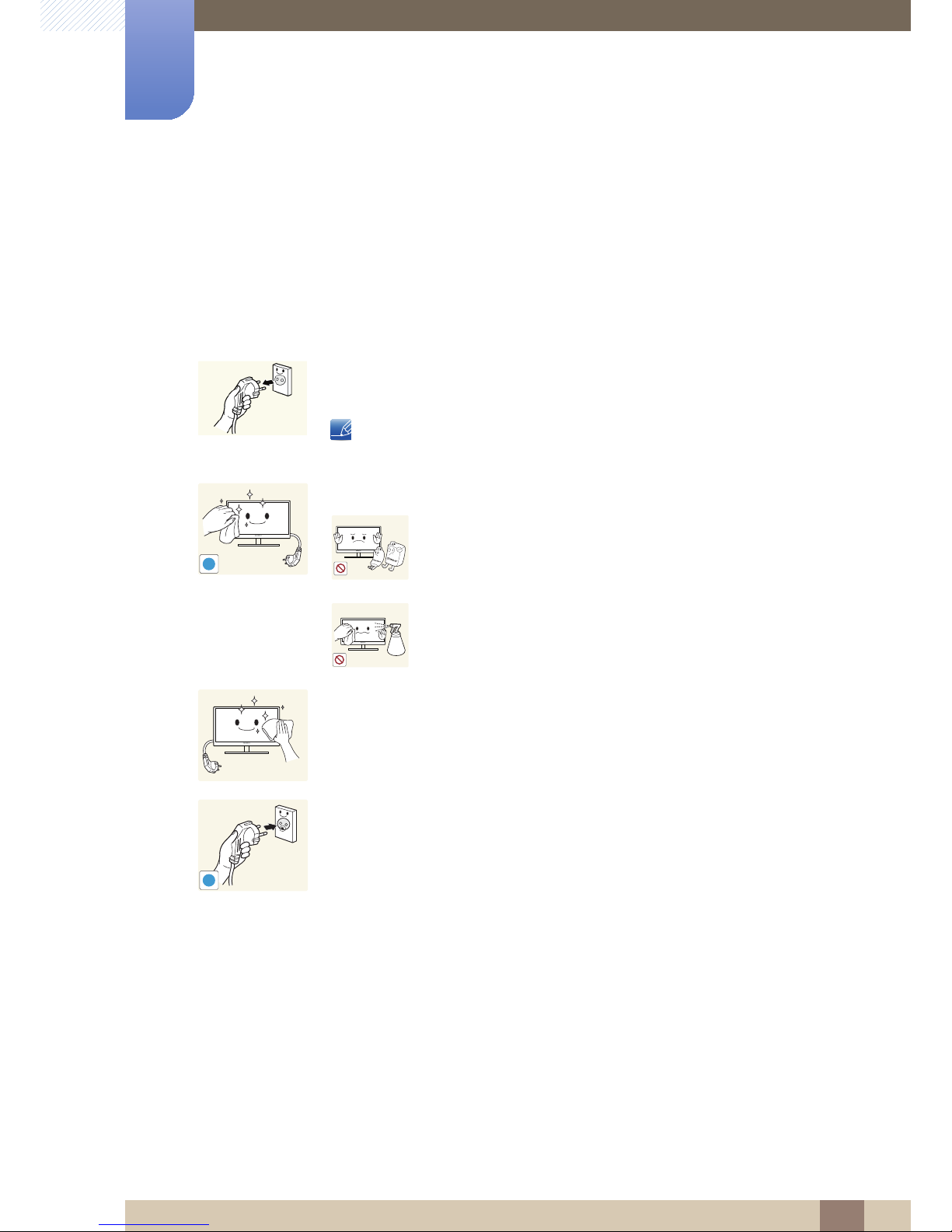

Cleaning

Exercise care when cleaning as the panel and exterior of advanced LCDs are easily scratched.

Take the following steps when cleaning.

1. Power off the monitor and computer.

2. Disconnect the power cord from the monitor.

Hold the power cable by the plug and do not touch the cable with wet

hands. Otherwise, an electric shock may result.

3. Wipe the monitor screen using a clean, soft and dry cloth.

zDo not apply a cleaning agent that contains alcohol,

solvent, or surfactant to the monitor.

zDo not spray water or detergent directly on the product.

4. Wet a soft and dry cloth in water and wring thoroughly to clean the

exterior of the monitor.

5. Connect the power cord to the product after cleaning the product.

6. Power on the monitor and computer.

Before Using the Product

Securing the Installation Space

zEnsure some space around the product for ventilation. An internal temperature rise may cause fire

and damage the product. Be sure to allow the amount of space as shown below or greater when

installing the product.

The exterior may differ depending on the product.

Precautions for storage

Be sure to contact Samsung Customer Service Center (page 75) if the inside of the monitor needs

cleaning. (Service fee will be charged.)

10 cm(3.93 inches)

10 cm

(3.93

inches)

10 cm

(3.93

inches)

10 cm(3.93 inches)

Before Using the Product

Safety Precautions

Electricity and Safety

The following images are for reference only. Real-life situations may differ from what is shown in the

images.

Warning

Do not use a damaged power cord or plug, or a loose power socket.

zAn electric shock or fire may result.

Do not plug many products into the same power socket.

zOtherwise, the socket may overheat and cause a fire.

Do not touch the power plug with wet hands.

zOtherwise, an electric shock may result.

Insert the power plug all the way in so it is not loose.

zAn unstable connection may cause a fire.

Ensure you connect the power plug to a grounded power socket. (type 1

insulated devices only).

zAn electric shock or injury may result.

Do not bend or pull the power cord with force. Do not weigh the power cord

down with a heavy object.

zA damaged power cord may cause an electric shock or fire.

Do not place the power cord or product near heat sources.

zAn electric shock or fire may result.

Remove foreign substances such as dust around the plug pins and power socket

with a dry cloth.

zOtherwise, a fire may result.
