Samsung SyncMaster 700S Manual de usuario

Samsung

SyncMaster 700s

Color Monitor

Owner’s

Instructions

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK).

NO USER-SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an

equilateral triangle, is intended to alert the user to the

presence of uninsulated “dangerous voltage” within the

product’s enclosure that may be of sufficient magnitude to

constitute a risk of electric shock.

The exclamation point within an equilateral triangle is

intended to alert the user to the presence of important

operating and servicing instructions in the literature

accompanying the appliance.

Unpacking your Monitor

Please make sure the following items are included with

your computer monitor:

This Manual

Warranty Card

(Not available in all areas)

Monitor and Stand

Power Cable

Signal Cable

Table of Contents

Preface: Safety Information 2

Chapter One: Overview of Your Monitor 3

Front

Panel

RearPanel

Chapter Two: Installation 5

Connecting Your Monitor to a Computer

Chapter Three: Adjusting Your Monitor 6

Overview

Direct Access Features

Contrast

Brightness

Control Function Features

Position(H/V) / User or Preset Model

Size( H/V)

Geometric Distortion (G/D)

Color Temperature

Recall

Degauss

PowerSaver

Troubleshooting

Appendix

Specifications

Pin Assignments

Display Modes Timing Chart

FCC Information

IC Compliance Notice

VCCI Information

MPR II Compliance

European Notice

Index

Preface: Safety Information

Please read and follow these instruc-

tions when connecting and using your

computer monitor.

Before connecting the AC power

cord to an outlet, make sure the

voltage designation on your moni-

tor corresponds to the local elec-

trical supply.

Never insert anything metallic into

the monitor openings. Doing so

may create the danger of electric

shock.

To avoid electric shock, never

touch the inside of the monitor.

Only a qualified technician should

open the monitor’s case.

Never use your monitor if the

power cord has been damaged.

Do not allow anything to rest on

the power cord, and keep the cord

away from where people could trip

over it.

Be sure to hold the plug, not the

cord, when disconnecting the

monitor from an electric socket.

Openings in the monitor cabinet

are provided for ventilation. To

prevent overheating, these open-

ings should not be blocked or cov-

ered. Also, avoid using the monitor

on a bed, sofa, rug, or other soft

surface. Doing so may block the

ventilation openings in the bottom

of the cabinet. If you put the moni-

tor in a bookcase or some other

enclosed space, be sure to pro-

vide adequate ventilation.

Put your monitor in a location with

low humidity and a minimum of

dust. Avoid places like damp

basements or dusty hallways.

Do not expose the monitor to rain

or use it near water (in kitchens,

next to swimming pools, etc.). If

the monitor accidentally gets wet,

unplug it and contact an author-

ized dealer immediately. You can

clean the monitor with a damp

cloth when necessary, but be sure

to unplug the monitor first.

Place the monitor on a solid sur-

face and treat it carefully. The

screen is made of glass and can

be damaged if dropped or sharply

hit.

Locate your monitor near an easily

accessible AC outlet.

If your monitor does not operate

normally – in particular, if there

are any unusual sounds or smells

coming from it – unplug it immedi-

ately and contact an authorized

dealer or service center.

High temperatures can cause

problems. Don’t use your monitor

in direct sunlight, and keep it away

from heaters, stoves, fireplaces,

and other sources of heat.

Unplug the monitor when it is

going to be left unused for an

extended period of time.

Unplug your monitor from the AC

outlet before any service.

English

Chapter One: Overview of Your Monitor

Front Panel

Function control buttons

Use these buttons to control the shape of the display

area, and to control the color qualities of the display

image.

Brightness

Use this rotary control to adjust the overall bright-

ness of the display image.

Contrast

Use this rotary control to adjust the contrast level of

the display image.

Power indicator

This light glows green during normal operation, and

glows amber when you are making adjustments.

Power button

Use this button to turn the monitor on and off.

Chapter One: Overview of Your Monitor

Rear Panel

Power port

Connect the power cable here.

Signal port

Connect your signal cable here.

English

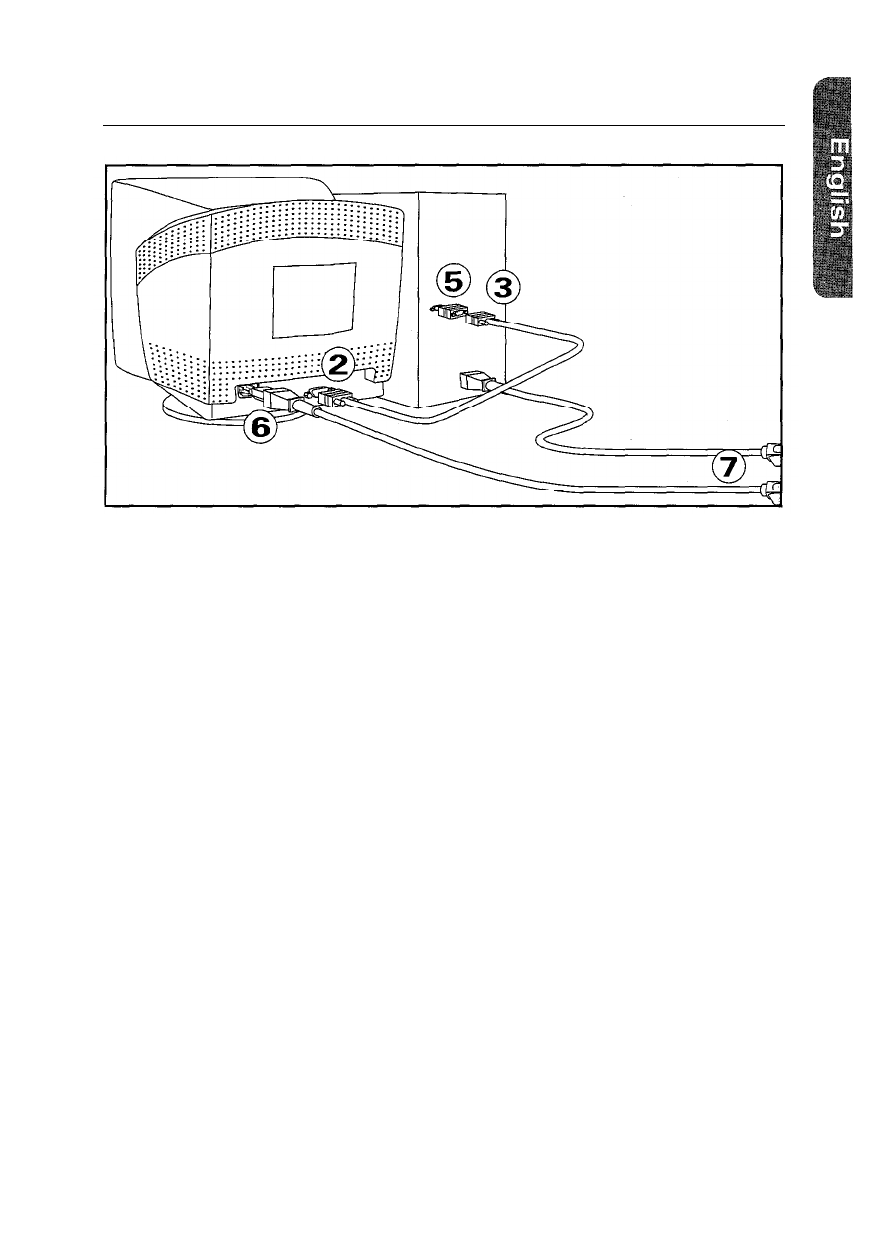

Chapter Two: Installation

Connecting Your Monitor

to a Computer

Turn off your computer and unplug

its power cord.

Connect the signal cable to the

signal port on the back of your

monitor.

If you are using a Macintosh com-

puter, connect the other end of the

signal cable to a Macintosh

adapter. (The adapter is not includ-

ed with your monitor. Contact your

dealer for more information.) If you

are using an IBM-compatible com-

puter, skip to step 5.

Follow the instructions included

with your adapter to set the pins

on your adapter, if necessary.

Connect the signal cable (with the

adapter if necessary) to the video

port on the back of your computer.

This port might be directly

attached to your computer, or it

might be part of a video board,

video card, or graphics card.

Connect the power cord for your

monitor to the power port on the

back of the monitor.

Plug the power cords of your com-

puter and your monitor into a near-

by outlet.

Turn on your computer and mon-

itor. If your monitor displays an

image, installation is complete.

Chapter Three: Adjusting Your Monitor

Overview

Your Samsung SyncMaster computer monitor allows you

to easily adjust the characteristics of the image being dis-

played. All of these adjustments are made using the con-

trol buttons on the front of the monitor. While you use

these buttons to adjust the controls, an on-screen menu

shows you their numeric values as they change.

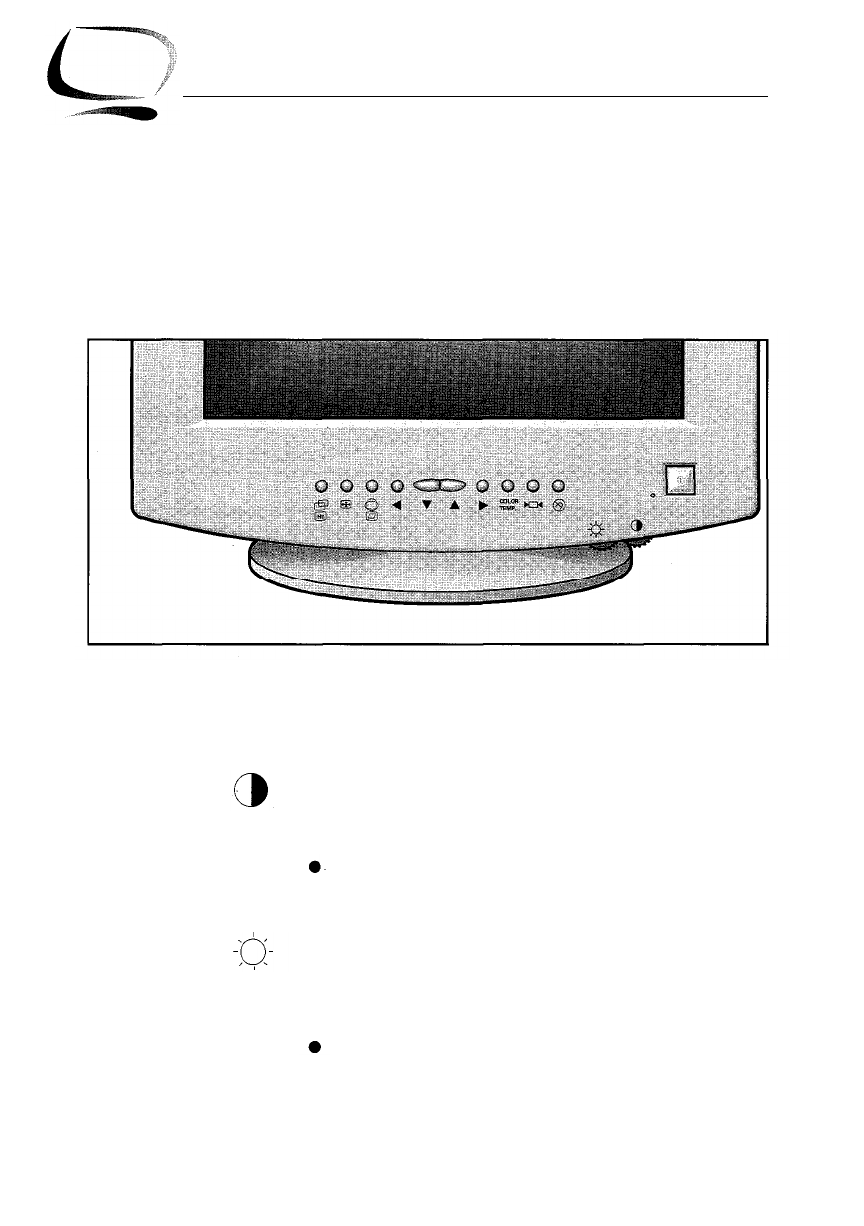

Direct-Access Features

The features described on this page can be accessed

quickly, at the touch of one button.

Contrast

This feature will adjust the monitor’s contrast.

Rotate the rotary control to the right to increase the

contrast between dark colors and light colors, or

move it to the left to decrease the contrast.

Brightness

This feature will adjust the overall brightness of the display

image.

Rotate the rotary control to the right to increase the

level of brightness, or to the left to decrease the

brightness.

Chapter Three: Adjusting Your Monitor

Control Function Features

The features described in this section can all be accessed

using your monitor’s control function buttons.

While implementing control functions, the indicator’s color

is orange. However, you cannot adjust the display image

while a control function is disabled (the indicator’s color is

green).

Most features use only one button for access, however

some features require that you push two buttons. Follow

the instructions below to adjust the features.

The monitor will automatically save your changes when

the OSD remains inactive for approximately 8 seconds.

Position (H/V) / User or Preset Mode

First Function: Position (H/V)

Follow these instructions to change the position of the

monitor’s entire display.

Push this button once to adjust the horizontal and

vertical position (centering) of the display.

Use the

and

buttons to change the horizontal

position of the entire display; use the

and

but-

tons to change the vertical position.

Second Function: User or Preset Modes

Push this button twice to access the user and preset

modes information. The OSD shows the contents of the

user modes and factory timing modes. Use the adjustment

control buttons

and

to “page” through the list.

Chapter Three: Adjusting Your Monitor

Size (H/V)

Follow these instructions to change the size of the moni-

tor’s entire display.

Push this button once to adjust the horizontal and

vertical size of the entire display.

Use the

and

buttons to change the horizontal

size (width) of the entire display; use the

and

buttons to change the vertical size (height).

Geometric Distortion (G/D)

First function: Pincushion / Trapezoid

Adjust the pincushion setting when the sides of the display

are bowed in or bowed out.; adjust the trapezoid setting to

equalize the length of the top and bottom edges.

Push this button once to access the pincushion and

trapezoid functions.

Use the

and

buttons to change the pincushion

setting; use the

and

buttons to change the

trapezoid setting.

Second function: Parallelogram/ Tilt

Adjust the parallelogram setting when the display is lean-

ing left or right; adjust the tilt setting when the display area

appears rotated to the left or right.

Push this button twice to access the parallelogram

and tilt functions.

Use the

and

buttons to change the parallelo-

gram setting; use the

and

buttons to adjust the

tilt setting.

Tabla de contenidos

Otros manuales de Monitor de Samsung

Samsung

Samsung SMT-1721 Manual de usuario

Samsung

Samsung SyncMaster 400TXn Manual de usuario

Samsung

Samsung 460DX - SyncMaster - 46" LCD Flat Panel... Guía de instalación

Samsung

Samsung SyncMaster 570B Manual de usuario

Samsung

Samsung 2053BW - SyncMaster - 20" LCD Monitor Manual de usuario

Samsung

Samsung S27B971D Manual de usuario

Samsung

Samsung 913V - SyncMaster - 19" LCD Monitor Manual de usuario

Samsung

Samsung SyncMaster 3 series Manual de usuario

Samsung

Samsung P2070 - LCD Monitor Manual de usuario

Samsung

Samsung SyncMaster 570B TFT Manual de usuario

Samsung

Samsung LB15VS Manual de usuario

Samsung

Samsung 920NW - SyncMaster - 19" LCD Monitor Manual de usuario

Samsung

Samsung 910MP - SyncMaster 19" LCD Monitor Manual de usuario

Samsung

Samsung SyncMaster 711ND Manual de usuario

Samsung

Samsung SyncMaster 305TPLUS Manual de usuario

Samsung

Samsung 932BW - SyncMaster - 19" LCD Monitor Manual de usuario

Samsung

Samsung SyncMaster 305TPLUS Manual de usuario

Samsung

Samsung 150s - SyncMaster 150 S Manual de usuario

Samsung

Samsung SyncMaster 150N Manual de instrucciones

Samsung

Samsung SyncMaster 56E Manual de usuario

Samsung

Samsung T240 - SyncMaster - 24" LCD Monitor Manual de usuario

Samsung

Samsung SyncMaster 400MPn Manual de usuario

Samsung

Samsung SyncMaster B2230HD Manual de usuario

Samsung

Samsung 400UX - SyncMaster - 40" LCD Flat Panel... Manual de usuario

Manuales populares de Monitor de otras marcas

Linear Acoustic

Linear Acoustic LQ-1000 Manual de usuario

AOC

AOC I2579V Manual de usuario

Gateway

Gateway FPD1520 Manual de usuario

Furuno

Furuno Mu 120c Manual de usuario

Asus

Asus VB171D - 17" LCD Monitor Manual de usuario

Dell

Dell S2230MX Instrucciones de uso

Philips

Philips 107C64 Manual de usuario

Dell

Dell S2409WFP Manual de usuario

EverFocus

EverFocus EN-7517E Manual de usuario

Panasonic

Panasonic TH152UX1 - 152" PLASMA TV Manual de usuario

Dell

Dell Precision 7680 Manual de instrucciones

LG 50PM1M - - 50" Plasma Panel Manual de usuario

Bosch

Bosch DDU 9 Manual de usuario

Acer

Acer A231HL Manual de usuario

Philips

Philips 86BDL4152T Manual de usuario

NEC

NEC AccuSync LCD5V Manual de usuario

Emay

Emay SleepO2 Manual de usuario

IBM

IBM 6360 Instrucciones de instalación
