Salter Brecknell 405 Manual de usuario

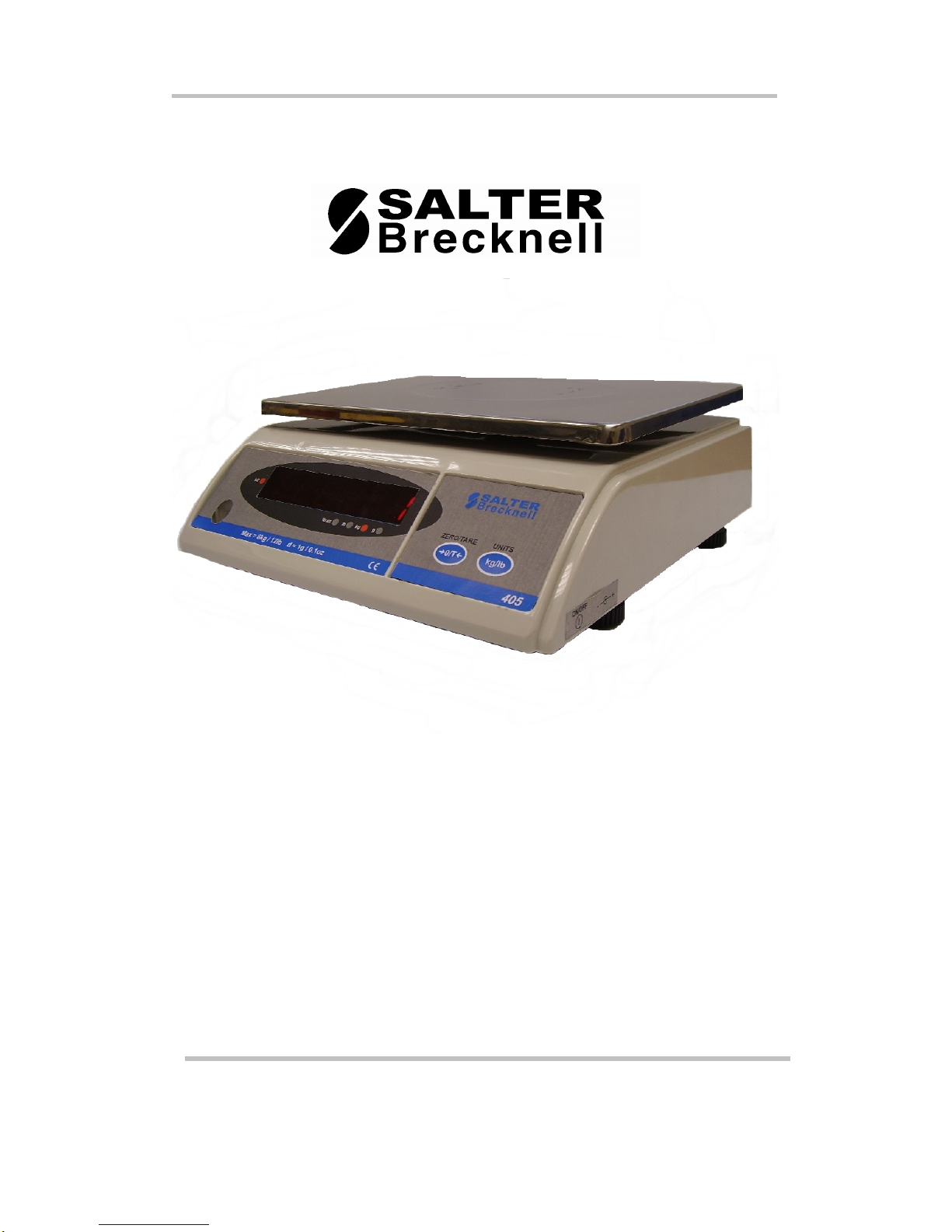

Model 405 Weighing Scale

User Manual

AWT35-000053 Issue A

The information contained herein is the property of Avery Berkel Limited and is supplied without liability for errors or

omissions. No part may be reproduced or used except as authorised by contract or other written permission. The

embodied.

Salter Brecknell is a trading name of Avery Berkel Limited

Model 405

User Manual

Contents

WARNINGS............................................................................................................................... 6

Setting Up the Scale.................................................................................................................. 7

Display and Keypad .............................................................................................................. 7

Manual Symbols.................................................................................................................... 8

Scale Operation......................................................................................................................... 8

Turning On and Zeroing the Scale........................................................................................ 8

Turning Off the Scale ............................................................................................................ 8

Selecting Unit of Measure..................................................................................................... 8

Using the Tare....................................................................................................................... 9

Removing the Tare................................................................................................................ 9

Setting up the Auto-Off Function......................................................................................... 10

Calibration........................................................................................................................... 10

Error Messages................................................................................................................... 11

Declarations of Compliance..................................................................................................... 13

United States....................................................................................................................... 13

Canada................................................................................................................................ 13

Model 405

User Manual

WARNINGS

Safe installation

Safety

THE EQUIPMENT CONTAINS NO USER SERVICEABLE COMPONENTS.

Installation and maintenance of the equipment must only be carried out by trained

and authorised personnel.

Electrical installation

The mains lead must be connected to a supply outlet with a protective earth contact.

The electrical supply at the socket outlet must provide over current protection of an

appropriate rating.

For your protection all mains (110V or 230V) equipment used out of doors or in wet or

damp conditions should be supplied from a correctly fused source and protected by

an approved ground fault protection device (RCD, GFCI etc.)

IF IN DOUBT SEEK ADVICE FROM A QUALIFIED ELECTRICIAN.

Routine maintenance

To avoid the possibility of electric shock or damage to the machine, always switch off

the machine and isolate from the power supply before carrying out any routine

maintenance.

To avoid the risk of the machine falling, where applicable, ensure that it is placed

securely on a flat and level surface.

Safe use

Caution – Cleaning the indicator/weigh head

Harsh abrasives, solvents, scouring cleaners and alkaline cleaning solutions, such as

washing soda, should not be used especially on the display windows. Under no

circumstances should you attempt to wipe the inside of the machine.

The outside of standard products may be wiped down with a clean cloth, moistened

with water containing a small amount of washing up liquid.

The outside of products waterproofed to IP65, IP66 and IP67 may be washed down

with water containing a small amount of proprietary detergent.

Training

Do not attempt to carry out any procedure on a machine unless you have received

the appropriate training or read the Instruction Manual.

EMC compliance

The following may be applicable to your machine.

WARNING:

This is a class A product. In a domestic environment this product may cause radio

interference in which case the user may be required to take adequate measures.

Model 405

User Manual

Setting Up the Scale

To set the scale up for operation, please refer to the following illustration while performing the

steps below.

1. To level the scale, adjust the feet on the underside of the scale.

2. The Salter 405 is powered by a rechargeable battery or 12V power adapter supplied

with the scale. To charge the battery or operate the scale from the adapter, insert the

adapter into the socket on the underside of the scale.

Display and Keypad

405

Tare/Units On/Off/Zero

kg/lb

Max =6kg / 12lb d = 0.001kg / 0.002lb

kg g

lb I

CHG

ZERO

NET

Function Keys Annunciators

ZER

Illuminated when weight is zero

Tare/Units of measurement

NET

Illuminated when tare has been

activated

Depends on active unit of measure

(Flashing LED means that the weight

reading is not stable.)

Illuminated when adaptor is plugged

On/Off/Zero

CHG

Illuminated when battery is charging

Tare/Units

kg/lb

On/Off/Zero

Model 405

User Manual

Manual Symbols

Short key press

Multiple key press

Long key press

Scale Operation

Turning On and Zeroing the Scale

ZERO

Turning Off the Scale

Selecting Unit of Measure

kg g

CHG

ZERO

NET

→

→oz →lb

kg/lb

Model 405

User Manual

Using the Tare

ZERO

NET

ZERO

NET

ZERO

NET

ZERO

NET

kg/lb

RemovingtheTare

ZERO

kg/lb

Model 405

User Manual

Setting up the Auto-Off Function

Before beginning, the scale must be switched on.

kg/lb

kg g

CHG

ZERO

NET

kg/lb

0-9 minutes (0 switches function off)

kg g

CHG

ZERO

NET

Calibration

To calibrate, switch off the scale.

kg/lb

kg g

CHG

ZERO

NET

kg/lb

kg g

CHG

ZERO

NET

6kg/15kg

12lb/30lb

kg g

CHG

ZERO

NET

6kg/15kg

12lb/30lb

kg g

CHG

ZERO

NET

→lb
