Saeco VIENNA PLUS Manual de usuario

OPERATING INSTRUCTIONS

MODE D’EMPLOI

INSTRUCCIONES DE USO

INSTRUCÇOES E MODO DE EMPREGO

TYPE SUP 018M

EnglishEspañolPortuguês

Services Unlimited, Inc./Parts Guru

Lansdale, PA 19446

Phone: 215-361-7000 Fax: 215-361-7434

email: [email protected]

VIENNA

CAFE GRANDE

CAFE CREMA

VIENNA DIGITAL

Saeco

Service Unlimited, Inc./ Parts Guru

Lansdale, PA 19446

Phone: 215-361-7000 Fax: 215-361-7434

emai: [email protected]

Edition 2003

Instructions are good for Spidem Trevi, Gaggia

Syncrony Logic and Solis M5000 models

Services Unlimited, Inc./ Parts Guru

email: [email protected]

Axor select Best Descaler, Coffee cleaner Liquid

and 30 Gm. Food grade lube is available from

Internet store www.shop.partsguru.com

Services Unlimited, Inc./ Parts Guru

email: [email protected]

1. INTRODUCTION VIENNA

5. Overview of product range

TYPE Pre-

brewing

Pre-

grinding

Rapid Steam Display

VIENNA x

CAFE GRANDE x

CAFE CREMA x x

VIENNA DIGITAL x x x

CAFE NOVA x x x x

Services Unlimited, Inc./ Parts Guru

email: [email protected]

Instructions are good also for Spidem Trevi

models, Gaggia Syncrony Logic and Solis

Master M5000

VIENNA DISASSEMBLY

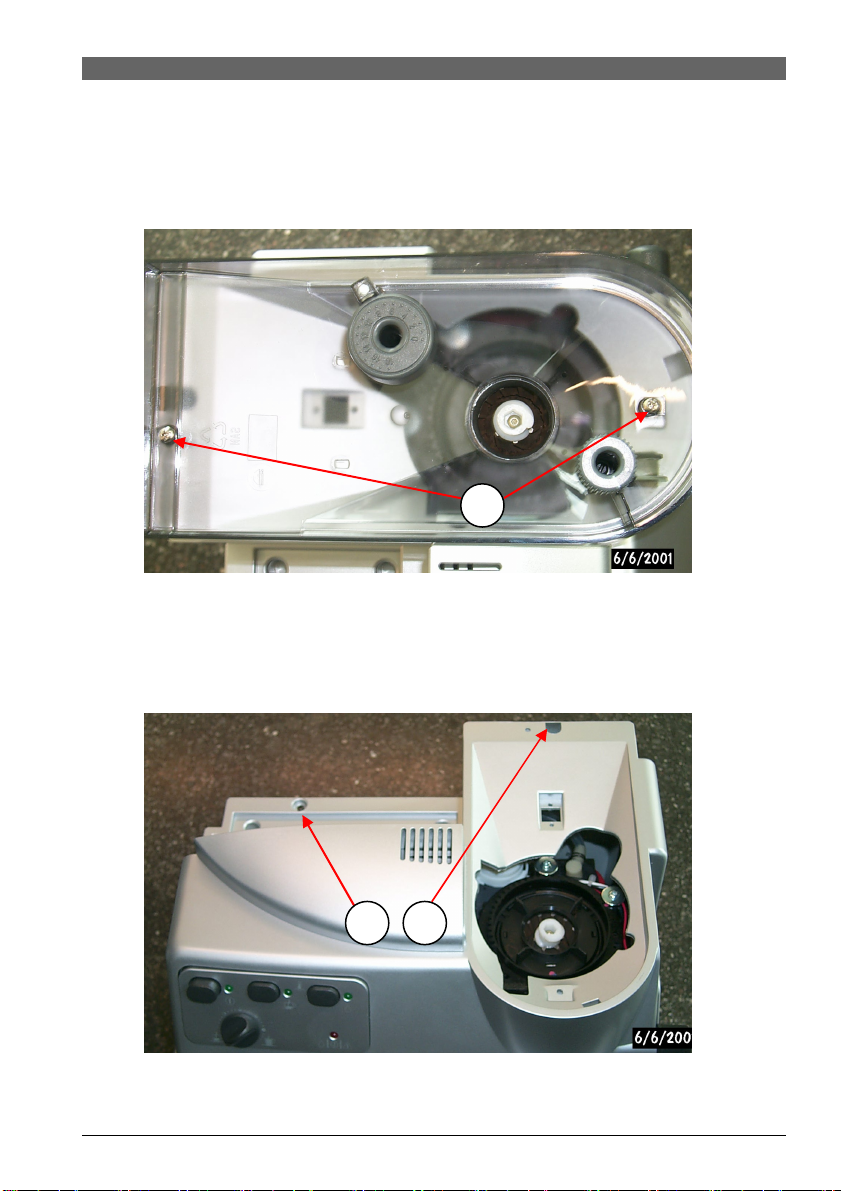

1. Disassembly of the housing

a) Remove the water tank and the coffee bean container cover.

b) Remove the two fixing screws (1) of the coffee bean container.

Fig. 1

c) Remove the housing screw (1) under the water tank (Torx/T10).

d) Remove the housing screw (2) under the coffee bean container.

Fig. 2

Services Unlimited, Inc./ Parts Guru

email: [email protected]

DISASSEMBLY VIENNA

e) Remove the two bottom housing screws (1). Pull the housing left of the electronic

system slightly forwards and lift.

Fig. 3

f) Move the upper housing slightly to the left so that the notch (1) of the steam dial

is visible on the right side of the machine. Release the steam dial using a sharp

object and remove.

Fig. 4

g) Remove housing and pull water hose off.

Services Unlimited, Inc./ Parts Guru

email: [email protected]

VIENNA DISASSEMBLY

2. Disassembly of the base plate

a) Release the base plate from the underside of the machine using a screw driver (see

Fig. 5) and remove it from the housing.

Fig. 5

Services Unlimited, Inc./ Parts Guru

email: [email protected]

DISASSEMBLY VIENNA

7. Disassembling the grinder

a) Remove the two fixing screws (1). Remove the fixing screw on the upper grind

adjustment ring (2).

Fig. 18

b) Release the three fastening tabs (1) on the underside and remove the upper grind

adjustment ring (2).

Fig. 19

Services Unlimited, Inc./ Parts Guru

email: [email protected]

VIENNA DISASSEMBLY

c) Turn the grinding adjustment ring (1) clockwise until the three lugs of the

grinding disc fitting (2) are clearly visible and remove the upper grinding disc

from the grinder.

Fig. 20

d) Remove the fixing screw (1) of the grinding cone (note: left thread) and carefully

remove the grinding cone (friction clutch).

Fig. 21

Services Unlimited, Inc./ Parts Guru

email: [email protected]
