Sachtler Cine 7 + 7 HD Manual de usuario
Cine 7 + 7 HD
Manual
Benutzerinformation
Fluid Head
Fluidkopf
© by sachtler®. Alle Rechte vorbehalten / All rights reserved
Originalbetriebsanleitung/Original User Manual
Version: 1.9/02/2012
Ausgabedatum / Issue date: 02/12
Bestellnr. / Order no.: S 2014-4980
sachtler®
Vitec Group Videocom Division
www.vitecgroup.com
Erfurter Strasse 16 Postfach / P.O.BOX 2039
D-85386 Eching D-85380 Eching
Germany Germany
Telefon:(+49 89) 321 58 200
Telefax: (+49 89) 321 58 227
E-Mail: contact@sachtler.de
Internet: http://www.sachtler.com
- I -
Cine 7 + 7 HD
Table of contents
1 Safety instructions / General Information.............................1
2 Operating elements..............................................................2
3 Operation..............................................................................4
3.1 Intended use ................................................................4
3.2 Moving of the pan bar ..................................................4
3.3 Levelling of the fluid head ............................................5
3.4 Mounting of the camera and / or plate.........................5
3.5 Counterbalancing of the camera..................................8
3.6 Setting of the damping.................................................8
3.7 Brakes ..........................................................................9
3.8 Change of battery ........................................................9
3.9 Transport setting of damping, counterbalance
and brakes ...................................................................9
4 Technical Data....................................................................10
5 Accessories ........................................................................11
6 Inspection & Cleaning ........................................................11
7 Warranty .............................................................................11
Inhaltsverzeichnis
1 Sicherheitshinweise / Grundlegende Hinweise..................13
2 Bedienelemente .................................................................14
3 Betrieb ................................................................................16
3.1 Bestimmungsgemäße Verwendung ...........................16
3.2 Schwenkarmverstellung .............................................16
3.3 Nivellieren des Fluidkopfes ........................................17
3.4 Entnehmen und Einsetzen der Kameraplatte ............17
3.5 Einstellen der Kamerabalance ...................................20
3.6 Einstellen der Dämpfung............................................20
3.7 Bremsen.....................................................................21
3.8 Austausch der Batterie...............................................21
3.9 Transportstellung von Dämpfung, Gewichts-
ausgleich und Bremsen .............................................21
4 Technische Daten...............................................................22
5 Zubehör ..............................................................................23
6 Inspektion & Pflege ............................................................23
7 Gewährleistung ..................................................................23
- II -
Cine 7 + 7 HD
ManualCine 7 + 7 HD
- 1 -
1 Safety instructions / General Information
ÁBefore using the fluid head read the manual.
ÁBefore mounting the fluidhead on the tripod, check if the tri-
pod has a safe standing and if the ttripod leg extensions are
clamped.
ÁBefore releasing the tie down on the fluid head (with a
mounted camera), the tripod must be secured against fall
over.
ÁBefore releasing the vertical brake (at a non balanced
camera set up) or the clamping of the camera-/balance plate
the camera must be secured against suden movement,
otherwise there may be a danger of finger trapping.
ÁDuring camera tilt movements with extreme tilt angles there
may be a danger of finger trapping between sideload plate
and housing for users and third persons.
ÁDo not use side load lever as a carrying handle
- 2 -
Cine 7 + 7 HDManual

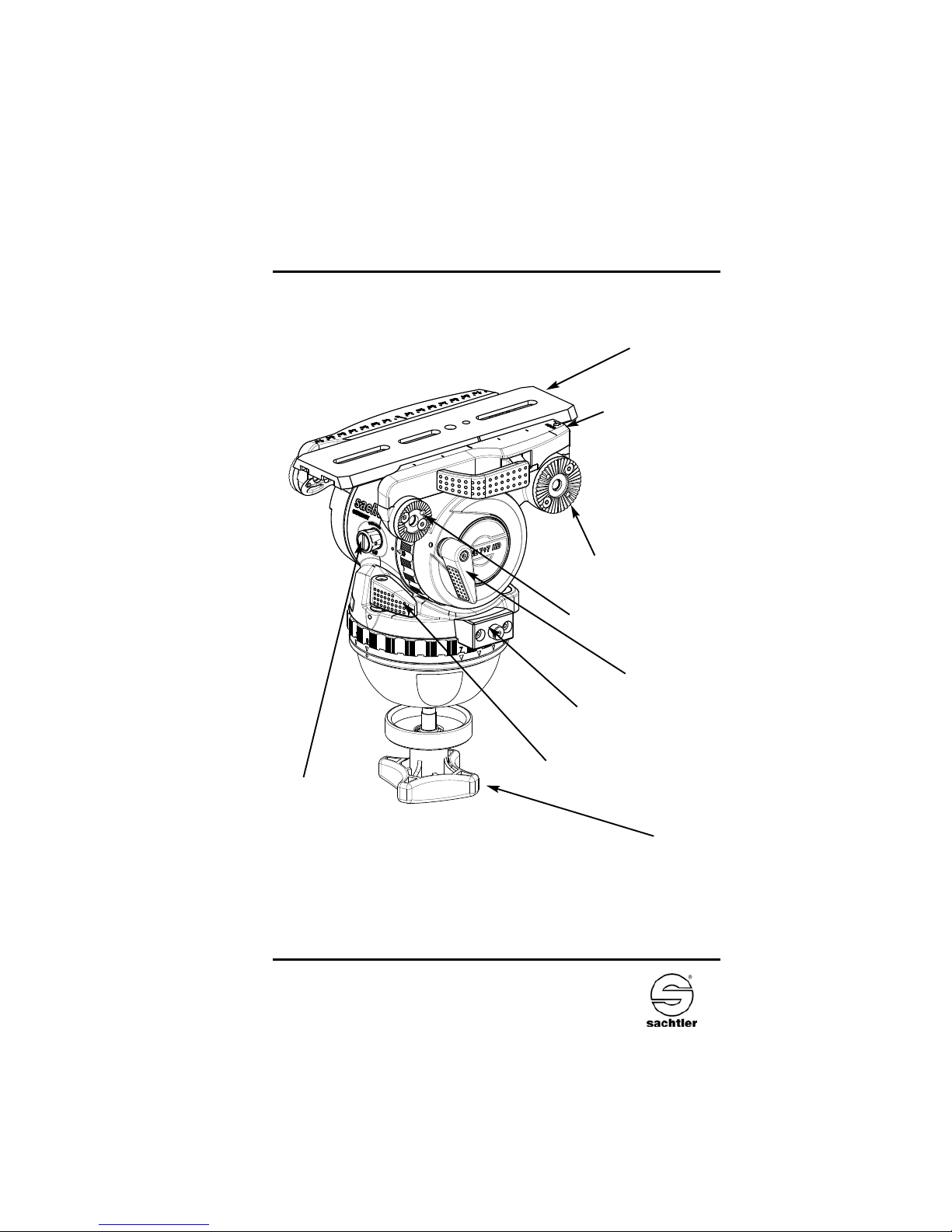

2 Operating elements
Camera plate
Safety push button
Rosette for left pan bar
Vertical brake
Horizontal brake
Tie down
Pic. 1
Payload range
shifter
(Boost Button)
Rosette for front pan bar
Adapter viewfinder extension
Side load lever
Vertical drag
adjustment
Illuminated touch
bubble
Counterbalance
adjustment knob
Battery compartment
for touch bubble
Rosette for right
pan bar
Horizontal drag
adjustment
Pic. 2
Manual
Cine 7 + 7 HD
- 3 -
- 4 -
Cine 7 + 7 HD
Manual
3 Operation
3.1 Intended Use
This fluidhead was developed to enable pan- and tilt move-
ments of cameras. The maximum payload is specified in
chapter 4.
3.2 Moving of the pan bar
Open the clamping lever of the pan bar and move the pan
bar into the desired position. Close the clamping screw of
the pan bar. While lifting the lever it will be disengaged and
can now be placed in a desired angular position.
During transportation the pan bar can be moved next to the
tripod legs.
Caution: Open the clamping screw of the pan bar far
enough. The teeth of the pan bar clamp should not clatter
while moving the pan bar. Make sure that the teeth inter-
leave with each other when closing the clamping lever of
the pan bar.
Use of the enclosed pan bar on the left side of the fluid
head is also possible. The pan bar has to be removed from
the head and the black plastic cap on its top should be
opened and removed with a coin or screw driver. The too-
thed clamp should be removed and relocated. The plastic
cap needs to be tightened again.
Manual
- 5 -
Cine 7 + 7 HD
3.3 Levelling of the fluid head
Apply the vertical brake and hold the camera with one
hand. Open the clamping screw of the fluid head and move
the head in such a way, that the bubble moves into the
level´s black circle. Tighten the clamping screw firmly.
Touch Bubble
The Cine 7 + 7 HD has a self illuminating Touch Bubble
which allows easy levelling even under unfavourable
lighting conditions. The illumination is activated by strong
tapping on the bubble. The bubble will glow up to 20
seconds.
3.4 Mounting of the camera and / or plate
ÁApply the horizontal and vertical brake.
ÁHold the camera and / or plate with one hand.
ÁPress the safety push button with your thumb and open
the side load lever completely like shown in Pic. 3,
illustration “OPEN”.
ÁThe camera(plate) is now unlocked and can be remo-
ved from the fluidhead.
ÁAttach the camera plate to the camera.
Pic. 3
