Sachtler 75/2 D HD Manual de usuario

www.sachtler.com

Part No. S2034-0001

ENG 75/2 D HD Tripod

ENG 75/2 D HD

Tripod

Original Instructions: English

transmitted, copied or reproduced in any way, including, but not limited to, photocopy, photograph,

magnetic or other record without the prior agreement and permission in writing of the Vitec Group plc.

Disclaimer

The information contained in this manual is believed to be correct at the time of printing. Vitec Videocom

Ltd reserves the right to make changes to the information or specifications without obligation to notify any

person of such revision or changes. Changes will be incorporated in new versions of the publication.

We are making every effort to ensure that our manuals are updated on a regular basis to reflect changes

toproductspecificationsandfeatures. Should this manual not containinformation on the core functionality

of your product, please let us know. You may be able to access the latest revision of this manual from our

website.

Vitec Videocom Ltd reserves the right to make changes to product design and functionality without

notification.

Trademarks

All product trademarks and registered trademarks are the property of The Vitec Group Plc.

All other trademarks and registered trademarks are the property of their respective companies.

Published by:

Vitec Videocom Ltd

Supports Technical Publications Department

Western Way, Bury St Edmunds

Suffolk IP33 3TB

United Kingdom

Email: [email protected]

Contents

Safety. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Intended Use. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

ENG 75/2 D HD Tripod. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Mid-level Spreader 75 HD (optional S2038-1000) . . . . . . . . . . . 4

Ground Spreader SP 75 (optional 7001) . . . . . . . . . . . . . . . . . . 4

Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Setting up the Tripod . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Attaching the mid-level spreader 75 HD. . . . . . . . . . . . . . . . . . . 7

Attaching the rubber feet 75 . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Attaching the ground spreader SP 75. . . . . . . . . . . . . . . . . . . . . 8

Setting up the mid-level spreader 75 HD . . . . . . . . . . . . . . . . . . 8

Setting up the ground spreader SP 75 . . . . . . . . . . . . . . . . . . . . 9

Transportation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Attaching the bungee cord hook. . . . . . . . . . . . . . . . . . . . . . . . 10

Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

General. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Adjusting the leg clamps. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Technical Specification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

ENG 75/2 D HD Tripod (S2034-0001) . . . . . . . . . . . . . . . . . . . 13

Mid-level Spreader 75 HD (optional S2038-1000) . . . . . . . . . . 13

Ground Spreader SP 75 (optional 7001) . . . . . . . . . . . . . . . . . 13

General Notices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

Declaration of Conformity. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

Warranty. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

Safety

Importantinformation on thesafe installationand operation ofthis

product. Read this information before operating the product. For

your personal safety, read these instructions. Do not operate the

product if you do not understand how to use it safely. Save these

instructions for future reference.

Warning Symbols Used in these Instructions

Safety cautions are included in these instructions. These safety

instructions must be followed to avoid possible personal injury and

avoid possible damage to the product.

Health and Safety

Intended Use

The ENG 75/2 D HD tripod is a two-stage aluminium tripod with fast

action clamps for easy setup. The optional mid-level spreader 75 HD

features a fast-action clamp with a profile allowing the tripod to be set

to two predefined footprints. The optional ground spreader SP 75 can

be adjusted to suit other footprints as required by the shooting

environment.

WARNING! Risk of personal injury or injury to others. All

personnel must be fully trained and adhere to correct manual

handling techniques and Healthy & Safety regulations. It is

the responsibility of the local organisation to enforce safe

working practices at all times.

WARNING! Do not exceed the maximum payload.

WARNING! Tripod spike feet can be dangerous, take care

handling.

WARNING! Finger entrapment. Avoid trapping fingers

when collapsing and extending the tripod.

WARNING! Trip hazard. Set the tripod footprint to suit the

shooting environment.

WARNING! Toppling hazard. Do not leave unattended.

Keep out of reach of children.

CAUTION! Do not over tighten the tripod leg locks. When in

use always lock the tripod leg clamps to prevent the tripod

collapsing.

CAUTION! Hold the camera securely when (a) mounting or

dismounting from the fluid head (b) making adjustments to

the tripod height or footprint.

CAUTION! Do not place your foot or heavy weight onto the

spreader.

CAUTION! Always remove the camera before transporting.

Clean regularly using a soft cloth and mild detergent.

Dry the product after use in wet conditions.

Components

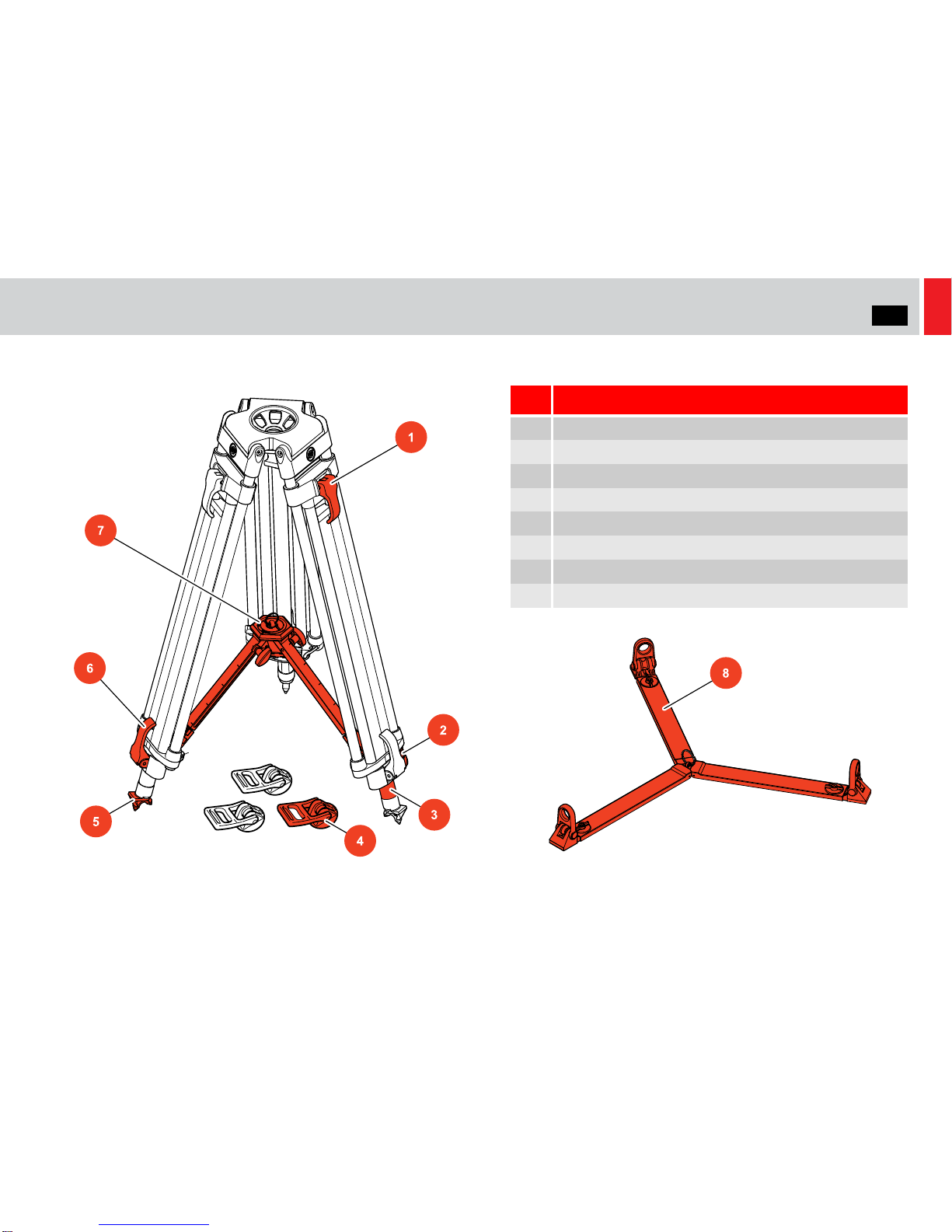

ENG 75/2 D HD Tripod

.No. Description

1Upper leg clamp lever

2Bungee cord hook

3Safety sleeve

4Rubber feet 75 x 3 (optional)

5Double-spiked foot

6Lower leg clamp lever

7Mid-level spreader 75 HD (optional)

8Ground spreader SP (optional)

Components

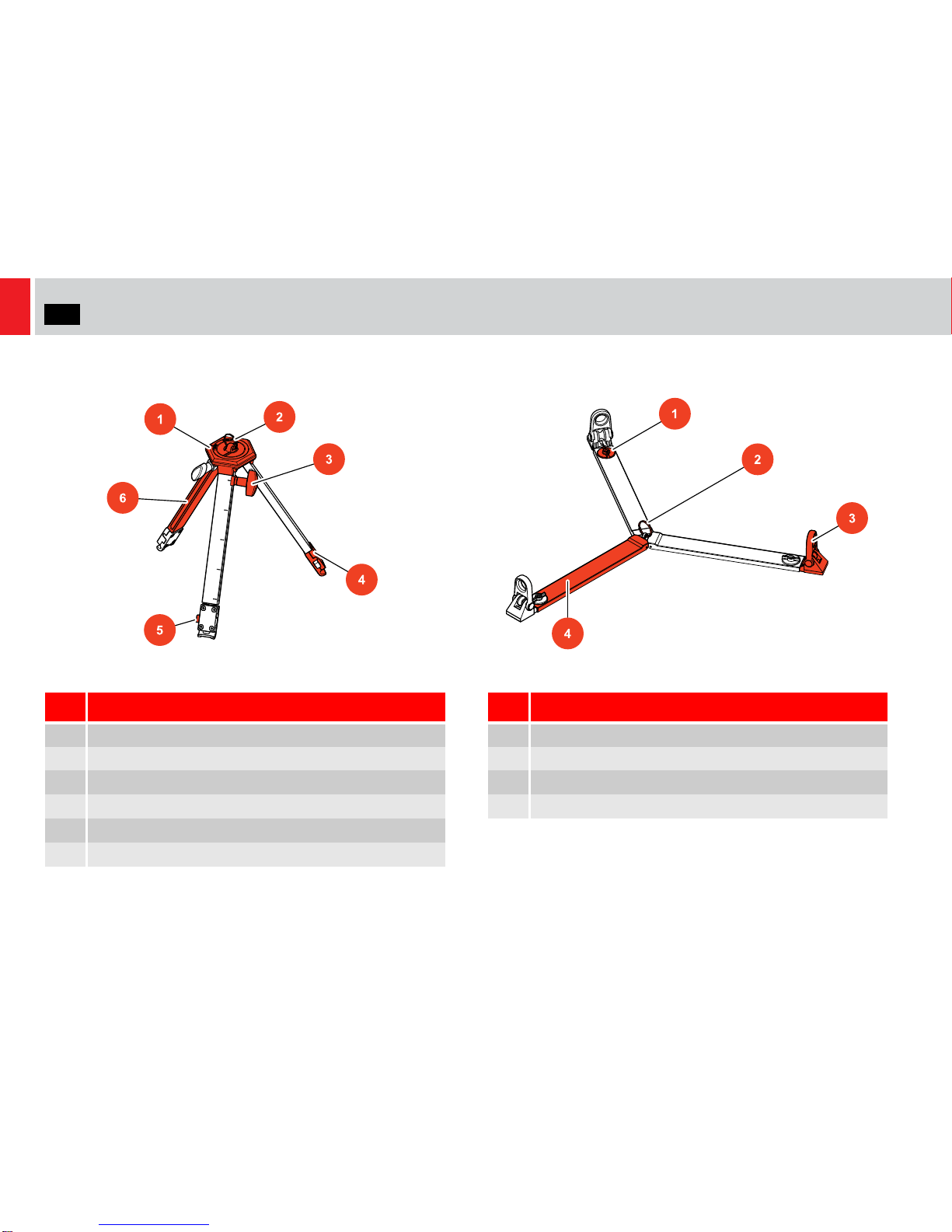

Mid-level Spreader 75 HD (optional S2038-1000) Ground Spreader SP 75 (optional 7001)

No. Description

1HIGH/LOW profile knob

2Pull up ring

3Spreader lock

4Spreader attachment hook

5Red attach/release button

6Spreader arm

No. Description

1Spreader lock

2Pull up ring

3Spreader foot

4Spreader arm

Assembly

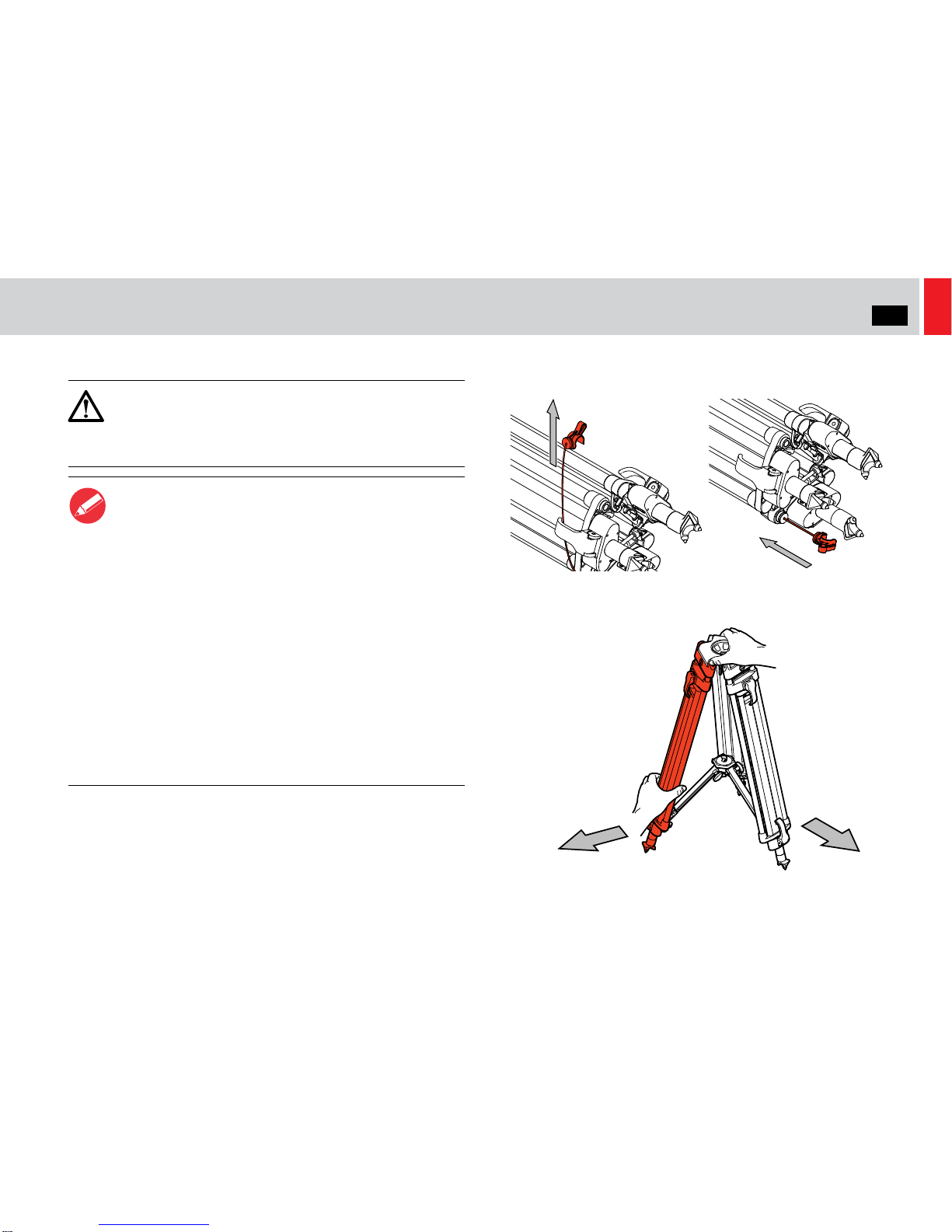

Setting up the Tripod 6. Detach the bungee cord hook to release the legs.

7. Holding the tripod upright, open out the legs and set the footprint

of the tripod to suit the shooting environment.

CAUTION! Use the spreader to ensure the tripod legs are

spread sufficiently, so that the Centre of Gravity of the tilted

payload remains within the footprint of the tripod. Use the

tie-down hook on the tripod for additional stability.

Notes

1. The following procedure refers to a two-stage tripod

fitted with a mid-level spreader (if necessary, refer to

Attaching the mid-level spreader 75 HD on page 7).

2. ALWAYS use the spreaders to increase the rigidity of

the tripod.

3. At the fullest extension of the spreader and with all legs

fully retracted, the tripod can be used at its lowest

operating height. Although the tripod can be set up

lower than this without the spreader, it is NOT

recommended as the tripod geometry becomes

unstable.

4. Do not use spikes on hard ground or delicate surfaces.

5. The tie-down hook can be used either to hang a

backpack on for additional stability or as a storage point

for items.

Assembly

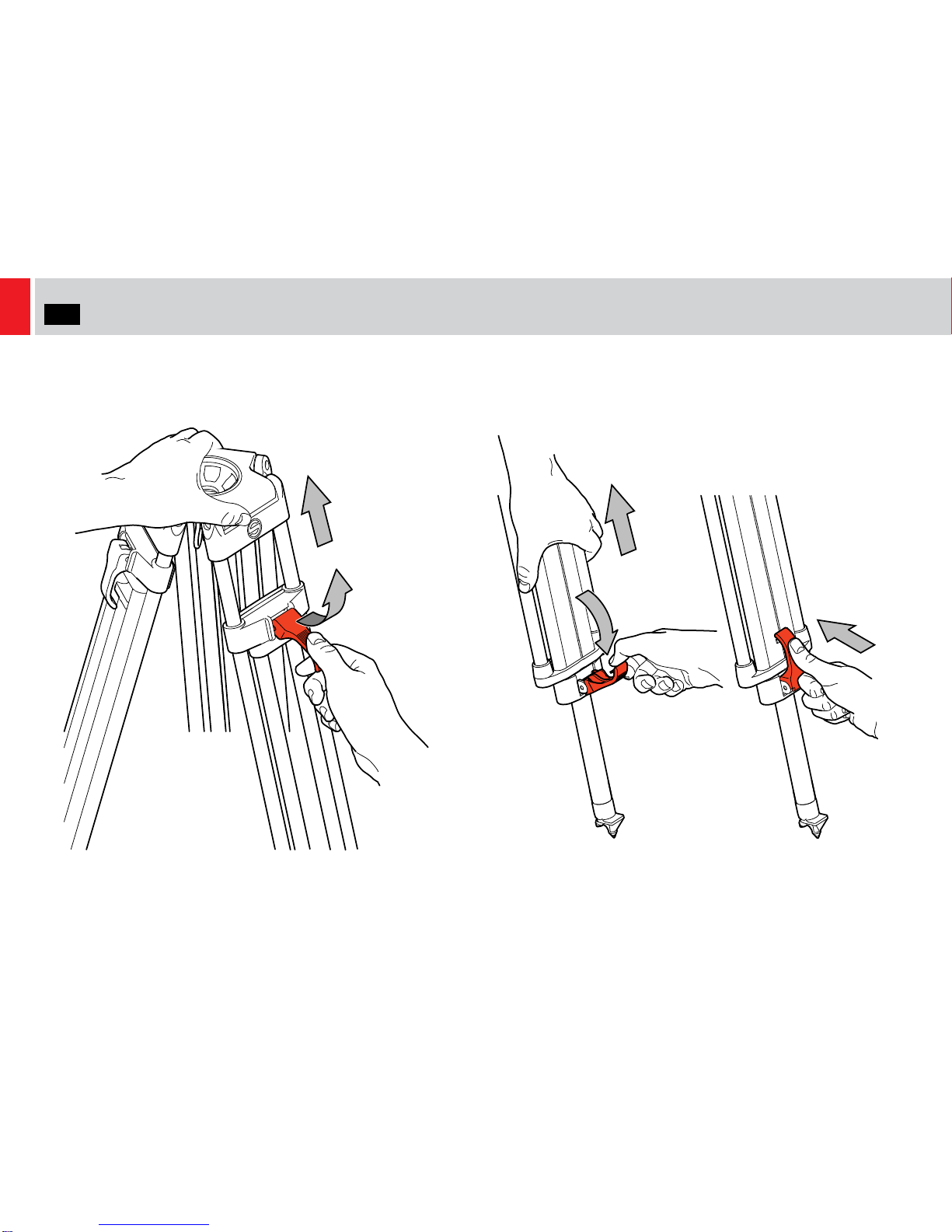

8. Extend the upper stage by lifting the clamp levers and adjusting

the height of the tripod as required. When complete, push down

the clamp levers, until they snap into the ‘locked’ position.

9. Adjust the operating height by flipping down the leg clamp levers

on the lower stage and pulling the tripod up to the desired height.

When complete, push up the lower stage clamp levers, until they

snap into the ‘locked’ position.

Assembly

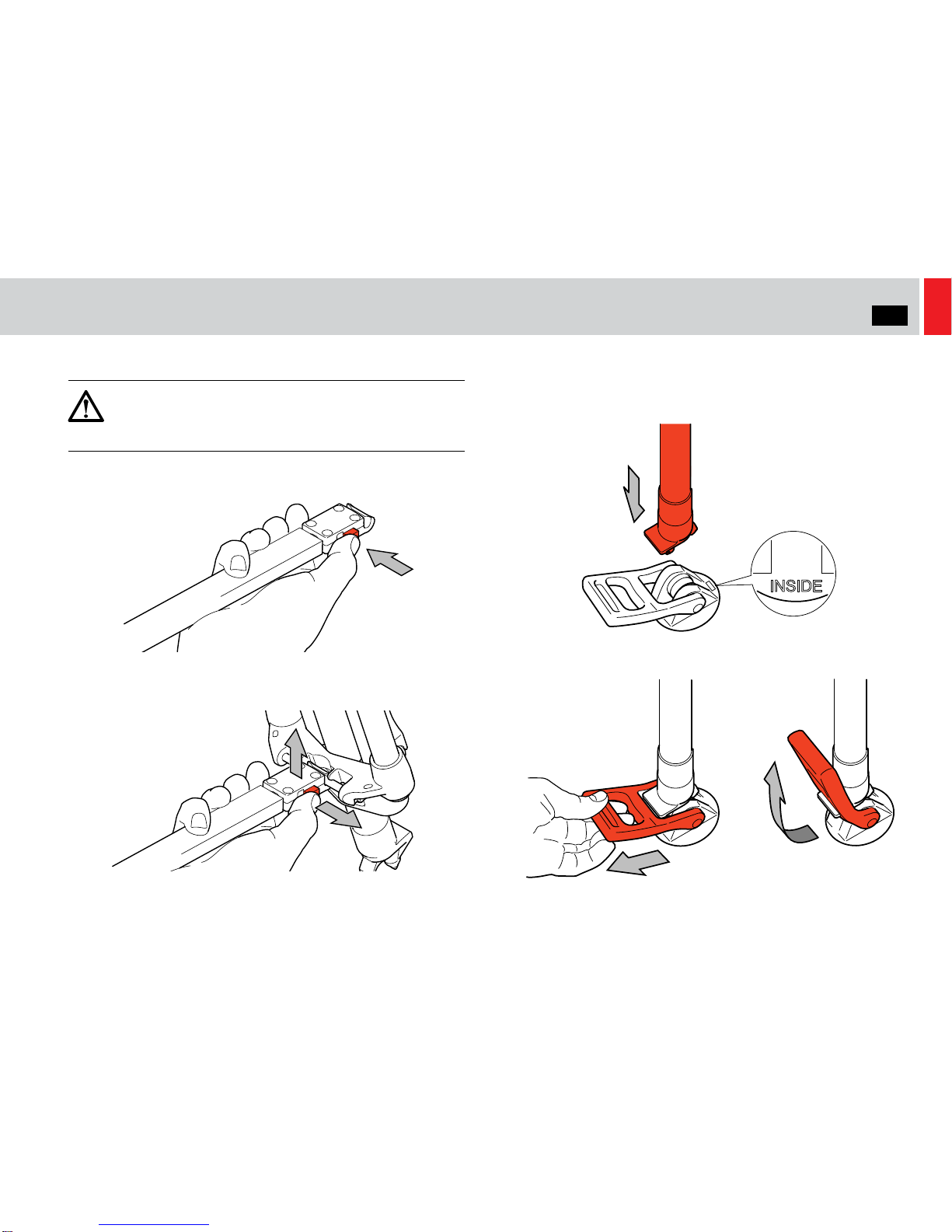

Attaching the mid-level spreader 75 HD

1. Hold each spreader arm between thumb and forefinger, then using

the other hand squeeze the red attachment button.

2. Align the spreader hook with the tripod leg from underneath and

release the red attach/release button to lock the spreader arm in

place.

Attaching the rubber feet 75

1. Place the rubber foot between the spikes. Check the markings on

the foot for orientation. The ‘INSIDE’ marking must be turned

towards the centre of the tripod.

2. Push down firmly on the leg, put your fingers through the larger

loop, and pull the rubber pull-loop over the latching nose.

CAUTION! Ensure that the red attach/release button is fully

out after attaching the spreader to the tripod. Failure to

attach the spreader correctly could cause damage to the

equipment.

Assembly

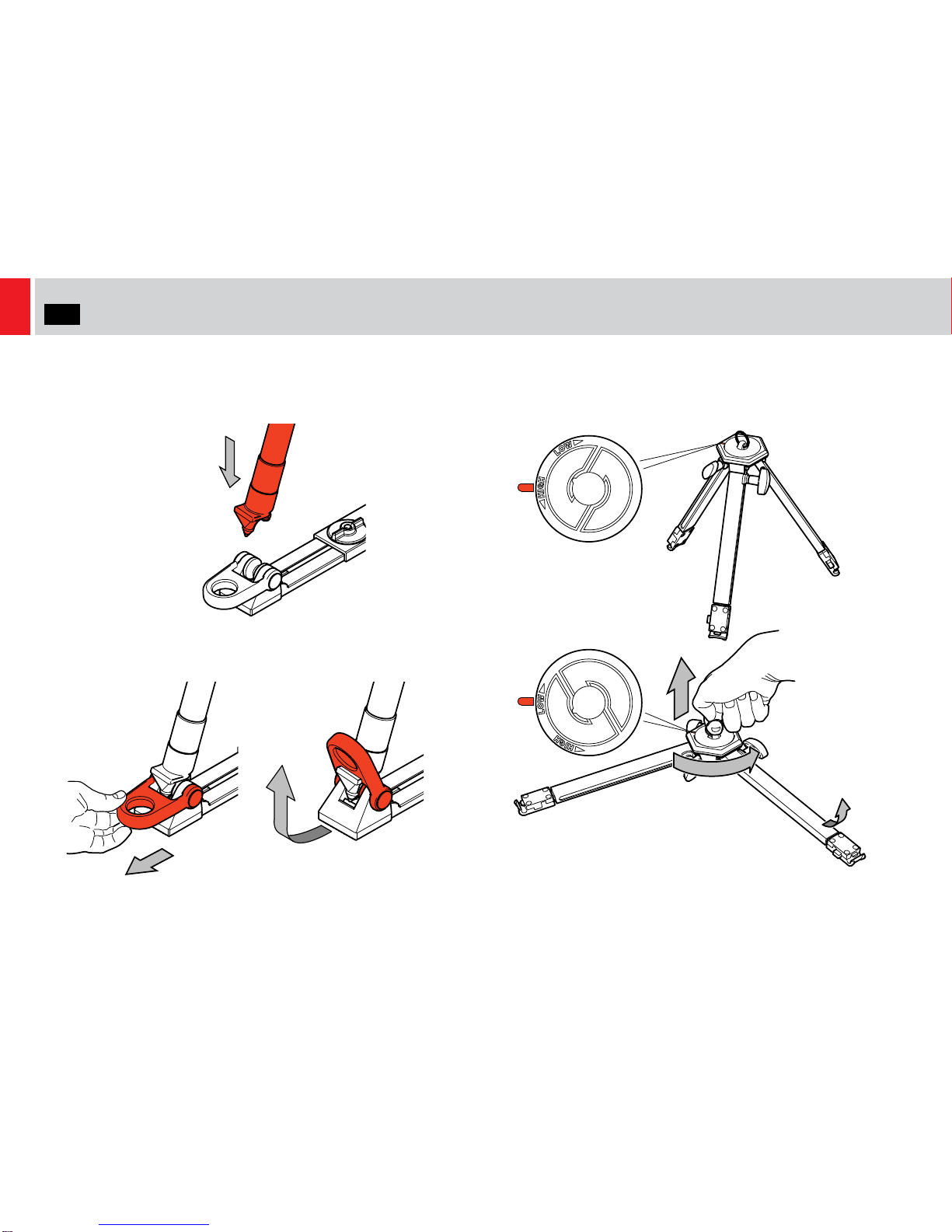

Attaching the ground spreader SP 75

1. Place the ground spreader on the floor and open out the legs.

Place the spikes of the tripod between the foot moulding on the

ground spreader.

2. Push down firmly on the leg, put your fingers through the larger

loop, and pull the rubber pull-loop over the latching nose.

Setting up the mid-level spreader 75 HD

1. Pull up the ring in the centre of the spreader. Adjust the profile

setting to either HIGH (45°) or LOW (flat) and arrest the tripod legs

in position.
