Russell Hobbs 14993 Manual de usuario

instructions

Read the instructions and keep them safe. If you pass the iron on, pass on the

instructions too. Remove all packaging, but keep it till you know the iron works.

important safeguards

Follow basic safety precautions, including:

1 The iron must only be used by or under the supervision of a responsible adult. Use

and store it out of reach of children.

2 Don’t put the iron in liquid, don’t use it in a bathroom, near water, or

outdoors.

3 Route the cable so it doesn’t overhang, and can’t be tripped over or caught.

4 Don’t iron clothing while it’s being worn – you’ll burn or scald the wearer (this is not

a joke – I’ve seen it happen).

5 Don’t touch the soleplate, and keep away from the steam coming from it.

6 Take care when emptying the iron – it may contain hot water.

7 Don’t use the iron in the vicinity of children.

8 Use the iron on a stable, level, heat-resistant surface, preferably an ironing board.

9 Don’t leave the iron unattended while plugged in, or while it’s standing on the

ironing board. It could be knocked over by you, by a child, or by a pet.

10 Unplug the iron before ﬁlling, before cleaning, and after use.

11 Don’t ﬁll the iron directly from the tap, use the jug.

12 Don’t ﬁll past max, or water may escape in use.

13 Sit the iron upright when you’re not ironing, and when you store it away.

14 Leave the iron upright to cool before cleaning.

15 Unplug the iron when not in use, before moving and before cleaning. Let it cool

down fully before cleaning and storing away.

16 Don’t ﬁt any attachment or accessory unless we supply it.

17 Keep the iron and the cable away from hotplates, hobs or burners.

18 Don’t use the iron for any purpose other than those described in these instructions.

19 Take care not to scratch the soleplate – avoid buttons, zips, etc.

20 The iron has a protective thermal fuse, which will blow if it overheats. If this happens,

the iron will stop working, and must be returned for repair.

21 Don’t use the iron if it’s dropped or damaged, or if it malfunctions or leaks.

22 If the cable is damaged, return the iron, to avoid hazard.

household use only

before using for the ﬁrst time

•Don’t worry if the iron smokes a bit at ﬁrst, it’ll stop as the element cures.

•Iron an old piece of cotton fabric, to clean the soleplate.

preparation

1 Check for textile care symbols (ijkl).

2 Iron fabrics needing low temperatures jﬁrst, then those that need medium

temperatures k, and ﬁnish with those needing high temperatures l.

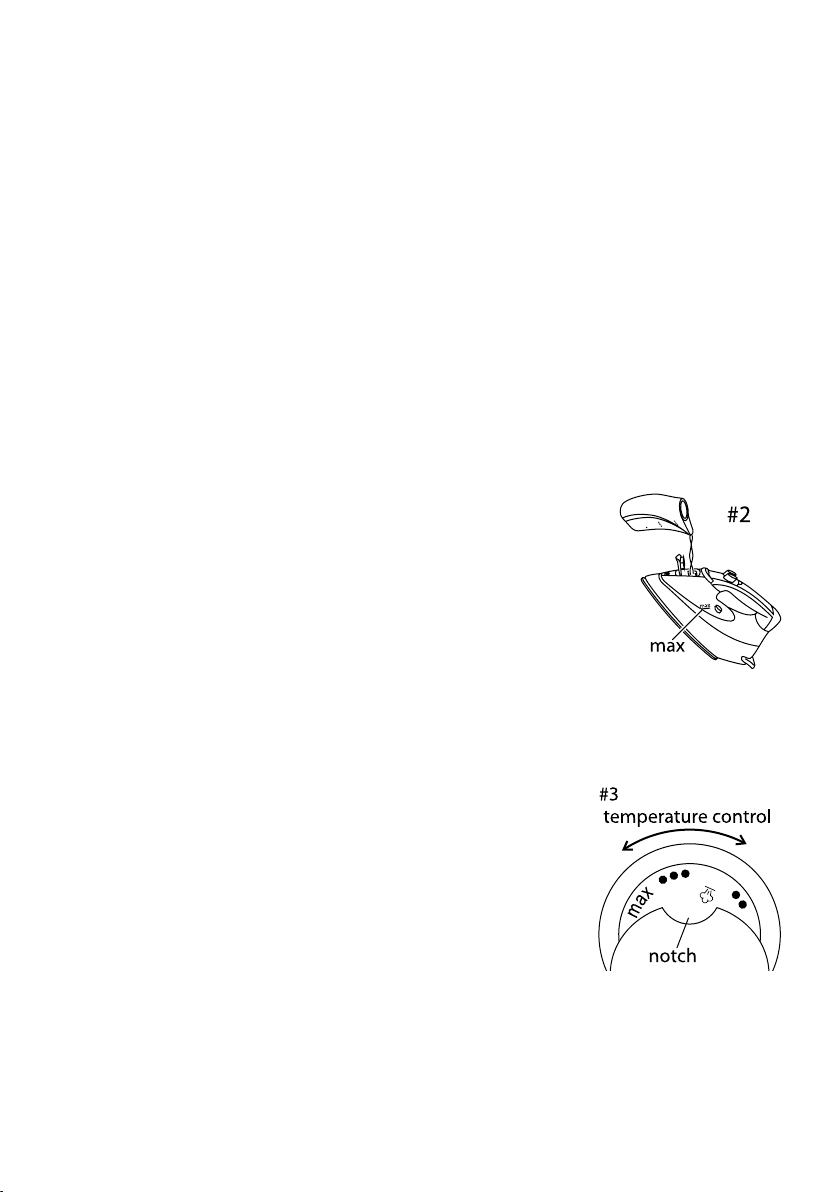

ﬁlling (#2)

3 You may use the iron with tap-water, but if you live in a hard water area, you should

use distilled water (not chemically descaled or softened water).

4 If you buy distilled water, check that it’s marketed as suitable for use in irons.

5 Unplug the iron.

6 Flip the water inlet cover open.

7 Lift the iron till the water inlet cover is about vertical.

8 Pour water from the jug into the water inlet.

9 Pour slowly, and try to pour down one side of the inlet, to allow

the air in the reservoir to escape, otherwise you’ll cause an air

lock and the water will overﬂow.

10 Don’t ﬁll past max, or water will escape in use.

11 Wipe up any spillage.

switch on

12 Sit the iron on its heel.

13 Put the plug into the power socket (switch the socket on, if it’s switchable).

14 The thermostat light will glow.

set the temperature (#3)

15 Turn the temperature control to bring the temperature you

want opposite the notch.

16 When the iron reaches the temperature you set, the

thermostat light will go out. It’ll then cycle on and oﬀ as the

thermostat operates to maintain the temperature.

temperature setting guide

label marking temperature dot setting

jcool – nylon, acrylics, polyester •

kwarm – wool, polyester mixtures ••

lhot – cotton, linen •••/max

ido not iron

,If the instructions on the fabric label diﬀer from this guide, follow the instructions

on the label.

reducing temperature

17 Reducing the temperature takes a bit longer, as the element has to lose the heat it

has built up, so be patient. It’s best to organise your ironing so that you don’t need

to reduce the temperature (“preparation” page 3, point 2).

steam ironing

18 When steam ironing, you must set the temperature control at Sor higher (#3).

19 If you don’t, you’ll get water on your clothes, not steam.

20 Check that there’s water in the reservoir.

21 The iron will adjust the amount of steam automatically.

22 Wait till the thermostat light goes out, then start ironing.

spray

,Water spotting aﬀects some fabrics. Test this on a hidden part

of the fabric.

23 Check that there’s water in the reservoir.

24 Lift the iron oﬀ the fabric.

25 Aim the spray nozzle at the fabric, and press the ?button.

26 You may initially have to press it 2 or 3 times to pump water through the system.

shot of steam

27 Don’t try to use the shot of steam function at temperatures below Son the

temperature control. At lower temperatures, you’ll only get water spotting.

28 Check that there’s water in the reservoir.

29 Lift the iron oﬀ the fabric

30 Press the Sbutton.

31 You may initially have to squeeze 2 or 3 times to pump water

through the system.

32 Leave 4 seconds between shots, to let the temperature build up.

dry ironing

33 If you want to dry iron, empty the reservoir ﬁrst, to avoid spontaneous bursts of

steam:

a) Unplug the iron.

b) Hold it over a sink or basin.

c) Flip the water inlet cover open.

caution the water may be hot.

d) Carefully, turn the iron upside down, and empty the water into

the sink/basin.

e) Wipe any spillage oﬀ the iron before use.

34 Set the temperature.

35 Wait till the thermostat light goes out, then start ironing.

vertical steaming

36 Remove wrinkles from hanging clothes, hanging curtains, and furnishing fabrics.

37 Check that there’s adequate ventilation behind the fabric, otherwise moisture may

build up, causing mildew.

38 Check that there’s nothing behind the fabric that may be damaged by the steam.

39 Check that pockets, turn-ups, and cuﬀs are empty.

40 Check that there’s water in the reservoir.

41 Turn the temperature control to bring max opposite the notch.

42 Wait till the thermostat light goes out.

43 Hold the iron close to (but not touching) the fabric.

44 Press the Sbutton (you’re using the “shot of steam” function

vertically).

45 You may have to squeeze 2 or 3 times to pump water through the

system.

46 Leave 4 seconds between shots, to let the temperature build up.

after use

47 Unplug the iron.

48 Hold it over a sink or basin.

49 Flip the water inlet cover open.

caution the water may be hot.

50 Carefully, turn the iron upside down, and empty the water into the sink/basin.

51 Sit the iron on its heel, and leave it to cool down completely.

52 When it’s cold, wipe oﬀ any moisture, and wind the cable round

the heel.

53 Store the iron on its heel, to avoid corrosion and damage to the

soleplate.

self clean

54 To prevent scale building up, use the self clean function regularly, at least monthly in

normal water areas, more often in hard water areas.

55 You’ll need a basin or a large bowl to catch the water coming out of the soleplate.

56 Fill the reservoir to the max mark.

57 Sit the iron on its heel.

58 Put the plug into the power socket (switch the socket on, if it’s switchable).

59 Turn the temperature control to bring max opposite the notch.

60 Wait till the thermostat light goes out.

61 Now hold the iron over the basin or bowl, with the soleplate down.

62 Press the self clean button, and hold it down.

63 Gently move the iron to and fro, over the basin or bowl.

caution keep clear of the escaping water and steam

64 Water and steam will wash scale and dust through the

soleplate, and into the sink.

65 When the reservoir is empty, release the self clean button.

66 Unplug the iron, and sit it on its heel to cool.

67 When it’s cold, wipe oﬀ any moisture, and wind the cable round the heel.

68 Store the iron on its heel, to avoid corrosion and damage to the soleplate.

anti-scale

69 The anti-scale agent incorporated in the iron helps prevent the build-up of scale.

70 Don’t use a descaling solution, or you’ll destroy the anti-scale agent.

cleaning

71 Unplug the iron when not in use, before moving and before cleaning. Let it cool

down fully before cleaning and storing away.

72 Wipe outer surfaces with a damp cloth. If necessary, use a little washing-up liquid.

73 Remove spots from the soleplate with a little vinegar.

74 Take care not to scratch the soleplate.

75 Don’t put the iron in water or any other liquid.

76 Don’t use harsh or abrasive cleaning agents or solvents.

550-253

connection

The product must be earthed. It has a 13A BS1362 fuse in a 13A BS1363

plug. To replace the plug, ﬁt the green/yellow wire to Eor E, the blue wire

to N, and the brown wire to L. Fit the cord grip. If in doubt, call an

electrician. Don’t use a non-rewireable plug unless the fuse cover is in

place. If you remove the plug, dispose of it.

wheelie bin symbol

To avoid environmental and health problems due to hazardous substances in

electrical and electronic goods, appliances marked with this symbol mustn’t be

disposed of with unsorted municipal waste, but recovered, reused, or recycled.

service

If you ring Customer Service, please have the Model No. to hand, as we won’t be able

to help you without it. It’s on the rating plate (usually underneath the product).

The product isn’t user-serviceable. If it’s not working, read the instructions, check the

plug fuse and main fuse/circuit breaker. If it’s still not working, consult your retailer.

If that doesn’t solve the problem – ring Customer Service – they may be able to oﬀer

technical advice.

If they advise you to return the product to us, pack it carefully, include a note with your

name, address, day phone number, and what’s wrong. If under guarantee, say where

and when purchased, and include proof of purchase (till receipt). Send it to:

Customer Service, Salton Europe Ltd, Failsworth, Manchester M35 0HS

email: serv[email protected]

telephone: 0845 658 9700 (local rate number)

guarantee

Defects aﬀecting product functionality appearing within one year of purchase will be

corrected by replacement or repair provided the product is used and maintained in

accordance with the instructions. Your statutory rights are not aﬀected.

Documentation, packaging, and product speciﬁcations may change without notice.

online

www.russellhobbs.co.uk for more products

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Hierro de Russell Hobbs

Russell Hobbs

Russell Hobbs RHSIR 127V Manual de usuario

Russell Hobbs

Russell Hobbs RHC800 Manual de usuario

Russell Hobbs

Russell Hobbs RHI226 Guía de instalación

Russell Hobbs

Russell Hobbs Steam Power 24420-56 Manual de usuario

Russell Hobbs

Russell Hobbs Light and Easy Brights 24840-56 Manual de usuario

Russell Hobbs

Russell Hobbs 25600 Manual de usuario

Russell Hobbs

Russell Hobbs 14804 Manual de usuario

Russell Hobbs

Russell Hobbs EASY Manual de usuario

Russell Hobbs

Russell Hobbs RHI100 Manual de usuario

Russell Hobbs

Russell Hobbs RHST100 Manual de usuario

Russell Hobbs

Russell Hobbs Accusteam Plus RHC906 Guía de instalación

Russell Hobbs

Russell Hobbs 14773 Manual de usuario

Russell Hobbs

Russell Hobbs 24440-56 Manual de usuario

Russell Hobbs

Russell Hobbs 12290 Guía de instalación

Russell Hobbs

Russell Hobbs Easy 20330-56 Manual de usuario

Russell Hobbs

Russell Hobbs Steam Iron Manual de usuario

Russell Hobbs

Russell Hobbs 24440 Manual de usuario

Russell Hobbs

Russell Hobbs 15000 Manual de usuario

Russell Hobbs

Russell Hobbs 14863 Manual de usuario

Russell Hobbs

Russell Hobbs 24430-56 Manual de usuario

Russell Hobbs

Russell Hobbs RHI 102 Guía de instalación

Russell Hobbs

Russell Hobbs Steam Genie Manual de usuario

Russell Hobbs

Russell Hobbs 23300 Manual de usuario

Russell Hobbs

Russell Hobbs 23972ZA Guía de instalación

Manuales populares de Hierro de otras marcas

Clatronic

Clatronic DB 3703 Manual de usuario

TEFAL

TEFAL FV4093Z0 Manual de usuario

Gorenje

Gorenje SIH 2200 BS Manual de usuario

Philips

Philips GC6012 Manual de usuario

Bosch

Bosch 2 Series Manual de usuario

Riffel

Riffel Catena KB-819 Manual de usuario

Texi

Texi Hestia Manual de usuario

Maxwell

Maxwell MW-3010 Manual de usuario

TREVIDEA

TREVIDEA Girmi ST60 Manual de usuario

Philips

Philips HI5914/30 Manual de usuario

Primula

Primula Vapormat Manual de usuario

Magio

Magio MG-541 Manual de usuario

Scarlett

Scarlett SC-1334S Manual de usuario

Bosch

Bosch Sensixx B22L Manual de usuario

Philips

Philips GC651 Manual de usuario

Vitek

Vitek VT-1247 VT Manual de usuario

Cleanmaxx

Cleanmaxx 3397 Manual de usuario

Philips

Philips GC800 Manual de usuario
