INSTRUCTIONS AND WARRANTY

MODEL NO.12290

RUSSELL HOBBS QUICK FILL IRON

Congratulations on purchasing our Russell Hobbs Quick Fill Iron. Each unit is

manufactured to ensure safety and reliability. Before using this appliance for the first

time, please read the instruction manual carefully and keep it for future reference.

IMPORTANT SAFEGUARDS

When using any electrical appliance, basic safety precautions should always be followed

including the following:

1. Please read the instructions carefully before using any appliance.

2. Always ensure that the voltage on the rating label corresponds to the mains

voltage in your home.

3. Incorrect operation and improper use can damage the appliance and cause injury

to the user.

4. The appliance is intended for household use only. Commercial use invalids the

warranty and the supplier can not be held responsible for injury or damage

caused when using the appliance for any other purpose than that intended.

5. Avoid any contact with moving parts.

6. This appliance is not intended for use by persons (including children) with

reduced physical, sensory or mental capabilities, or lack of experience and

knowledge, unless they have been given supervision or instruction concerning

use of the appliance by a person responsible for their safety.

7. Children should be supervised to ensure that they do not play with the appliance.

8. Check the power cord and plug regularly for any damage. If the cord or the plug

is damaged, it must be replaced by the manufacturer or a qualified person in

order to avoid an electrical hazard.

9. Do not use the appliance if it has been dropped or damaged in any way. In case

of damage, take the unit in for examination and/or repair by an authorised service

agent.

10. To reduce the risk of electric shock, do not immerse or expose the motor

assembly, plug or the power cord to water or any other liquid.

11. Never immerse the unit in water or any other liquid for cleaning purposes.

12. Remove the plug from the socket by gripping the plug. Do not pull on the cord to

disconnect the appliance from the mains. Always unplug the unit when not in

use, before cleaning or when adding or removing parts.

13. The use of accessory attachments that are not recommended or supplied by the

manufacturer may result in injuries, fire or electric shock.

14. A short cord is provided to reduce the hazards resulting from becoming

entangled in or tripping over a longer cord.

15. Do not let the cord hang over the edge of a table or counter. Ensure that the cord

is not in a position where it can be pulled on inadvertently.

16. Do not allow the cord to touch hot surfaces and do not place on or near a hot gas

or electric burner or in a heated oven.

17. Do not use the appliance on a gas or electric cooking top or over or near an open

flame.

18. Use of an extension cord with this appliance is not recommended. However, if it

is necessary to use an extension lead, ensure that the lead is suited to the power

consumption of the appliance to avoid overheating of the extension cord,

appliance or plug point. Do not place the extension cord in a position where it can

be pulled on by children or animals or tripped over.

19. This appliance is not suitable for outdoor use. Do not use this appliance for

anything other than its intended use.

20. DO NOT carry the appliance by the power cord.

21. Do not leave this appliance unattended during use. Always unplug the unit when

not in use or before cleaning.

22. Always operate the appliance on a smooth, even, stable surface. Do not place

the unit on a hot surface.

23. Ensure that the switch is in the “Off” position after each use.

24. The manufacturer does not accept responsibility for any damage or injury caused

by improper or incorrect use, or for repairs carried out by unauthorised

personnel.

25. In case of technical problems, switch off the machine and do not attempt to repair

it yourself. Return the appliance to an authorised service facility for examination,

adjustment or repair. Always insist on the use of original spare parts. Failure to

comply with the above mentioned pre-cautions and instructions, could affect the

safe operation of this machine.

PARTS DIAGRAM

1. Burst of steam Button

2. Spray Button

3. Steam Control/Self-Cleaning Knob

4. Spray Nozzle

5. Soleplate

6. Temperature Dial Pointer

7. Temperature Dial and Pilot Light

8. Heel

9. Water inlet Cover

OPERATING INSTRUCTIONS

READ THE GARMENT LABELS AND FOLLOW THE MANUFACTURER‟S IRONING

INSTRUCTIONS THAT ARE OFTEN SHOWN BY SYMBOLS SIMILAR TO THE

FOLLOWING:

Temperature Control Setting

.Acetate

. Elastane

. Polyamide

. Polypropylene

.Polyester

. Silk

. Triacetate

. Viscose

. Wool

. Cotton

. Linen

FILL THE IRON WITH WATER:

Disconnect the iron from the mains supply outlet.

Move the Steam Control Knob to position.

Open the water inlet cover as in Fig2.

Hold the Iron with the heel uppermost and pour water up to the maximum level

as in Fig3.

Close the water inlet cover and wipe up any spillages on Iron.

NOTE: For the best results, it is advisable to use de-mineralized water or distilled

water.

Do not use chemically de-scaled water or any other liquids.

USING YOUR IRON FOR THE FIRST TIME

Remove any protective films or stickers from the sole plate and the iron body.

Unwind and straighten the power cord.

Fill the iron as described in the section of Fill the iron with water.

Connect the iron to a suitable mains supply outlet; the pilot light will glow for a

second then it will switch off.

Turn the temperature dial in a clockwise direction to the 'MAX' position; Pilot light

will glow to indicate that the iron is heating up.

FIGURE 2

FIGURE 3

Pilot light will switch off, when the required temperature has been reached.

Turn the Steam Control/Self-Cleaning Knob to position; steam will start to

come out from the vents on the sole plate.

Begin first time ironing with an old towel.

When the water tank is empty and no more steam can be produced; the

preparation work is complete. The iron is ready for proper use.

USING SPRAY FUNCTION

This function can be used at any time and it does not affect other functions

Fill the iron as described in the section of Filling the iron with water

Aim the nozzle to the garment.

Press the Spray Button.

NOTE: It may be necessary to press the spray button a few times to start the

function.

DRY IRONING

Connect the iron with a suitable mains supply outlet, pilot light will glow for a

second then switch off.

Move the steam control knob to

Turn the temperature dial in a clockwise direction, select ‘’ (1 dot), ‘’ (2 dots)

or '’ (3 dots) or to MAX position according to the garment label

recommendations.

Pilot light will glow to indicate that the iron is heating up.

When the required temperature has been reached, the pilot light will switch off.

The iron is now ready to use.

After use, make sure to turn the temperature dial anti-clockwise to the „MIN‟

position, the iron is then switched off.

Disconnect the iron from the mains supply outlet.

When the iron gets cool completely, store it vertically in a safe place.

STEAM IRONING

Fill the iron as described in the section of How to Fill Water.

Set the Steam control knob to .

Connect the iron to a suitable mains supply outlet, the pilot light will glow for a

second then switch off.

Turn the temperature dial in a clockwise direction to „’ (3 dots) or 'MAX'

setting (Do not use 1 dot or 2 dots setting for steam ironing).

Pilot light will glow to indicate the iron is heating up.

Pilot light will switch off when the required temperature has been reached.

The iron is now ready for use.

Rotate the Steam Control Knob backward for more steam, rotate forward for less

steam.

Turn the temperature dial in an anti-clockwise direction to „MIN‟; the iron is

switched off.

Disconnect the iron from mains supply outlet.

After every use make sure to drain the iron of water.

BURST OF STEAM in HORIZONTAL POSITION

This function provides extra amount of steam to remove stubborn wrinkles.

Fill the iron as described in the section of filling iron with water.

Connect the iron to a suitable mains supply outlet, pilot light will glow for a

second then switch off.

Turn the Temperature Dial to „’ (3-dot) or MAX‟ position.

Pilot light will glow to indicate the iron is heating up.

Pilot light will switch off when the required temperature is reached.

The iron is now ready for use.

Press the Burst of Steam Button.

Steam will penetrate into the garment removing the wrinkles.

Wait for a few seconds before pressing the Burst of Steam Button again when

there are stubborn wrinkles.

NOTE: It may be necessary to press the burst of steam button a few times to

start this function.

For optimum steam quality, do not operate the Burst Of Steam more than three

times in succession

BURST OF STEAM in VERTICAL POSITION

Warning: Do not apply steam on any clothes or fabrics that are being worn by human or

pets. Temperature of steam is very high.

This function provides extra amount of steam to remove wrinkles on delicate

garments in a hanging position, hanging curtains, or other hanging fabrics.

Fill the iron as described in the section of How to Fill Water.

Connect the iron to a suitable mains supply outlet; pilot light will glow for a

second then switch off.

Turn the Temperature Dial to „’ (3-dot)‟ or 'MAX' position.

Pilot light will glow to indicate the iron is heating up or cooling down.

Pilot light goes off when the required temperature has been reached.

The iron is now ready for use.

Hold the iron between 15 to 30 centimeters away from the garment.

Press the Burst of Steam Button once

Steam will penetrate into the garment removing the wrinkles.

Wait for a few seconds before pressing the Burst of Steam Button again.

NOTE: It may be necessary to press the burst of steam button a few times to

start this function. For optimum steam quality, do not operate the Burst of Steam

more than three times in succession.

FIGURE 7

SELF-CLEANING

This function removes the scales and minerals built up in the Steam Chamber.

The iron will remain in the best condition if this function is performed at least

once a month or more regularly depending on the hardness of the water used.

Fill the iron as described in the section of How to Fill Water;

Fill the water tank up to half.

Set the Steam control knob to .

Place the iron on a surface in upright standing position.

Connect the iron to mains supply outlet, pilot light will glow for a second

then switches off.

Turn the Temperature Dial in clockwise direction to 'MAX' position.

Pilot light will glow to indicate that the iron is heating up.

Pilot light will go off when the required temperature has been reached.

Wait for one more cycle; pilot light will glow and switch off.

Turn the Temperature Dial in anti-clockwise direction to „MIN‟.

Disconnect the iron from mains supply outlet.

Hold the iron horizontally over a sink.

Rotate and hold the Steam Control/Self-Cleaning Knob to „ ‟ (Descaling)

position.

Steam and boiling hot water will emit from the holes on the sole plate which

contains scales and minerals that deposited in Steam Chamber in previous uses.

Gently move the iron back and forth until the water tank is empty.

When Self-Cleaning is completed, return the Steam Control/Self-Cleaning Knob

to position.

Rest your steam iron back on its heel rest and allow to fully cool down.

Wipe the soleplate with a cold damp cloth.

Self-Cleaning Position

ANTI-DRIP

Anti-drip system, which is designed to prevent water escaping from the

soleplate when the iron is too cold automatically.

During use, the anti-drip system may emit a loud clicking sound, particularly

during heat-up or whilst cooling down. This is perfectly normal and indicates

that the system is functioning correctly.

BUILT IN ANTI-SCALE SYSTEM

The built-in anti-scale cartridge is designed to reduce the build-up of lime scale

which occurs during steam ironing. This will prolong the working life of your iron

NOTE: The anti-scale cartridge will not completely stop the natural process of

lime scale build-up.

AUTO SHUT OFF FUNCTION:

The Auto shut-off feature will operate automatically when the iron is unattended but is

still connected to the mains supply outlet.

Auto shut-off in horizontal

oThe iron will switch off automatically at around 30 seconds if the iron is

immobile in the ironing position (horizontal).

oPilot light blinks, indicating the iron is in Auto-Off mode

oSimply moving the iron, will switch the iron ON again.

Auto shut-off in vertical

oThe iron will switch off automatically at around 8 minutes if the iron is left on

its heel rest position(vertically).

oPilot light blinks, indicating that the iron is in Auto-Off mode

oSimply moving the iron, will switch the iron back ON.

oNOTE: The iron will take about 60 seconds to reach its previous soleplate

temperature.

CLEANING AND MAINTENANCE

This appliance is for household use only and is not user-serviceable.

Do not open or change any parts by yourself. Please refer to a qualified electrical

service department or return to the supplier if servicing is necessary.

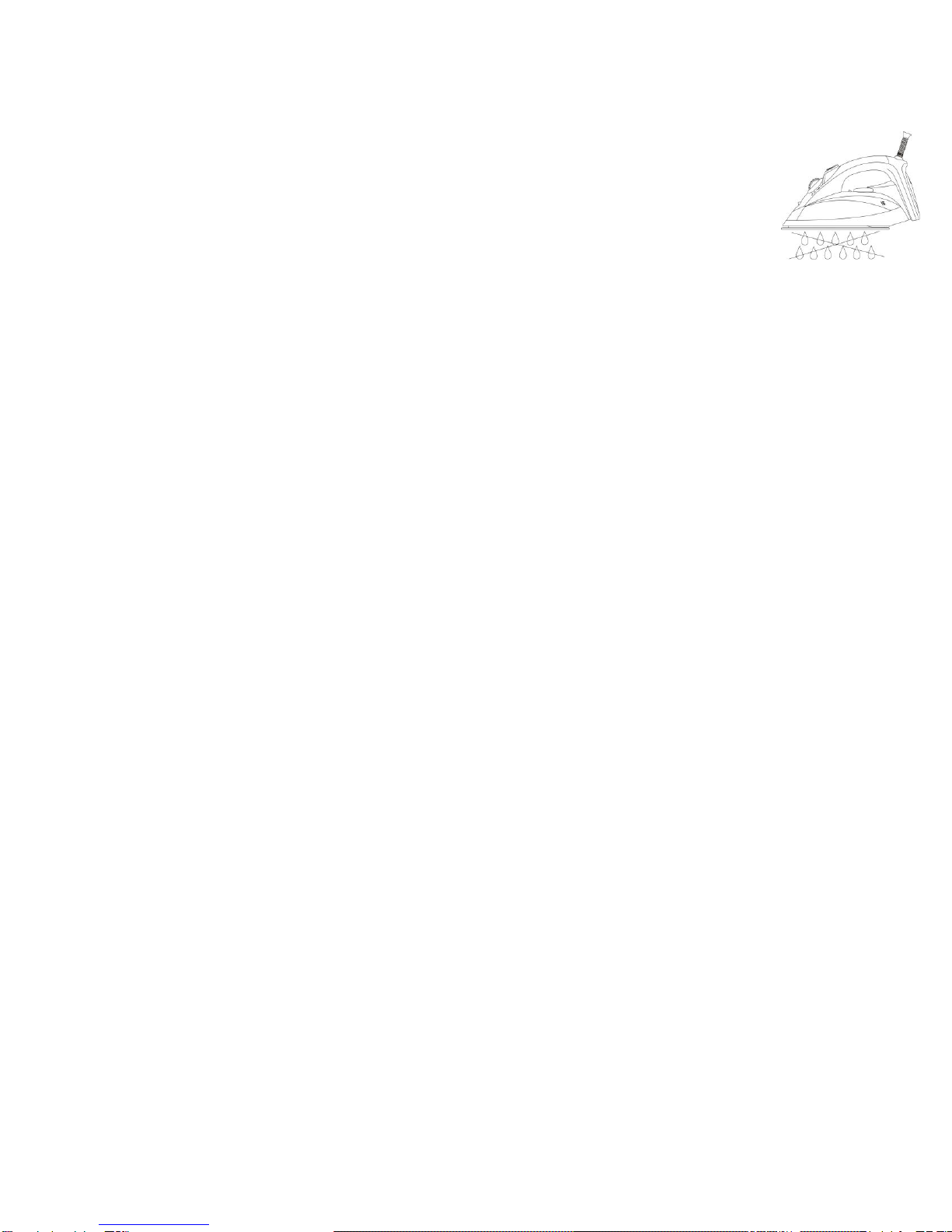

FIGURE 8

Tabla de contenidos

Otros manuales de Hierro de Russell Hobbs

Russell Hobbs

Russell Hobbs RHI 102 Guía de instalación

Russell Hobbs

Russell Hobbs Slipstream RHC903 Hoja de información del producto

Russell Hobbs

Russell Hobbs 24460-56 Manual de usuario

Russell Hobbs

Russell Hobbs Power Steam 18464 Manual de usuario

Russell Hobbs

Russell Hobbs RHI2000 Guía

Russell Hobbs

Russell Hobbs 26020-56 Manual de usuario

Russell Hobbs

Russell Hobbs RHC280 Guía de instalación

Russell Hobbs

Russell Hobbs Supreme Steam 23393 Manual de usuario

Russell Hobbs

Russell Hobbs 22520-56 Manual de usuario

Russell Hobbs

Russell Hobbs 24440 Manual de usuario

Russell Hobbs

Russell Hobbs 24420-56 Manual de usuario

Russell Hobbs

Russell Hobbs 23590-56 Manual de usuario

Russell Hobbs

Russell Hobbs 19840AU Manual de instrucciones de instalación

Russell Hobbs

Russell Hobbs SUPREME RHC470 Guía de instalación

Russell Hobbs

Russell Hobbs RHC300 Guía de instalación

Russell Hobbs

Russell Hobbs Diamond Elite Manual de usuario

Russell Hobbs

Russell Hobbs EASY STORE PRO RHC1100 Guía de instalación

Russell Hobbs

Russell Hobbs RHIS258 Guía de instalación

Russell Hobbs

Russell Hobbs steam glide Manual de usuario

Russell Hobbs

Russell Hobbs STEAMGLIDE ULTRA RHC940 Guía de instalación

Russell Hobbs

Russell Hobbs Easy Store Manual de usuario

Russell Hobbs

Russell Hobbs 14993 Manual de usuario

Russell Hobbs

Russell Hobbs Turbo Steam RHC925 Manual de instrucciones de instalación

Russell Hobbs

Russell Hobbs 22520 Manual de usuario

Manuales populares de Hierro de otras marcas

Clatronic

Clatronic DB 3703 Manual de usuario

TEFAL

TEFAL FV4093Z0 Manual de usuario

Gorenje

Gorenje SIH 2200 BS Manual de usuario

Philips

Philips GC6012 Manual de usuario

Bosch

Bosch 2 Series Manual de usuario

Riffel

Riffel Catena KB-819 Manual de usuario

Texi

Texi Hestia Manual de usuario

Maxwell

Maxwell MW-3010 Manual de usuario

TREVIDEA

TREVIDEA Girmi ST60 Manual de usuario

Philips

Philips HI5914/30 Manual de usuario

Primula

Primula Vapormat Manual de usuario

Magio

Magio MG-541 Manual de usuario

Scarlett

Scarlett SC-1334S Manual de usuario

Bosch

Bosch Sensixx B22L Manual de usuario

Philips

Philips GC651 Manual de usuario

Vitek

Vitek VT-1247 VT Manual de usuario

Cleanmaxx

Cleanmaxx 3397 Manual de usuario

Philips

Philips GC800 Manual de usuario
