Ruijie RG-AP680-I Access Point

Hardware Installation and Reference Guide

Ruijie Networks reserves all copyrights of this document. Any reproduction, excerption, backup, modification,

transmission, translation or commercial use of this document or any portion of this document, in any form or by any means,

without the prior written consent of Ruijie Networks is prohibited.

Exemption statement

This document is provided “as is”. The contents of this document are subject to change without any notice. Please obtain

the latest information through the Ruijie Networks website. Ruijie Networks endeavors to ensure content accuracy and will

not shoulder any responsibility for losses and damages caused due to content omissions, inaccuracies or errors.

Preface

Thank you for using our products. This manual will guide you through the installation of the access point.

Scope

It is intended for the users who have some experience in installing and maintaining network hardware. At the same time, it

is assumed that the users are already familiar with the related terms and concepts.

Obtaining Technical Assistance

Ruijie Networks Website: https://www.ruijienetworks.com/

Technical Support Website: https://ruijienetworks.com/support

Case Portal: https://caseportal.ruijienetworks.com

Community: https://community.ruijienetworks.com

Technical Support Email: [email protected]

Skype: [email protected]

Related Documents

Documents

Description

Configuration Guide

Describes network protocols and related mechanisms that supported by the

product, with configuration examples.

Command Reference

Describes the related configuration commands, including command modes,

parameter descriptions, usage guides, and related examples.

Documentation Conventions

The symbols used in this document are described as below:

This symbol brings your attention to some helpful suggestions and references.

This symbol means that you must be extremely careful not to do some things that may damage the device or cause

data loss.

Hardware Installation and Reference Guide Product Overview

1 Product Overview

The RG-AP680-I is a wireless access point (AP) designed by Ruijie for next-generation high-speed wireless LANs.

Adhering to the latest 802.11ax standard, the AP delivers an access rate of up to 2400 Mbps+1150 Mbps and 867 Mbps

when using the wireless bridge. It features security, radio frequency (RF) control, mobile access, Quality of Service (QoS),

and seamless roaming. In addition, it can be managed by RG-WS series wireless access controllers (ACs) to implement

wireless data forwarding, security, and access control.

The IP68 design adapts to inclement outdoor environments such as the cold and humidity. This substantially simplifies

installation and maintenance. The RG-AP680-I offers flexible antenna switching and full coverage for various outdoor

situations. Moreover, multi-hop and point-to-multi-points bridging enhances the deployment. The AP fed by IEEE

802.3at-compliant PoE accommodates various monitors and receives real-time monitoring information. It is perfectly

suited for such sites as campuses, city blocks, and plazas.

1.1 Technical Specifications

Table 1-1 RG-AP680-I Technical Specifications

Model

RG-AP680-I

Dimensions

(L×W×H)

Φ310mm ×120mm

RF design

three radios. the three RF port can switch between 2.4 GHz and 5 GHz bands.

Radio1: 2.4 GHz, 4 streams: 4x4

Radio2: 5 GHz, 4 streams: 4x4

Radio3:

2.4 GHz, 1 streams: 1x1

5 GHz, 2 streams: 2x2

Maximum Transmit

Rate

Radio1：2.4GHz，1.150Gbps

Radio2：5GHz，2.400Gbps

Radio3：2.4GHz/5GHz，150Mbps/867Mbps

Maximum access rate of the AP

2.4GHz+5GHz+5GHz：4.417Gbps

2.4GHz+5GHz+2.4GHz：3.7Gbps

Operating

Frequency

802.11b/g/n/ax: 2.4 - 2.483GHz

802.11a/n/ac/ax: 5.47 - 5.725GHz，5.725 - 5.850GHz

802.11a/n/ac: 5.150 - 5.350GHz

(Country-Specific)

Maximum Transmit

Power

23+6 dBm (Adjustable, country-specific)

Antenna Type

Internal smart antenna, supporting internal and external antenna switchover

Antenna Gain

2.4 GHz: 6dBi

5 GHz: 6dBi

BLE

Support

Support Bluetooth Console

Hardware Installation and Reference Guide Product Overview

GPS

Support

Ports

One 100/1000/2.5 G/5 G/10 G Base-T uplink Ethernet port

One SFP+ uplink port

One Console port

One multi-extend port (Extendable to two 10/100/1000 Base-T ports and one DC port)

Fat/Fit Mode

Switching

Supported

LED

One system status LED

Three WDS RSSI LEDs

Power Supply

Adapter: 40 V to 57 V DC (The RG-Cab-26APPD cable is required.)

PoE: IEEE 802.3af/at/3bt

PoE Output

Support IoT modules requiring input power of 12V/0.25A

Power Consumption

DC/802.3bt: < 55W (Full load)

802.3at: < 25.5W (PoE output and third-radio bridging are disabled. The third radio fails to

work.)

802.3af: < 12.95W (The device can work with all radios disabled, broadcasting no signal.)

Temperature

Operating: -40°C to 65°C (-40°F to 149°F)

Storage: -40°C to 85°C (-40°F to 185°F)

Humidity

Operating: 0% to 100% (non-condensing)

Storage: 0% to 100% (non-condensing)

IP Rating

IP68

Weight

≤4.5kg (9.92 lbs)

Safety Standards

GB 4943.1-2011, EN 60601-1-2 (medical care), UL/CSA 60950-1, EN/IEC 60950-1, EN/IEC

60950-22

EMC Standards

GB/T 9254.1-2021, EN 301 489, EN55022, FCC Part15, RSS-210

Table 1-2 LEDs of RG-AP680-I

LED

State

Meaning

System status

Blinking green

The system is booting.

Solid green

Initialization in progress or proper operation.

Blinking orange

Initialization is complete, but no CAPWAP connection.

Blinking red

The uplink port is disconnected.

WDS RSSI (3 LEDs in

total; available when

bridging is enabled)

1 solid on

< -70dBm

2 solid on

-70 to -50dBm

3 solid on

> -50dBm

Table 1-3 Reset Button of RG-AP680-I

Button

State

Meaning

Reset button

When powered on,

pressed for less than 2s

Resets the AP.

When powered on,

pressed for more than 3s

Restores the factory default settings.

Hardware Installation and Reference Guide Product Overview

1.2 Product Appearance

The AP provides one 10GETH1/PoE port (RJ45), one multi-extend port (aviation port), one SFP+ port, and one Console

port (RJ45), and two N-type antenna connectors.

Figure 1-1 Product Appearance of the RG-AP680-I

1.3 Bottom View

Figure 1-2 RG-AP680-I Bottom View

Note:

1. 5GHz antenna connector 2

2. Console port and reset button

3. 5GHz antenna connector 1

4. 100/1000/2.5G/5G/10G Base-T auto-sensing Ethernet/PoE port

5. Multi-extend port

6. SFP+ port

Hardware Installation and Reference Guide Product Overview

1.4 Power Supply

The AP supports 802.3af/at/bt PoE power supply. The multi-extend port can be extended to two 10/100/1000Base-T ports

and one DC port. One of the 10/100/1000Base-T ports supports 802.3af/at/bt PoE power input, and the other supports

PoE output of 12V/0.25A.

Please use an RG-Cab-26APPD cable for the connection of the multi-extend port. It is not supplied in the shipping

box. If needed, it should be purchased individually.

Hardware Installation and Reference Guide Preparing for Installation

2 Preparing for Installation

To prevent device damage and physical injury, please read carefully the safety recommendations described in this

chapter.

Recommendations do not cover all possible hazardous situations.

2.1 Grounding and Lightning Protection

Ensure that both the power-receiving end and the power-supplying end are well-grounded.

Keep the grounding connection within 30 m, and use a 40mm x 4mm or 50mm x 5mm ground bar of hot-dip

zinc-coated flat steel sheet.

When the connection cable between the main grounding conductor and local equipotential earthing terminal board

(LEB) on each floor is shorter than 2 meters, use a stranded copper wire with a sectional area not less than 1.318

mm2 (16 AWG) for the connection cable.

Use a shielded network cable if possible, ensure that devices connected to both ends of the shielded network cable

are reliably grounded, and make sure that the sheath of the shielded network cable is also grounded if possible. If no

shielded network cable is available, wire the network cable through a steel pipe and bury the steel pipe for lead-in,

and properly ground both ends of the steel pipe.

No additional lightning protector is required as a high-profile lightning protector is built in the AP680-I, and the

antenna port supports more than 2kV lightening protection and the power port support 6kV lightning protection. If a

lightning protector of a higher profile is available, configure the lightning protector optionally. Before the configuration,

connect the lightning protector to the ground cable.

Use a power cable with the PE end to ground the power supply (AC). Ensure that the PE end is properly grounded,

with a ground resistance less than 5 ohms. Do not use a two-wire power cable with only the live (L) wire and naught

(N) wire. Do not connect the N wire to the protection ground cable of other communication devices, and ensure that

the L wire and N wire are properly connected.

Ensure that the ground resistance is less than 5 ohms. In areas with high soil resistivity, reduce the soil resistivity via

measures such as spreading resistivity reduction mixture around the grounding conductor.

2.2 Preparing the Installation Site

Do not expose the AP to high temperature, dust, or harmful gases.

Do not install the AP in an area prone to fire or explosions.

Keep the AP away from EMI sources such as large radar stations, radio stations, and substations.

Do not subject the AP to unstable voltage, vibration, and noises.

Keep the AP at least 500 meters away from the ocean and do not face it towards the sea breeze.

The installation site should be protected from water and flooding, seepage, dripping, or condensation.

Hardware Installation and Reference Guide Preparing for Installation

The installation site should be selected according to network planning, communications equipment features and

considerations such as climate, hydrology, geology, earthquake, electric power, and transportation.

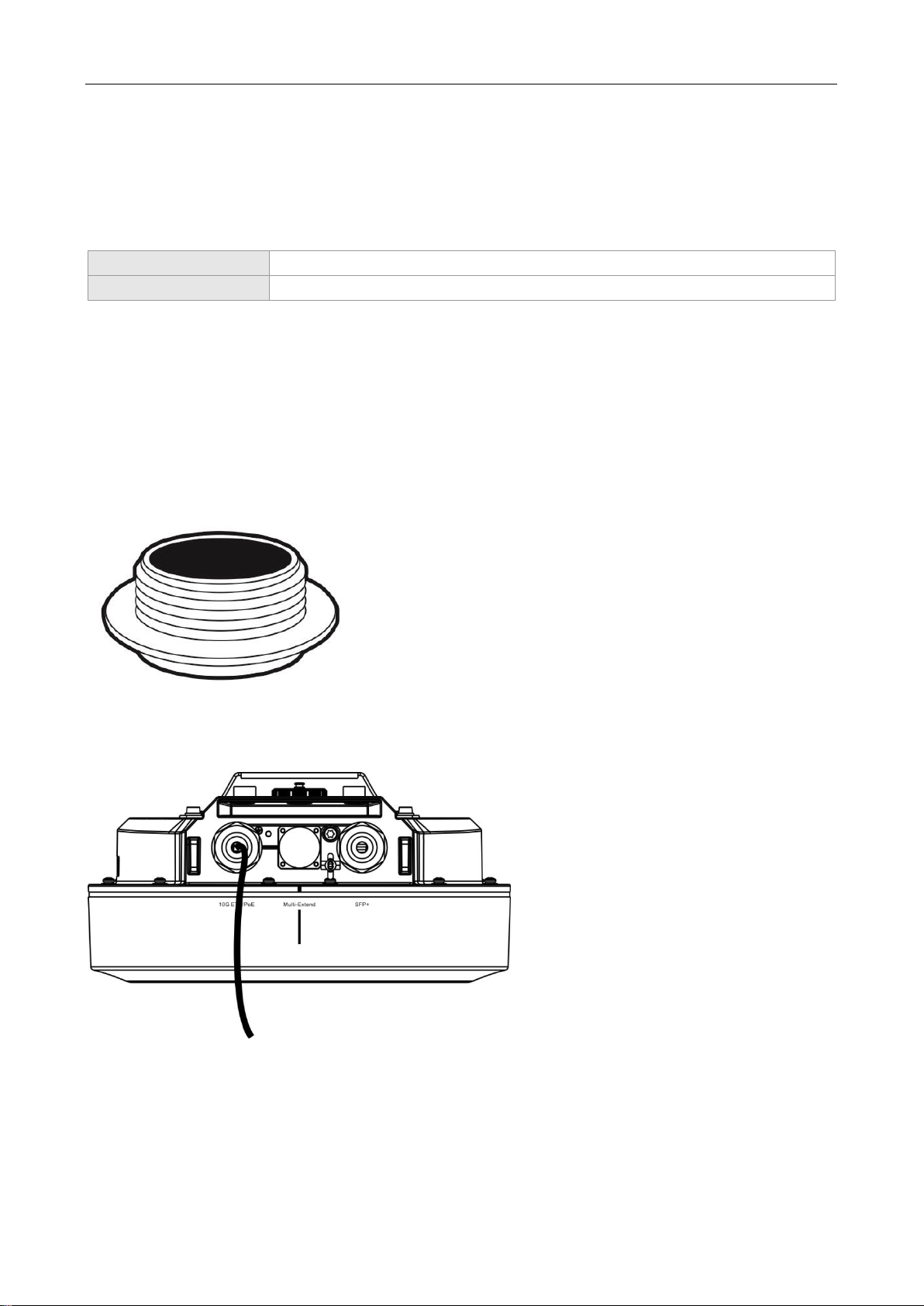

2.2.1 Temperature and Humidity

Table 2-1 Required Temperature and Humidity for the RG-AP680-I Series

Operating Temperature

-40°C to 65°C (-40°F to 149°F)

Operating Humidity

0% to 100% (non-condensing)

2.2.2 Outdoor Installation

The AP can be installed outdoors and mounted on a wall or pole.

2.2.3 Waterproof

Use a seal plug to seal the unused ports.

Figure 2-1 Seal Plug

Use a watertight adapter to connect cables to the AP. For details, see Chapter 3 “Installing the Access Point”.

Figure 2-2 Watertight Adapter for the 10G ETH/PoE Port

Figure 2-3 Watertight Adapter for the SFP+ Port

Hardware Installation and Reference Guide Preparing for Installation

2.2.4 EMI

All interference sources (from outside or inside of the device or application system) affect the device by capacitive

coupling, inductive coupling, or electromagnetic waves.

Electromagnetic interference (EMI) occurs due to electromagnetic radiation or conduction, depending on the transmission

path.

Radiation interference occurs when energy (usually radio frequency energy) is emitted from a device and propagated

through space to disrupt other devices. The interference source can be part of disrupted system or a fully electrically

isolated unit. Conduction interference occurs when interference is transferred from one unit to another through cables,

which are usually electromagnetic wires or signal cables connected between the source and the device(s) experiencing

interference. Conduction interference often affects the power supply of the device. It is eliminated by using filters.

Radiation interference can influence the path of any signal from the device and is difficult to shield.

Take effective measures against interference from the power grid.

Keep the AP far away from the grounding or lightning protection devices for power equipment.

Keep the AP away from high-power radio stations, radar stations, and high-frequency high-current devices.

Take electrostatic shielding measures.

2.3 Fiber Connection

Before connecting fiber cables, make sure the model of the optical transceiver and fiber type match the optical port. The

transmit port on the local device should be connected to the receive port on the peer device and vice versa.

2.4 Installation Tools

Table 2-2 Installation Tools

Tools

Marker, Phillips (crosshead) screwdriver, slotted screwdriver, drill, paper knife, crimping pliers,

diagonal pliers, wire stripper, network cable tester, related power and fiber cables, wrench,

hammer, cable ties, ESD tools, multimeter

The tool kit and cables are customer supplied.

Tabla de contenidos

Otros manuales de Punto de acceso inalámbrico de Ruijie

Ruijie

Ruijie RG-EAP602 Series Manual de instalación y funcionamiento

Ruijie

Ruijie AP630 Series Guía de instalación

Ruijie

Ruijie RG-AP130(W2) V2 Series Manual de instalación y funcionamiento

Ruijie

Ruijie Reyee Series Manual de usuario

Ruijie

Ruijie RG-AP630 IDA2 Series Manual de instalación y funcionamiento

Ruijie

Ruijie RG-AP680-L Manual de instalación y funcionamiento

Ruijie

Ruijie RG-AP880-AR Manual de instalación y funcionamiento

Ruijie

Ruijie Reyee RG-RAP Series Manual de usuario

Ruijie

Ruijie HA3515-DG Manual de instalación y funcionamiento

Ruijie

Ruijie Reyee RG-RAP2200 Manual de instalación y funcionamiento

Ruijie

Ruijie AP850-AR Manual de instalación y funcionamiento

Ruijie

Ruijie Reyee RG-RAP2260 Manual de instalación y funcionamiento

Ruijie

Ruijie RG-AP680 CD Series Manual de instalación y funcionamiento

Ruijie

Ruijie RG-AP130(L) Manual de instalación y funcionamiento

Ruijie

Ruijie RG-RAP1200 Series Manual de instalación y funcionamiento

Ruijie

Ruijie RG-AP630 Series Manual de instalación y funcionamiento

Ruijie

Ruijie RG-AP840-I Series Manual de instalación y funcionamiento

Ruijie

Ruijie RG-AP180 Series Manual de instalación y funcionamiento

Ruijie

Ruijie RG-SAP750-SP Manual de instalación y funcionamiento

Ruijie

Ruijie RG-AP680 CD Series Manual de instalación y funcionamiento

Ruijie

Ruijie RG-AP840-L Manual de instalación y funcionamiento

Ruijie

Ruijie RG-AP180P-L Manual de instalación y funcionamiento

Ruijie

Ruijie RG-AP210-L Series Manual de instalación y funcionamiento

Ruijie

Ruijie RG-AP680-AR Manual de instalación y funcionamiento

Manuales populares de Punto de acceso inalámbrico de otras marcas

D-Link

D-Link DWL-2100AP - AirPlus Xtreme G Manual de usuario

Ubiquiti

Ubiquiti NanoStation NSM2 Manual de usuario

Cisco

Cisco Aironet 1550 Series Manual de usuario

Aruba

Aruba IAP-335 Manual de usuario

Advantek Networks

Advantek Networks AWN-AP-54MR Manual de usuario

IP-COM

IP-COM AP355 Manual de usuario

Buffalo

Buffalo AirStation WLA-L11G Manual de usuario

EnGenius

EnGenius EnStationACv2 Manual de usuario

D-Link

D-Link DAP-3662 Manual de usuario

xG Technology

xG Technology xMax CN1300 Manual de usuario

Widelink

Widelink ezWave WAP-1100 Series Manual de usuario

Edimax

Edimax CAP1200 Manual de usuario

Ubiquiti

Ubiquiti LBE-5AC-Gen2 Manual de usuario

Aruba

Aruba AP-203R Manual de usuario

LuXout Shades

LuXout Shades LUXSHADE MOTION Manual de usuario

CreatComm

CreatComm TB5F Manual de usuario

SineDigital

SineDigital MW-1500AP(H) Manual de usuario

TP-Link

TP-Link AP9650 V1 Manual de usuario
