MICROGEM - DIE CAST low voltage recessed lighting

Microgem™ is RSA’s most comprehensive recessed product

offering. With a wide variety of trim styles from regressed baf-

ﬂes and reﬂectors to adjustable pulldown wall washers and

U.L. listed showerlights, Microgem can meet any recessed

lighting design need.

The miniature size of Microgem (trim diameter of only 4.313”)

helps make it one of the most sought after lighting products of

its kind.

Microgem recessed ﬁxtures are low voltage and are accom-

panied by a wide selection of recessed housing choices. The

newest addition to the family of housings is the shallow I.C.

can which boasts a 5.5” above ceiling height.

All Microgem products are U.L. listed and contractor friendly.

Trims have a 0.75” ﬂange so that there is room for adjustment

after the ceiling cut-out is made.

MICROGEM

Trims and Housings for New Construction, I.C. or Remodel

MICROGEM - DIE CAST low voltage recessed lighting

MICROGEM - DIE CAST TRIMS

GLASS DOME SHOWERLIGHT

Die Cast Shower Light Trim w/ Dome Glass for Wet Location

Halogen GY6.35 12 volts 50 watts max.

Item #

MLV2033 White Trim w/ Dome Frosted Dome Glass Lens

• Internal clear anodized reﬂector

• Internal silicone gasket

REGRESSED REFLECTOR SHOWERLIGHT

Die Cast Shower Light Trim w/ Reﬂector for Wet Location

Halogen MR16 12 volts 50 watts max.

Item #

MLV2037 White Trim w/ Clear Reﬂector (shown)

MLV2038 White Trim w/ Black Reﬂector

MLV2039 White Trim w/ White Reﬂector

MLV2043 Chrome Trim w/ Clear Reﬂector

MLV2044 Chrome Trim w/ Black Reﬂector

MLV2045 Chrome Trim w/ White Reﬂector

• Internal clear anodized reﬂector

• Internal silicone gasket

FLAT GLASS SHOWERLIGHT

Die Cast Shower Light Trim w/ Flat Glass for Wet Location

Halogen GY6.35 12 volts 50 watts max.

Item #

MLV2049 White Trim w/ Clear Reﬂector (shown)

MLV2051 Chrome Trim w/ Clear Reﬂector

• Clear or frosted glass lens (specify)

• Internal silicone gasket

ROUND GLASS TRIM

Die Cast Trim w/ Round Glass Accent

Halogen MR16 12 volts 71 watts max.

Item #

MLV3041 White Trim w/ Frosted Glass (shown)

MLV3042 White Trim w/ Blue Glass

• Can accept up to two (2) optical accessories

4.31"

DIA.

4.31"

DIA.

4.31"

DIA.

4.31"

DIA.

MICROGEM - DIE CAST TRIMS

GLASS COLLAR TRIM

Die Cast Trim w/ Frosted Glass Collar

Halogen MR16 12 volts 71 watts max.

Item #

MLV3080 White Trim w/ Frosted Glass Collar

• Can accept up to two (2) optical accessories

CROSSBLADE LOUVER TRIM

Die Cast Trim w/ Specular Silver Crossblade Louver

Halogen MR16 12 volts 71 watts max.

Item #

MLV3046 White Trim w/ Crossblade Louver

• Can accept up to two (2) optical accessories

REGRESSED BAFFLE TRIM

Die Cast Trim w/ Regressed Bafﬂe 35º Adjustability

Halogen MR16 12 volts 71 watts max.

Item #

MLV3049 White Trim w/ Black Bafﬂe (shown)

MLV3052 Black Trim w/ Black Bafﬂe

MLV3053 White Trim w/ White Bafﬂe

• 35º Adjustability

• Can accept up to two (2) optical accessories

REGRESSED REFLECTOR TRIM

Die Cast Trim w/ Regressed Reﬂector 35º Adjustability

Halogen MR16 12 volts 71 watts max.

Item #

MLV3055 White Trim w/ Clear Reﬂector (shown)

MLV3057 White Trim w/ Black Reﬂector

MLV3061 Chrome Trim w/ Clear Reﬂector

• 35º Adjustability

• Can accept up to two (2) optical accessories

4.31"

DIA.

4.31"

DIA.

4.31"

DIA.

4.31"

DIA.

MICROGEM - DIE CAST TRIMS

SLOT APERTURE TRIM

Die Cast Slot Aperture Trim - 50º Adjustability

Halogen MR16 12 volts 71 watts max.

Item #

MLV3064 White Trim

MLV3066 Black Trim

MLV3067 Industrial Silver Trim

• 50º Adjustability

• Can accept up to two (2) optical accessories

PINHOLE TRIM

Die Cast Pinhole Trim - 2” Aperture - 15º Adjustability*

Halogen MR16 12 volts 71 watts max.

Item #

MLV3068 White Trim w/ Black Bafﬂe*

MLV3069 Industrial Silver Trim w/ Black Bafﬂe*

MLV3090 White Trim w/ Black Reﬂector (non-adjustable)

MLV3091 Industrial Silver Trim w/ Black Reﬂector (non-adjustable)

MLV3092 White Trim w/ Clear Reﬂector (non-adjustable)

MLV3093 Industrial Silver Trim w/ Clear Reﬂector (non-adjustable)

• 15º Adjustability*

• Can accept up to two (2) optical accessories

ADJUSTABLE EYEBALL TRIM

Die Cast Eyeball Trim w/ Black Bafﬂe - 45º Adjustability

Halogen MR16 12 volts 71 watts max.

Item #

MLV3070 White Trim w/ Black Bafﬂe

MLV3072 Black Trim w/ Black Bafﬂe

MLV3073 Industrial Silver Trim w/ Black Bafﬂe (shown)

• 45º Adjustability

• Can accept up to two (2) optical accessories

ADJUSTABLE WALL WASH TRIM

Die Cast Trim Wall Wash Trim w/ Black Bafﬂe - 35º Adjustability

Halogen MR16 12 volts 71 watts max.

Item #

MLV3074 White Trim w/ Black Bafﬂe

MLV3076 Black Trim w/ Black Bafﬂe

MLV3077 Industrial Silver Trim w/ Black Bafﬂe (shown)

• 35º Adjustability

• Can accept up to two (2) optical accessories

4.31"

DIA.

4.31"

DIA.

4.31"

DIA.

4.31"

DIA.

MICROGEM - DIE CAST TRIMS

ADJUSTABLE CONICAL WALL ACCENT

Die Cast Conical Wall Accent Trim - 358º x 85º Adjustability

Halogen MR16 12 volts 71 watts max.

Item #

MLV3084 White Trim (shown)

MLV3086 Black Trim

MLV3087 Industrial Silver Trim

• Lamp holder can rotate 358º and tilt 85º

• Can accept one (1) optical accessory

ADJUSTABLE WALL ACCENT TRIM

Die Cast Wall Accent Trim - 358º x 70º Adjustability

Halogen MR16 12 volts 71 watts max.

Item #

MLV3801 White Trim (shown)

MLV3802 Black Trim

MLV3803 Industrial Silver Trim

• Lamp holder can rotate 358º and tilt 70º

• Can accept one (1) optical accessory

4.31"

DIA.

4.31"

DIA.

MICROGEM - RECESSED HOUSINGS

NEW CONSTRUCTION HOUSING

Item #

C500 New Construction - Mag. Xfmr. - 50W max.

C500-EL New Construction - Elec. Xfmr. - 50W max.

C500-75 New Construction - Mag. Xfmr. - 71W max.

C500-75-EL New Construction - Elec. Xfmr. - 71W max.

Voltage

120 120V (Standard)

277 277V

• Housing adjusts 1.5” vertically in plaster frame to accommo-

date various ceiling thicknesses.

• Integral magnetic or electronic transformer accessible through

the ceiling opening.

• Transformers have thermal protection and operate at 11.5 volts

nominal. Vent holes on the 75W housing provide cooler operation.

• Primary leads: 120 volts.

• Transformer rated 180º Class H.

• Socket is pre-wired to the j-box with 18AWG SF-1 leads.

• J-box U.L. listed for through branch wiring for 5 #12 90ºC

SUPPLY WIRES IN/OUT or 60ºC supply wires for end of run.

• Access above ceiling not required.

• Includes two sets of adjustable 16 ga. steel hanger bars.

SHALLOW NEW CONSTRUCTION HOUSING

Item #

C500-SH Shallow New Construction - Mag. Xfmr. - 35W max.

C500-SH-EL Shallow New Construction - Elec. Xfmr. - 35W max.

Voltage

120 120V (Standard)

277 277V

• Housing adjusts 1.5” vertically in plaster frame to accommo-

date various ceiling thicknesses.

• Integral magnetic or electronic transformer accessible through

the ceiling opening.

• Transformers have thermal protection and operate at 11.5 volts

nominal.

• Primary leads: 120 volts.

• Transformer rated 180º Class H.

• Socket is pre-wired to the j-box with 18AWG SF-1 leads.

• J-box U.L. listed for through branch wiring for 5 #12 90ºC

SUPPLY WIRES IN/OUT or 60ºC supply wires for end of run.

• Access above ceiling not required.

• Includes two sets of adjustable 16 ga. steel hanger bars.

3.75"

3.50"

5.50" (C500)

6.50” (C500-75)

10.5"

14" min. 25.25" max.

OVER ALL WIDTH: 5.75”, ABOVE CEILING CLEARANCE: 5.00” (C500) / 6.00” (C500-75)

CEILING CUT-OUT: 3.75”

NEW ENLARGED JUNCTION BOX PROVIDES EASIER INSTALLATION

AND ACCOMMODATES 5 #12 SUPPLY WIRE IN/OUT

J-BOX SIZE: 3.00”W x 3.25”H X 2.55”D

OVER ALL WIDTH: 5.75”, ABOVE CEILING CLEARANCE: 3.50”

CEILING CUT-OUT: 3.75”

3.75"

3.50"

10.5"

14" min. 25.25" max.

NEW ENLARGED JUNCTION BOX PROVIDES EASIER INSTALLATION

AND ACCOMMODATES 5 #12 SUPPLY WIRE IN/OUT

J-BOX SIZE: 3.00”W x 3.25”H X 2.55”D

MICROGEM - RECESSED HOUSINGS

REMODEL HOUSING - MAGNETIC XFMR

Item #

C600 Remodel - Mag. Xfmr. - 50W max.

Voltage

120 120V (Standard)

277 277V

• Housing adjusts 1.5” vertically to accommodate various ceiling

thicknesses.

• Integral magnetic transformer accessible through the ceiling

opening.

• Mechanical height adjustment for level installation.

• Transformers have thermal protection and operate at 11.5 volts

nominal.

• Primary leads: 120 volts.

• Transformer rated 180º Class H.

• Socket is pre-wired to the j-box with 18AWG SF-1 leads.

• J-box U.L. listed for through branch wiring for ﬁve #12, 90ºC sup-

ply wires or 60ºC supply wires for end of run.

• Access above ceiling not required.

REMODEL HOUSING - ELECTRONIC XFMR

Item #

C600 -EL Remodel - Elec. Xfmr. - 50W max.

Voltage

120 120V (Standard)

277 277V

• Housing adjusts 1.5” vertically to accommodate various ceiling

thicknesses.

• Integral electronic transformer accessible through the ceiling

opening.

• Transformers have thermal protection and operate at 11.5 volts

nominal.

• Primary leads: 120 volts.

• Transformer rated 180º Class H.

• Socket is pre-wired to the j-box with 18AWG SF-1 leads.

• J-box U.L. listed for through branch wiring for ﬁve #12, 90ºC sup-

ply wires or 60ºC supply wires for end of run.

• Access above ceiling not required.

5.00"

OVER ALL WIDTH: 4.50”, ABOVE CEILING CLEARANCE: 4.50”

CEILING CUT-OUT: 3.75”

3.75"

13.75"

3.5"

5.00"

OVER ALL WIDTH: 5.25”, ABOVE CEILING CLEARANCE: 4.50”

CEILING CUT-OUT: 3.75”

3.75"

11.50"

MICROGEM - RECESSED HOUSINGS

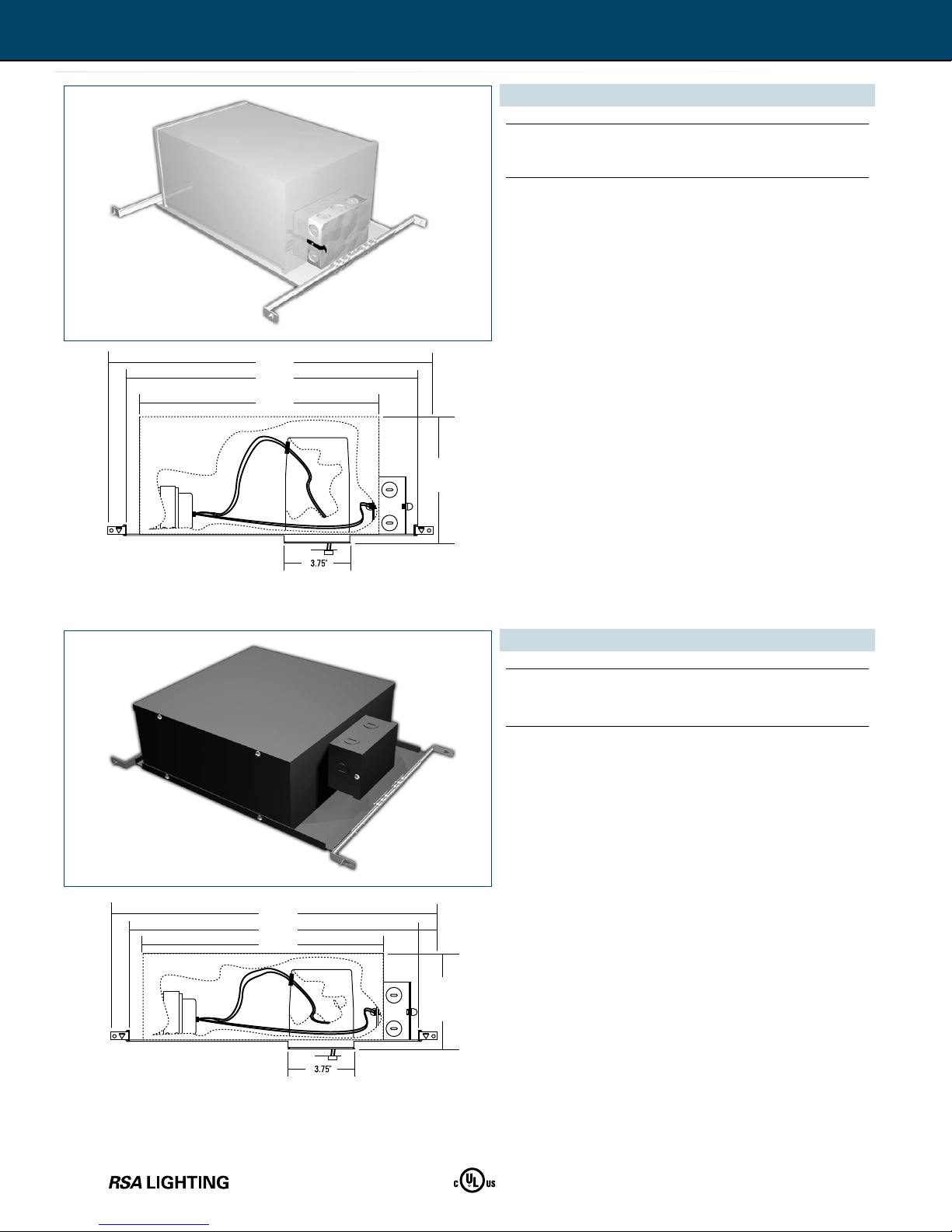

INSULATED CEILING HOUSING

Item #

C700 I.C. Insulated Ceiling - Mag. Xfmr. - 50W max.

Voltage

120 120V (Standard)

• Housing adjusts 1.5” vertically in plaster frame to accommo-

date various ceiling thicknesses.

• Integral magnetic transformer accessible through the ceiling

opening.

• Transformers have thermal protection and operate at 11.5 volts

nominal.

• Primary leads: 120 volts.

• Transformer rated 180º Class H.

• Socket is pre-wired to the j-box with 18AWG SF-1 leads.

• J-box U.L. listed for through branch wiring for four #12, 90ºC

supply wires or 60ºC supply wires for end of run.

• Access above ceiling not required.

• Includes two sets of adjustable 16 ga. steel hanger bars.

•STATE OF WASHINGTON AIR TIGHT APPROVED.

SHALLOW INSULATED CEILING HOUSING

Item #

C900 Shallow I.C. Insulated Ceiling - Mag. Xfmr. - 50W

max.

Voltage

120 120V (Standard)

277 277V

• All aluminum construction.

• Housing adjusts 1.5” vertically in plaster frame to accommo-

date various ceiling thicknesses.

• Integral magnetic transformer accessible through the ceiling

opening.

• Transformers have thermal protection and operate at 11.5 volts

nominal.

• Primary leads: 120 volts.

• Transformer rated 180º Class H.

• Socket is pre-wired to the j-box with 18AWG SF-1 leads.

• J-box U.L. listed for through branch wiring for four #12, 90ºC

supply wires or 60ºC supply wires for end of run.

• Access above ceiling not required.

• Includes two sets of adjustable 16 ga. steel hanger bars.

•STATE OF WASHINGTON AIR TIGHT APPROVED.

OVER ALL WIDTH: 10.75”, ABOVE CEILING CLEARANCE: 7.13”

CEILING CUT-OUT: 3.75”

19.13"

17.13"

7.50"

14.20"

OVER ALL WIDTH: 14.13”, ABOVE CEILING CLEARANCE: 5.00”

CEILING CUT-OUT: 3.75”

20.13"

5.50"

18.13"

15.19"

MICROGEM - RECESSED HOUSINGS

SHALLOW REMODEL HOUSING - ELECTRONIC

Item #

C800 Shallow Remodel - Elec. Xfmr. - 35W max.

Voltage

120 120V (Standard)

277 277V

• Housing adjusts 1.5” vertically to accommodate various ceiling

thicknesses.

• Integral electronic transformer accessible through the ceiling

opening.

• Transformers have thermal protection and operate at 11.5 volts

nominal.

• Primary leads: 120 volts.

• Transformer rated 180º Class H.

• Socket is pre-wired to the j-box with 18AWG SF-1 leads.

• Access above ceiling not required.

SHALLOW REMODEL HOUSING - REMOTE

Item #

SH2A Shallow Remodel - for Remote power supply 35W max.

• Housing adjusts 1.5” vertically to accommodate various ceiling

thicknesses.

• Socket is 18AWG SF-1 leads.

THIS HOUSING IS NOT U.L. LISTED. CONTRACTOR MUST

FOLLOW N.E.C. CODE FOR CLASS 2 WIRING.

See page 101, 160-162 for remote transformers.

OVER ALL WIDTH (including mounting clips): 5.25”, ABOVE CEILING CLEARANCE: 3.00”

CEILING CUT-OUT: 3.75”

2.375"

3.63"

3.50"

10.63”

OVER ALL WIDTH (including mounting clips): 5.25”, ABOVE CEILING CLEARANCE: 3.00”

CEILING CUT-OUT: 3.75”

3.63"

3.50"

Este manual sirve para los siguientes modelos

Otros manuales de Luminaria de RSA Lighting

RSA Lighting

RSA Lighting Combolight Combo Classic CR2TC35 Manual de usuario

RSA Lighting

RSA Lighting Combolight GR Series GR330 Manual de usuario

RSA Lighting

RSA Lighting Combolight Galleria Series CGCHM Manual de usuario

RSA Lighting

RSA Lighting Grid Mounted Adjustable Downlight FP-A Manual de usuario

RSA Lighting

RSA Lighting Combolight Galleria CGSHI Manual de usuario

RSA Lighting

RSA Lighting Machined Aluminum Fixtures Manual de usuario

RSA Lighting

RSA Lighting Combolight LV Series LV3803IS Manual de usuario

RSA Lighting

RSA Lighting QCT-1875BK Manual de usuario

RSA Lighting

RSA Lighting Combolight Galleria Series CGSVI - CGCVI Manual de usuario

RSA Lighting

RSA Lighting Combolight LV250MH Manual de usuario

RSA Lighting

RSA Lighting Combolight T4 G8.5 Manual de usuario

RSA Lighting

RSA Lighting Combolight LV Series LV840MHSQ Manual de usuario

RSA Lighting

RSA Lighting Combolight LV270 Manual de usuario

RSA Lighting

RSA Lighting Mini Die Cast MS5008 Manual de usuario

RSA Lighting

RSA Lighting CMOB Manual de usuario

RSA Lighting

RSA Lighting Combolight GR Series GR430MH Manual de usuario

RSA Lighting

RSA Lighting Combolight GRF416 Manual de usuario

RSA Lighting

RSA Lighting ACCURUS TRIM ACT1986 Manual de usuario

RSA Lighting

RSA Lighting Combolight 12V AR70 Manual de usuario

RSA Lighting

RSA Lighting Combolight LV Series LV3800IS Manual de usuario

RSA Lighting

RSA Lighting Indoor Furnishings Manual de usuario

RSA Lighting

RSA Lighting ACCURUS TRIM ACT1985 Manual de usuario

RSA Lighting

RSA Lighting Continuous Channel V90163 Manual de usuario

RSA Lighting

RSA Lighting QCT-2075BK Manual de usuario

Manuales populares de Luminaria de otras marcas

Emos

Emos CLASSIC ZY1431T Manual de usuario

Westinghouse

Westinghouse Outdoor Lighting Fixture Manual de usuario

Hedler

Hedler C 12 silent Manual de usuario

Blizzard Lighting

Blizzard Lighting Puck: CSI Manual de usuario

Energetic Lighting

Energetic Lighting ELYSL-5004 Series Manual de usuario

Lightmaxx

Lightmaxx Shaft 5R Manual de usuario

Triarch

Triarch 31083 Manual de usuario

Philips

Philips 32614 Series Manual de usuario

IKEA

IKEA TIVED Manual de usuario

Lightolier

Lightolier LP200 Manual de usuario

Chauvet Professional

Chauvet Professional ROGUE R1 BEAM WASH Manual de usuario

Martin

Martin MAC 250 Krypton Manual de usuario

Cooper Lighting

Cooper Lighting Halo L3232E Manual de usuario

Stageline

Stageline ODW-2410RGBW Manual de usuario

Light Sky

Light Sky Tornado Series Manual de usuario

Lightolier

Lightolier Paralyte 2424 PLA2G9LS26U Manual de usuario

Lightolier

Lightolier Lytespan 83ED17S Manual de usuario

Lightolier

Lightolier Calculite CS8226 Manual de usuario
