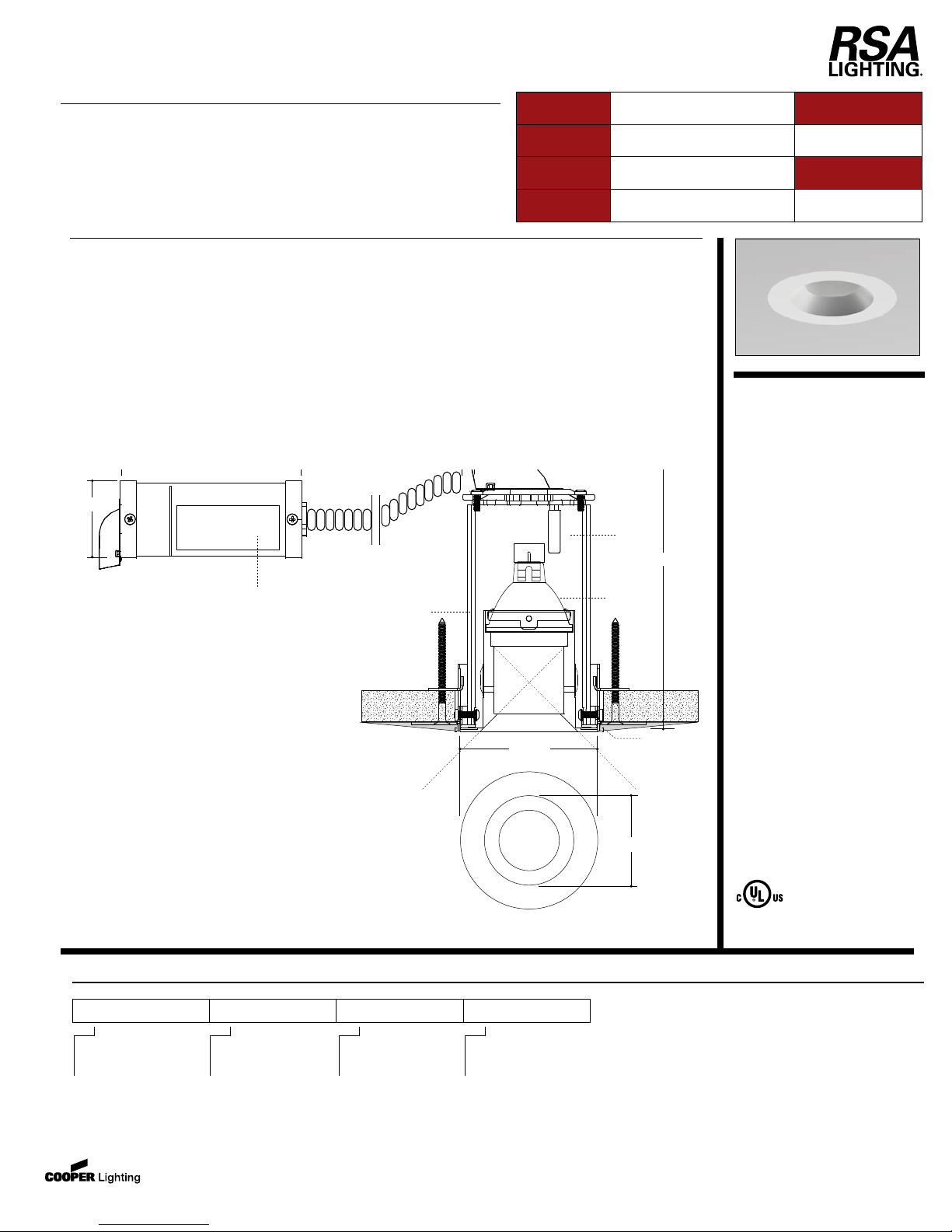

DESCRIPTION Catalog # Type

Project

Comments Date

Prepared by

www.cooperlighting.com

SPECIFICATION FEATURES

18.00”

Flexible Conduit

3.20” dia.

6.00”

6.75”

2.00”

2.31” dia.

A...Housing

All aluminum construction with 18” of

ﬂexible conduit attached to a cylindrical

transformer/wiring enclosure. Perforated

metal plasterframe adjusts for Trim

Fixtureless mounting in 1/2” - 3/4”

drywall.

B ...Trimless Fixture:

3.2” o.d. round Trimless Fixture with

smooth regressed splay and 45º cut-off.

Perforated metal plasterframe allows

ceiling compound to be applied directly to

the edge of the ﬁxture. Finished in white,

black, industrial silver, stainless steel

(painted), and custom colors.

C ...System Protection:

Thermal protection inside housing.

Vent holes in housing provide cooler

operation. All aluminum construction

provides overall reduced temperatures.

D...Electrical

Electronic or magnetic transformer

housed in a separate metal enclosure.

Enclosure includes a separated wiring

compartment and entry for primary

leads.

E ...Lamp

12V MR16 or MR16 IRC 20 watts max.

(not included). “POSI-GRIP” bi-pin lamp

socket for ﬁrm, mechanical lamp

connection. Can accept up to two (2)

optical accessories.

Ceiling Cut-Out: 3.50” dia.

LYNX

LX3004TR

Miniature Round

Trimless Fixture

w/ Smooth

Regressed Splay

45º Cut-Off

Cylindrical Housing

Transformer/Wiring

Enclosure

12V MR16 20 watts max.

12V MR16-IRC 20 watts max.

ORDERING INFORMATION

Fixture

LX3004TR

Regressed Lynx Trimless

Fixture with Smooth Regressed

Splay and 45º Cut-off & Housing

& Transformer Enclosure

Miniature cylindrical recessed housing and round Trimless Fixture with

smooth regressed splay and 45º cut-off. Includes enclosure with integral

transformer and wiring compartment.

For new construction or remodel applications. Insulation must be kept 3”

from all sides and at least 1” above the housing.

Speciﬁcations and Dimensions subject to change without notice.

RSA Lighting • 7945 Orion Ave. • Van Nuys, CA 91406 • 818-349-3030 • FAX 818-349- 3031

LX3004TR

Finish

WH =White

BK =Black

S =Industrial Silver

SS =Stainless Steel (painted)

PM =Primer

Transformer

ELC =Electronic

MAG =Magnetic

Voltage

120 =120 volts

277 =277 volts

U.L. Listed. Suitable for use in

combustible ceilings.

rev. 011007
