Rosewill MAXCUBE Manual de usuario

Diagram

Front I/O Pinout

USB 3.0 CONNECTOR USB 2.0 CONNECTOR HD Audio CONNECTOR

USB+5V

LP+

GND

USB+5V

LP+

GND

NO PIN

AUD GND

PRESENCE#

SENSE1 RETURN

NO PIN

SENSE2 RETURN

PORT1L

PORT1R

PORT2R

SENSE SEND

PORT2L

NO PIN NO PIN

(components vary by country)

User Manual

CASE

Right Side Panel

Top Dust Filter

Left Side Panel

Bottom Dust Filter

Radiator Bracket

HDD Tray

Front Panel

Front I/O

User Manual

CASE

Accessory Kit

USB 2.0

USB

to M/B

USB 2.0

USB

to M/B

USB 3.0

to M/B

USB 3.0

to M/B

Audio

HD AUDIO connector

to M/B

Part’s Name Qty Used forFigure

Motherboard tray,

HDD tray, power supply

Screw-A

HDD, ODDScrew-B

Cable Tie

2.5 inch HDDScrew-C

Cables, wires

Power Button

to M/B

POWER SW

Reset Button

to M/B

Reset SW

Installation Guide

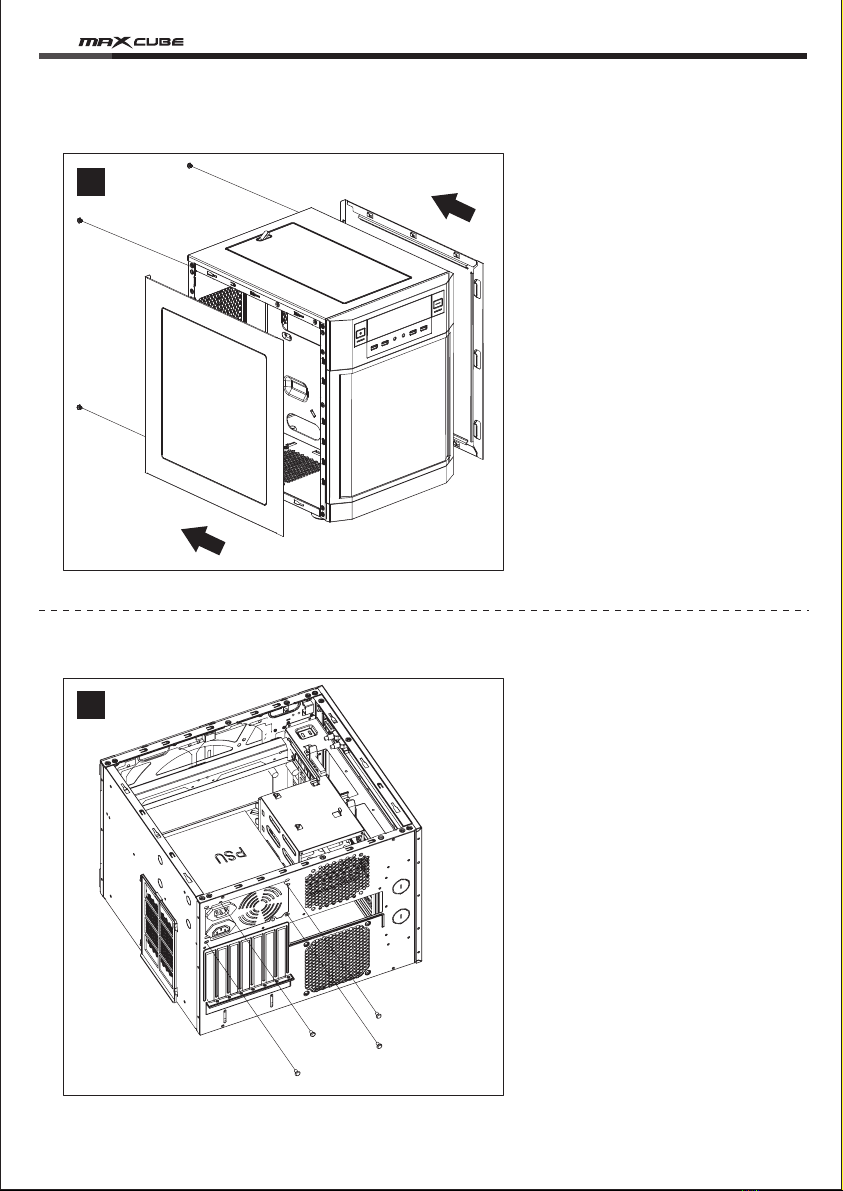

1-1. Untwist the thumbscrews and

slide out left and right side panels

(Figure 1).

2-1. Lay the chassis on its side so the

interior is accessible (Figure 2).

2-2. Seat the power supply unit (PSU) to

the bottom of the case and secure

with Screw-A (Figure 2).

1. Open the Unit

2. Install the Power Supply

User Manual

CASE

3-1. Line up the standoffs with the screw

holes on the motherboard.

3-2. Screw the motherboard down with

Screw-A (Figure 3).

4-1. Loosen the screws on the panel cover,

and slide the panel open (Figure 4a).

4-2. Unscrew and remove the slot cover.

4-3. Install the add-in card and secure with

the screws (Figure 4b).

3. Install the Motherboard

4. Install the Add-in Card

User Manual

CASE

4a 4b

5-3. Insert a 5.25” drive into the bay and secure with Screw-B (Figure 5b).

5-4. Replace the front panel back onto the case.

5-1. Pull the front panel out and remove it (Figure 1).

5-2. Unscrew the HDD dock and remove it. (Figure 5a).

5. Install the External 5.25” Device

User Manual

CASE

User Manual

CASE

6-1. Screw the 2.5” SSD/HDD onto the tray with Screw-C (Figure 6a).

6-2. Install the 3.5” HDD onto the tray (secure with a screw if desired) (Figure 6b).

6-3. Insert the tray into the HDD cage or the top rail until the latch clicks into a secure position

(Figure 6c) (Figure 6d).

6. Install the 3.5”/2.5” HDD/SDD

6c 6d

7-1. To prevent damage, it is

recommended to keep all panels

closed and secured.

Slide the side panels back into

place and secure shut with

thumbscrews (Figure 7a).

7-2. To prevent overheating and damage,

clean the dust filter regularly to

ensure adequate airflow (Figure 7b).

7. Care

User Manual

CASE

8. Options

User Manual

CASE

8-1. Fan Install

The Max Cube has the capacity of installing additional fans:

2x120 mm fans under the top cover.

1x90 mm fan in the back.

8-2. Liquid Radiator Cooling

The Max Cube gives you the option of installing a 240 mm radiator to cool your system.

8-3. Front location installation (Figure 8a):

a. Remove the front panel.

b. Unscrew to remove the 230 mm fan.

c. Secure the radiator with screws and put the front panel back on.

8-4. Top location installation (Figure 8b):

a. Remove the top dust filter.

b. Secure the radiator with screws and put the dust filter back on.
