Rosewill Himars Manual de instrucciones

Quick User Guide

Gaming Case

All manuals and user guides at all-guides.com

all-guides.com

All manuals and user guides at all-guides.com

Table of Contents

Thank you for purchasing a Rosewill Computer Case

Please read the instruction manual before using and

retain it for your future reference.

1

• Product Overview

Product Diagram ................................................ 02

Front I/O Pin-out ................................................ 02

Front I/O Diagram .............................................. 03

Accessory Kit...................................................... 03

• Installation Guide

1. Open the Unit ................................................ 04

2. Install the Power Supply ................................ 05

3. Install the Motherboard ................................. 05

4. Install the Add-on Card ................................. 06

5. Install an External 5.25” Device ..................... 07

6. Install a 3.5” or 2.5” Drive .............................. 09

7. Care ............................................................... 11

8. Options .......................................................... 12

• Specications Table ........................................... 13

All manuals and user guides at all-guides.com

Gaming Case Quick User Guide

2

HIMARS

Product Overview

Product Diagram (Components vary by country)

Front I/O Pin-out

USB 3.0 CONNECTOR USB 2.0 CONNECTOR HD AUDIO CONNECTOR

Panel L

Dust Filter

HDD Tray

120mm Fan Panel R

Front Panel

HDD Door

All manuals and user guides at all-guides.com

3

Gaming Case Quick User GuideHIMARS

Accessory Kit

Front I/O Diagram

Image Part Name Oty Function/Component

Screw-A 4 PSU

Screw-B 19 Motherboard/ 3.5' HDD

Screw-C 20 2.5” HDD/SSD

Screw-D 4 ODD

Screw-E 4 Fan

Standoff 11 Motherboard

Nut Setter 1 Standoff Installation

Cable Tie 5 Cable Management

Power Button Reset Button

HD Audio

In / Out USB 3.0 USB 2.0

All manuals and user guides at all-guides.com

Gaming Case Quick User Guide

4

HIMARS

Installation Guide

1. Open the Unit

1-1. Remove the thumbscrews and slide out panels R and L (Figure 1).

1

All manuals and user guides at all-guides.com

all-guides.com

5

Gaming Case Quick User GuideHIMARS

2. Install the Power Supply

2-1. Seat the power supply unit (PSU) in the bottom-rear of the case and secure with Screw-A

(Figure 2).

3. Install the Motherboard

3-1. Line up the standoffs with the screw holes on the motherboard (Figure 3a).

2

3a

All manuals and user guides at all-guides.com

Gaming Case Quick User Guide

6

HIMARS

4. Install the Add-on Card

4-1. Untwist the screws and remove the slot cover (Figure 4a).

3-2. Secure the motherboard down with Screw-B (Figure 3b).

4a

3b

All manuals and user guides at all-guides.com

7

Gaming Case Quick User GuideHIMARS

5. Install an External 5.25” Device

5-1. Remove the front panel (Figure 5a).

4-2. Install the add-on card and secure with the screws (Figure 4b).

5a

4b

All manuals and user guides at all-guides.com

Gaming Case Quick User Guide

8

HIMARS

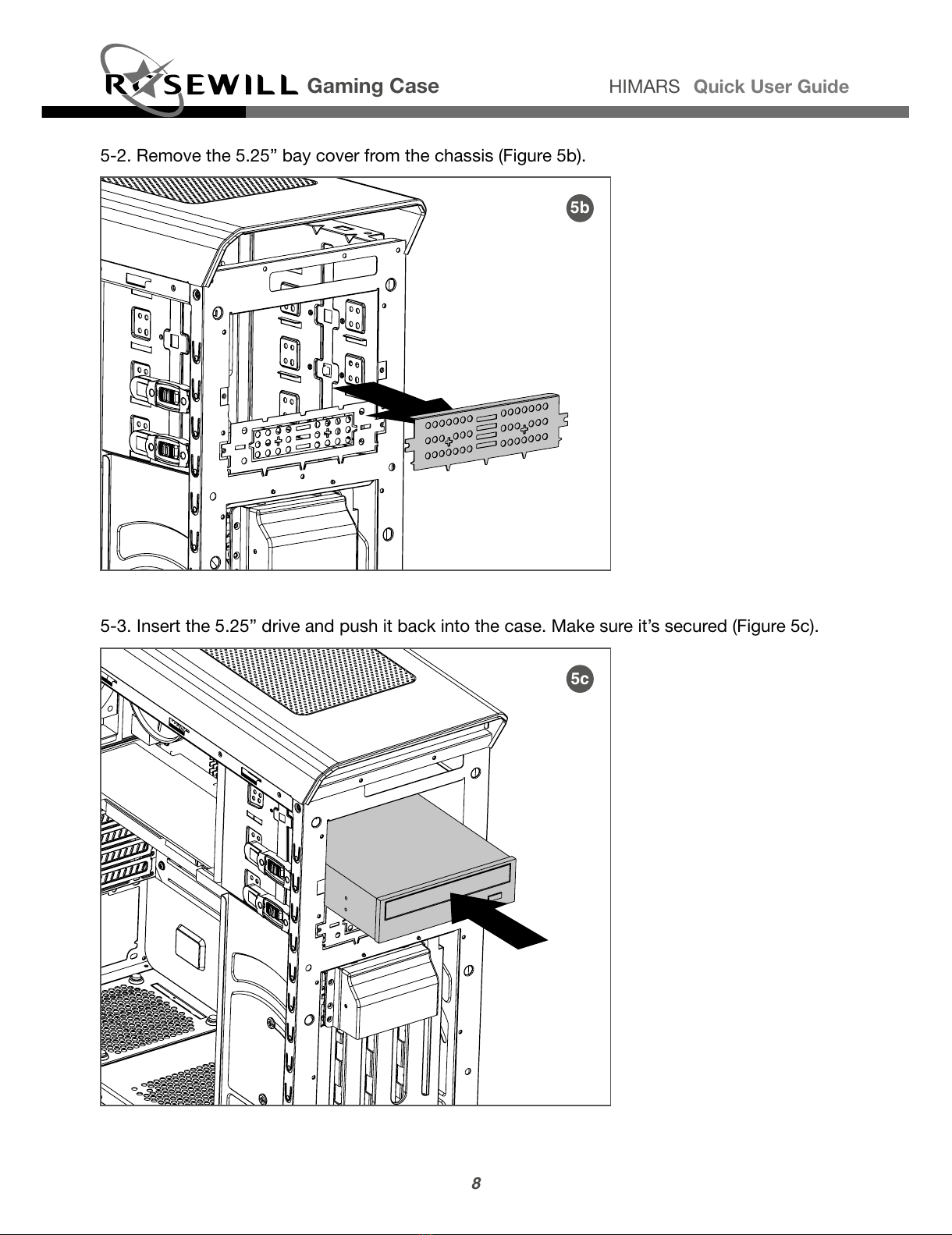

5-2. Remove the 5.25” bay cover from the chassis (Figure 5b).

5-3. Insert the 5.25” drive and push it back into the case. Make sure it’s secured (Figure 5c).

5b

5c

All manuals and user guides at all-guides.com
