Rosewill RX251-US Manual de usuario

Dual INTERNAL (SATA)/EXTERNAL (USB)

2.5" SATA HDD Enclosure

RX251-US

User’s Manual

Dual INTERNAL (SATA)/EXTERNAL (USB) 2.5" SATA HDD Enclosure

RX251-US User Manual

-1-

RX251-US Product Specification

Model RX251-US

Chipset JM20336

Internal Interface 2.5” SATA hard drive

External Interface -Portable Mode : USB2.0

-Mobile Rack Mode : SATA I

Hard Drive Capacity Supported Up to 160GB

Hard Drive size supported 9.5mm (height)

Power Supply -Portable Mode : USB bus power

- Mobile Rack Mode : 4 pin to board

Operating System Supported -Windows 2000/ME/XP/VISTA

-Linux kernel 2.4.1 after

-Mac OS 9.x/10.x and above

Transfer rate -USB2.0 : Up to 480Mbps

-SATA : Up to 1.5 Gps

Size(L x W x H) - External enclosure : 141x73x16mm

- Insertion bay 3.5” : 144x100x24mm

Dual INTERNAL (SATA)/EXTERNAL (USB) 2.5" SATA HDD Enclosure

RX251-US User Manual

-2-

RX251-US Introduction

1. The RX251-US is divided into three parts:

A. 3.5” Insertion Bay B. 5.25 Bracket

C. 2.5” SATA HDD Enclosure.

Dual INTERNAL (SATA)/EXTERNAL (USB) 2.5" SATA HDD Enclosure

RX251-US User Manual

-3-

2. Accessories

nopq

rst

No. Description

1 Screws for fixing the 5.25” bracket to the PC case.

2 Screws for fixing the 3.5” insertion bay to 5.25” bracket or to a 3.5” drive bay.

3 Screws for fixing a 2.5” SATA hard drive in the 2.5” enclosure.

4 4-Pin power cable to connect to the power supply.

5 SATA cable to connect the 3.5”bay and motherboard.

6 USB 2.0 cable to connect 2.5” enclosure to the computer.

7 USB-Y cable to connect 2.5” enclosure to the computer for providing extra power.

Dual INTERNAL (SATA)/EXTERNAL (USB) 2.5" SATA HDD Enclosure

RX251-US User Manual

-4-

RX251-US Hardware Installation

The RX251-US can be used as mobile rack function in desktop PC and an external storage. The

detailed installation steps are as below:

A. Install the hard drive in the enclosure

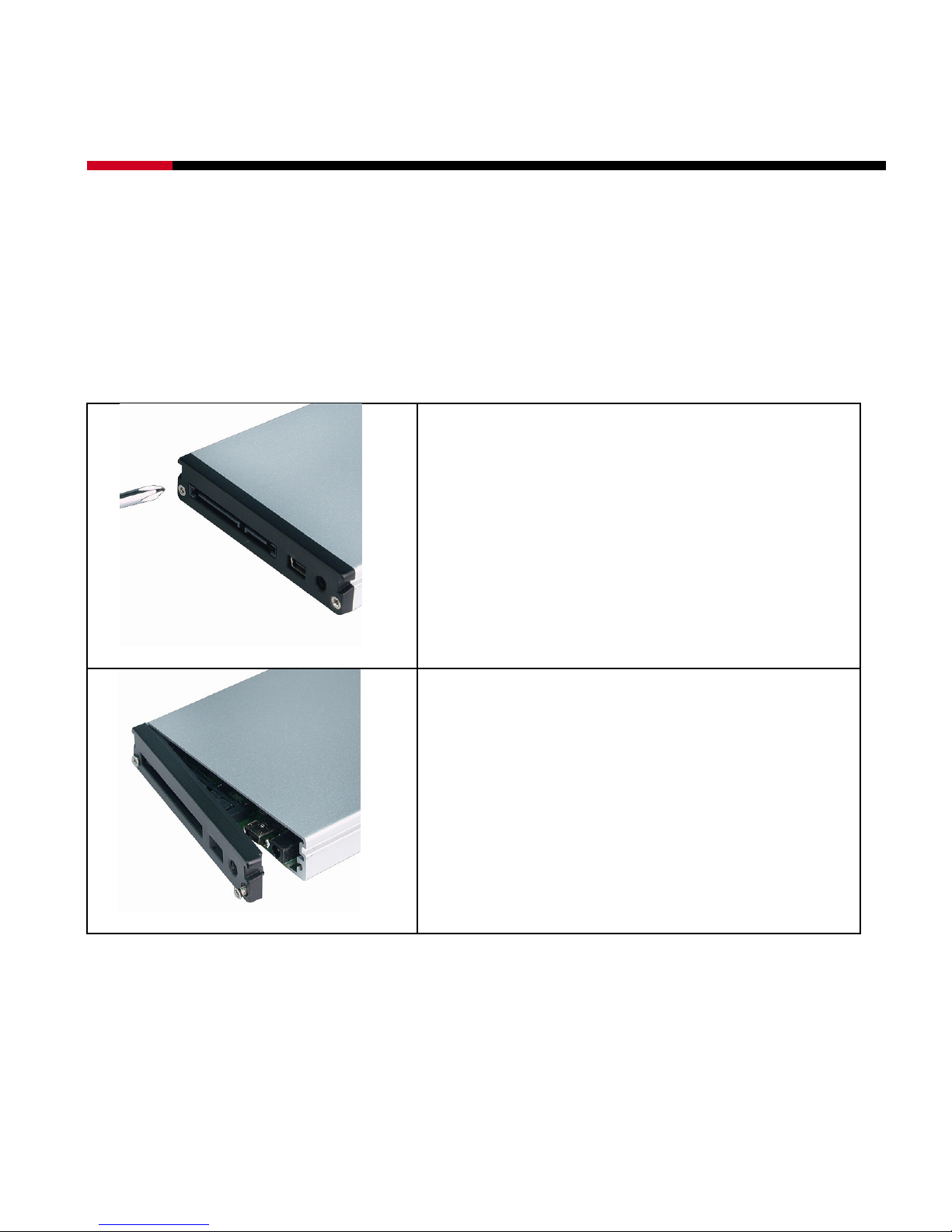

Unscrew the external enclosure by screw driver.

Open the panel of the enclosure and slide the

board out.

Dual INTERNAL (SATA)/EXTERNAL (USB) 2.5" SATA HDD Enclosure

RX251-US User Manual

-5-

Connect the 2.5” SATA hard drive to the

connector on the board. Please check the HDD &

board’s pin is match when installation.

Turn over the board and fix the board and hard

drive by screws.

Slide the board with the hard drive back into the

enclosure.

Close the panel and fix it by screws.

Dual INTERNAL (SATA)/EXTERNAL (USB) 2.5" SATA HDD Enclosure

RX251-US User Manual

-6-

B. In Desktop PC

There are two ways to use the RX251-US in the desktop PC.

Method 1: Install the RX251-US in the 5.25” drive bay

Slide the 3.5” insertion bay into the

5.25” bracket.

Fasten the 3.5” insertion bay on the

5.25” bracket by screws.

Dual INTERNAL (SATA)/EXTERNAL (USB) 2.5" SATA HDD Enclosure

RX251-US User Manual

-7-

Slide the 3.5” insertion bay and 5.25”

bracket into the available 5.25” drive

bay in the PC case.

Fasten the 5.25” bracket in the PC case

by screws n.

Connect the one side of the SATA cable

rto the back of the 3.5” insertion bay.

Dual INTERNAL (SATA)/EXTERNAL (USB) 2.5" SATA HDD Enclosure

RX251-US User Manual

-8-

Connect the other side of the SATA

cable to SATA port on the motherboard.

If your motherboard doesn’t have

on-board SATA port, you may install the

SATA add-on cards and connect the

SATA cable to it.

Connect the 4-pin power cable qto the

back of the 3.5” insertion bay.

Connect the 4-pin power cable qto the

power supply. Please refer to the

manual of the power supply.

From power supply

Dual INTERNAL (SATA)/EXTERNAL (USB) 2.5" SATA HDD Enclosure

RX251-US User Manual

-9-

Slide the 2.5” enclosure to the 3.5”

insertion bay to the end till the ejection

button is up. Now you can freely access

the hard drive.

When you want to take the enclosure

out, please press the ejection button,

the enclosure will be out.
