Eminere Inground Wireless DMX
3
FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY
BEFORE POWERING OR INSTALLING YOUR Eminere !
Save it for future reference.
This device has left our premises in absolutely perfect condition. In order to maintain this condition and to ensure
safe operation, it is absolutely necessary for the user to follow the safety instructions and warnings written in this
manual.
The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual
or any unauthorized modification to the device.
Unauthorized modification will void warranty.
1. Safety instructions
DANGEROUS VOLTAGE CONSTITUTING A RISK OF ELECTRIC SHOCK IS PRESENT WITHIN THIS UNIT!
Always disconnect the fixture from AC power before cleaning, servicing or installing.
Make sure the supply/data cable cord is not damaged by sharp edges.
Do not install the fixture near an open flame.
Refer servicing to qualified service personnel.
This fixture falls under protection class I. Therefore this fixture has to be connected to a mains socket outlet with
a protective earthing connection.
Do not connect this fixture to a dimmer pack.
LED light emission. Risk of eye injury. Do not look into the beam from a short distance without suitable protective
eyewear. Do not look at LEDs with magnifiers or similar optical instruments that may concentrate the light
output.
Avoid brute force when installing or operating the fixture.
The fixture was designed for outdoor use. This fixture must not be used for underwater installation.
When choosing the installation spot, please make sure that the fixture is not exposed to extreme heat or dust.
Avoid using the unit in locations subject to possible impacts.
The fixture body never must be covered with cloth or other materials when the fixture is under operation.
Only operate the fixture after having checked that the housing is firmly closed and all screws are tightly fastened.
The fixture becomes hot during operation. Allow the fixture to cool approximately 30 minutes prior to servicing or
maintenance.
Dismantling of the unit in case of its repair must not be carried out in rain.
Eminere Inground Wireless DMX
4
Immunity of the equipment is designed for electromagnetic environments E1, E2, E3 according to the standard
EN55103-2 ed.2 Electromagnetic compatibility. Product family standard for audio, video, audiovisual and
entertainment lighting control apparatus for professional use. Part 2: Immunity.
The installation company should check levels of possible interferences above the tested levels E1,E2,E3 given by
this standard (e.g. transmitters in surrounding area) before installing the equipment.
Emission of the equipment complies with the standard EN55032 Electromagnetic compatibility of multimedia
equipment – Emission Requirements according to class B.
Please consider that unauthorized modifications on the fixture are forbidden due to safety reasons!
Operate the fixture only after having familiarized yourself with its functions. Do not permit operation by persons
not qualified to operate the fixture.
If this device will be operated in any way different to the one described in this manual, the product may suffer
damages and the warranty becomes void. Furthermore, any other operation may lead to dangers like short-circuit,
burns, electric shock etc.
2. Fixture exterior view
3. Installation
The unit must be installed by a qualified electrician in accordance with all national and local electrical and
construction codes and regulations.
This device falls under class one and must be grounded!
With respect to the purpose of using the unit, the residual current circuit breaker is highly recommended.
1. Eminere Inground
2. Data/Power cable
3. Tilt adjustment mechanism
4. Mounting sleeve
Eminere Inground Wireless DMX
5
3.1 Mounting the Eminere Inground
Warning!
If the Eminere Inground will be exposed to max. allowed static load, the subsoil under the installation sleeve has
to withstand load of: 45kN (standard covering glass)
23kN (antiskid covering glass).

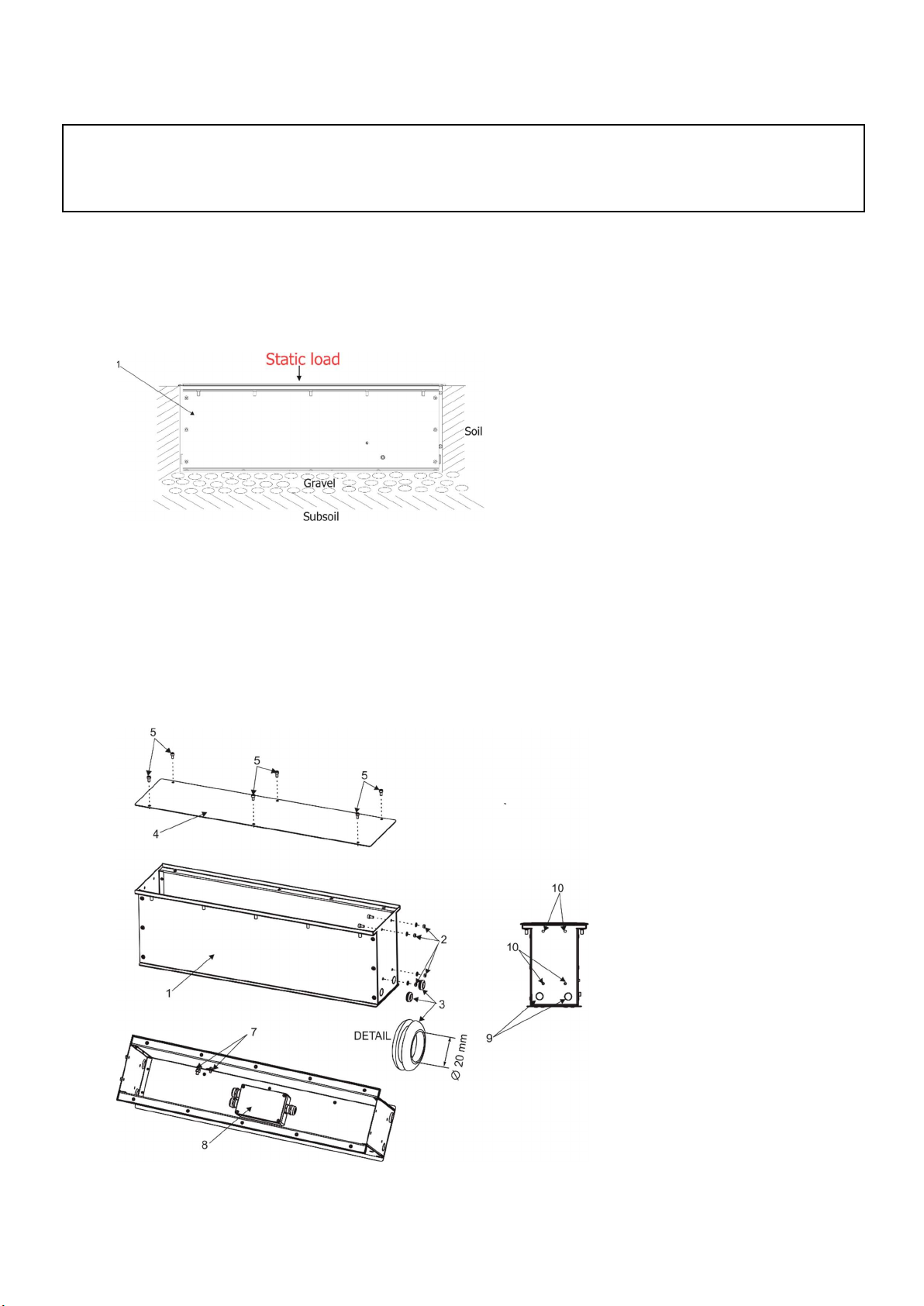

Example of installation of the Eminere Inground 2
1. Prepare an adequate hole with a good drainage leaving at least 300 mm of gravel on the bottom of the
hole for inserting the mounting sleeve (1) into the prepared hole. There must not stay water in the
mounting sleeve.
2. Remove the temporary cover (4) from the mounting sleeve (1) by unscrewing the six cap head allen bolts
(5).
3. In sleeve that Emineres inground wil be installed side by side, the four holes (10) on the side of the
mounting sleeve serve for attaching next mounting sleeve by means of the four screws M5x10 (2) (with
washer and nuts). Two rubber grommets (3) insert to the holes (9) on the side of the mounting sleeve
which you will use for passing cables to next mounting sleeve (the rubber grommets insert to holes after
screwing both mounting sleeves together).
4. The connection points (7) serve for grounding the Eminere inground and the mounting sleeves each other.
5. Connect the Eminere Inground (13) and all needed cables to the junction box (8).
Note: the cabel (11) of the Eminere Inground is 2 m long, we recommend to shorten the cable on 1 m.
Eminere Inground Wireless DMX
6
The supply cable to the mounting sleeve and power/data cable from the mounting sleeve must be placed
in a protective tube (12).
6. After connecting cables to the junction box (8), screw the Eminere Inground (13) to the mounting sleeve (1)
by means of the four countersunk- allen head bolts M5x18 (14). The crews (14) must be tightened
smoothly with torque of 4Nm. Do not use impact wrench.
7. Screw the cover plates (15), (22) on the mounting sleeve (1) by means of the six countersunk- allen head
bolts M5x25 (16). The crews (16) must be tightened smoothly with torque of 4Nm. Do not use impact
wrench.
Eminere Inground Wireless DMX
7
Junnction box
The Eminere Inground is equipped with auto-switching power supply that automatically adjusts to any 50-60Hz AC
power source from 120-277 Volts.
Do not connect (disconnect) Emineres Inground each other when they are under voltage!
1. Unscrew the four screws M4x20 (17) on the cover of the junction box and remove this cover (18) with
gasket (19) to get access to the connection block (20).
2. Connect cables to the connection block (20).
Wiring of the Eminere cable (CE version):
Core Power Connection
Brown L
Blue N
Yellow/Green (earth)
Wiring of the Eminere cable (US version):
Core Power Connection
Black L
White N
Green (earth)
The three cable glands M20 (21) are intended for cable of diameter of 6-12mm.
Eminere Inground Wireless DMX
8
Cable gland M20:
We recommend to apply an adequate layer of the paste LOCTITE 5331 on the plastic holder of the cable
gland before inserting it into the body of the gland and an adequate layer of the paste LOCTITE 577 on the
thread of the gland body in case that you need to unscrew and remove the cable gland from the housing of
the junction box and and screw it back to the housing.
Remove end caps from cable glands before passing cables into the junction box.
Fully tighten cable gland nuts and check that cables are properly fastened in the cable glands.
Note: every cable gland has to be covered with the end cap if this cable gland is not used for cable passing.
3. After checking all connections, fill the junction box with synthetic resin. Make sure that the End cap is
inserted in unused cable gland and the earth wire for cover is pulled out of the junction box before filling it.
At filling of the junction box proceed according instructions stated on the bag of the resin.
The connection box (20) has to be fully poured in the resin.
Prepared junction box and resin bag.
Eminere Inground Wireless DMX
9
Junction box filled with resin.
4. Screw the cover (18) with gasket (19) to the junction box by means of the four screws (17) and check they
are fully tighten.
8. If you install two or more Emineres Inground side by side, you have to screw three types of the cover
plates: end (15), middle (23) and continuous (22). Insert the cover plate middle (23) between two
mounting sleeves and screw rest of cover plates to the Emineres Inground by means of the countersunk
allen head bolts M5x25 (16).
Earth wire
Eminere Inground Wireless DMX
10
Cover plates overview:
Single fixture
End fixture in a row of fixtures
Middle fixture in a row of fixtures
(15)-Cover plate end (optional )
(22)-Cover plate continuous (optional)
(23)-Cover plate middle (one piece is a standard part of fixture)
9. Tilt adjustment. The Eminere Inground can be tilted by +/-15° after installing it in the mounting sleeve.
Push and hold the small tube (24) to release the lock of the Eminere Inground and tilt the device to desired
position. Release the small tube (24) to lock the new position of the Eminere Inground.
