Riva RC3500 Manual de usuario

www.rivatech.de

Quick Installation Guide

This manual has been designed to guide you through basic settings of your

IP devices, such as installation and configuration for using them.

www.rivatech.de

Step1. Assemble and install IP device

Manual adjustment for 3-axis movements

Before installation, make a manual adjustment on the inner liner. Perform 3-axis movements

manually by turning the inner liner to different directions as above, and check if it moves

properly.

1) Connect the LAN cable and

power supply cable with the

camera. For the detailed

information, please refer to the

Step2.

2) Place the installation template

(which is included in the package)

on the ceiling.

3) Drill three holes on the

template and insert anchor

blocks into the holes. Fasten the

camera with screws.

4) Put the dome cover on the

main body of the camera. Make

sure the main body and the cover

fit each other into place.

5) Fasten the cover with screws.

When assembling the main body of the camera and its dome cover, make sure

they fit each other into place.

The camera may fall off the ceiling even after the proper installation and

mounting. To prevent any accident, make sure the ceiling is firm and stable

enough to support the camera. If any reinforcement is needed, consult with

your safety personnel and proceed with the installation.

Caution

www.rivatech.de

Step2. Connect cables to IP device

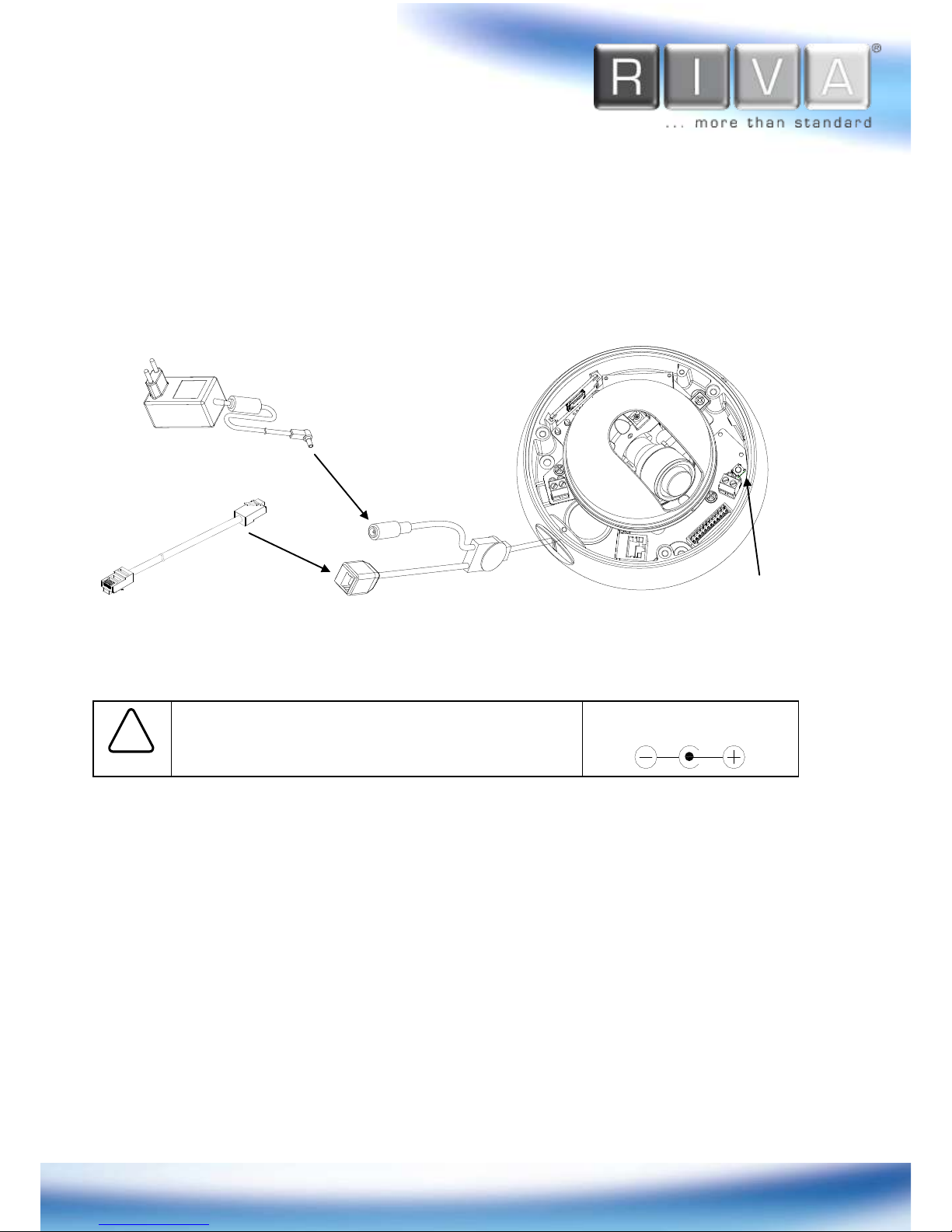

Connect each cable to the device. To see the correct positions of all connectors, refer to the

following image below.

Step3. Set up network environment

12V

Make sure the polarity is correct. Incorrect

connection may cause malfunction or damage to

the IP device.

Caution

Power Adaptor Connector (DC

12V)

* Models herein and their

appearance are subject to change

without any prior notice.

Reset Button

www.rivatech.de

The default IP address of your IP device is 192.168.XXX.XXX. You can find the available IP

address from the MAC address of your device. Please make sure the device and your PC are

on the same network segment before running the installation. If the network segment was

different between your PC and the device, change your PC’s settings as below.

IP address : 192.168.xxx.xxx

Subnet mask: 255.255.0.0

www.rivatech.de

STEP4. View video on web page

View the live video on a web page using your IP device and its IP address. To have the correct

IP address ready and use it on a web page:

1. Convert a MAC address to an IP address. Refer to the Hexadecimal-Decimal Conversion

Chart at the end of this manual.

(The MAC address is attached on the side or bottom of the device.)

2. Open a web browser and enter the IP address of the device.

3. Click pop-up blocked and install the ActiveX setup.exe by clicking the Run or Save button.

You need to install the ActiveX for displaying the images.

4. Follow the instructions of the dialog boxes and complete the installation. Then the live video

is displayed on the main page of the web browser.

5. If the live video is not displayed with the message said,

“This software requires the

Microsoft XML Parser V6 or higher. Please download MSXML6 from the Microsoft

website to continue. Error code: Can not create XMLDOMDocument.”

, please download

and install the relevant MSXML.

* The explanation and captured images on this manual are mainly on the basis of Internet

Explorer 7.0.

MAC address = 00-13-23-01-14-B1 →IP address = 192.168.20.177

Convert the Hexadecimal number to Decimal number.

www.rivatech.de

Step5. Setting IP Address

To set up the Network configuration:

1. Click Setup on the upper right of the web page. The login page is displayed as below.

2. Enter the default user name (root) and the default password (pass), and then select OK.

3. Click System Options on the left of the Setup page, and then select TCP/IP from the drop-

down menu.

4. Input the data for the IP address configuration, and click the Apply button on the bottom of

the page.

To change the IP address, please make sure to check and have the correct Subnet mask and

Gateway ready. To use DHCP, select Obtain an IP address via DHCP.

To learn how to set up the web page for advanced configuration, refer to the Web Page

User's Manual, which is available on the SDK at the following path.

{SDK root}\DOC\

The default username

and password are:

root and pass.

www.rivatech.de

Advanced setup (IPAdminTool)

IPAdminTool is a utility program for IP products. Following list shows a part of features that

IPAdminTool provides.

Configure IP address, Subnet mask and Gateway

Shows network related information such as MAC address

Updates firmware

Reboots the device

IPAdminTool is provided with SDK at the following SDK path.

{SDK root}\BIN\TOOLS\AdminTool\

Rebooting

Reset can be carried out as follows:

1. While the device is in use, press and hold the Reset.

2. Release the Reset button after 3 seconds.

3. Wait for the system to reboot.

www.rivatech.de

Resetting to the Factory Default Settings

This will reset all parameters, including the IP address, to the Factory Default initialization.

To perform the Factory Default settings:

1. Disconnect the power supply from the device.

2. Connect the power to the device with the Reset button pressed and held.

3. Release the Reset button after 5 seconds.

4. Wait for the system to reboot.

More Information

To learn more about using other features of your devices, refer to the manual, which is

available on the SDK at the following path.

{SDK root}\DOC\

www.rivatech.de

Hexadecimal-Decimal Conversion Table

Refer to the following table when you convert the MAC address of your device to IP address.

Hex

Dec

Hex

Dec

Hex

Dec

Hex

Dec

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

www.rivatech.de

Hex

Dec

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

156

157

158

159

Hex

Dec

160

161

162

163

164

165

166

167

168

169

170

171

172

173

174

175

176

177

178

179

180

181

182

183

184

185

186

187

188

189

190

191

Hex

Dec

192

193

194

195

196

197

198

199

200

201

202

203

204

205

206

207

208

209

210

211

212

213

214

215

216

217

218

219

220

221

222

223

Hex

Dec

224

225

226

227

228

229

230

231

232

233

234

235

236

237

238

239

240

241

242

243

244

245

246

247

248

249

250

251

252

253

254

255
