Ricoh Aficio AP4510 Manual de usuario
1
Printer Hard Disk Type 4510
(Code: G065)
For Machine Code: G065
INSTALLATION GUIDE
Preparation
For a safe operation, read "Safety
Information" in the Setup Guide.
RCAUTION:
Important
❒Check the printer nameplate to
confirm the model code.
❒The Printer Hard Disk can be dam-
aged by a small amount of static
electricity. You should touch some
metal to discharge static electricity.
❒When the bidirectional transmis-
sion is not in operation, you must
set up the installed hard disk drive
using the printer driver in order to
use it. See the Setup Guide for set-
ting up options. See the Setup
Guide for information about bidi-
rectional transmission.
❒When the Printer Hard Disk is be-
ing accessed, the Data In indicator
blinks. Do not turn off the printer
power when the Data In indicator
is blinking as it may destroy the
hard disk.
❒When a print job is being spooled,
the printer sends data to the hard
disk, and the Data In indicator
blinks. Do not turn off the printer
or computer while a print job is be-
ing spooled, as it may destroy the
hard disk or the spooled job will
remain in the hard disk and be
printed repeatedly until erased.
ACheck the contents of the box for
the following items:
• Printer Hard Disk
• Installation Guide
•PowerCord
•Connector
BTurn off the printer.

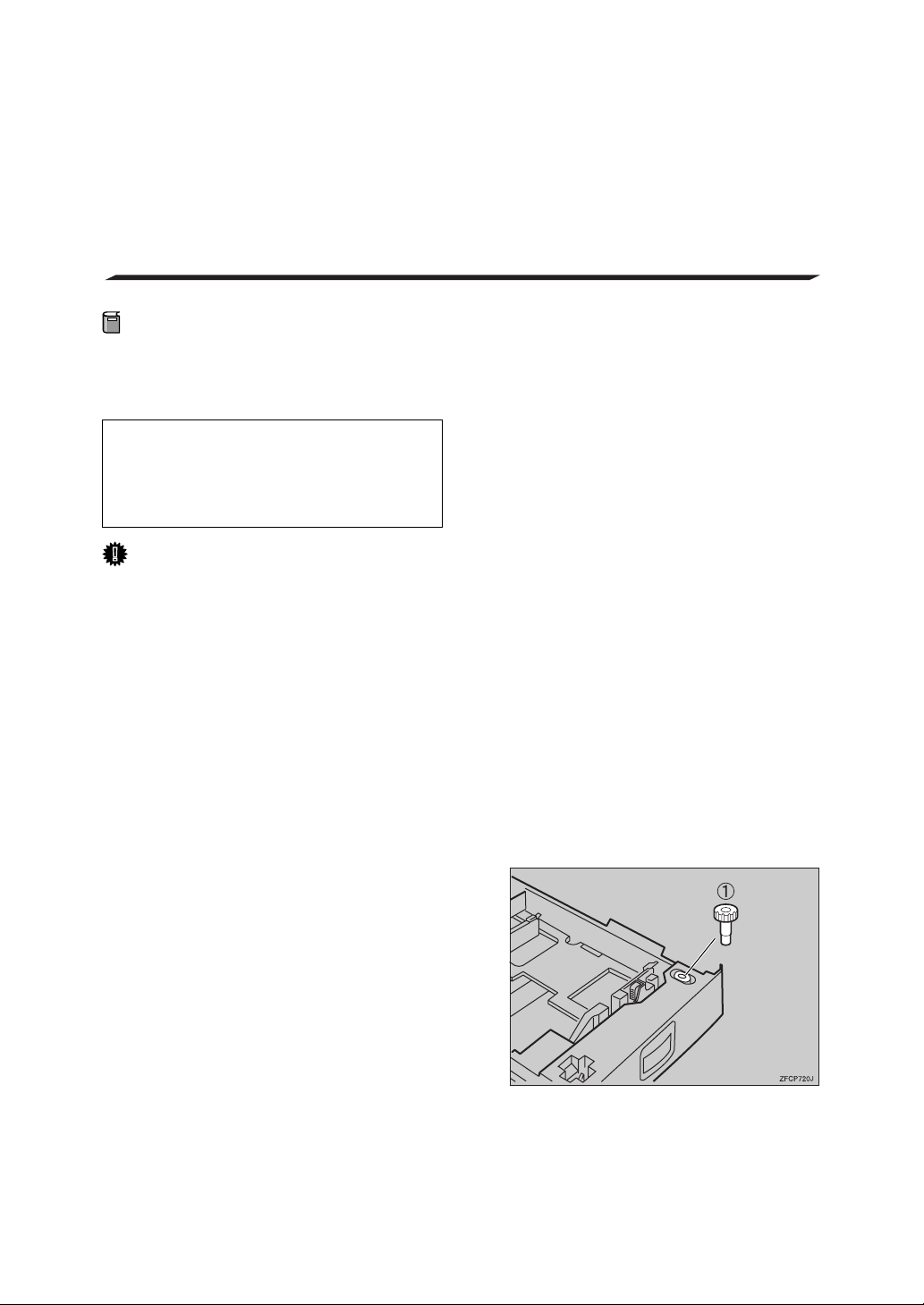

CPull out the first paper tray (Tray
1) and take the screwdriver (A
AA
A)
from the tray. Each screw to be re-
moved requires this screwdriver.
•Do not touch the inside of the
printer board compartment. It
may cause a machine malfunc-
tion or a burn.
G065-8539
2

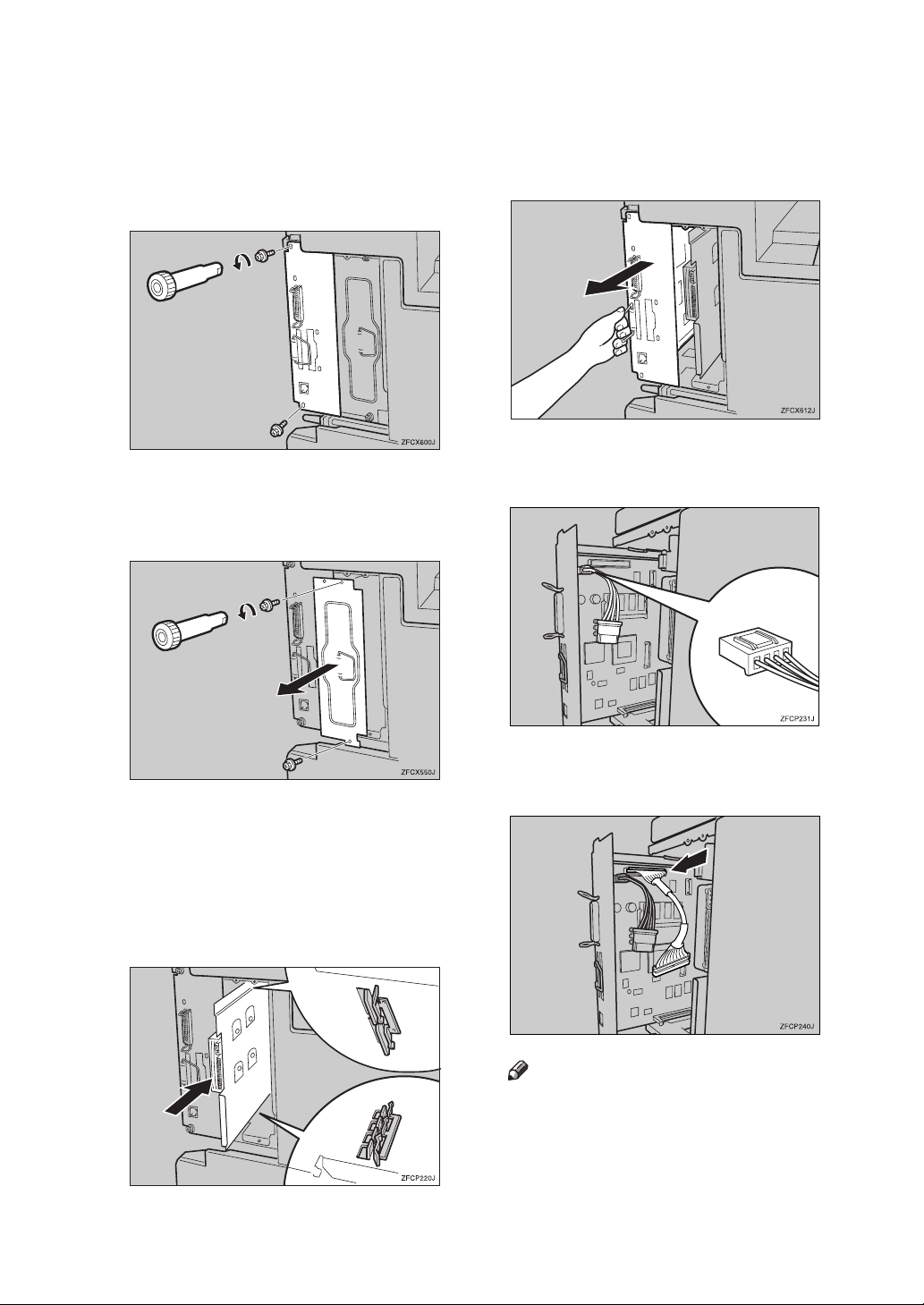

DRemove the two screws locking
the printer board.
The screws are needed to lock the
printer board afterwards.
ERemove the two screws locking
the hard disk drive cover next to
the printer board.
The screws are needed to lock the
cover afterwards.
FAlign the Printer Hard Disk with
the top and bottom rails , and then
insert the Printer Hard Disk slow-
ly until it stops.
GHold the handle, and carefully
pull out the printer board half-
way.
HConnect the bigger plug of the
power cord to the printer board.
IConnect the connector to the
printer board.
Note
❒Connect either side of the con-
nector.
3

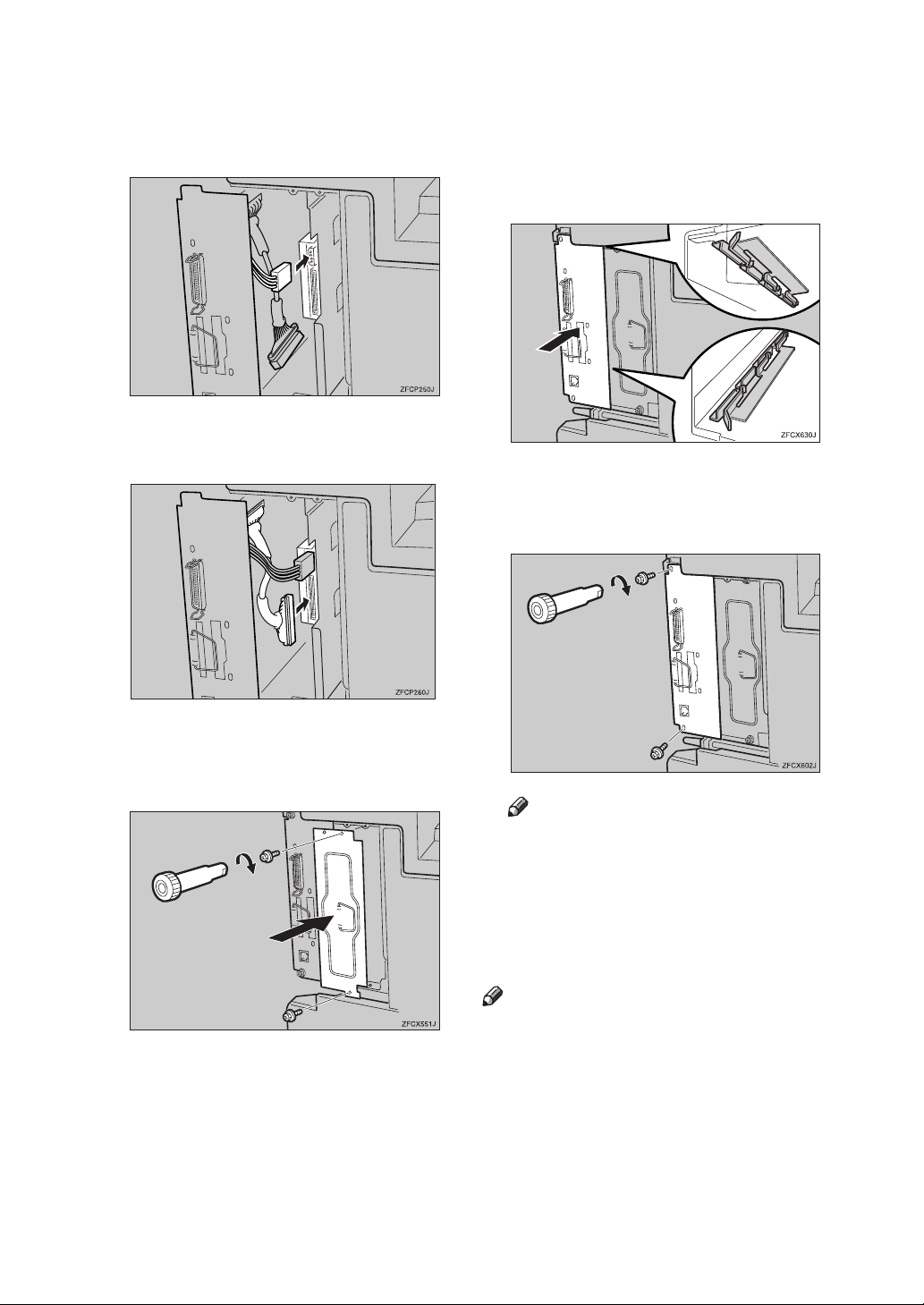

JConnect the power cord to the
Printer Hard Disk.
KConnect the connector to the
Printer Hard Disk.
LLock the Printer Hard Disk cover
with the two screws you removed
in step E.
MAlign the printer board with the
top and bottom rails in the print-
er, and then insert the printer
board slowly until it stops.
NLock the printer board with the
two screws you removed in step
D.
Note
❒Be sure to return the screwdriv-
er to the paper tray after using
it.
The Printer Hard Disk will be for-
matted automatically when the
power is turned on.
Note
❒Print a configuration page to con-
firm that the Printer Hard Disk is
properly installed. See "Printing a
Configuration Page" in the Printer
Reference on the CD-ROM labeled
"Operating Instructions".
4
Formatting Printer Hard Disk
Type 4510
If you are formatting the Printer Hard
Disk from the menu, follow the pro-
cedures below while using the control
panel.
APress {
{{
{Menu}
}}
}.
“Menu” appears on the panel dis-
play.
BPress {
{{
{U
UU
U}
}}
}or {
{{
{T
TT
T}
}}
}to display the
“Maintenance” menu.
Menu:
Maintenance
CPress {
{{
{Enter q
qq
q}
}}
}.
The following message appears on
the panel display.
Menu:
Image Density
DPress {
{{
{U
UU
U}
}}
}or {
{{
{T
TT
T}
}}
}to display
“HDD Format”.
Menu:
HDD Format
Note
❒If "HDD Format" is not dis-
played, the Printer Hard Disk is
not installed properly. In such a
case, reinstall from step B.
EPress {
{{
{Enter q
qq
q}
}}
}.
The following message appears on
the panel display.
HDD Format:
Press# To Start
FPress {
{{
{Enter q
qq
q}
}}
}.
Important
❒Do not turn off the printer while
formatting the Printer Hard
Disk. Turning off the printer
while formatting the Printer
Hard Disk can damage the
Printer Hard Disk.
If you successfully format the
Printer Hard Disk, the following
message appears on the panel dis-
play.
Format Completed
Restart Printer
Note
❒If you fail, see “Troubleshooting”
in the Printer Reference, on the
CD-ROM labeled "Operating
Instructions".
GTurn off the power switch, and
then back on.
Copyright©2001
G065-8539
Printed in Japan
UE USA
