Renesas Synergy DK-S7G2 Manual de usuario

QUICK START GUIDE

Design Journey Lab 1 –FL00IA/B Page 1 of 16

Console Swap Demonstration

Synergy

Description: This demonstration illustrates on of the key advantages of the Synergy Platform in

accelerating time to market and similifying development. SSP Frameworks use common interfaces that

make it very easy to swap in and out different versions of hardware based implementations. In this

demonstration a simple user interface Console will be quickly modified to switch between a USB

communications implementation and a Telnent communications implementation.The swap is easily

accomplished without writing any code since the Console Framework uses common API and structures

between the USB Communications Framework and the Telnet Server Communications Framework.

Demonstration Objectives

1. Illustrate, using a hands-on example,

how easy it is to modify Synergy

Platform designs for different

hardware implementations

Demonstration Materials

PC or Laptop

ISDE 4.2.0.012

SSP v1.00

J-Link Driver

TeraTerm Pro

DKS7G2 Kit

5V AC/DC power adapter

USB Cables Type-A to Micro-B (2)

Ethernet Cable

QUICK START GUIDE

Design Journey Lab 1 –FL00IA/B Page 2 of 16

1 Setup & Configure DK-S7G2

Procedural Steps

Step 1.1 Connect the DK-S7G2 (Figure 1) to power, the Seeger J-Link OB Debug port to the laptop and

the USB Console port to the laptop (Figure 2). Driver recognition for the console connection

isn’t found until the DK-S7G2 is running, so don’t worry if you don’t hear the audio indication

yet.

Figure 1: DK-S7G2

Figure 2: Power, Debug and USB Console Connections

QUICK START GUIDE

Design Journey Lab 1 –FL00IA/B Page 3 of 16

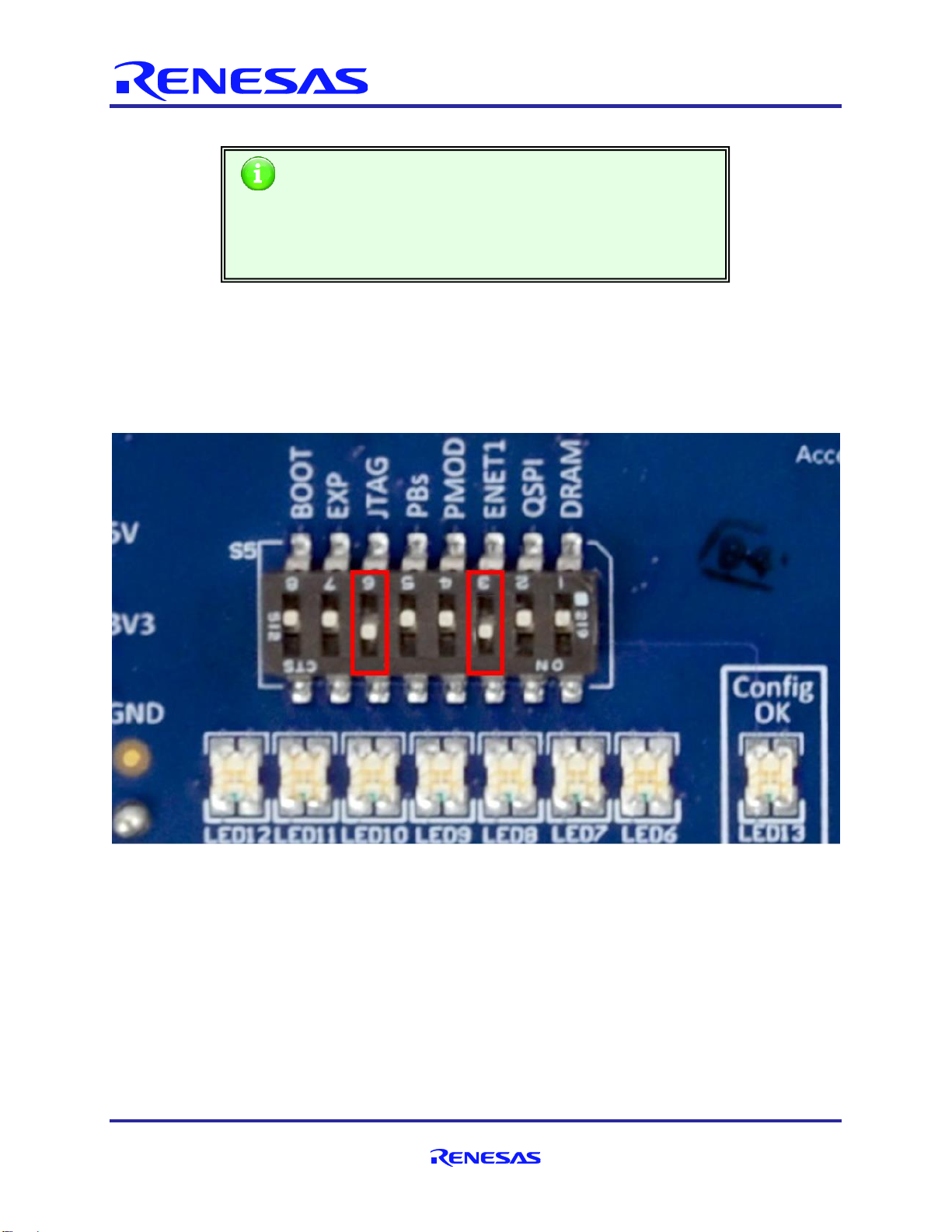

Once the Power and J-Link OB are connected to the DK-

S7G2, LED3 should be a solid Green. If LED3 is flashing and the J-

Link OB is connected to the correct USB port on the DK-S7G2, then

the Segger driver on the host computer is incorrectly installed. Refer

to the ISDE installation guide to resolve the issue.

Step 1.2 Turn ON the ‘JTAG’ switch, and the ‘ENET1’ switch on S5 on the main board (Figure 4).

Make sure all other switches are in the off position.

Figure 4: S5 Settings

QUICK START GUIDE

Design Journey Lab 1 –FL00IA/B Page 4 of 16

2 Import the Console Swap Demonstration Project

Procedural Steps

Step 2.1 Open e2 studio, click ‘File’ and then ‘Import’

QUICK START GUIDE

Design Journey Lab 1 –FL00IA/B Page 5 of 16

Step 2.2 Select ‘Existing Projects into Workspace’ and click ‘Next’

QUICK START GUIDE

Design Journey Lab 1 –FL00IA/B Page 6 of 16

Step 2.3 Select the ‘Select archive file’ radial button and click browse. Locate the ConsoleSwapUSB

zip file. Make sure the check box is selected and click ‘Finish’. (If this project name already

exists in your workspace, you won’t be able to select the check box. You will need to remove

that project in order to import).

QUICK START GUIDE

Design Journey Lab 1 –FL00IA/B Page 7 of 16

Step 2.4 To confirm the correct Synergy license, right click the project in Project Explorer. Select

‘Properties’ in the pop up menu. Type ‘License’ into the search bar on the left of the window

and click on ‘Synergy License’. Select the navigation button to the right of the ‘License file’

drop down menu and navigate to the address below. Once your correct license file is selected,

click ‘Apply’ and then ‘OK’. (An example location and file name is given below).

C:\Renesas\e2_studio\internal\projectgen\arm\Licenses\SSP_License_Example_EvalLicense_20151120.xml

Step 2.5 Once the project is open, double-click the ‘configuration.xml’ file as shown below to open the

Synergy Configuration tool.

QUICK START GUIDE

Design Journey Lab 1 –FL00IA/B Page 8 of 16

Step 2.6 Build the project. It sould compile without errors. (Note that some warnings may exist. You can

ignore these). Run the debugger. (If you need to create a debug configuration file, you can

create one by selecting Run > Debug Configurations, then double click Renesas GDB

Hardware Debugging, select the executable file from the Debug folder, and on the Debugger

tab, select target device R7FS7G2. Click Debug to begin a debugging session).

Step 2.7 Click on the Run icon a couple of times to get the program to begin executing. You should get

an audio indication that the Console USB connection has been recognized. (Open Device

manager to check that your Console USB connection is active and find the corresponding

COM port for use with the TeraTerm session).

Step 2.8 Start-up Tera Term. You should be able to select the Serial Interconnect session with the right

COM port and then connect. Type a carriage return and you should get the console prompt

and if you then type a “?” you will get the help menu as seen in the following figure.

QUICK START GUIDE

Design Journey Lab 1 –FL00IA/B Page 9 of 16

Step 2.9 Type in “TOGGLE” to toggle the LED on the DK-S7G2. Type it a few times to verify the toggle

works. Note that you can use an up arrow to ‘replay’the previous command. This feature is

supported automatically within the console framework.

QUICK START GUIDE

Design Journey Lab 1 –FL00IA/B Page 10 of 16
